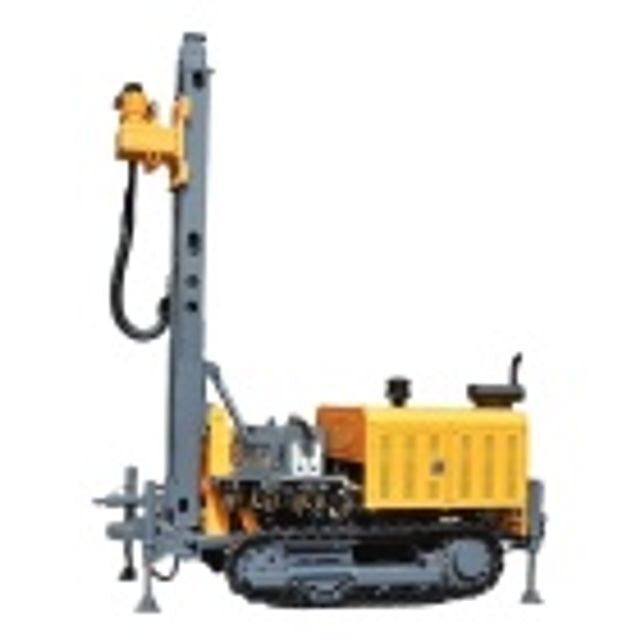

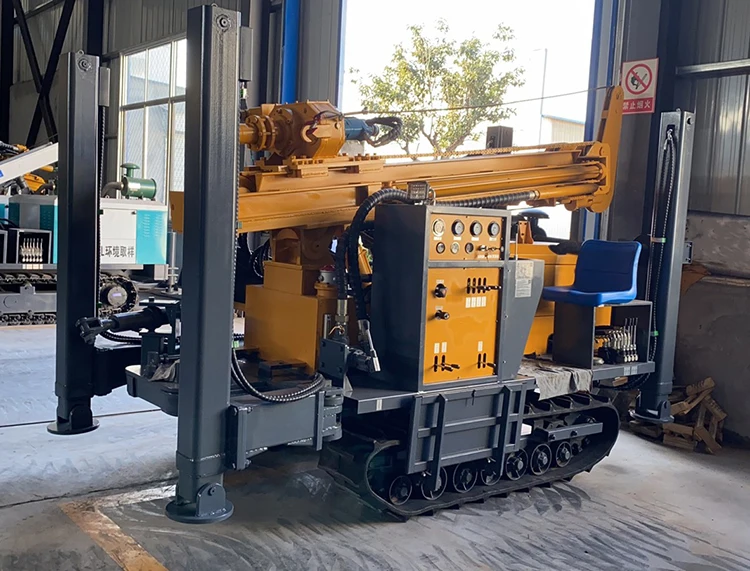

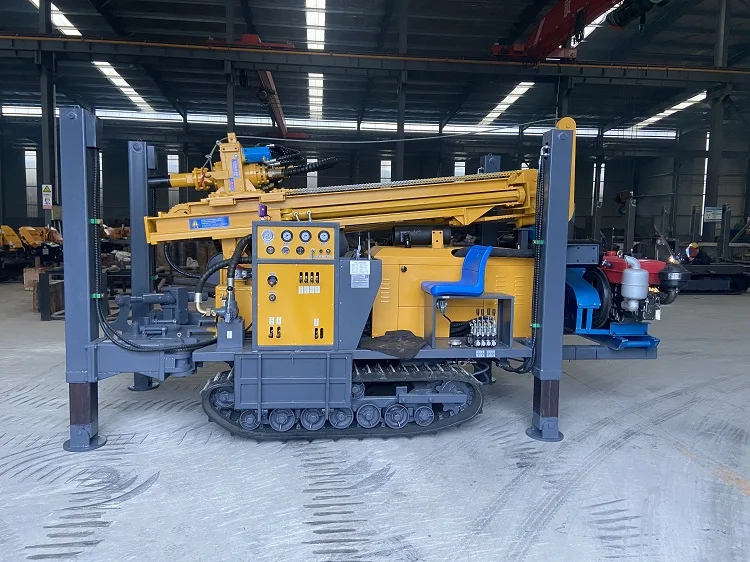

200m Depth borehole Drilling Rig Water Well drilling rig suitable for both air and water drilling

Supplier: Cruking Engineering Equipment (Xiamen) Co., Ltd.
Region: Fujian, China
Contact: Mr Jerry Chen
Price: $13900.00 / 1 - 1 units
$13800.00 / >=2 units
Min. Order: 1 unit

Click here to contact

Product details

Type:	Rotary Drilling Rig;	Showroom Location:	Egypt,Canada,Turkey,United States,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia;
Warranty:	1 Year;	Supply Ability:	30 Unit/Units per Month;
Brand Name:	Cruking;	Speed:	2.5 km/h;
Mobility:	Mobile crawler;	Machinery Test Report:	Provided;
Dimension(LWH):	380015002200 mm;	Package Preview:	;
Key Selling Points:	Competitive Price;	Video outgoing-inspection:	Provided;
Rated power:	65 kw;	Power Type:	Diesel;
Marketing Type:	New Product 2020;	Drilling Diameter:	1500mm,2200 mm;
After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Core Components:	Motor,Pressure vessel,Pump,PLC,Gear,Bearing,Engine,Gearbox;
Warranty of core components:	1 Year;	Voltage:	-;
Operating weight:	4.5ton;	Drilling diameter:	140-250 mm;
Model:	CK200;	Swing speed:	45-65 rpm;
Drilling Depth:	Max.200m;	Usage:	Water Well;
Weight:	4500;	Condition:	New;
Port:	Qingdao, shanghai, xiamen;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T;
Swing torque:	3200-4600 N.m;	Packaging Detail:	Nude package;
Drilling depth:	200 m;	Dimension:	380015002200 mm;
Rig lifting force:	12T;	Certification:	CE,ISO,EPA;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Restaurant,Retail,Construction works ,Energy & Mining;	Local Service Location:	Egypt,Canada,Turkey,United States,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;
Place of Origin:	Shandong China;

200m Depth borehole Drilling Rig Water Well drilling rig suitable for air drilling and water drilling

Feature

The machine can do both air drilling (with air compressor) and water drilling (with mud pump).

The mutifunctional drill rig of geothemal well is an improved device. Equipped with the Yuchai four cylinder engine, the drill rig meets national standards for emissions and environment. Meanwhile, the hydraulic system, supporting configuration and appearance, etc. have been optimized, thus improving the performance and working efficiency. The double rotation motor increased the rotaty torque and revolving speed.

The one-ton winch is optional for the multifunctional drilling rig of geothermal well, make the lifting easier. In addition, the 1.5m supporting oil sylinder is also optional, making the loading and tracsport convenient.

Specification

Model	CK200
Operating weight (T)	4.5
The hole diameter (mm)	140-254
Drilling depth (m)	200
One time advance length (m)	3.3
Walking speed (km/h)	2.5
Climbing angels (Max.)	30
Rated power (kw)	65
Working pressure (mpa)	1.7-2.5
Air consumption (m3/min)	17-31
Drill pipe diameter (mm)	76 /89
Drilling pipe length (m)	1.5/2.0/3.0
Rig lifting force (t)	12
Swing speed (rpm)	45-65
Swing torque (N.m)	3200-4600
Dimensions (mm)	380015002200
