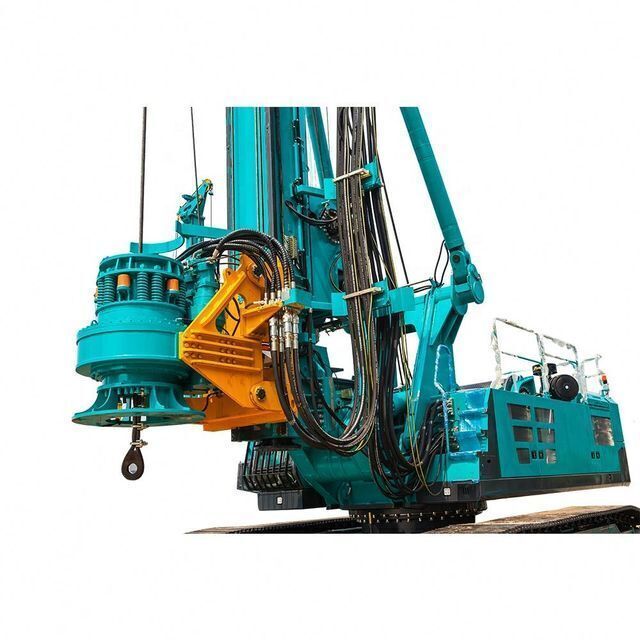

Pile Rock Pile Driver SWDM60 Mini Rotary Drilling Rig Ing Machine For Sale

Supplier: Sinomada Heavy Industry (Changsha) Co., Ltd.
Region: Hunan, China
Contact: Ms Lomen Fan
Price: $85000.00 / 1 - 2 sets
$62000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Drilling Diameter:	75mm;	Weight:	22t;
Core Components:	Motor,Pressure vessel,Pump,PLC,Gear,Bearing,Engine,Gearbox;	Condition:	New;
Warranty of core components:	1.5 years;	Warranty:	1 Year;
Supply Ability:	600 Set/Sets per Month;	Usage:	Coal;
Place of Origin:	Hunan China;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Port:	Shanghai/Qindao/Lianyungang;	Key Selling Points:	Famous brand low voltage components;
Local Service Location:	Egypt,Turkey,United States,France,Philippines,Peru,Pakistan,Mexico,Thailand,Malaysia,Kenya,Argentina,South Korea,Colombia,Algeria,Sri Lanka,South Africa,Kazakhstan,Ukraine,Uzbekistan,Tajikistan;	Video outgoing-inspection:	Provided;
Packaging Detail:	Container/RORO;	Type:	Rotary Drilling Rig;
Drilling Depth:	Max.20m;	Power Type:	Diesel;
Machinery Test Report:	Provided;	Product name:	Rotary Drilling Rig;
After-sales Service Provided:	Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Showroom Location:	Egypt,Turkey,Philippines,Brazil,Peru,Pakistan,Mexico,Thailand,Morocco,Kenya,Chile,UAE,Colombia,Romania,Bangladesh,South Africa,Kyrgyzstan,Nigeria,Uzbekistan,Malaysia,Australia;
Dimension(LWH):	5445X2600X12640mm;	Certification:	CE/ROSE;
Applicable Industries:	Hotels,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Marketing Type:	Ordinary Product;

SWDM60 Mini Rotary Drilling Rig With 10m Drilling Diameter for Sale

Diamension	LWH(Working)	mm	5445X2600X12640
Diamension	LWH(Transportion)	mm	8945X2600X3470
Overall height		mm	12640
Total weight		t	22
Max.drilling diameter		mm	1000
Max.drilling depth		m	27/20
Engine	Brand		Cum-mins
	Moder		QSF3.8-SO12319
	Power	kW/rpm	93/2200
Rotary Power Head	Max.torque	kN.m	60
	Rotation speed	rpm	8~35
	High-speed throwing soil(optional)	rpm	70
Pressurized Systems	Max.applied pressure	kN	100
	Max.lifting force	kN	120
	Max.stroke	mm	3000
Main Winch	Max.lifting force	kN	80
Main Winch	Max.rope speed	m/min	72
Aux Winch	Max.lifting force	kN	30
Aux Winch	Max.rope speed	m/min	50
Drill Mast	Left and Right tilt	°	±3
Drill Mast	Forward tilt	°	5
Chassis	Crawler width	mm	600
	Crawler extension width	mm	2600
	Crawler length	mm	3765
