Famous Brand ZOOMLION Platform Fire Fighting Truck 5310DG32 for Hot Sale

Supplier: Sinomada Heavy Industry (Changsha) Co., Ltd.
Region: Hunan, China
Contact: Ms Lomen Fan
Price: $110000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Type:	Pumper;	Port:	Shanghai/Qingdao/Lianyungang;
Max. torque(Nm):	2100;	Tank Capacity:	5001 - 7000L;
Brand Name:	ZOOMLION;	Foam tank volume(L):	500;
Place of Origin:	China;	Packaging Detail:	nude/roro/bulk;
Drive Wheel:	3x2;	Horsepower:	251 - 350hp;
Max speed(km/h):	90;	Supply Ability:	100 Unit/Units per Month;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Size:	860025003460 mm;
Max. spraying reach of fire monitor(m):	≥80;	Fuel Type:	Diesel;
Transmission Type:	Manual;	Condition:	New;

Product Description

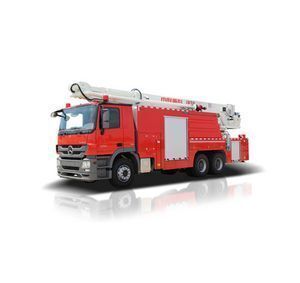

Famous Brand ZOOMLION Platform Fire Fighting Truck 5310DG32 for Hot Sale

01.Excellent rescue capability

All main booms could extend and retract simultaneously which means high rescue efficiency. And the articulated boom is designed on the side of main booms for decrease the height of the vehicle. All booms are designed in polygonal section with higher flexural strength and tensional strength, which means lower deflection and oscillation in working.

02.Powerful fire-extinction capacity

The vehicle 's water system assembled with water pump, water tank, water-monitor, water pipe, so it can extinguishing through its water system or other vehicle's water system, and all water-pipes are designed in stiffness structure including the pipes at hinge point.

03.beautiful appearance design

The overall measurement of the vehicle is rather smaller than others FF trucks of compactor in the same height of rescue capability, better motility. It can be used in various complex conditions.

The vehicles could operate in condition of outriggers can't fully expending; it is quit suitable for the narrow area rescue. The system could calculate the best safety working range in condition of outriggers is random expended and supported.

04.Ultra safety technology

The 8 times safety factor of booms' telescopic structure is more than the national standards.

The water pressure protection system can release the pressure rapidly that could protect the water-system very well.

High precision load-detection sensors

PARAMETERS

Brief Code	DG32
Chassis	Actros3344 E5
Engine power(kW)	320
Max. torque(Nm)	2100
Cab Seats	2
Max speed(km/h)	90
Fuel tank volume(L)	300
Wheel base(mm)	4500+1350
Fuel	Diesel
Emission Standard	National-V
Max working height(m)	32
Max. working outreach(m)	20.5
Engine power/GVW(Kw/t)	10.4
Cage rated capability(kg)	400
Fire monitor model	AKRON3482+5177
Max. flowing of fire monitor(L/min)	4800
Max. spraying reach of fire monitor(m)	≥80
GVW(kg)	31400
Water tank volume(L)	5500
Water pump model	RSD100
Max. flowing of water pump(L/min/MPa)	6000/1.03
Overall dimensions(mm)	10500×2500×3750
Boom sections	5
Boom operating time(s)	≤120
