Hydraulic Lifter for Tank/Tank lifting hydraulic jacks/ Top to Bottom Tank Construction Equipment

Supplier: Wincoo Engineering Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jackie Nie
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Jiangsu China (Mainland);	Min Height:	400MM;
Max Height:	Customized;	Certification:	CE;
Type:	Hydraulic Jack;	Supply Ability:	230 Set/Sets per Year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Port:	SHANGHAI;
Capacity (Load):	>50T;	Brand Name:	WINCOO;
Packaging Detail:	Container;

Technical data

1,Pump station (YB-60)

Maximum pressure:25MPa	Power:11KW
Rated oil flow:60L/min	Motor rotate speed:1470r/min
oil tank capacity:360L	System temperature :20-60℃
oil filter precision:20υm	Voltage:220W
System oil type:L-HM46# antiwear hydraulic oil	Total weight:360Kg
Outsize(mm):11007501000

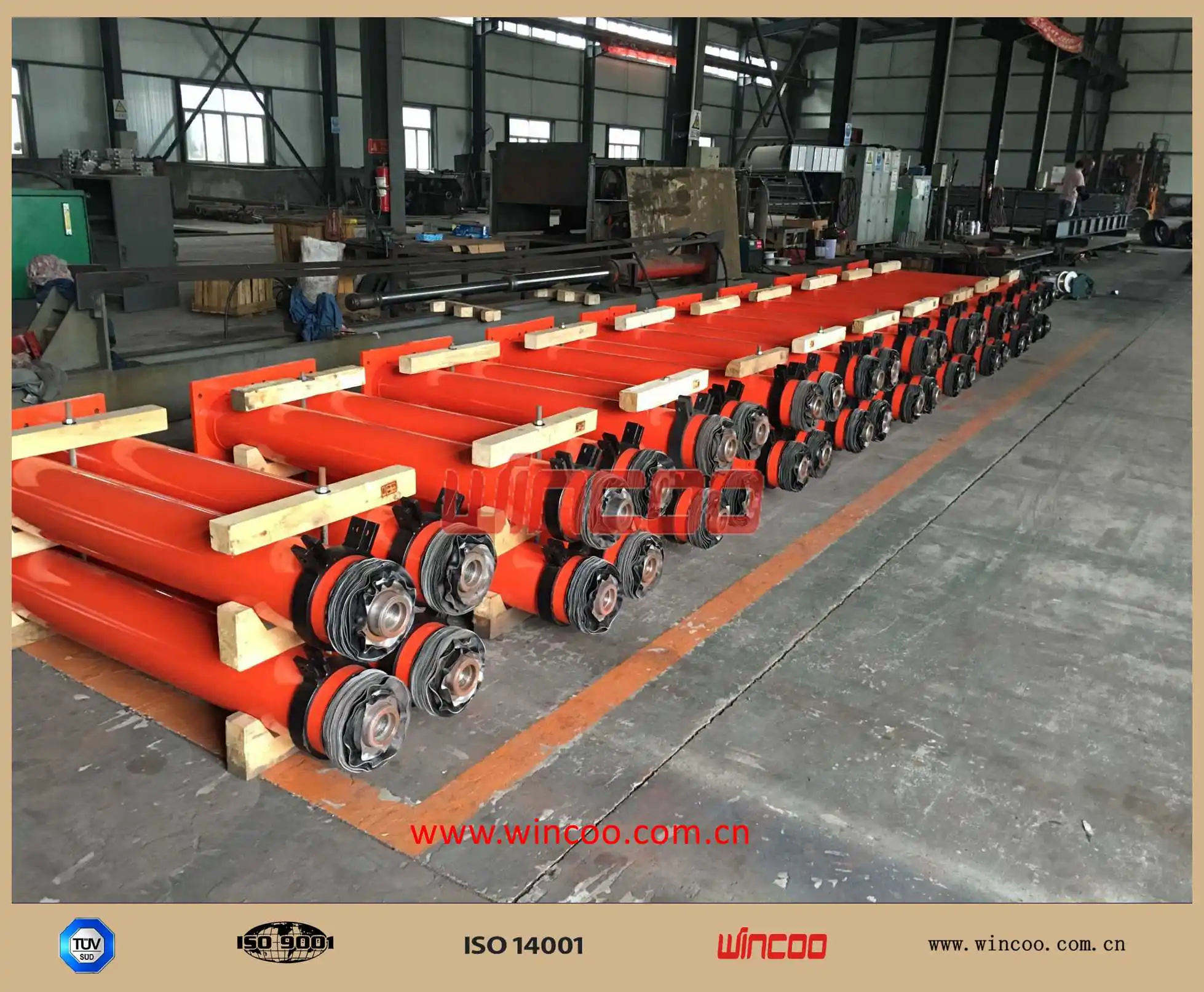

2,SQD-160-100S.F JACKS

theory lifting capacity:160KN	Rated lift capacity:160KN
rated oil pressure:16MPa	Hydraulic stroke:100±0.5mm
Glissade capacity:≤5mm	weight:≤20Kg
Installation size for up and down chuck: settle 3 *14U hole on the circumference of a φ120 circle
Size(mm):160160490
Suitable lifting rod:φ30round steel(45#)
chuck device: screw mechanism

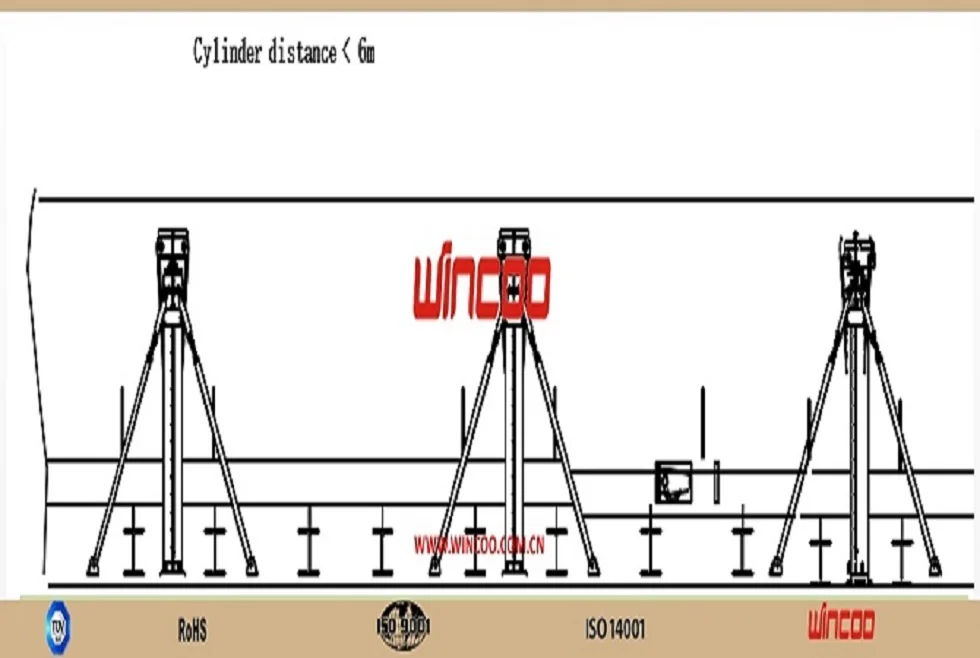

3,jack support (ST-160N-2600L)

Total height:4460mm (will be confirmed after design)	Lifting rod height:3900mm
Slider stroke:3630mm (will be confirmed after design)
distance between expansion loop support to ground:310mm

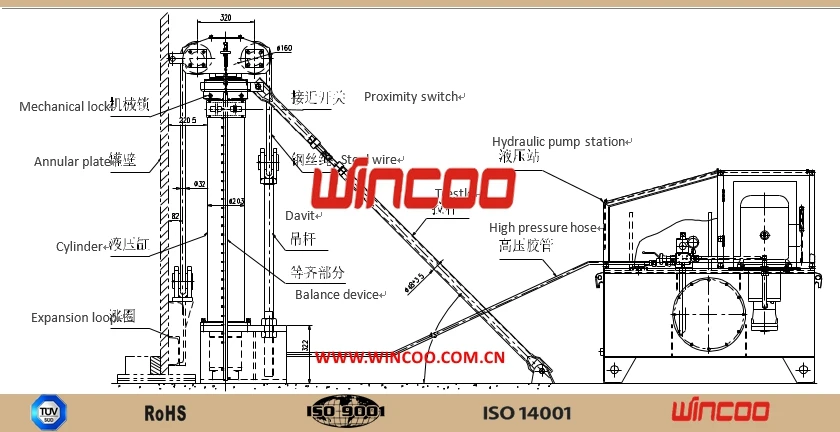

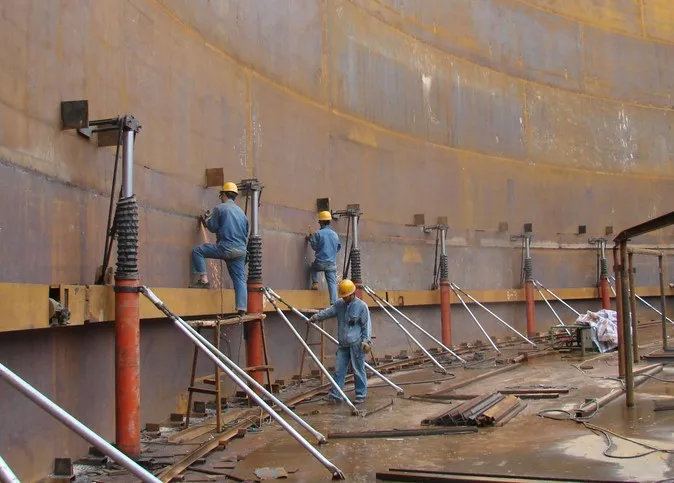

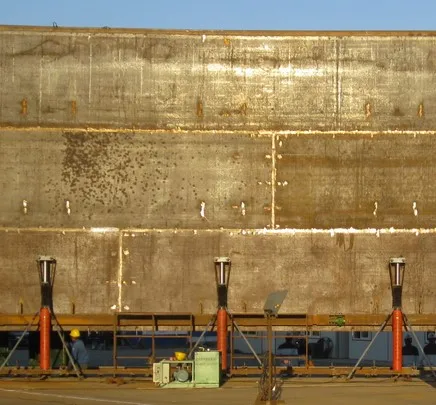

(3) Principle of the erection system

The following short description gives the working procedure in outline. It can in certain details be modified when required.

Step 1. The tank bottom – plates are placed on the prepared foundation and welded together.

Step 2. The beams or lattice work of the roof are assembled and finally joined to the upper rim of the shell ring.

Step 3. The jacking equipment is installed in the tank. The plates of the second shell ring (next to the top ring) are positioned outside the first one.

Step4. The completed part of the tank (roof and top shell ring) is lifted hydraulically to a height at which the plates of the second ring can be moved into place and the roof sheeting can be completed.

Step5. The plates of the second shell ring are located exactly and welded together to the lower edge of the first ring.

Step6. The plates of the third shell ring are placed outside the second shell ring.

Step7. The completed part of the tank (roof the two uppermost shell rings) is lifted.

Step8. The above cycle of operations is repeated until the last (bottom) shell ring is finished.

Step9. The entire tank is lowered down to the bottom plate and welded to this.

Step10. The lifting equipment is dismantled.

4. Items of contract

1. DELIVERY

25 days ex-work subject to receiving the 30% Payment of the total contract value. It requires another 30-45 days for China domestic transportation, documents preparation and sea shipping;

2. PRE-ACCEPTANCE

Buyer is encouraged to visit Seller in Nanjing, P.R.C. to inspect the performance of the equipment and verifying the equipment suitability for the intended purpose before shipment.

3. ON-SITE INSTALLATION

If required, installation and training can be provided by seller at site, accommodation, transportation, medical care, food and two ways flight ticket shall be provided by the Buyer for seller training Eng. Each Eng. will charge $200/day. Seller will Provide 1 engineers to support client to construct tank in one month. If the construction period is extended because of buyer’s reason, the manpower charge shall be USD200/day/engineer.

4. PAYMENT TERMS

30% down payment after signing agreement, 70% before shipping.

5. VALDIITY

This quotation is only valid for 30 days.

6. LIMITED WARRANTY

A) Equipment

The seller warrants all new equipment to be free from defects in material and workmanship for the period of one (1) year from the date of shipment, provided that the equipment is installed and operated according to factory’ s instructions.
