CATV Analog 24 in 1 Fixed Agile Channel Combiner Modulator CATV 16 Channels Analog Modulator

Supplier: Hangzhou Runzhou Fiber Technologies Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lisa Wang
Price: $350.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	RZFIBER;	Output Frequency Range:	47-860MHz;
Input Level:	60 -- 90dBμV;	Supply Ability:	10000 Piece/Pieces per Week 24 channel modulator;
S/N Ratio:	≥ 51dB;	Model Number:	OPT-16M;
Output Impedance:	75ohm;	Place of Origin:	Zhejiang China;
Max Output Level:	≥105dBuv;	Port:	shanghai;
Video to Noise:	≤ 60;	Frequency Stabi:	±3 KHz;
Product name:	Fixed Agile Channel Combiner Modulator 16 Channels Analog Modulator;	Video Frequency Response:	0.75 MAX dB;
AGC Range:	±20dB;	Packaging Detail:	16 24 channel analog modulator.;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;

More Products

Product Details

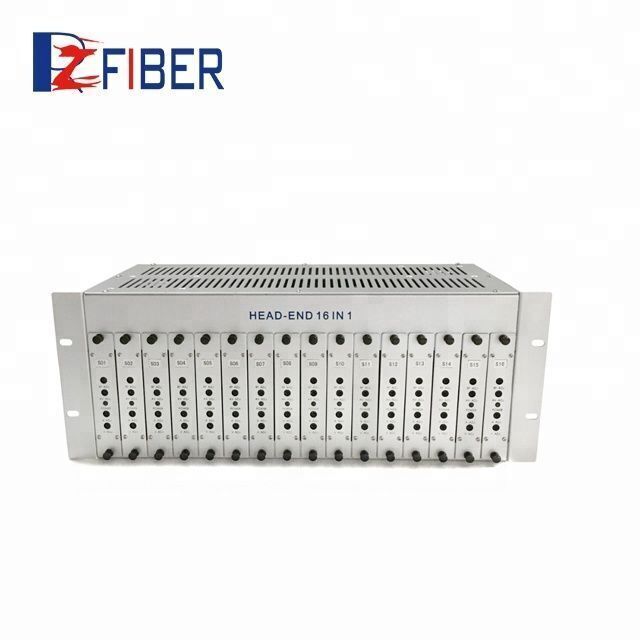

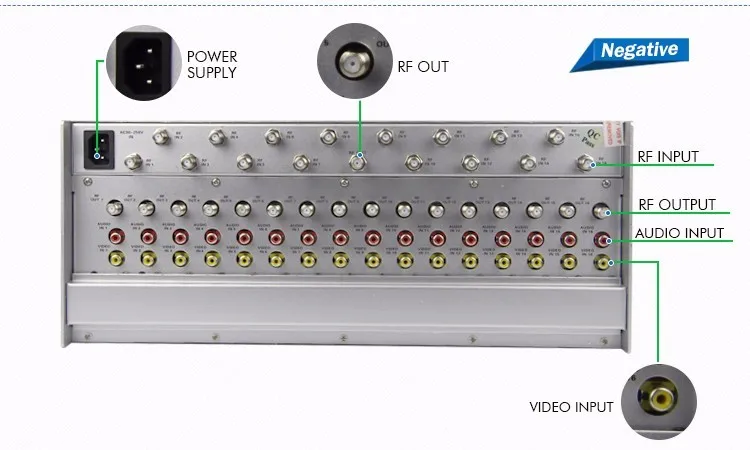

CATV Analog 24 in 1 Fixed Agile Channel Combiner Modulator CATV 16 Channels Analog Modulator

Analog Modulator is headend equipment for adjacent channel modulation of image and acoustical signals. Carrier frequency of output signal can be changed with internal phase locked loop local oscillator circuits controlled by microcomputers. Medium frequency treatment technique and phase locked technology are adopted to improve frequency stability and reduce signal distortion. It's the best choice for large and medium-sized CATV systems.

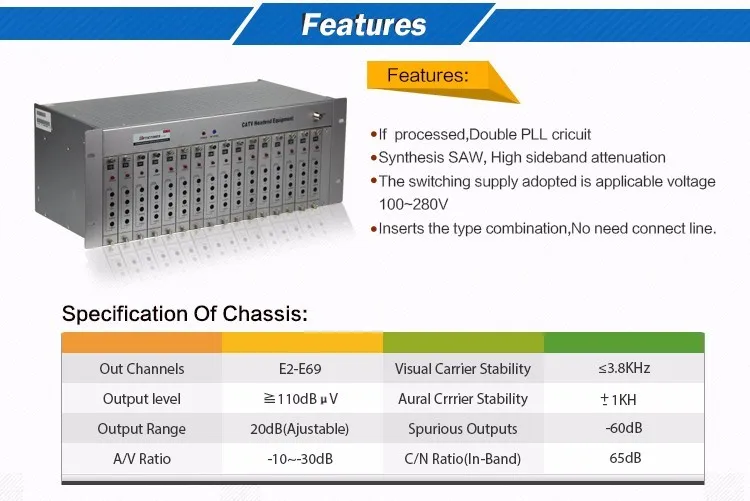

Feature

1) Medium frequency treatment technique and dual-phase locked loop technology for CPU control are adopted to improve frequency stability.

2) Number of output channels are within the limit of 48~550/ 750/ 870MHz. Standard channels and were added and installed.

3) Carrier frequency or each channel is within the limit of 48~550/750/870MHz. 4 standards of sound carrier frequency: 4.5, 5.5, 6.0, 6.5MHz.

4) The vision signal modulation, audio deviation, A/V ratio and output level can be adjusted on the front panel.

5) Independent RF Power Amplifiers are inside. The output level is up to over 110dBμV.

6) It's easier to operate, because of the digital channel number of front panel, the uplink of back panel, memory channels and power failure memory function.

7)Output power of B machine is 48~550MHz.Output power of C machine is 48~750MHz.Output power of the machine is 48~870MHz.

8) Two lines 20-bit LCD display is on front panel. Add medium frequency interfaces

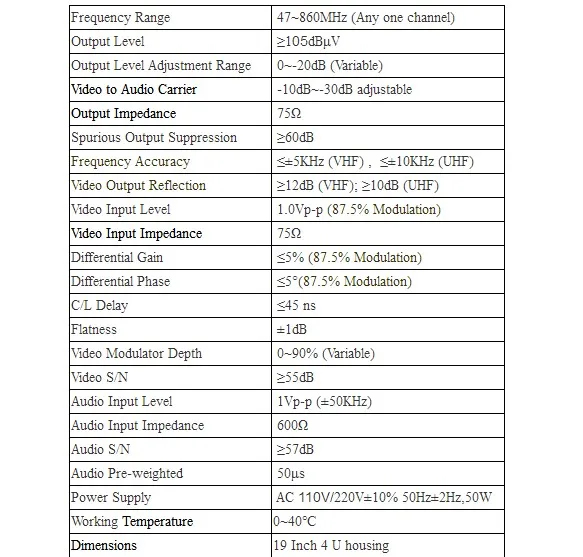

Specification

Delivery Details

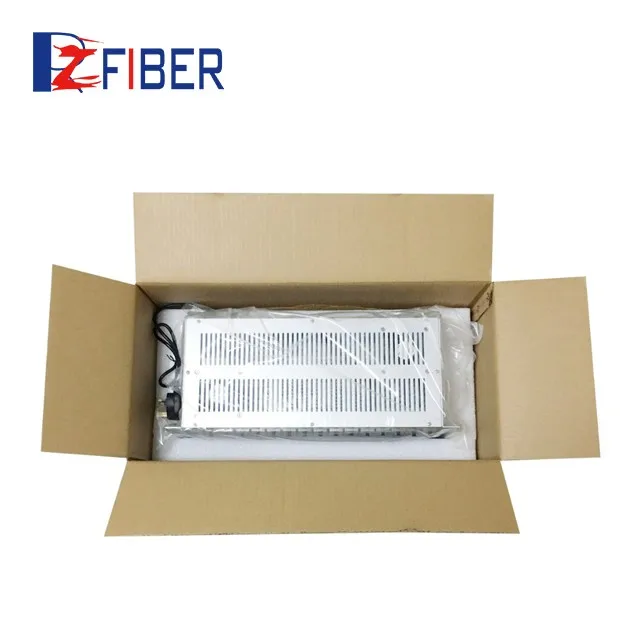

The package: will be packed according to standard export requirements, customer satisfication is our target.
Label printing: Customer logo or Runzhou brand are available

Related Products

Click the Following Picture for More Information

↓↓

FAQ

1. Are you trading company or manufacturer?
We are the manufacturer with 7 years' history.

2. About the quality?

After price confirmation, you can require for samples to check our quality.

3. Can you accept small order?Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4. What is your delivery time?

Usually about 2~3 working days, it depends on the quantity. Please be assured that we will arrange goods for you as soon as possible after payment.

5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.

6. What is your payment way?

T/T, L/C, D/A, D/P, Moneygram, Western Union and Paypal.
