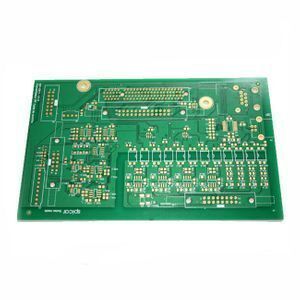

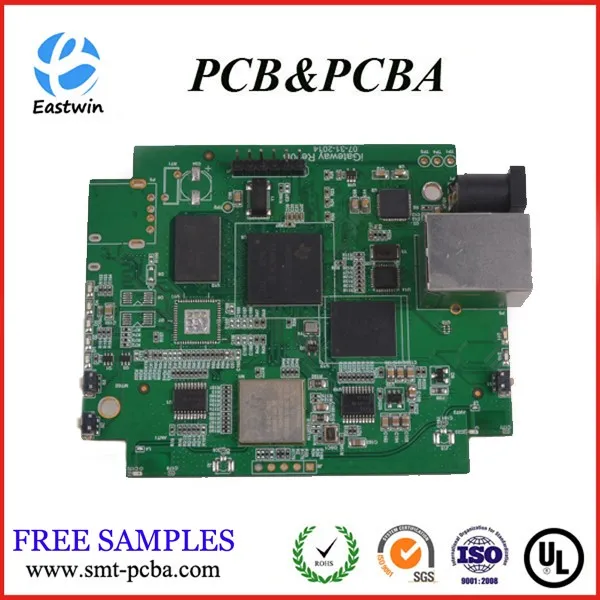

Turnkey 4 Layer OEM PCB Circuit Boards

Product details
Solder Mask:Green. Red. Blue. White. Black.Yellow;Service:One Stop Turnkey Service;
Supply Ability:15000 Square Meter/Square Meters per Month;Brand Name:EASTWIN;
Place of Origin:Guangdong China (Mainland);Delivery Detail:5~12days;
Product name:Turnkey 4 Layer OEM PCB Circuit Boards;Min. Line Spacing:0.003";
Surface Finishing:HASL;Packaging Detail:Vacuum packaging and High Quality Carton Box;
Base Material:FR-4;Model Number:PCB Board;
Item:FR4 PCB Board;Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;
Copper Thickness:1oz;Port:SHENZHEN;
Min. Hole Size:0.25mm;Number of Layers:4-Layer;
PCB Assembly process:DIP. SMT PCB Assembly;Min. Line Width:0.1mm(Flash Gold)/0.15mm(HASL);
Board Thickness:1.6mm;

Turnkey 4 Layer OEM PCB Circuit Boards

Aabout Eastwin

Based in Shenzhen, Shenzhen Eastwin Ltd specialize in electronic design, PCB manufacture, PCB assembly, and component sourcing services, also could provide:



- PCB&PCBA Contract Manufacturing

- Reverse Engineering Services

- PCB Design and Assembly

- Component Procurement & Material Management

- Product Design

- Fast PCB&PCBA Prototyping

- Cable and Wire Assemblies

- Plastics and Molds

- AOI,X-Ray Testing, other Function Testing Service









Our Service



Main Equipments

ITEM

Device Name

Model

Brand Name

Qty

Remarks

1

Full Automatic Screen Printer

DSP-1008

DESEN

8



2

SMT Machine

YG200

YAMAHA

5



8 SMT Line

3

SMT Machine

YV100XG

YAMAHA

3

4

SMT Machine

YG100XGP

YAMAHA

19

5

SMT Machine

YV88

YAMAHA

5

6

Reflow Soldering

8820SM

NOUSSTAR

4



7

Reflow Soldering

XPM820

Vitronics Soltec

3



8

Reflow Soldering

NS-800 II

JT

1



9

Solder Paste Inspection

REAL-Z5000

REAL

1



10

Automatic Optical Inspection System

B486

VCTA

3



11

Automatic Optical Inspection System

HV-736

HEXI

5



12

X-Ray

AX8200

UNICOMP

1



13

BGA Re-work

MS8000-S

MSC

1



14

Universal 4*48-pindrive concurrent multiprogramming system

Beehive204

ELNEC

3



15

Automatic Plug-In machines

XG-3000

SCIENCGO

2



16

Automatic wave soldering system

WS-450

JT

1

3 DIP LINE

17

Automatic wave soldering system

MS-450

JT

2

Process Capability

PCB (PCB Assembly) process capability:



Technical RequirementProfessional Surface-mounting and Through-hole soldering Technology
Various sizes like 1206,0805,0603 components SMT technology
ICT(In Circuit Test),FCT(Functional Circuit Test) technology

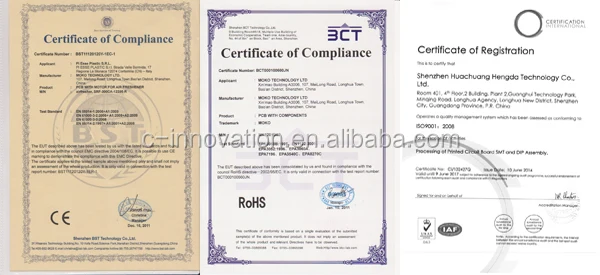

PCB Assembly With UL,CE,FCC,Rohs Approval
Nitrogen gas reflow soldering technology for SMT
High Standard SMT&Solder Assembly Line
High density interconnected board placement technology capacity
Quote&Production RequirementGerber File or PCB File for Bare PCB Board Fabrication
Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly
To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders.
Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate
OEM/ODM/EMS ServicesPCBA, PCB assembly: SMT & PTH & BGA
PCBA and enclosure design
Components sourcing and purchasing
Quick prototyping
Plastic injection molding
Metal sheet stamping
Final assembly
Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
Custom clearance for material importing and product exporting
Other  PCB Assembly EquipmentsSMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4
Reflow Oven: FolunGwin FL-RX860
Wave Soldering Machine: FolunGwin ADS300
Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service
Fully Automatic SMT Stencil Printer: FolunGwin Win-5



SMT production capacity 10 million chip per day(0402,0201 with 8 million per day), DIP production capacity is 1.2 million pcs per day



SMT Machine

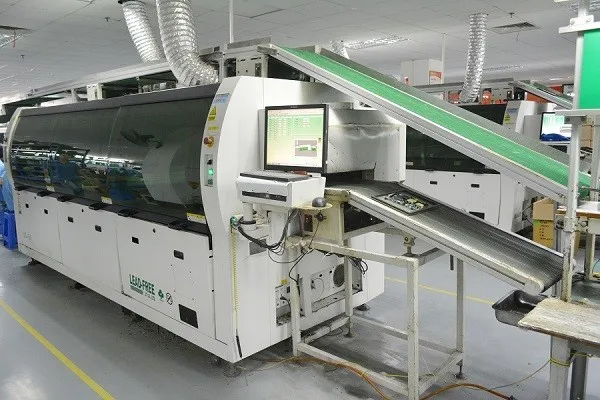

Wave Soldering Machine

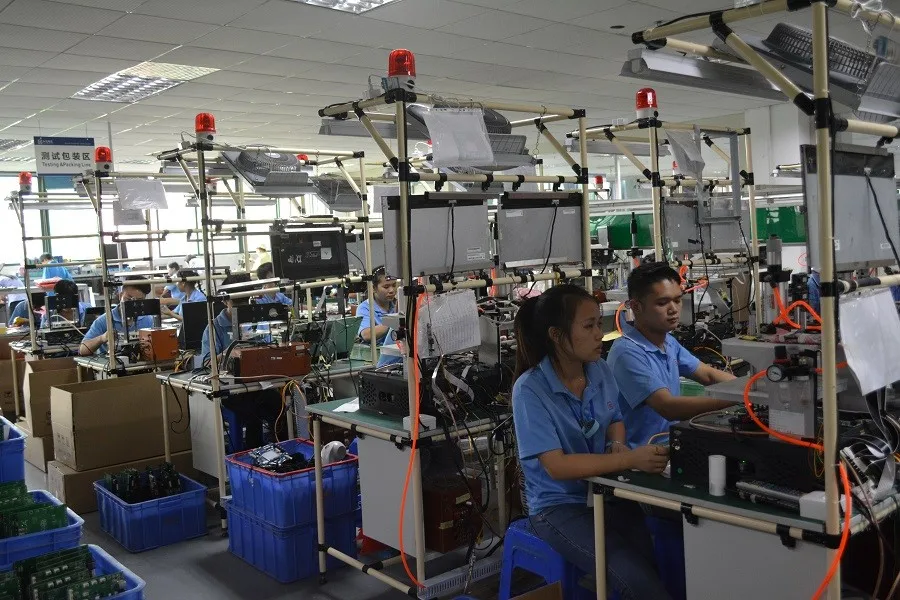

PCBA Function Testing Line

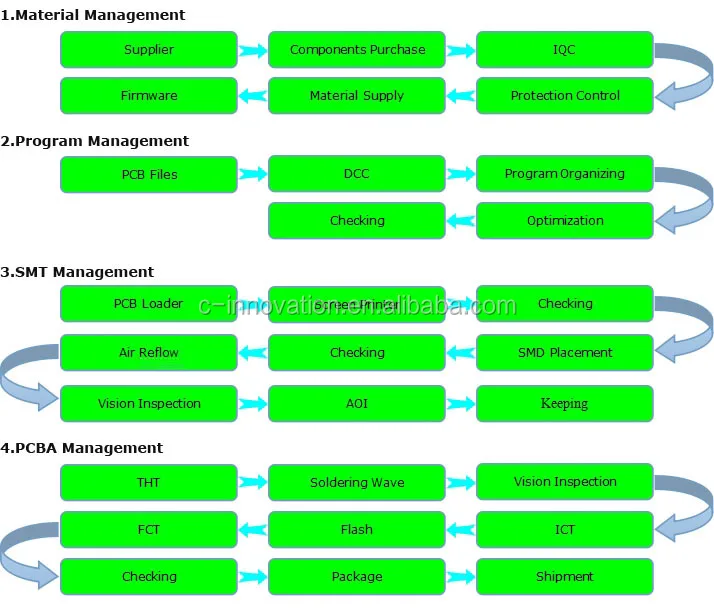

Production Flow



Special Instructions:

        For the Initiative Componets,we purchase them from original manufacturer or agents. As for Passive Components, we purchase from our local market to reach a competitve cost. but that don't mean we compromise to the low quality.

        Professional Teams,Skillful Technology,Competitive Price,High Quality,Superior After Service...  Be your good partner!
