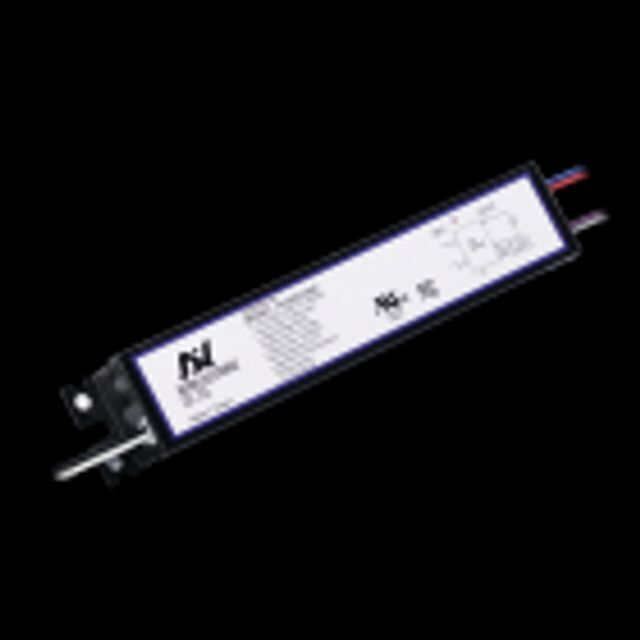

Made in Taiwan 12V 100W LED Driver

Supplier: ANTRON ELECTRONICS CO., LTD.
Region: Taiwan, China
Contact: Mr Jerry Tsai
Price: $13.80 / 1 - 999 pieces
$13.20 / 1000 - 4999 pieces
$12.80 / >=5000 pieces
Min. Order: 1 piece

Click here to contact

Product details

K3:	led driver with pwm dimmable;	Port:	Kaohsiung port, Taiwan / Shenzhen port, China;
Package Preview:	;	Certification:	UL, cUL, CE, Class2 ,Title 24;
Payment Terms:	L/C,T/T;	Output Power:	100W;
Warranty(Year):	5-Year;	Output Frequency:	N/A;
Protection:	Short Circuit, Over Voltage, Over Temp;	K2:	led driver 12v cv mode;
Packaging Detail:	5 to 40 pieces per carton depends on model. Individual packing is optional.;	Warranty:	5 Years;
Output Current:	0.8-8A;	Place of Origin:	Taiwan, China;
Brand Name:	Antron;	Luminous Efficacy(lm/w):	0;
Model Number:	AV12S100D;	Output Type:	Single;
Supply Ability:	100000 Piece/Pieces per Month;	Lighting solutions service:	Lighting and circuitry design;
Dimming:	3 in 1 dimming (PWM, 1-10V, Rx);	Input Voltage:	120-277V;
Product Series:	Constant Voltage LED Driver;	Type:	Constant Voltage;
Case Code:	AM103;	K1:	ip66 led driver waterproof rating;

Your Lighting Partner

Product Features

- Universal input voltage 120-277 Vac
- Constant voltage options 12/24/36/48V
- PFC, Flicker Free and Isolated design
- 3-in-1 dimming (PWM/1-10V/Resistor)
- Open/Short/Over-Voltage/Over-Temperature protection
- 2kV to 6kV surge protection
- Suitable for UL dry and damp location
- 5 years warranty

Electrical Spec

Model Series			AV12S100D
AC Input	Input Voltage	120-277 Vac
		Input Frequency	60Hz
		Leakage Current	<0.75mA
		Turn On Time	<1s
		Inrush Current	<35A
		Power Factor	>0.9
		THD	<20%
DC Output	Output Current	0.8-8A
		Output Voltage	12V
		Output Power	100W
		Line Regulation	±5%
		Efficiency @Highest Vin	88%
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
		Over-Voltage	Output current decade mode, recovers automatically after fault condition is removed.
		Over-Temperature	Shut down o/p voltage, re-power on to recover.
		Surge	2kV
Environment	Operation Temperature	Tcase -40°C~90°C
		Storage Temperature	Tcase -40°C~90°C
		Humidity	10%~90%
Safety	Safety Approval	UL8750 UL1310
		UL/cUL Class 2	V
		CE	V
		Withstand Voltage	I/P-O/P: 2.0K Vac, I/P-FG: 2.0K Vac, O/P-FG: 0.5K Vac
		Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100Mohm/500VD
		Noise	Sound Rating Class A
EMC	EMI	FCC Part 15 class A, UL8750, CSA C22.2 No. 250.13-14, ICES-005 Issue 4
EMC		EMS	FCC Part 15 class A, UL 8750, ICES-005 Issue 4

Constant Voltage Series Overview (12W-60W)

Model Name	Input Voltage	Output Power	Output Current	Output Voltage	Efficiency
AV12S12M	120-277Vac	12W	0.1-1A	12V	83%
AV24S12M	120-277Vac	12W	0.05-0.5A	24V	83%
AV36S12M	120-277Vac	12W	0.03-0.3A	36V	83%
AV12S20M	120-277Vac	20W	0.167-1.67A	12V	80%
AV12S25D	120-277Vac	25W	0.208-2.08A	12V	82%
AV24S25D	120-277Vac	25W	0.104-1.04A	24V	83%
AV24S50	120-277Vac	50W	0.208-2.08A	24V	87%
AV12S60D	120-277Vac	60W	0.5-5A	12V	85%
AV24S60D	120-277Vac	60W	0.25-2.5A	24V	86%
AV36S60D	120-277Vac	60W	0.167-1.67A	36V	88%
AV48S60D	120-277Vac	60W	0.125-1.25A	48V	88%
3V12S20M	347Vac	20W	0.167-1.67A	12V	81%
3V12S60D	347Vac	60W	0.5-5A	12V	87%
3V24S60D	347Vac	60W	0.25-2.5A	24V	88%
3V36S60D	347Vac	60W	0.167-1.67A	36V	88%
3V48S60D	347Vac	60W	0.125-1.25A	48V	88%

Note: The output current can be customized in factory

Constant Voltage Series Overview (100W-200W)

Model Name	Input Voltage	Output Power	Output Current	Output Voltage	Efficiency
AV12S100D	120-277Vac	100W	0.8-8A	12V	88%
AV24S100D	120-277Vac	100W	0.417-4.17A	24V	89%
AV36S100D	120-277Vac	100W	0.278-2.78A	36V	90%
AV48S100D	120-277Vac	100W	0.208-2.08A	48V	90%
AV12S150D	120-277Vac	150W	1.25-12.5A	12V	90%
AV24S150D	120-277Vac	150W	0.625-6.25A	24V	91%
AV36S150D	120-277Vac	150W	0.417-4.17A	36V	91%
AV48S150D	120-277Vac	150W	0.313-3.13A	48V	91%
AV24S200D	120-277Vac	200W	0.834-8.34A	24V	91%
AV36S200D	120-277Vac	200W	0.556-5.56A	36V	91%
AV48S200D	120-277Vac	200W	0.417-4.17A	48V	91%
3V12S100D	347Vac	100W	0.8-8A	12V	89%
3V24S100D	347Vac	100W	0.417-4.17A	24V	87%
3V36S100D	347Vac	100W	0.278-2.78A	36V	89%
3V48S100D	347Vac	100W	0.208-2.08A	48V	90%
3V12S150D	347Vac	150W	1.25-12.5A	12V	90%
3V24S150D	347Vac	150W	0.625-6.25A	24V	90%
3V36S150D	347Vac	150W	0.417-4.17A	36V	91%
3V48S150D	347Vac	150W	0.313-3.13A	48V	92%
3V24S200D	347Vac	200W	0.834-8.34A	24V	91%
3V36S200D	347Vac	200W	0.556-5.56A	36V	91%
3V48S200D	347Vac	200W	0.417-4.17A	48V	91%

Note: The output current can be customized in factory

Model Series	Case Code	L	W	H	Unit
AV12S100D	AM103	241	43	29	mm

Packing & Delivery

Packing Information

5 to 40 pieces per carton depends on model.
Individual packing is optional.

Our Company

Why Choose Antron

Excellent Quality

Our LED drivers and ballasts are highly reliable with overall return rate below 0.3%. Antron promise we can return two placements for one fail with the new order. We are confident our products is reliable and you can enjoy the high quality of powered by Antron.

Note:
1. The policy is exclusive for Alibaba customers.
2. OEM/ODM is not applicable.

Flicker Free LED Driver

Most modern light sources include an element of flicker, which can have serious health implications for all living things, and LED light sources are certainly no exception. Therefore, Antron provide full series of LED drivers with flicker free feature which ripple current is less than 10%. We believe this driver solution can highly improve the value of your products.

Full Range of Input Voltage

Antron's power supplies can be used anywhere in the world without adjusting a select switch for the input power. These power supplies are designed to accommodate a wide range of ac sources while supplying the same output.
We provide LED driver solution with worldwide input voltage on 120-277V, 120-347V, 347V and 347-480V which can help your lighting product to explore the global market without any obstacles.

We can do more.

In addition to our current products, Antron specializes in adapting our products to meet individual specifications that represented by the rapid mass market. If our existing products assortment does not meet your exact needs, we can quickly and economically modify, adapt and design.

Certifications

FAQ

Why should I choose Antron?

We are a professional LED driver manufacturer with more than 32 years experience. We have an experienced R&D team, high-quality production line, mature QC control process. Quality, Service and Innovation are the core value of Antron.

We are actively looking for long term partner and welcome you to join us.
