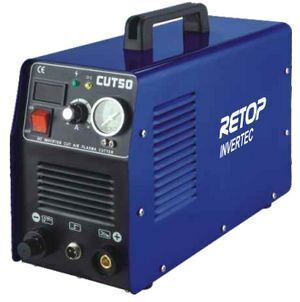

Portable MOSFET DC Inverter plasma metal cutter machine

Supplier: Taizhou Retop Mechanical & Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Deanna Du
Price: $96.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

After-sales Service Provided:	Online support,Video technical support;	Duty cycle:	60%;
Power Factor:	0.93;	Packaging Detail:	Standard export cartons with plastic foam Portable MOSFET DC Inverter plasma metal cutter machine;
Product name:	Portable MOSFET DC Inverter plasma metal cutter machine;	Port:	Ningbo Or Shanghai;
Certification:	CE;	Weight:	7.6KG;
Insulation Grade:	B;	Warranty:	1 Year;
Usage:	Cutting;	No-load voltage:	230V;
Power(W):	3.5;	Condition:	New;
Function:	Mental Cut;	Supply Ability:	1000 Unit/Units per Quarter Portable MOSFET DC Inverter plasma metal cutter machine;
Color:	Optional;	Type:	Mosfet Plasma Cutter;
Input Voltage:	220V;	Place of Origin:	Zhejiang China (Mainland);
Packing:	Carton Box;	Payment Terms:	L/C,T/T,Western Union;
Brand Name:	RETOP;	Rated Current:	10-50A;
Dimensions:	410155300mm;

Product Description

Portable MOSFET DC Inverter plasma metal cutter machine

Main Features

1) MOSFET inverter and PWM technology, energy-efficient and low noise.

2) Use compressed air as cutting gas source,cost-effective.

3) Air regulator and digital meter in the front panel, Easier operation for adjusting air pressure and cutting current.

4) Narrow cutting seams, smooth cutting performance and less deformation.

5) Automatic over-voltage, over-current and over-heat protection.

6) Light industrial applications: production line work; plant maintenance; garage/job shops; fabrication;etc.

ITEM	CUT-30	CUT-40	CUT-50
Input Power Voltage	AC230V	AC230V	AC230V
Input Power Frequency	50/60Hz	50/60Hz	50/60Hz
Rated Input Capacity	3.5KVA	4.8KVA	5.2Kva
Output Current Range	10-30A	10-40A	10-50A
No-load Voltage	230V	236V	245V
Rated Duty Cycle	60%	60%	60%
Arc Start	Touch	Touch	Touch
Power Factor	0.93	0.93	0.93
Air Pressure	0.2-0.4mpa	0.2-0.4mpa	0.2-0.4mpa
Insulation Grade	B	B	B
Protection Grade	IP21S	IP21S	IP21S
Dimensions	410155300mm	410155300mm	410155300mm
Weight	7.6Kg	7.8Kg	7.8Kg

ACCESSORIES:

Mask and Brush

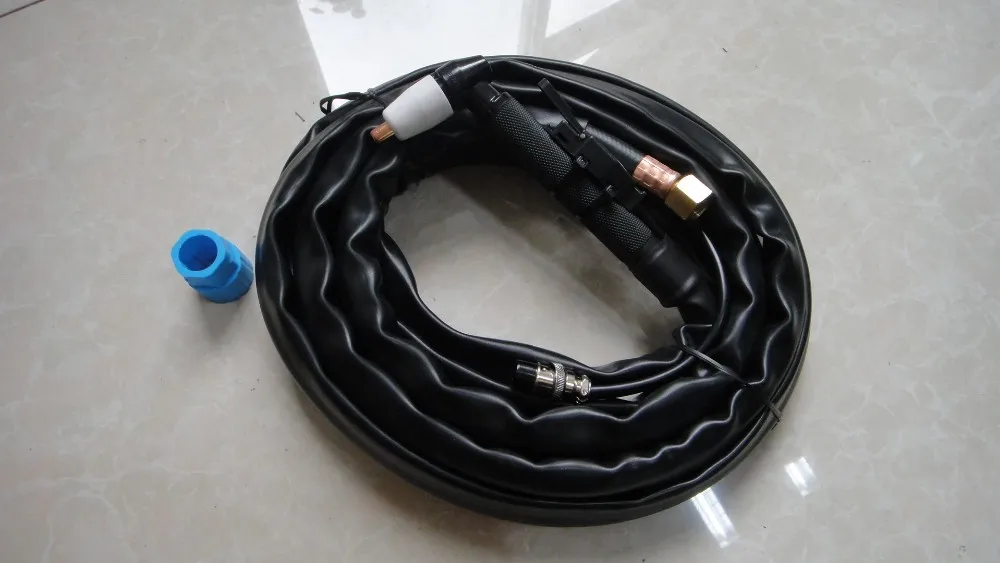

Cut torch

1.2m Earth Clamp

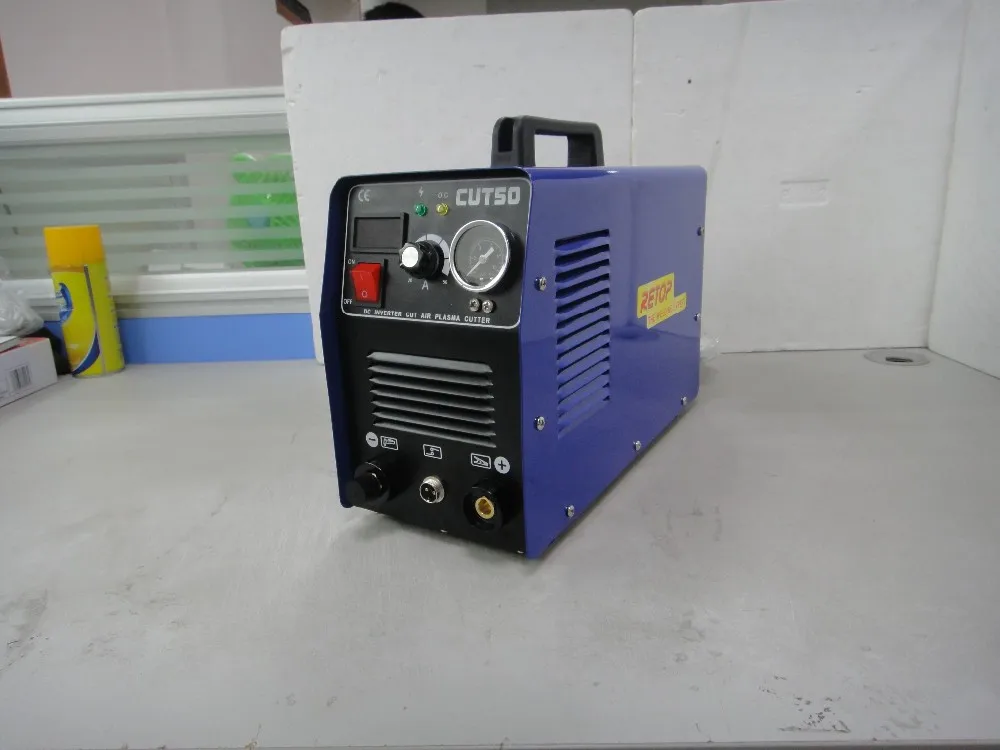

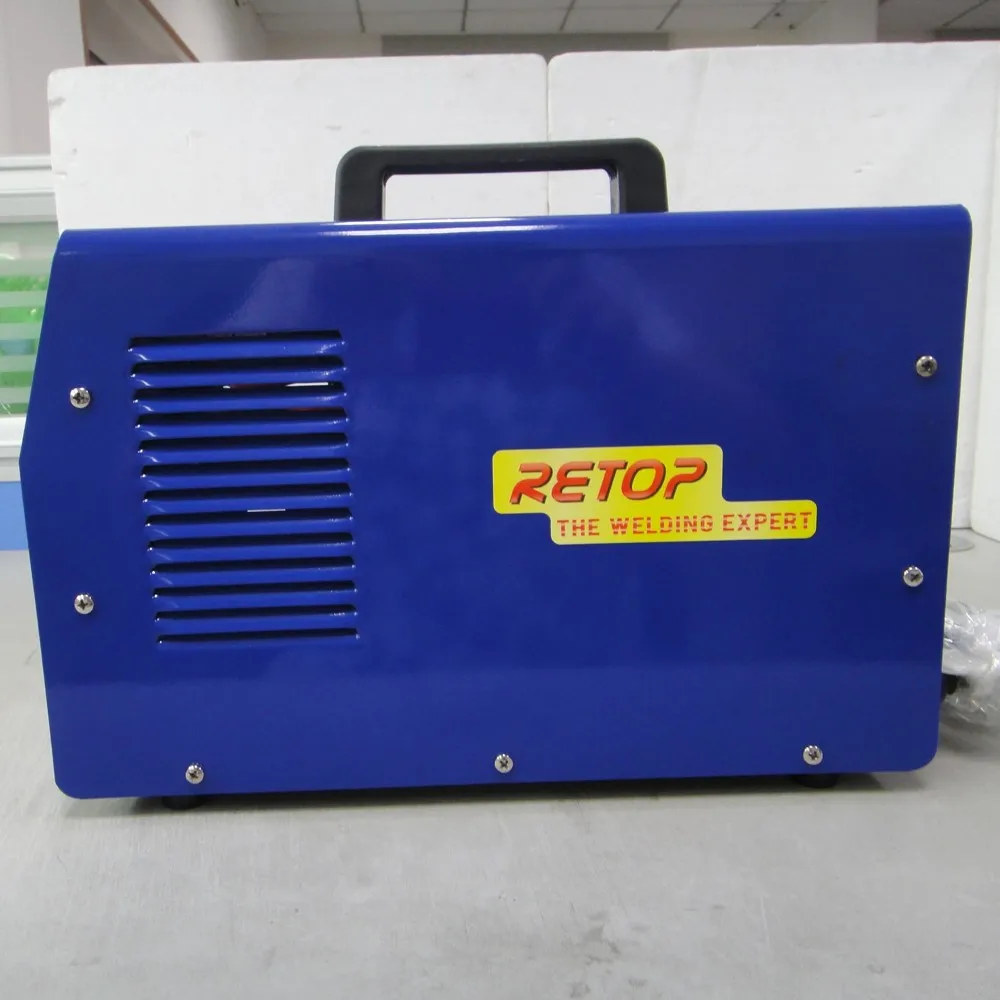

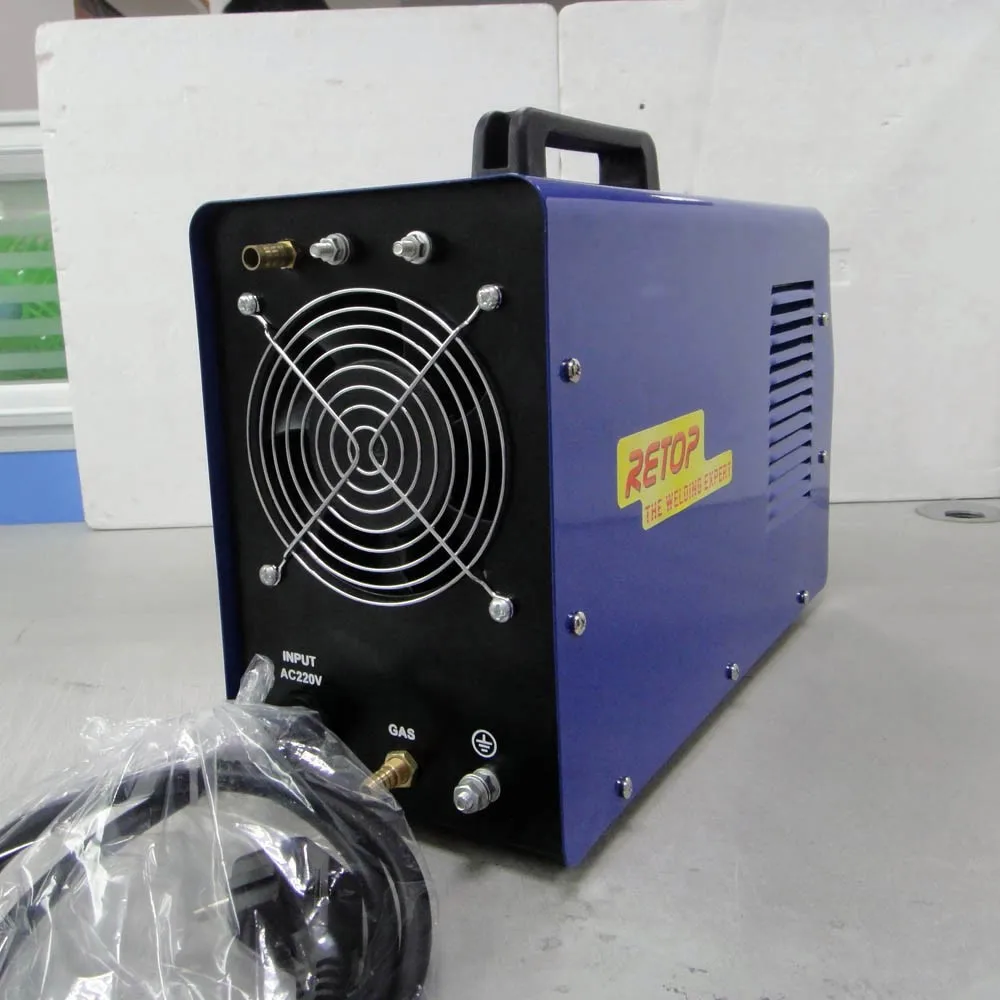

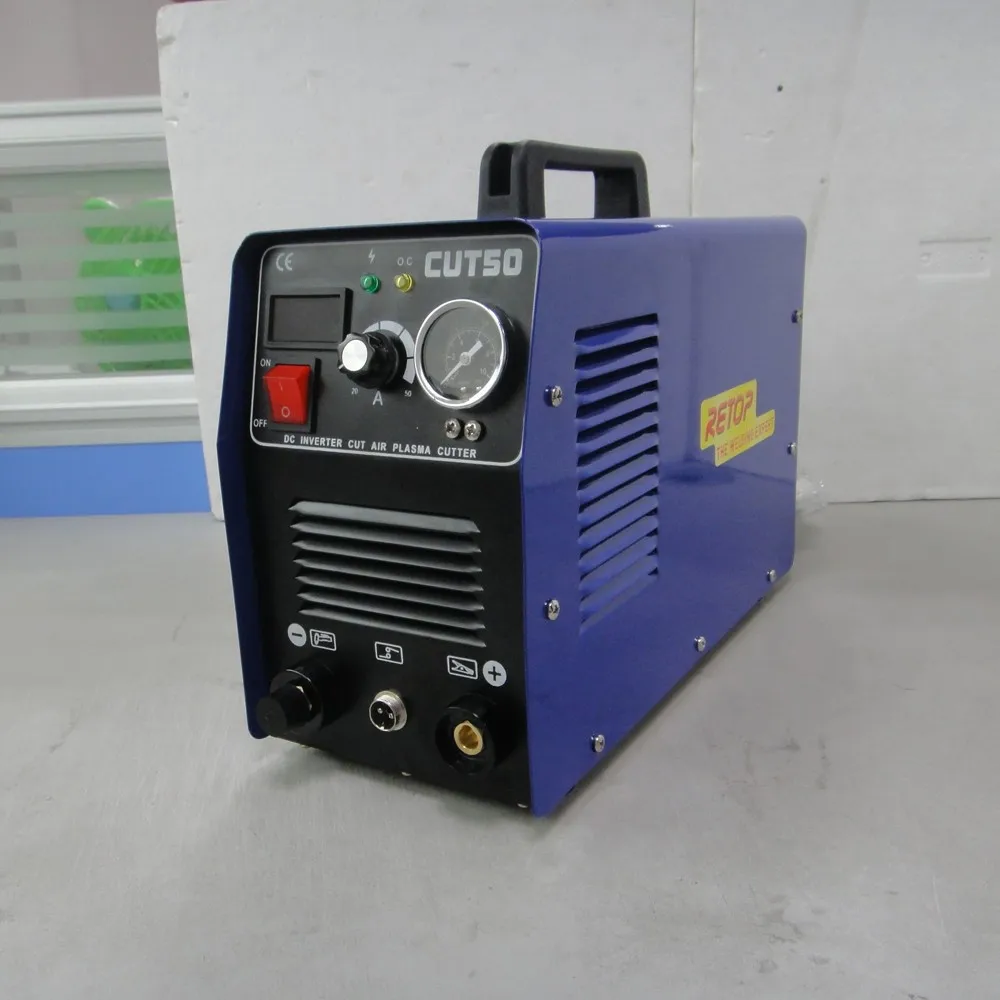

Detailed Image

Certifications

Our Company

Taizhou Retop Mechanical & Electrical Co., Ltd. was established in 2011 and is located in Wenling, Zhejiang Province. We are dedicated to designing, testing and manufacturing a full line of welding and cutting products that are with industrial quality and easy to use. Whether you're in production, farming, maintenance, auto repair, or a do-it-yourselfer, we have a product that fits your needs.
With advanced technology and manufacturing equipment, we provide high-quality products and superior services for our customers. We also offer customers the flexibilities in product design and construction, coupled with superior services before and after sale. With our dedicated commitment to customer services, you'll find that we're easy to contact, easy to work with and easy to get information from - we're here to help you.
Our passion is to improve existing products and to develop new applications that benefit our customers and meet their constantly changing needs. We continue to make progress by implementing a philosophy that stresses quality in all of our operations.
We hope you will stay a while at our website. Please view our product offerings and get acquainted with us.
Main products:AC Welder,DC Inverter Welder,Tig Welder,Mig Welder,Plasma Cutter,Battery Charger

Main market: Domestic Market, Eastern Europe, Southeast Asia, South Asia, Mid East...

Exihibiton

Packing & Delivery

FAQ

FAQ

1.Q:Are you a factory or trading company?
A: We are a factory.

2.Q:Where is your factory located?
A: Our factory is in Wenling, Taizhou city, Zhejiang Province, China.30 mins from Luqiao
Airport by car, 2.5 hours from Ningbo Airport by car, 4 hours from Shanghai Airport by car.

3.Q:What is the material of your products?
A: Taizhou Retop people are always paying great attentions to quality controlling from the
beginning to the end.

4.Q:How about quality control in your factory?
A: Taizhou Retop people are always paying great attentions to quality controlling from the
beginning to the end.

5.Q:How about guarantee?
A: It's within 1 year after goods is discharged in the destination.
