Place of Origin: | Jiangsu China; | Application: | waterproof; |
Single gross weight: | 0.15 KG; | Single package size: | 12X4X4 cm; |
Product Line: | Weatherproof,Tape & Chemicals; | OEM: | accepted; |
Model Number: | 10004714; | Brand Name: | Maxdao; |

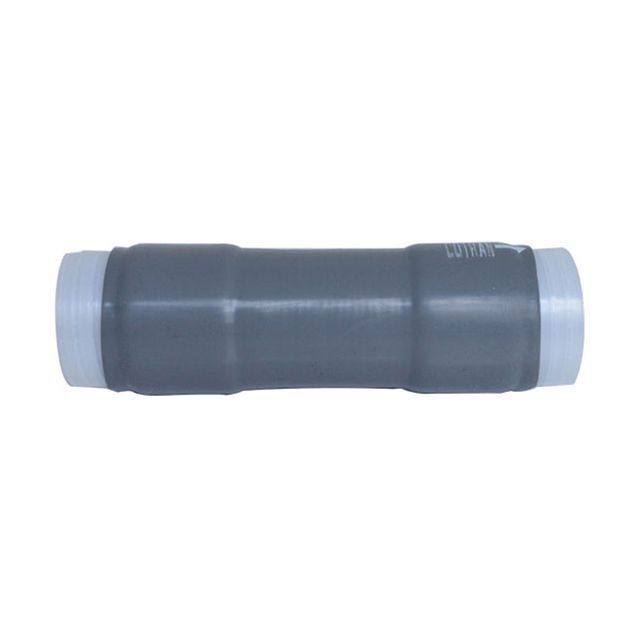

Material: | Silicone; | Product Type: | Cold Shrink Tube; |
Selling Units: | Single item; | Type: | Cold Shrink; |
Packaging Detail: | Normal: Plastic bag & Carton & Pallet Special: Customized packing; |
Part NO. | Specifications | Fit for Cable Diameter(min) | Fit for Cable Diameter(max) | Length(after shrinkage) |
KC97-18 | φ18-L | 5.7mm | 13mm | 90-200mm |
KC97-25 | φ25-L | 7.3mm | 21mm | 90-400mm |
KC97-28 | φ28-L | 9mm | 23mm | 90-400mm |
KC97-30 | φ30-L | 9.1mm | 25mm | 90-400mm |
KC97-35 | φ35-L | 10.4mm | 30.1mm | 90-400mm |
KC97-40 | φ40-L | 11.7mm | 35.1mm | 90-600mm |
KC97-45 | φ45-L | 12.7mm | 40mm | 90-600mm |
KC97-50 | φ50-L | 16mm | 45mm | 90-800mm |
KC97-55 | φ55-L | 18.2mm | 49.2mm | 90-800mm |
KC97-60 | φ60-L | 18.2mm | 53mm | 90-800mm |
KC97-65 | φ65-L | 22.4mm | 58mm | 90-800mm |
KC97-70 | φ70-L | 22.4mm | 64mm | 90-800mm |
KC97-75 | φ75-L | 28mm | 67mm | 90-800mm |
KC97-80 | φ80-L | 30mm | 72mm | 90-800mm |
TECHNICAL CHARACTERISTICS | ||
HARDNESS | 43±3 Shore A | |
TENSILE STRENGTH | ≥9.0MPa | |
ELONGATION | ≥900% | |
TEAR STRENGTH | ≥40KN/m | |
COLOUR | Black,Grey | |
SEALING CLASS | IP68 | |
OPERATION TEMPERATURE | -60 to +90℃ | |
STORAGE TEMPERATURE | -20 to +50℃ |
Trade terms | FOB, EXW, CIF, DDU, DDP |
Payment terms | T/T, L/C, Negotiable |
MOQ | 1 |
Supply capability | 100000 pieces per month |
Lead time | usually 10 working days |
Shipment | Express, air, sea |
Port | Shanghai, Ningbo, Shenzhen |
Sample availability | Yes |
Sample time | usually 3-5 days |
Packaging | Normal: Plastic bag & Carton & Pallet Special: Customized packing |
