Supply capacity: | 10000000 bags per month | Operating temperature: | - 40-85°C |
tensile strength: | 25MPa at room temperature, 30MPa at -40°C | Origin: | Zhejiang, China |
usage: | Makes insulation and looks good. | port: | Ningbo or Shanghai |
type: | spiral wound | Certification: | ISO9001, CE, ROHS |
model: | YN-SW001 | brand: | Yao Nan |
color: | black/white/color customized | Impact strength: | 35KJ/Sqm at room temperature, 5KJ/Sqm at -40°C |
Material: | Polyethylene, Polyethylene | payment terms: | L/C, T/T, Western Union |
application: | A kind of wire protection cover | Packaging Details: | 1. Ordinary packing: polybag + label + export carton 2. Customized packing: according to your requirements |

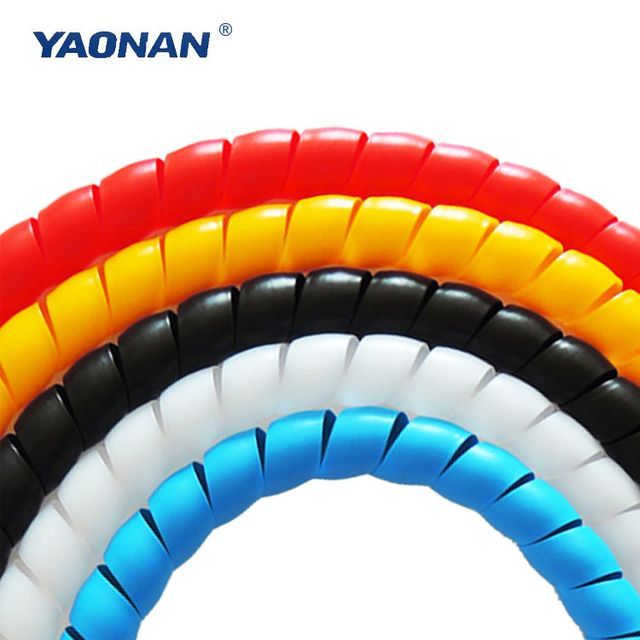

product description:
♦ Material: PE
♦ Color: Standard natural color. Black and other colors are available upon request.

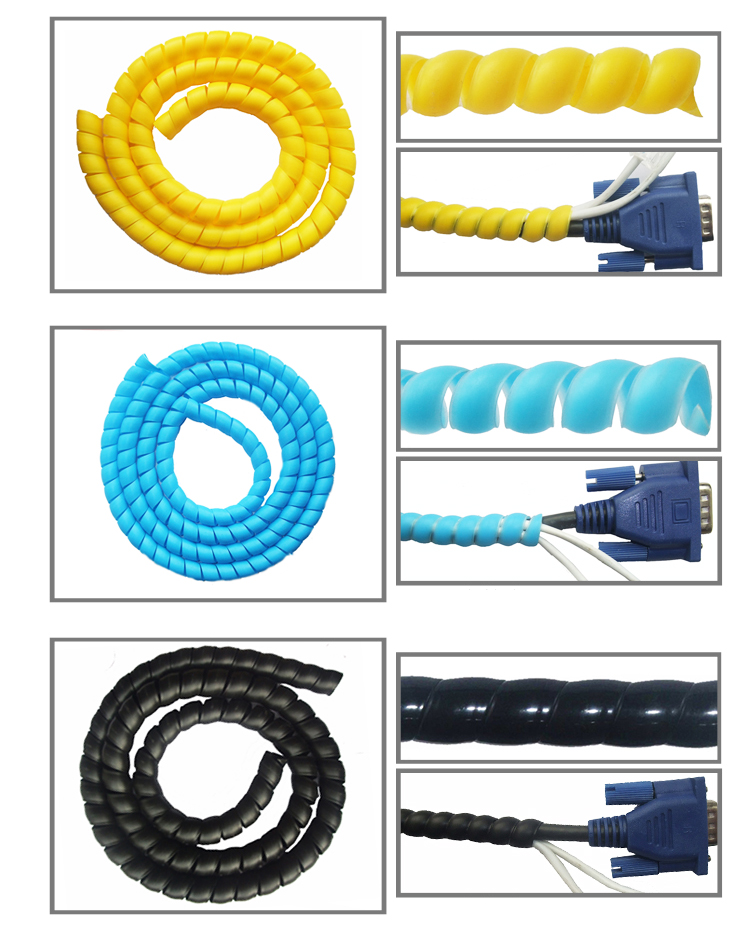

♦ Description: 1. The flexible structure allows the strap to follow the wire groove easily
2. Durable, reusable and retains spiral strength.
3. Fasten both ends of the strap clockwise with zip ties and a spiral harness to complete the work.
4. Almost unlimited expansion of the spiral range.

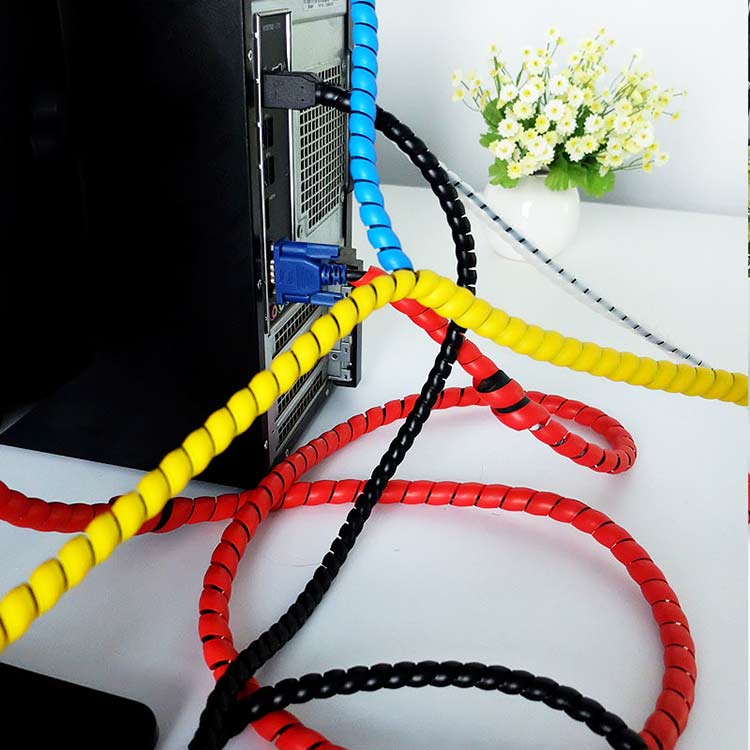

♦ An economical way to bundle cables. Easily applied to wire bundles, cables and harnesses. Cut in a convenient roll for versatility.

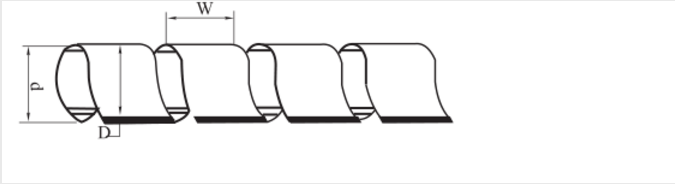

serial number. | Diameter (mm) | Diameter (mm) | Width (mm) | Winding range(mm) |
SWB-03 | 1.5 | 3 | 4 | 1.5-10 |
SWB-06 | 4 | 6 | 7 | 4-50 |
SWB-08 | 6 | 8 | 10.8 | 6-60 |
SWB-10 | 7.5 | 10 | 11.4 | 7.5-60 |
SWB-12 | 9 | 12 | 13.9 | 9-65 |
SWB-15 | 12 | 15 | 15 | 12-75 |
SWB-19 | 15 | 19 | 18.2 | 15-100 |
SWB-24 | 20 | twenty four | 19.6 | 20-130 |
SWB-30 | 26 | 30 | 43 | 26-150 |
