type: | Scalable | Packaging Preview: | |
Certification: | ROHS | brand: | think |
model: | DP-ET022 | Packaging Details: | m/spool, cut available. Carton. or according to customer requirements |
Supply capacity: | 1,000,000 meters/month | product name: | Flame Retardant Expandable Braided PET Cable Cover |
Material: | PET, PET | Standard colors: | Black |
Melting point: | 250℃ | port: | Dalian |
application: | high temperature | Peak temperature: | 175℃ |
payment terms: | Western Union,L/C,D/P,D/A,T/T,MoneyGram,Paypal | Flammable: | self-extinguishing |
place of origin; place of origin: | Liaoning, China | Model: | DP-ET022 |
Operating temperature: | -55 ~150℃ |
application
It is suitable for protecting pipes, hoses and cable harnesses used in the automotive and industrial sectors.
feature

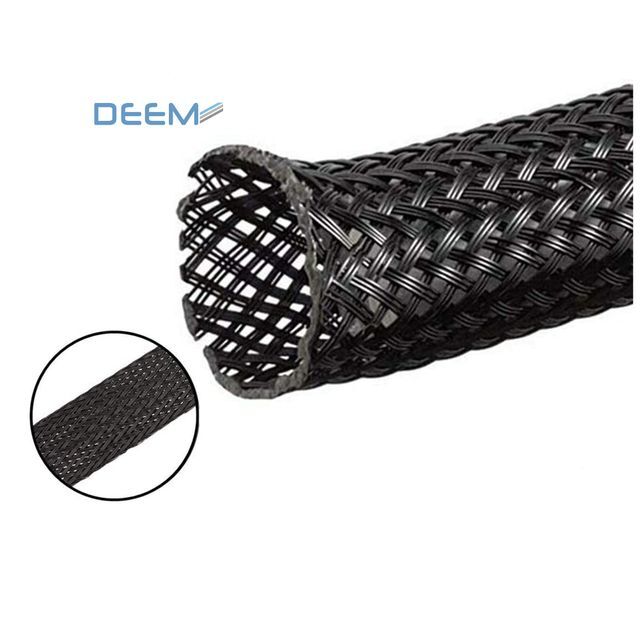

DP-ET022 is a self-extinguishing, halogen-free, polyester 0.22mm monofilament expandable braided sleeve. It offers continuous operating temperatures from -50°C to +150°C, good wear resistance and high expansion.
Different kinds
Standard colours: black, grey, other colours on request.
Technical data
property | testing method | values | |
physics | peak temperature | - | +175°C |
melting point | - | +250°C | |
flammable |
FMVSS 302 | self-extinguishing | |
D45 1333 | Type B | ||
UL94 compounds | V-2 | ||
NF F 16-101 & 102 | I2-F1 | ||
EN 45 545-2 | R22 & R23 | ||
smoke toxicity | - | Halogen free | |
Abrasion resistance | S21 5101 & D44 1959 PSA/RSA | Class B | |
chemical | fluid resistance | D47 1924 | Unaffected by most chemicals |
aspect
When supplied (mm) | Use range (mm) | Standard packaging (m/roll) |
3 | 1-4 | 2000 |
4 | 2-6 | 2000 |
5 | 3-7 | 2000 |
6 | 4-9 | 2000 |
8 | 5-11 | 1000 |
10 | 7-14 | 1000 |
12 | 8-16 | 1000 |
15 | 10-20 | 1000 |
20 | 14-25 | 1000 |
25 | 18-30 | 500 |
30 | 20-40 | 500 |
40 | 30-52 | 250 |
50 | 40-65 | 250 |
65 | 45-105 | 100 |
76 | 64-120 | 100 |
DEEM Electronic & Electrical Materials Co., Ltd. is a joint venture manufacturer of a Chinese sourcing company with over 20 years of professional heat shrink background experts in Europe. We specialize in the research, development, manufacture and sales of radiation cross-linked heat shrinkable materials. As a kit for thin-wall, double-wall, medium-wall, thick-wall and other specialty products such as PTFE, PVDF, silicone rubber, crimp-sealed connectors, fiber optic protectors, braided ferrules and other plastic boxes or related products such as small mini boxes . Simultaneous OEM and ODM service available
DEEM is also able to provide any type of value-added work. For example we have packed, cut, loaded, labelled, any type of matching etc. for customers. At the same time, we also have the ability to do the requirements of customers' trade work related fields.
Delivery.Efficiency.Economic.Material.Reliable service and products are serviced the customers in the 20+ countries. Welcome.
FAQ
How soon can I get samples to check your quality? Can I expect to get samples?
After the product and price are confirmed, you can ask for samples to check our quality. Samples are free and will be ready for delivery within 3-5 days. Samples will be sent to you by courier and arrive within 3-5 working days. If you do not have an account, you can use your courier account or prepay to us.
Can you do design for us?
Yes. We are a professional manufacturer and can provide you with OEM service.
What is the lead time for mass production?
It depends on the order quantity and the season you place your order. In general, we recommend that you start your inquiry two months before the date you wish to get the product in your country.
What payment methods do you accept?
We accept T/T (Wire Transfer), please make sure we can receive the same amount of invoices.
Why choose us?
1. We have more than 10 years experience in this industry and exporting!
2. Technical support - We have a group of technical teams, which can develop and design products according to customer requirements!
3. We have a professional sales team who can provide you with high-quality service!
