AIYIA AAC/ACSR/ABC/AAAC Aluminum Electrical Wire manufacturer, Aluminum Conductor Cables

Supplier: Shanghai Aiyia Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Anna Xie
Price: $5.00 / 200 - 499 meters
$4.00 / 500 - 999 meters
$3.00 / 1000 - 1999 meters
$2.00 / >=2000 meters
Min. Order: 200 meters

Click here to contact

Product details

Port:	Shanghai,tianjin,qingdao;	Brand Name:	AIYIA;
Type:	High Voltage;	Conductor Material:	Aluminum;
Sample:	Freely Supplied;	Insulation Material:	PVC,PE,PTFE,etc;
MOQ:	200 Meters;	Voltage:	300/500V 450/750V 0.6/1KV;
Number of Cores:	Single/2/3/4/5/6/7/8/10/16 Core;	Product name:	Aluminum Cable;
Place of Origin:	Shanghai China;	Working temperature:	60 ~ +200;
Package Preview:	;	Standard:	ASTM,EN,JIS,DIN,GB;
Cross section:	1.5mm2-630mm2;	Supply Ability:	2000 Ton/Tons per Month;
Packing:	Woodren Drum;	Application:	Industrial;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Jacket:	PE,PVC,PFA,etc;
Model Number:	AAC/ACSR/ABC/AAAC;	Rated voltage:	Used Change;
Packaging Detail:	Wooden pallets, Wooden cases or according to customer's requests;

Shanghai AIYIA Industrial Co., Ltd. supplies aluminum cables with specifications such as AAC, ACSR, ABC, AAAC, etc., conforming to international standards such as DIN, BS, ASTM, IEC, GB, CSA, etc. We welcome friends from all over the world to purchase!

Production Line

Product Packaging

Product Categories:AAC, ACSR, AAAC, ABC

Notes:CS-cross section area; SWD-Stranding and Wire Dia; OAD-Over All Dia; W-Weight; RS-Rated Strength; DCR-Max.D.C.Resistance(20 ℃); CCC-Current Carrying Capacity; ADC-Average Diameter of Conductor; AIT-Average Insulation Thickness.

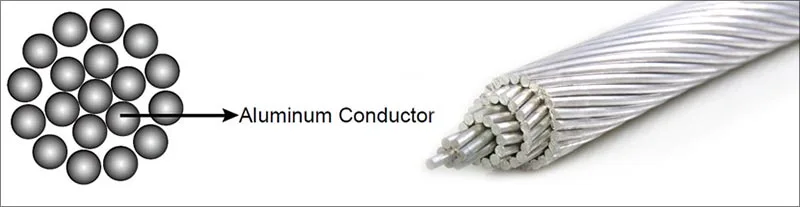

AAC: All Aluminum Conductor Cable

AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.

Code	CS (mm2)	SWD (mm)	OAD (mm)	W (kg/km)	RS (kN)	DCR (Ω/km)	CCC (A)
16	15.89	7/1.7	5.1	44	3.02	1.8017	110
25	24. 25	7/2.1	6.3	67	4.36	1.1806	145
35	34. 36	7/2.5	7. 5	94	6.01	0.8332	180
50	49.48	7/3.0	9.0	135	8.41	0.5786	225
50	48. 36	19/1. 8	9.0	133	8.94	0.5948	225
70	65. 82	19/2.10	10.5	181	11.85	0.4370	270
95	193.27	19/2.50	12.5	256	16.32	0. 3084	340
120	117.0	19/2.80	14.0	322	19.89	0.2459	390
150	147.1	37/2.25	15.7	408	26.48	0.1960	455
185	181.6	37/2.50	17.5	501	31.78	0.1588	520
240	242.5	61/2.25	20.2	670	43.66	0.1192	625
300	299.4	61/2.50	22.5	827	52.40	0.09651	710
400	400.1	61/2.86	26.0	1105	68.02	0.07222	855
500	499.8	61/3.23	29.1	1381	82.47	0.05782	990
625	626.2	91/2.96	32.8	1733	106.45	0.04625	1140
800	802.4	91/3.35	36.8	2219	132. 34	0.03611	1340
1000	999.7	91/3.74	41.1	2766	159.95	0.02897	1540

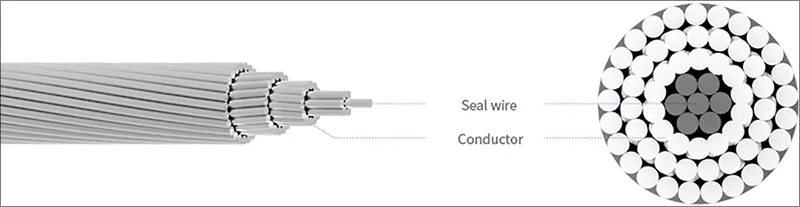

ACSR: Aluminium Conductor Steel Reinforced Cable

ACSR cables are used for bare overhead transmission and primary and secondary distribution cables. Due to its reliability and strength-to-weight ratio, it is suitable for all practical spans of wooden poles, transmission towers and other structures.

Code	CS (mm)			SWD (mm)		OAD (mm)	W (kg/km)	RS (kN)
	AI	ST	Tatal	AI	ST
16/2.5	15.3	2.54	17.8	6/1.8	1/1.8	5.40	61.6	5.80
15/4	23.9	3.98	27.8	6/2.25	1/2.25	6.75	96.3	8.95
35/6	34.4	5.73	40.1	6/2.70	1/2.70	8.10	138.7	12.37
44/32	44.0	31.7	75.6	14/2.00	7/2.40	11.2	369.3	44.24
50/8	48.3	8.04	56.3	6/3.20	1/3.20	9. 60	194.8	16.81
50/30	51.2	29.8	81.0	12/2.33	7/2.33	11.7	374.7	42.98
70/12	69.9	11.4	81.3	26/1.85	7/1.44	11.7	282.2	26.27
95/15	94.4	15.3	109.7	1 26/2.15	7/1. 67	13.6	380.6	34.93
95/55	96.5	56.3	152.8	12/3. 20	7/3.20	16.0	706.8	77.85
105/75	105.7	75.5	181.2	14/3.10	19/2. 25	17.5	885.3	105.82
120/20	121.6	19.8	141.4	26/2.44	7/1. 90	15.5	491.0	44.50
120/70	122.1	71.3	193.4	12/3.60	7/3.60	18.0	894.5	97.92
125/30	127.9	29.8	157.8	30/2.33	7/2.33	16.3	587.0	56.41
150/25	148.9	24.2	173.1	26/2.70	7/2.10	17.1	600.8	53.67
170/40	171.8	40.1	211.8	30/2.70	7/2.70	18.9	788.2	74.89
185/30	183. 8	29.8	213.6	26/3.00	7/2.33	19.0	741.0	65.27
210/35	209.1	34.1	243.2	26/3.20	7/2.49	20.3	844.1	73.36
210/50	212.1	49.5	261.5	30/3.0	7/3.00	21.0	973.1	92.46
230/30	230.9	29.8	260.8	24/3.50	7/2.33	21.0	870.9	72.13
240/40	243.1	39.5	282.5	26/3.45	7/2.68	21.8	980.1	85.12
265/35	263.7	34.1	297.7	24/3.74	7/2.49	22.4	994.4	81.01
300/50	304.3	49.5	353.7	26/3.86	7/3.00	24.4	1227.3	105.09
305/40	304.6	39.5	344.1	54/2.68	7/2. 68	24.1	1151.2	96.80
340/30	339.3	29.8	369.1	48/3.00	7/2.33	25.0	1171.2	91.71
380/50	381.7	49.5	431.2	54/3.00	7/3. 00	27.0	1442.5	121.30
385/35	386.0	24.1	420.1	48/3.20	7/2.49	26.7	1333.6	102.56
435/55	434.3	56.3	490.6	54/3.20	7/3.20	28.8	1641.3	133.59
450/40	448.7	39.5	488.2	48/3.45	7/2.68	28.7	1549.1	119.05
490/65	490.3	63.6	553.8	54/3.40	7/3.40	30.6	1852.9	150.81
495/35	494.4	34.1	528.4	45/3.74 \|	7/2.49	29.9	1632.6	117.96
510/45	510.5	45.3	555.8	48/3.68	7/2.87	30.7	1765.3	113.31
550/70	549.7	71.3	620.9	54/3.60	7/3.60	32.4	2077.2	166.32
560/50	561.7	49.5	611.2	48/3.86	7/3.00	32.2	1939.5	146.28
570/40	571.2	39.5	610.6	45/4.02	7/2.68	32.2	1887.1	136.40
650/45	653.5	45.3	698.8	45/4.30	7/2.87	34.4	2159.9	156.18
680/85	678.6	86.0	764.5	54/4.00	19/2. 40	36.0	2549.7	206.56
1045/45	1045.6	45.3	1090.9	72/4.30	7/2.87	43.0	3248.2	218.92

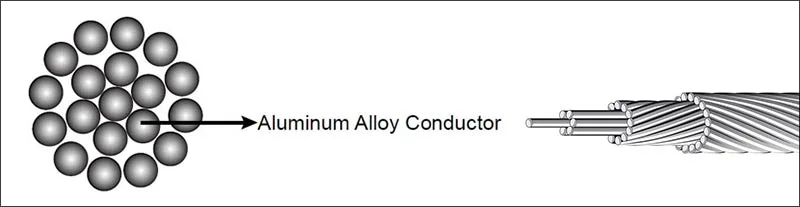

AAAC: All Aluminum Alloy Conductor Cable

The aluminum alloy cable adds copper, iron, magnesium, silicon, zinc, boron and other alloy elements to the electrical aluminum. At the same time, through process adjustment, the mechanical properties of the aluminum alloy conductor are greatly improved, and the low elongation and creep resistance of pure aluminum conductors are avoided. The problem of poor performance and poor flexibility increases the connection reliability of the cable system.

Code	CR (mm2)	SWD (mm)	OAD (mm)	W (kg/km)	RS (kN)	DCR (Ω/km)
16	15.89	7/1.70	5.10	43	4.44	2.0908
25	24.25	7/2.10	6.30	66	6.77	1.3700
35	34.36	7/2. 50	7.50	94	9.60	0.9669
50	49.48	7/3. 00	9.00	135	13.82	0.6713
50	48.35	19/1.80	9.00	133	13.50	0.69.3
70	65. 81	19/2.10	10.50	181	18.38	0. 5072
95	93.27	19/2. 50	12.50	256	26.05	0.3579
120	117.00	19/2. 80	14.00	322	32.68	0.2853
150	147.10	37/2.25	15.57	405	41.09	0.2275
185	181. 60	37/2. 50	17.50	500	50.73	0.1842
240	242.50	61/2.25	20.25	669	67.74	0.1383
300	299.40	61/2. 50	22.50	826	83.63	0.1120
400	400.10	61/2.89	26.01	1104	111.70	0.0838
500	199.80	61/3. 23	29.07	1379	139.60	0.0671

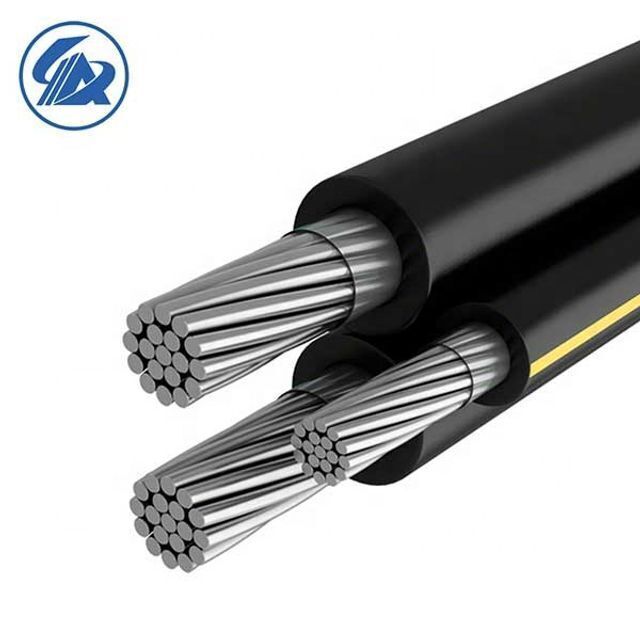

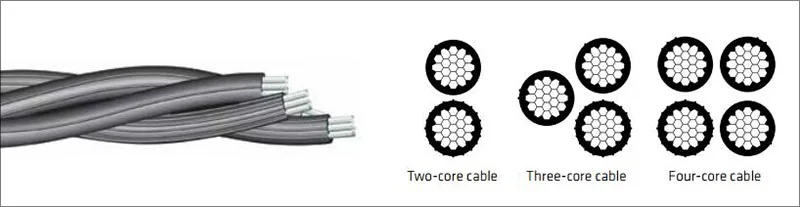

ABC: Aerial Bundled Cable

Aerial bundled cables (also aerial bundled conductors or simply ABC) are overhead power lines using several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. This product is a new type of power transmission overhead cable. It is widely used in overhead transmission lines. Improve the safety and reliability of the electrical network.

CR (mm2)	Wire Mumber	DCR (Ω/km)	ADC (mm)	RS (kN)	AIT (mm)
16	7	1.910	1.6-5.1	1.9	1.2
25	7	1.200	5.8-6.3	3.0	1.4
35	7	0.868	6.8-7.3	–	1.6
50	7	0.641	7.9-8.4	–	1.6
70	12	0.443	9.7-10.2	–	1.8
95	19	0.320	11-12	–	1.8
120	19	0.253	12-13.1	–	1.8
150	19	0.206	13.9-15.0	–	1.7
54.6	7	0.630	9.2-9.6	16.6	1.6
70	7	0.500	10.0-10.2	20.5	1.5
95	19	0.343	12.2-12.9	27.5	1.6

Enterprise Certification

Global Market

We are committed to exploring the international market. Our customers come from all over the world, such as Africa, Latin America,Middle East, Southeast Asia, Europe, etc. Our high quality and low price products have won their recognition.

Customer Friends From All Over The World

FAQ

Q:Can you send samples?

A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q:What product information do I need to provide?

A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q:What are the shipping ports?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q:About product prices?

A:Prices vary from period to period due to cyclical changes in the price of raw materials.

Q:What are the certifications for your products?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:How long does your delivery time take?

A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q:Can I go to your factory to visit?

A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q:Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q:How to pack the products?

A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
