Power Frequency Conjoined Copper Melting Furnace Copper Rod Wire Tube Horizontal Continuous Casting Machine

Supplier: Wuxi Jintong Furnace Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jintong Industry
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	China;	Packaging Detail:	Wooden Box;
Weight:	to be customized;	Voltage:	380V;
Port:	Shanghai;	Warranty:	1year;
Cooling System:	Water-Cooling;	Power Consumption:	85KW-320KW;
Power Factor:	0.95;	Condition:	New;
Supply Ability:	10 Set/Sets per Month;	Brand Name:	JINTONG;
Content:	1.5-3T;	Melting Rate:	300KG~1000KG;
After-sales Service Provided:	Engineers available to service machinery overseas;	Rating Working Temperature:	1250℃;
Power(W):	80-320KW;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Frequency of Input Current:	50HZ;	Phase Number:	3(ABC);
Certification:	ISO;	Product Name:	Conjoined Furnace;
Payment Terms:	L/C,T/T,Western Union;	Dimension(LWH):	to be customized;

Power Frequency Conjoined Copper Melting Furnace Copper Rod Wire Tube Horizontal Continuous Casting Machine

Product Description

Parameter:

Model Number	GYT-150	GYT-300	GYT-500	GYT-700	GYT-1000
Content(KG)	1000	2500	4000	5500	7500
Capacity per Day (KG/12hours)	1000	3000	3500	7500	10000
Ele. Capacity(KW)	50	80	120	180	240
Voltage(V)	380	380	380	380	380
Phase Number	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)	3 (ABC)
Currency Per Phase (An)	90	140	240	300	400
Power Factor	0.95	0.95	0.95	0.95	0.95
Power Consumption(kw)	50	75	120	180	240
Frequency of Input Current (HZ)	50	50	50	50	50
Melting Rate ( KG)	150	300	500	800	1000
Rating Working Temperature (℃)	1200	1200	1200	1200	1200

All the furnaces can be customized, welcome to provide us with your requirements.

Row Material

Copper/Brass/Bronze

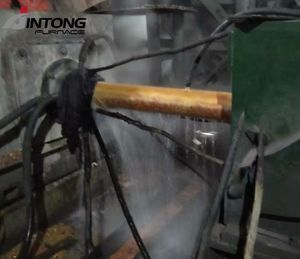

Melting/Holding Furnace and Crystallizer

The crystallizer is mounted on melting furnace for water circulation cooling.

Small Copper Rod Traction Machine & Large Copper Rod Traction Machine

Small Copper Rod Cutting Machine & Large Copper Rod Cutting Machine

Peeling Machine

The peeling machine only for small rob continuous casting .

End Products

What is small copper rod continuous casting machine?

This machine can make copper rod with capacity of 100KG~2T per 12 hours.

Packaging & Shipping

Our Services

Company Information

Wuxi Jintong Furnace Co., Ltd. called Wuxi Xinlian Furnace Factory before was established since year 2004, having 10+ years experience in metal melting and metal heat treatment area. Jintong Manufacturing Corp. is specialized in manufacturing induction melting furnace(copper scrap brass scrap, aluminium scrap, zinc scrap, bronze scrap, steel, iron, stainless steel, carbon steel scrap and precious metal like gold or silver). Our furnaces can be applied to many fields such as copper/brass rod/pipe continuous casting, zinc ingot, aluminum rod continuous casting or power resistance.

We sincerely invite you to visit our factory and offer your valuable guidance. Looking forward to cooperating with you.

Our Customers:

FAQ

Q. What is your MOQ?

A. 1 set.

Q. Your company is a trading firm? or Factory?

A. We are a factory with 10+ years experience in industrial melting feild. We currently have three branches: main frequency furnace production, medium frequency furnace production, component machine production. You are warmly welcomed to visit our factories.

Q. How is your products quality?

A. As a manufacturer, we have our own R&D team. Basing on several years of technical innovation, we have accumulated successful experience in induction heating, temperature holding, fast melting. We've customized so many furnaces with all positive feedbacks.

Q. What kind of material our furnace can melting?

A. Jintong is able to supply a melting production line such as copper/zinc/aluminum melting line.Jintong medium frequency furnace can also melt iron, steel, gold, silver and so on.

Q. I am not so familiar with your machine now. I am not sure I can use it well if I buy it from you.

A. Don't worry about this. With the machine, we will send you a brochure with detailed information of our machine operation. In addition, we will send you videos of machine set up and using. Our engineers are always available for consultation. Engineers can support at your place if it is needed.
