Load Resistance: | ≤600Ω; | Packaging Detail: | "1pcs/colour box, then in standard export carton suitable for long-distant ocean shipment 1. brand packaging 2. Can be customized packaging 3. Neutral packaging"; |
Brand Name: | Toky; | Display Type: | Digital Only; |
Measuring Range: | 0.1~10000Hz; | Output range: | 4 ~ 20mA; |
Protocol: | MODBUS-RTU; | Place of Origin: | Guangdong China; |
Operating Temperature: | -15 ~ 50℃ 35 ~ 85% RH; | Single gross weight: | 0.5 KG; |
Model Number: | FI8-RC60; | Certificates: | CE, CQC, ROHS; |
Voltage: | AC 250V/3A or DC 30V/3A; | Selling Units: | Single item; |
Consumption: | <5W; | Input resistance: | ≥5.4kΩ; |
Name: | frequency meter; | Communication port: | RS485; |
Single package size: | 15X9X13 cm; | Display: | 6 Digits; |
Accuracy Class: | 0.1%RD±3Digits; | Alarm: | 2; |

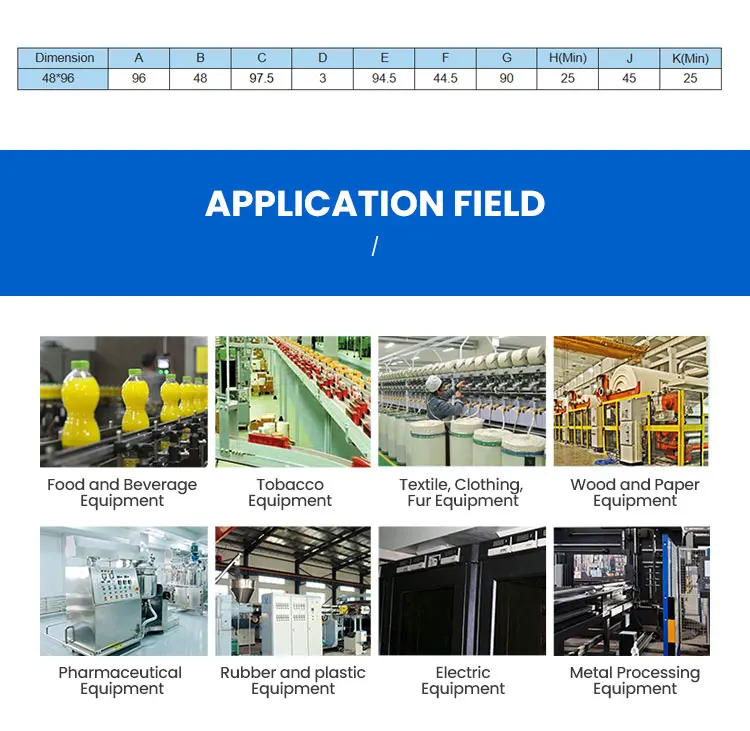

Dimensions: | 96W*48H*97.5L; |

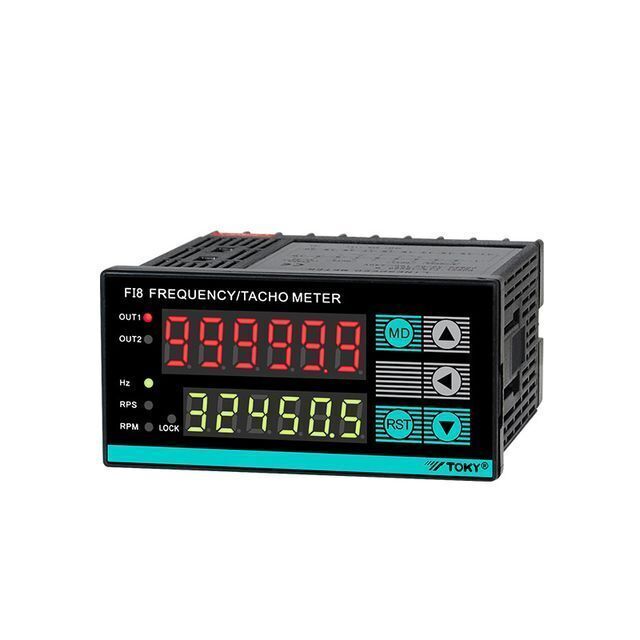

48H*96W Frequency Meter Price Relay Output 2 Alarms Digital Frequency Meter

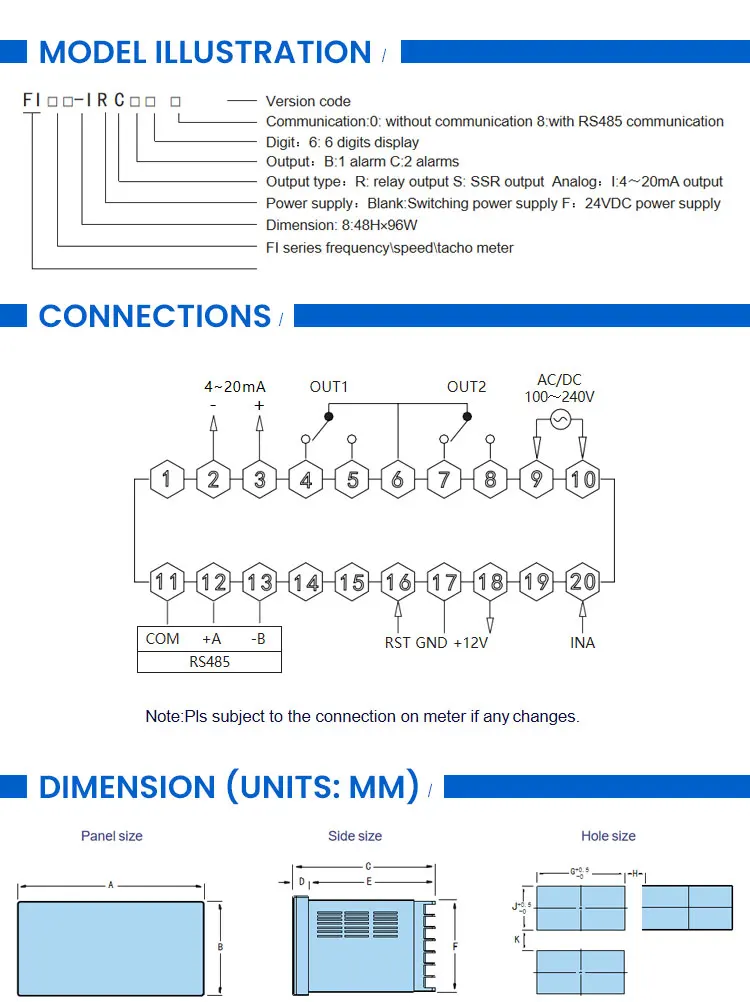

Model | Dimension(mm) | Digits | Alarm | Analog | Communication | Code |
FI8-RC60 | 48H*96W | 6 Digits | 2 | No | No | B0550FI01 |
FI8-IRC60 | 48H*96W | 6 Digits | 2 | 4~20mA | No | B0550FI01 |
FI8-RC68 | 48H*96W | 6 Digits | 2 | No | RS485 | B0550FI01 |
FI8-IRC68 | 48H*96W | 6 Digits | 2 | 4~20mA | RS485 | B0550FI01 |
Input | AC/DC 100 ~ 240V±15% |
Consumption | <5W |
Contact rating | AC 250V/3A or DC 30V/3A |
External power | DC 12V±2V 100mA max |
Insulation resistance | ≥100MΩ |

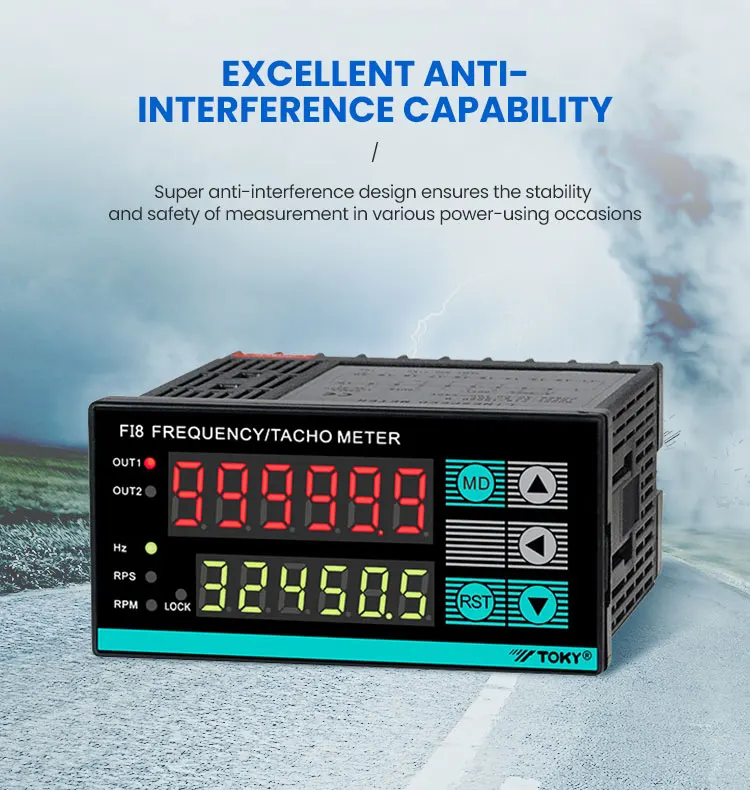

Anti-interference | Power: 4000Vp-p I/0 terminal: 2000Vp-p |
Anti-vibration | 10 ~ 55Hz; 0.75mm |
Environment | -15 ~ 50℃ 35 ~ 85% RH |
Input signal | Square wave, sine wave pulse signal: 3V≤high level≤30V 0≤low level≤1V |
Input resistance | ≥5.4kΩ |
Meassure range | 0.1 ~ 10000Hz |
Accuracy | 0.1%RD±3Digits |
Communication data | Communication port:RS485 |
Protocol:MODBUS-RTU Verification method: no verification | |
Baud rate: 4800bps, 9600bps optional. Frame format: 1 start bit, 8 data bits, 2 stop | |
Analog output | Output range:4 ~ 20mA |
Load Resistance:≤600Ω |
FAQ
Q1.Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.What is your terms of payment?
Usually,we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, full payment before delivery the goods.
Q3.What is the lead time?
For standard models, lead time is about 3~5 days after order confirmed and payment received.
For OEM orders, the delivery is about 2~3 weeks after data confirmed and payment received.
Q4.What is your terms of packing?
Under TOKY brand, the standard packing is 1pc item in a colour box or brown inner box, then into standard export carton.
For OEM order, usually 1pc item in a brown inner box, then into standard export carton.
Q5.What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q6.How to solve the quality problems after sales?
Take photos or videos of the problems and send to us.
We will make a satisfied solution for you within 24 hours after we confirm the problems.
Q7.Do you have any MOQ limit for the order?
Low MOQ, 1pc for sample checking is available.
Q8.Is it OK to print my logo on the product?
Yes, OEM service is available.
Please confirm with our sales team formally before production and confirm the design firstly based on our sample.
Q9.Are you manufacturer or trading company?
We are manufacturer for over 30 years. Welcome to visit our factory at anytime.
