Intelligent Industrial Digital heating temperature controller

Product details
Power consumption:≤5W;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Accuracy:0.3%FS;Cooling control:Relay output;
ESD:3 level;Dielectric strength:100MΩ DC 500V;
Product name:Intelligent Industrial Digital heating temperature controller;Place of Origin:Guangdong China;
Display Digits:4 digits;Display Max:Refer input signal table;
Port:ZHONGSHAN;Working environment:0~50℃ <85%RH;
Packaging Detail:Mini digital temperature controller One piece per one paper box, 18 pcs in one carton (39.5 x 29 x 37cm);Voltage:100~240V AC/DC 50/60Hz;
Brand Name:TOKY;Supply Ability:20000 Piece/Pieces per Month Digital heating temperature controller;
Model Number:AI518-7;
Product Description

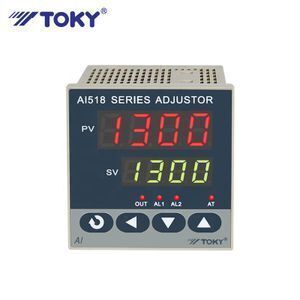

Intelligent Industrial Digital heating temperature controller

Cost effective temperature controller

Features:

1
Optional input of TC/RTD/analog signal,universal software
2
Two freedom degree PID arithmetic with auto-tuning function
3
Optional various control output and 4~20mA linear output
4
2 loop alarm,many kinds of alarm type are optional.
5
Rich sizes, big LED display
6
RS485 communication,ModBUS-RTU protocol.
7
Industrial level of EMC test and higher reliability

Ordering Information:

Model
Control output
Analog output
Communi?cation
 Input
Accuracy
AI518-□-SC10
Voltage output
No


No
Series include types of input signal

TC input

RTD input

Standard analog input(0~10V,

4~20mA,0~50mV,0~400Ω)






±0.5%FS
AI518-□-RC10
Relay output
No
AI518-□-KC10
SCR output
No
AI518-□-DC10
Current output
Switchable analog
AI518-□-SC18
Voltage output
No


RS485
AI518-□-RC18
Relay output
No
AI518-□-KC18
SCR output
No
AI518-□-DC18
Current output
Switchable analog
Note:4-20mA output can switch analog output/PID control output in the menu.The factory is PID control output without neted.
Specifications:
Display
Digits
4 digits





Communicaiton
Communicaiton

protocol
RS-485 ModBUS-RTU
Max
Refer input signal table
Baud
4800bps,9600bps






Input signal




Input type
TC,RTD universal input
Standard analog inputRefer input signal specification
table


IP range


0-255
Delay
No
Power supply
Voltage
100~240V AC/DC 50/60Hz
Accuracy
0.5%FS
Power

consumption
≤5W
Resolution
Display± 0.1℃
Protection

level
Panel
IP54
Sampling rate
2.5 times/second
Body



Analog output
Output points
1 loop

Environment
Working environment
0~50℃ <85%RH
Type
4~20mA
Storange environment
-20~60℃ <85%RH
Range & load
Load resistance 600Ωmax

Structure
Vibration,pile
10~55Hz X\Y\Z 0.75mm
Output accuracy
0.5%FS
Screw torque
0.74n.m~0.9n.m
Resolution
0.01mA 12 digits

Safe
Dielectric strength
2000V AC 50/60Hz 1 minute
Auxiliary voltage

output
Voltage supply
DC 24V
Insulation impedance
100MΩ DC 500V
Capacity
30mA max


EMC
ESD
3 level


Relay output
Load
3A/250V AC
Pulse train anti-interference
4level each mode±4000VP-P
Electrical
10W times
Lightning surge
3 level N-L ±2000V
Mechanical
100W times
Frequency drop
3 level

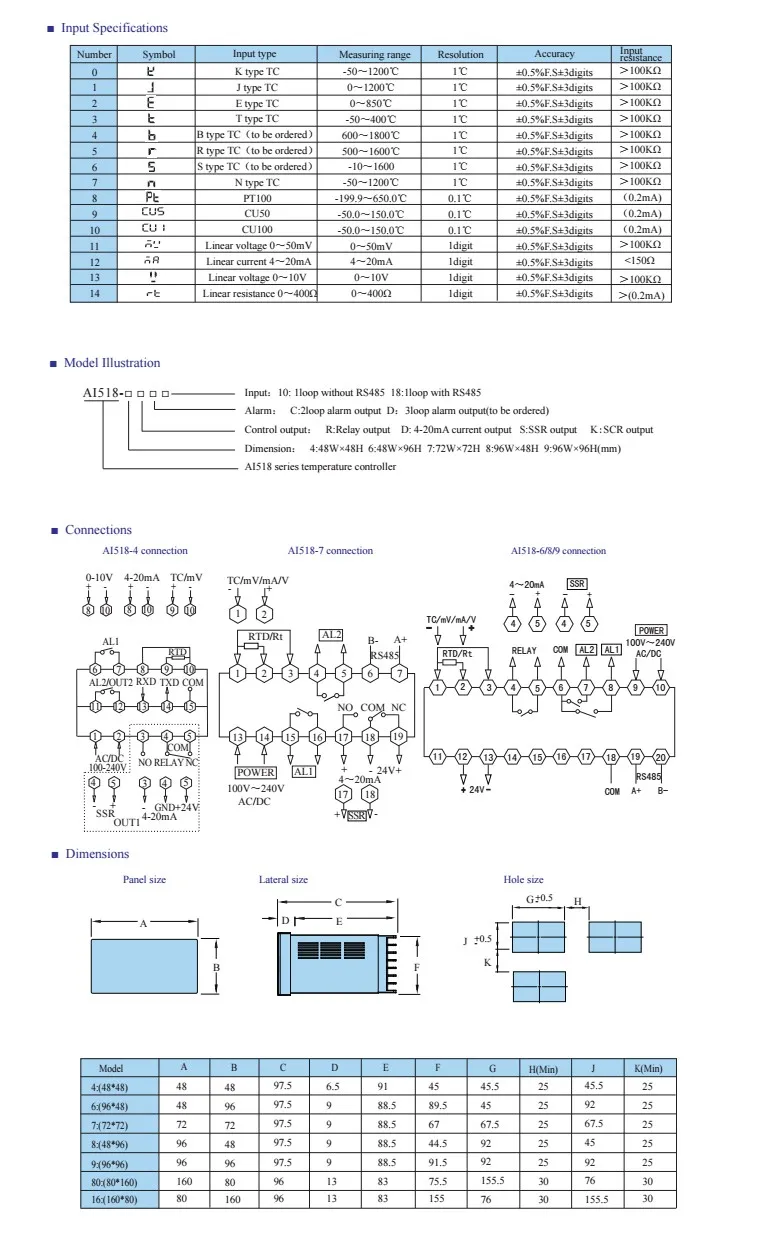

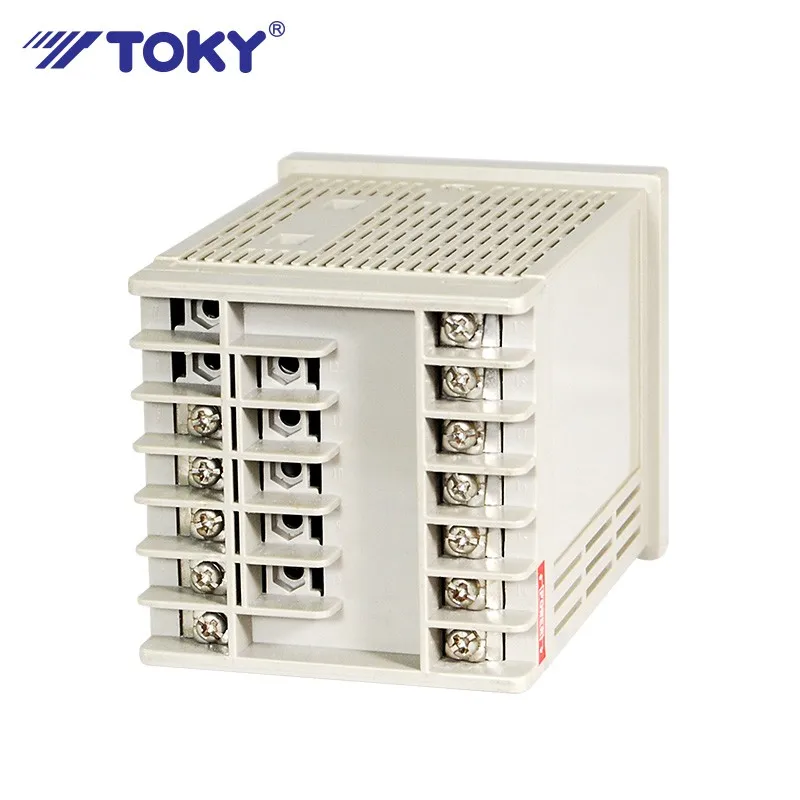

Detailed Images
