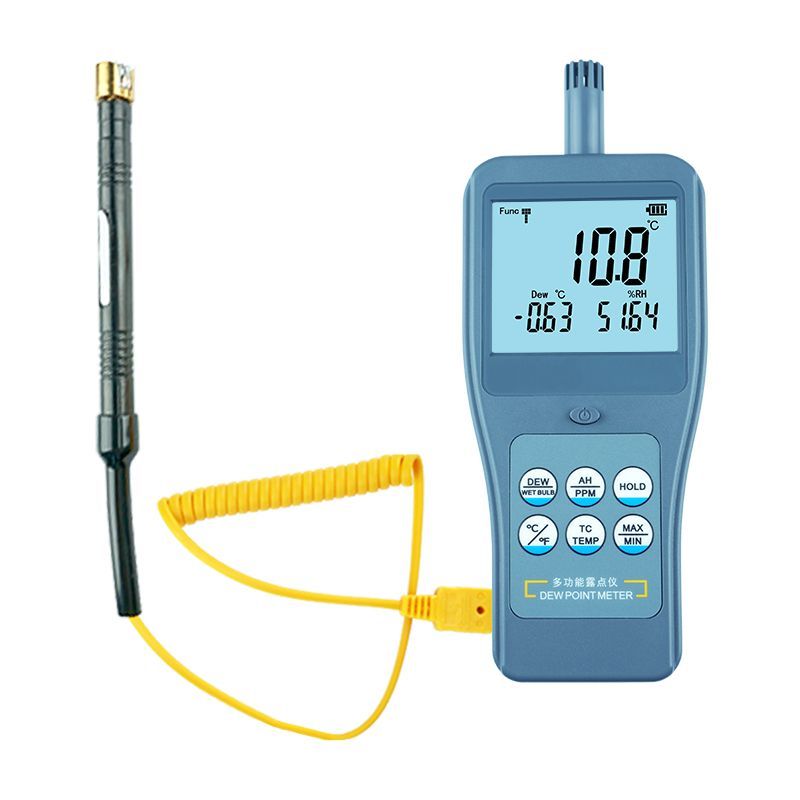

RTM-2612 Digital Dew Point Meter with K-type Surface Thermometer

Thermocouple Thermometer and Dew Point Meter RTM-2612

1.Introduction:

It is a high-accuracy professional dew point meter. It is able to measure Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPM and Thermocouple Surface Temperature. It can quickly respond to temperature and humidity measurements in the industrial range. It is also capable of measuring temperature and humidity in a variety of complex environments. Widely used in spraying industry, laboratories, precision manufacturing, modern agriculture, meteorological measurement, chemical and pharmaceutical fields.

2.Features:

  •  Large LCD with display. It can display three values at the same time.

  •  Ambient Temperature measurement.

  •  Dew Point Temperature measurement.

  •  Wet Bulb Temperature measurement.

  •  Relative Humidity measurement.

  •  Absolute Humidity measurement.

  •  PPM measurement.

  •  Thermocouple Surface Temperature measurement.

  •  Temperature unit ( °C/°F).

  •  0.01 resolution, High accuracy.

  •  With maximum and minimum values function.

  •  With the displayed values hold function.

  •  With battery indication function.

  •  With automatic power off function.

3.Specifications:

Display: Backlit LCD

Test Parameters: Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPM, Thermocouple Surface Temperature

Range: Ambient Temperature: -30~120°C (-22~248°F)

            Relative Humidity: 0~100%RH

            Dew Point Temperature: -45~120°C (-49~248°F)

            Wet Bulb Temperature: -20~40°C (-4~104°F)

            Absolute Humidity: 0-400g/m³

            PPM: 0~50000

            Thermocouple Surface Temperature: -50~200°C (-58~392°F)  (-150-1372℃ can be customized)

Resolution: Ambient Temperature: 0.01, 0.1

                   Relative Humidity: 0.01

                   Dew Point Temperature: 0.01, 0.1

                   Wet Bulb Temperature: 0.01, 0.1

                   Absolute Humidity: 0.01, 0.1

                   PPM: 1

                   Thermocouple Surface Temperature: 0.1, 1

Temperature Unit: °C/°F

Operating Conditions: Temperature: 32°F~122°F (0°C~50°C); Humidity: <80%RH

Storage Conditions:Temperature: 14°F~140°F (-10°C~60°C); Humidity: <90%RH

Power Supply: 4×1.5V AAA(UM-4) Battery

Size: 205×80×31mm

Weight: 186g (Not Including Batteries)

Standard Accessories: Main Unit ×1, TP-202 Thermocouple ×1, Manual ×1, Carrying Case ×1
