RT1562 Digital High-precision PRTD Thermometer

RT1562 High-precision PRTD Thermometer

1.Introduction:

It is a high-precision RTD thermometer that uses PT1000/PT100 platinum thermal resistance as a sensor to measure temperature signals. Large color LCD display, 2 sampling channels, 0.01°C/°F high resolution, accuracy up to ±0.1°C. With real-time measurement graph display function. With data storage function. Widely used in industrial production, research and development experiments, food processing, refrigerated storage, precision temperature measurement and other occasions.

2.Features:

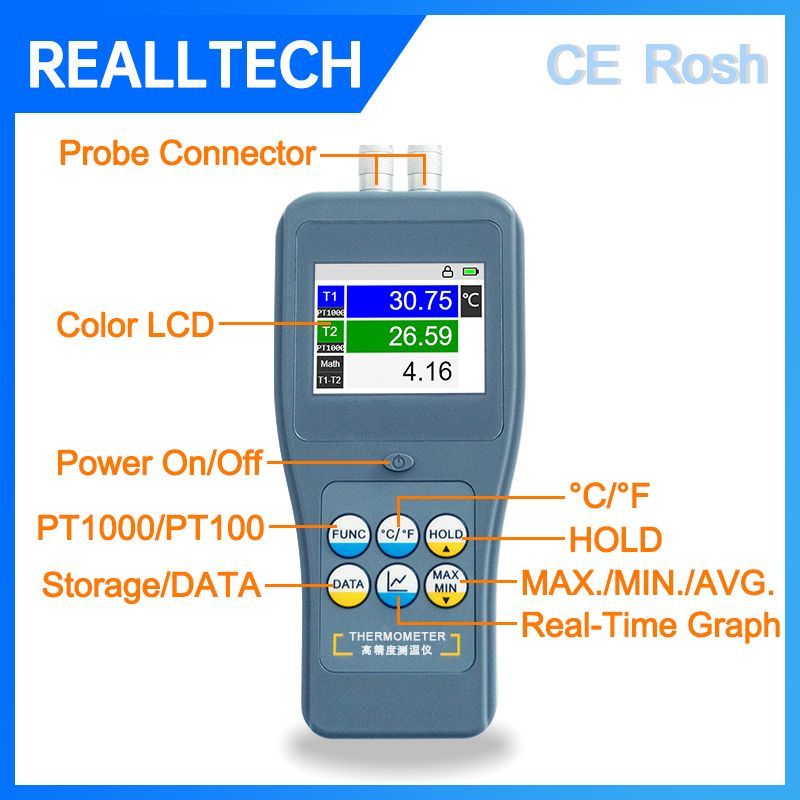

* Large color LCD with display.

* 2 Sampling Channels.

* High-precision PT1000/PT100 platinum thermal resistance is used for temperature measurement.

* Temperature unit (°C/°F).

* 0.01°C/°F high resolution.

* Accuracy up to ±0.1°C.

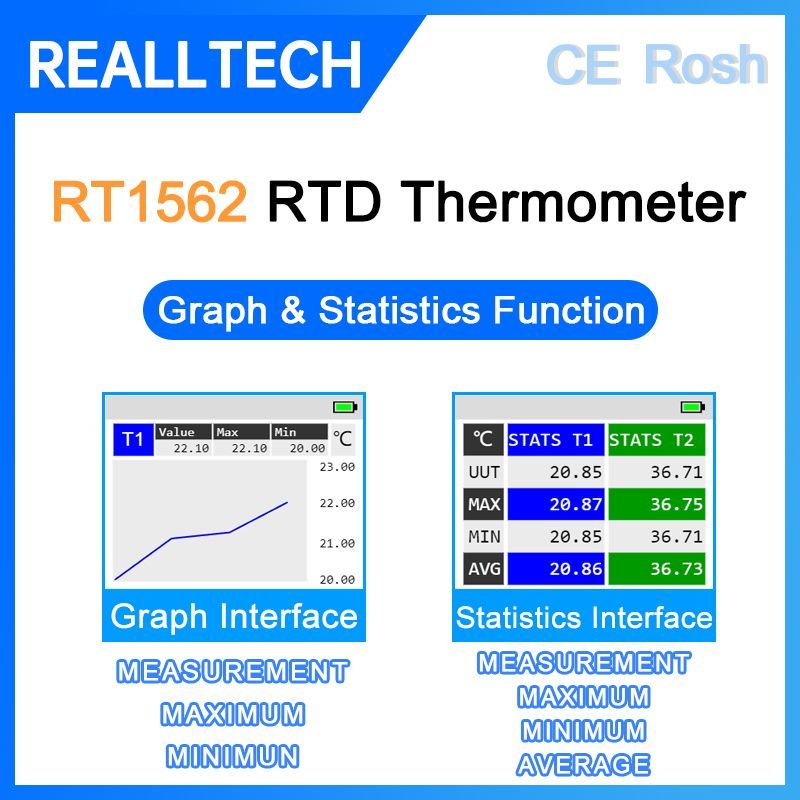

* With real-time measurement graph display function.

* With data storage function (99 Groups).

* With data hold function.

* With automatic statistics function of maximum, minimum and average values during the measurement period.

* With battery indication function.

* With automatic power off function.

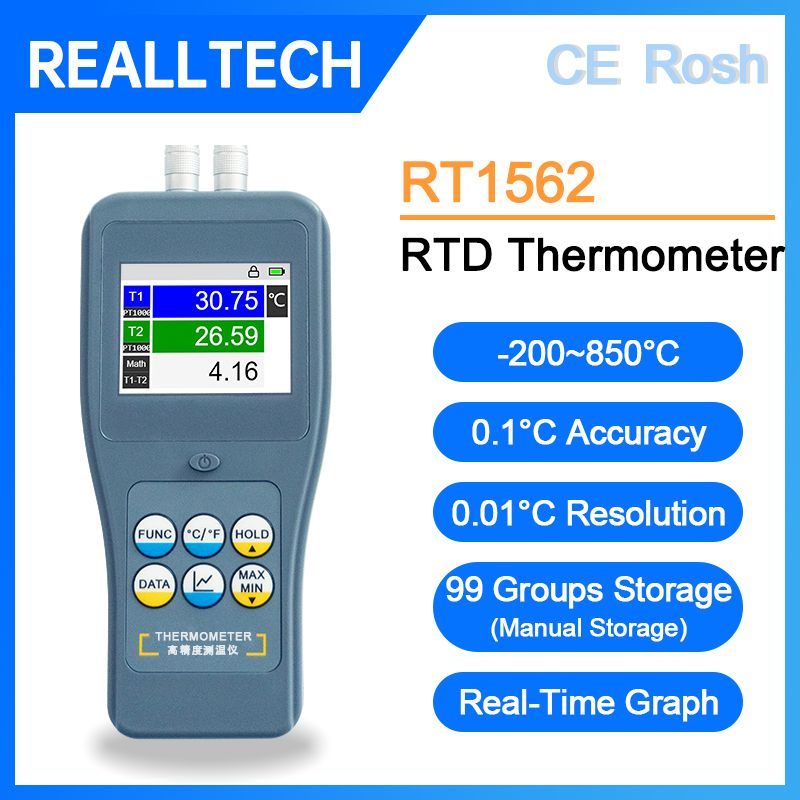

3.Specifications:

Display: Color LCD

Type: PT1000/PT100 Platinum Resistance

Range: -200~850°C (-328~1562°F)

            (Depend on Probe)

Accuracy : 0.1°C (Including Probe)

Resolution: 0.01°C/°F

Unit: °C/°F

Sampling Channel : 2 Channels

Graph Display: Real-time Measurement Graph

Data Storage: 99 Groups (Manual Mode)

Statistical Functions: Maximum, Minimum, Average

Auto Power Off: 10 Minutes (After No Operation)

Operating Conditions: Temperature: 0~50°C; Humidity: 0~90%RH (No Condensation)

Storage Conditions: Temperature: -10~50°C; Humidity: 0~95%RH (No Condensation)

Power Supply : 4×1.5V AAA(UM-4)Battery

Size: 170*80*31mm

Weight: 163g (Not Including Batteries)

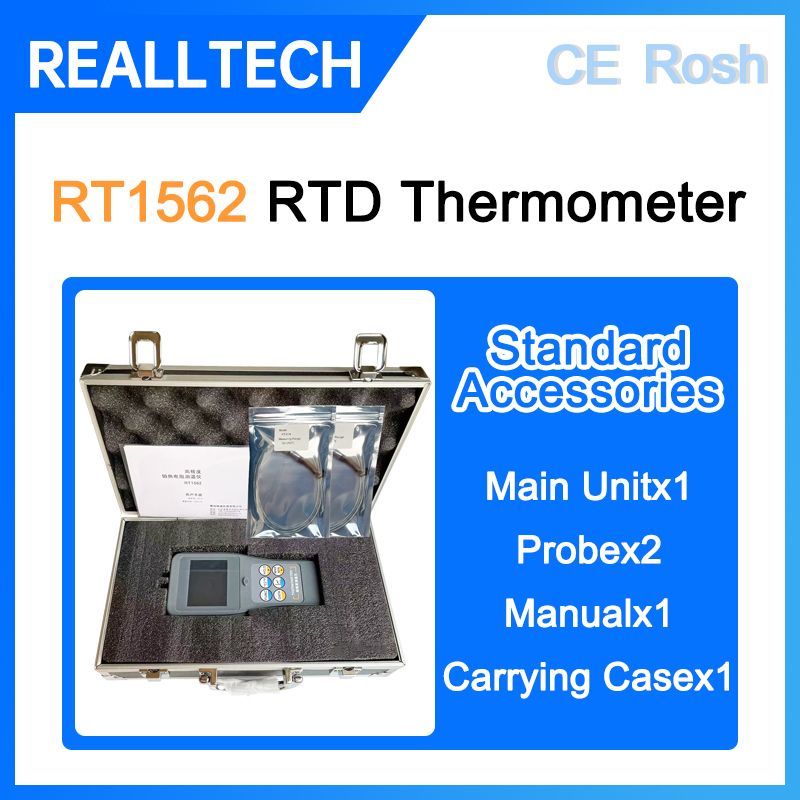

4.Standard Accessories:

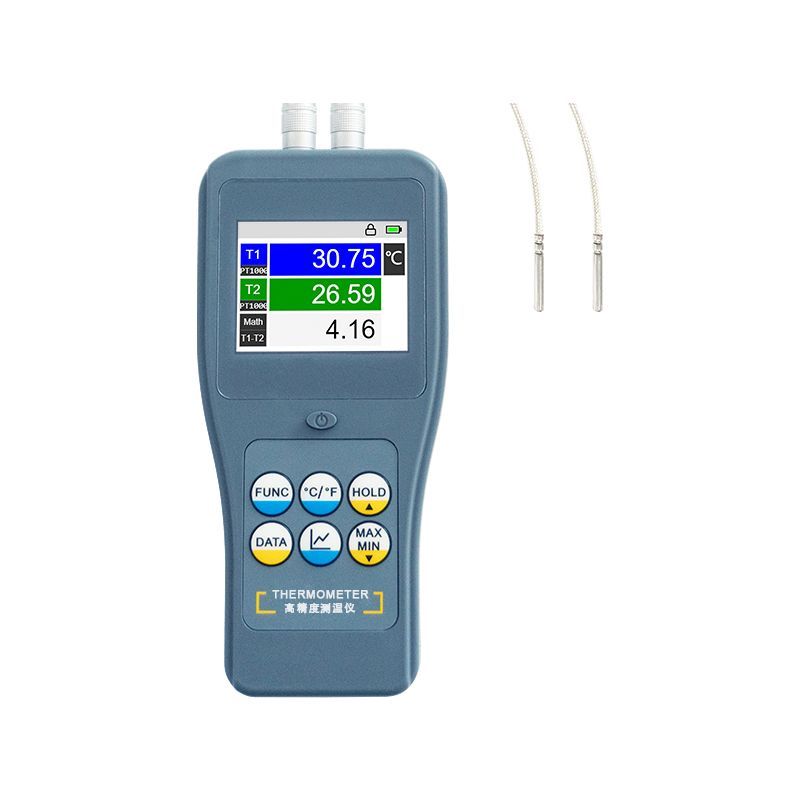

Main Unit,

PT-01A Probe (Range: -50~200 Celsius degree (-58~392 Fahrenheit degree)),

Manual,

Carrying Case
