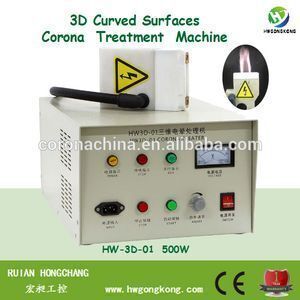

Diginal 3D Plasma Corona treater single head for film corona

Product details
Payment Terms:T/T,Western Union,Paypal;Port:NINGBO SHANGHAI;
Plasma corona treater Power:500W;Supply Ability:30 Set/Sets per Month Plasma corona treater;
Plasma corona treater Experience:More than 10 years;Brand Name:HW&OEM;
Plasma corona treater Use:For Komori Printer;Plasma corona treater Type:Main Board;
Place of Origin:Zhejiang China (Mainland);Plasma corona treater Application:Gluing, printing,painting ,coating.;
Plasma corona treater Processing Type:Surface Treatment;Plasma corona treater Product Type:PP,PE,PS,Plastic,metal Film;
Plasma corona treater Use Type:Printing Machine,Film blowing Machine etc;After-sales Service Provided:Engineers available to service machinery overseas;
Packaging Detail:Plasma corona treater Packaging Detail:pallet / wooden case package/ depends on customer requirement. this corona treater has english manual;Model Number:HW-3D-01;

Diginal 3D Plasma Corona treater single head for film corona



General Introduction:

   3D corona treatment system is perfect solution to adhesion problems on injection, blow moulded or extruded parts of PE, PP, PET, nylon, vinyl, polystyrene, polycarbonate, PVC, fluorocarbons and all other types of thermoformed and thermoset plastics.

3d jet corona can be used in a very flexible way, since a counter electrode is not needed. The discharge is ignited between a pair of electrodes inside the treatment tool and gets directed towards the substrate with a minor laminar air flow.

This 3D corona treatment also eliminates grease, oils and other contaminants if any, which are most common adhesion retardants.3D surface-treating systems improve the bonding of inks, adhesives and coatings, allowing you to treat multiple surfaces and difficult configurations with remarkably consistent and convenient one-pass coverage.

Technical Specification:

Item

HW-3D01

HW-3D02

Treating head

25 mm/ 50 mm /80 mm width

Mains supply

220 V,AC ± 5 %, 1 ?

Mains frequency

50 Hz ± 5 %

Speed

As per material and product

Output frequency

30 Khz

App.output power

500w

1000w

Corona output

a. Constant at same speed b. No influence of supply voltage

Dynes level

38-44Dynes/cm

Packing size(Carton)

63*37*37CM

Net Weight

18kgs

20kgs

Corona station

Can be customized by specific requirements



Applications:

3D Corona treatment system readily solve surface adhesion problems for a wide variety of products and applications:

  • Caps and closures
  • Painting and decorating
  • Cups and containers
  • Consumer products
  • Extruded pipe, tubing, profiles
  • Medical and health care products
  • Electrical/electronic components
  • Direct printing
  • Hot stamping
  • Pad printing
  • Adhesive coating
  • Wire and cable
  • Laminating

Please contact us for more machine technical datails and proposal.

We can send you machine video for clear understanding.

Product Details:

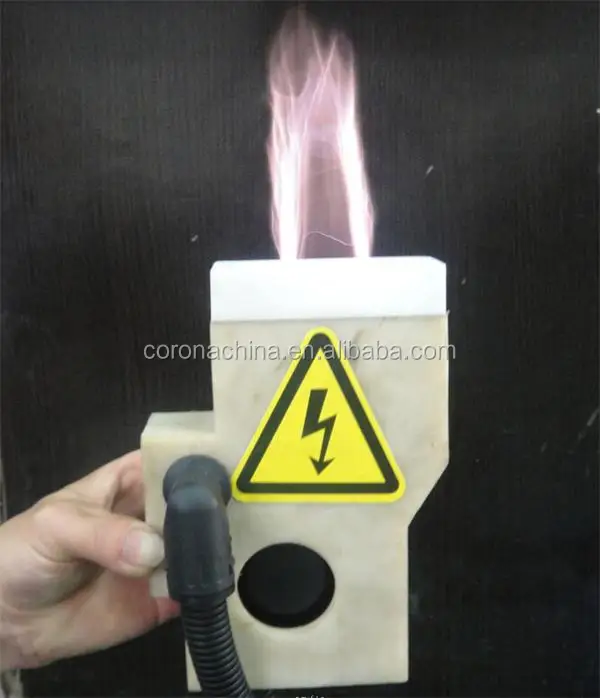

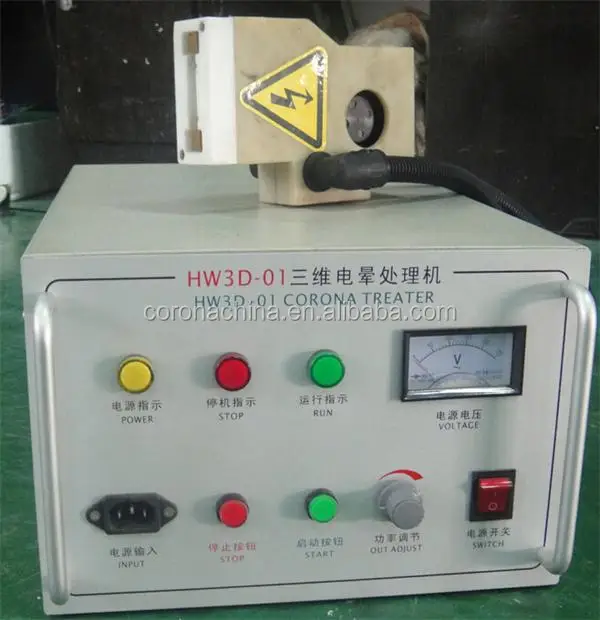

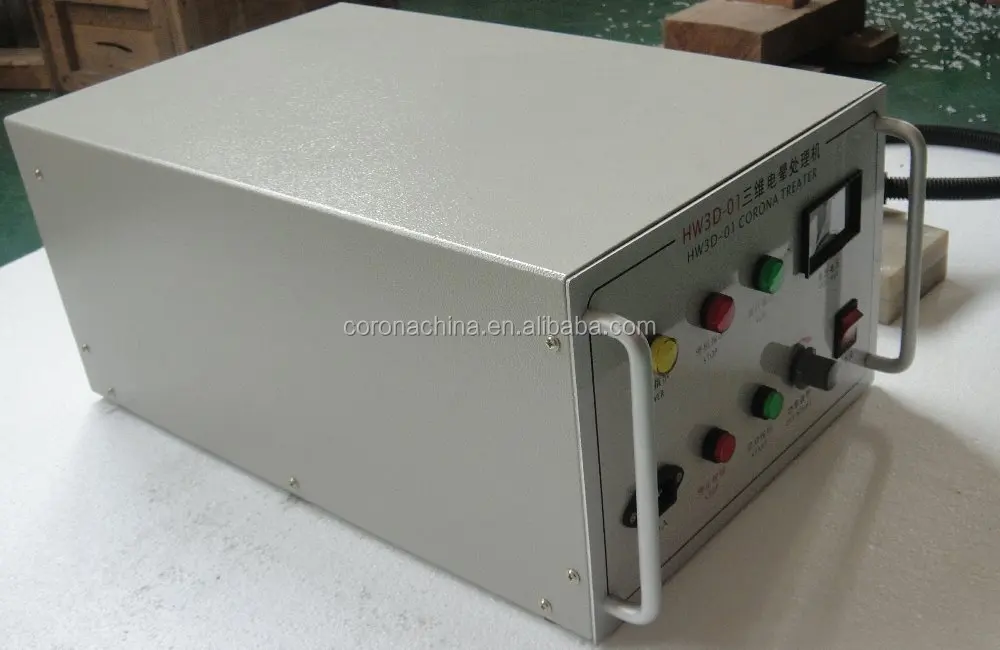

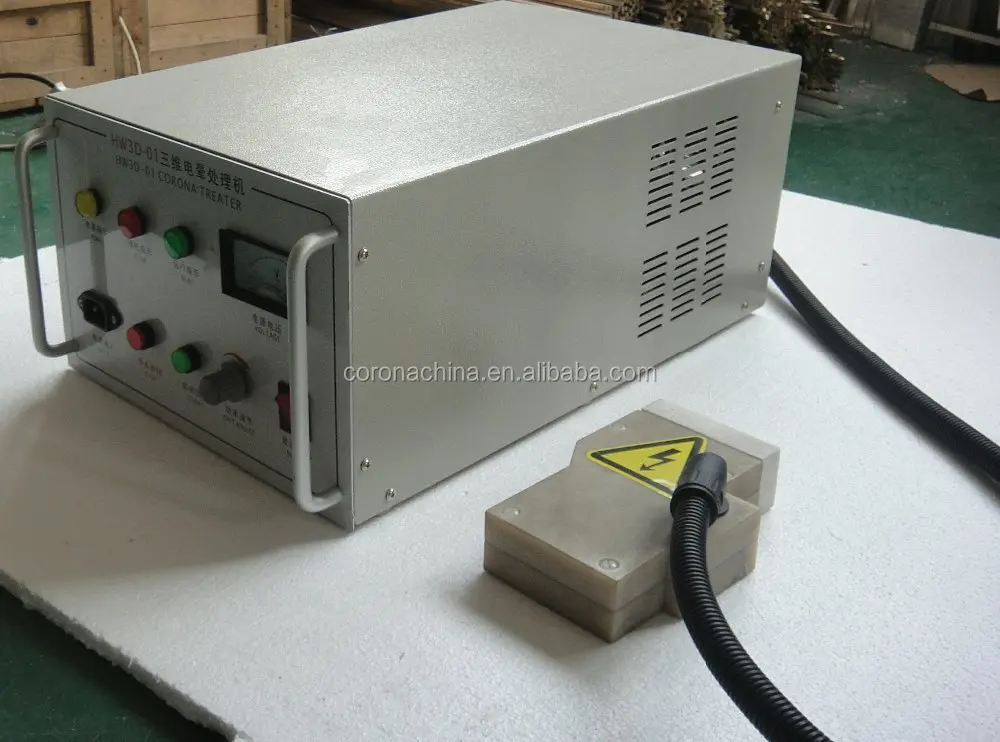

 DSC03371_2345.jpgDSC03372_2345(1).jpg 3D 2.jpg 3D 3.jpg

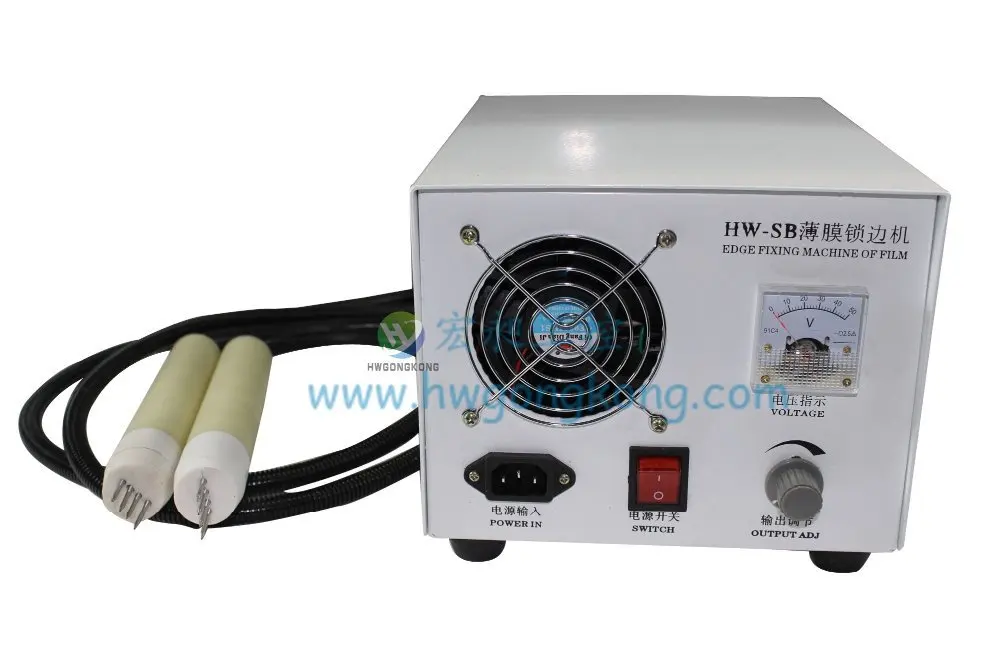

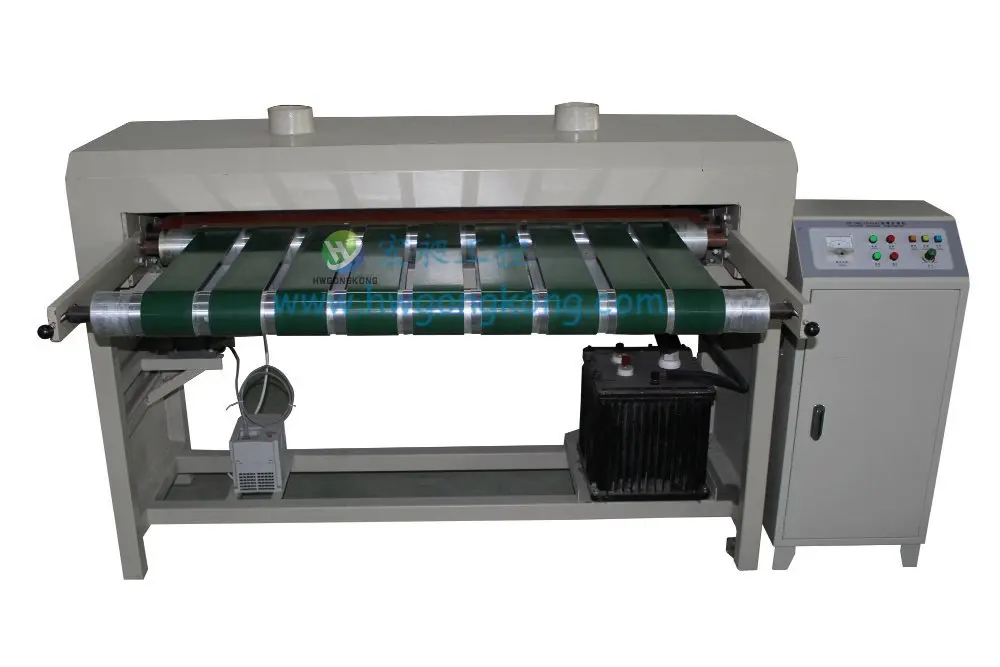

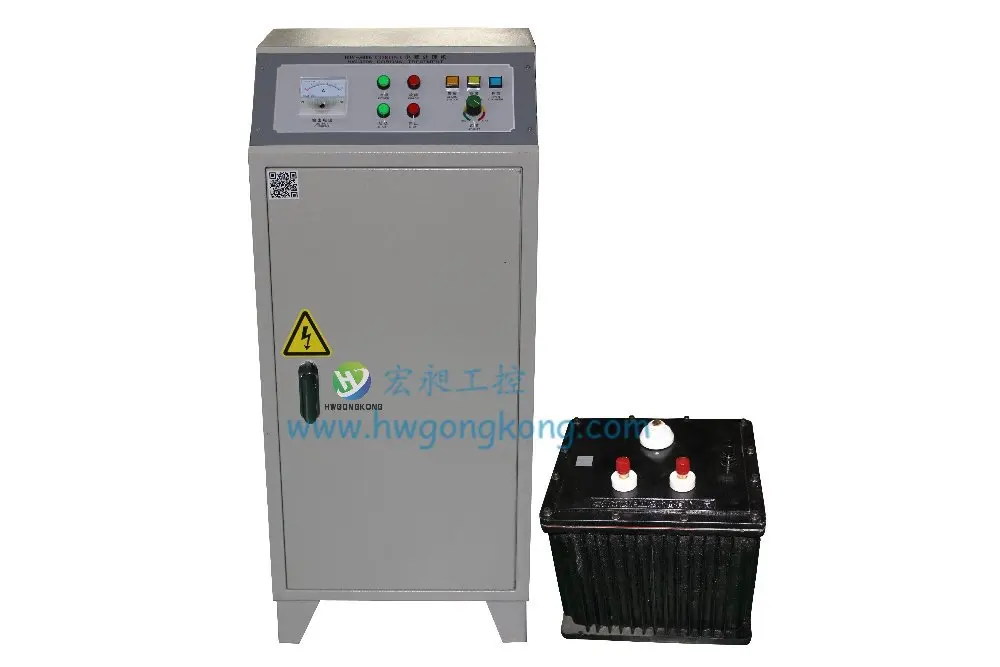

Recomment collocation:

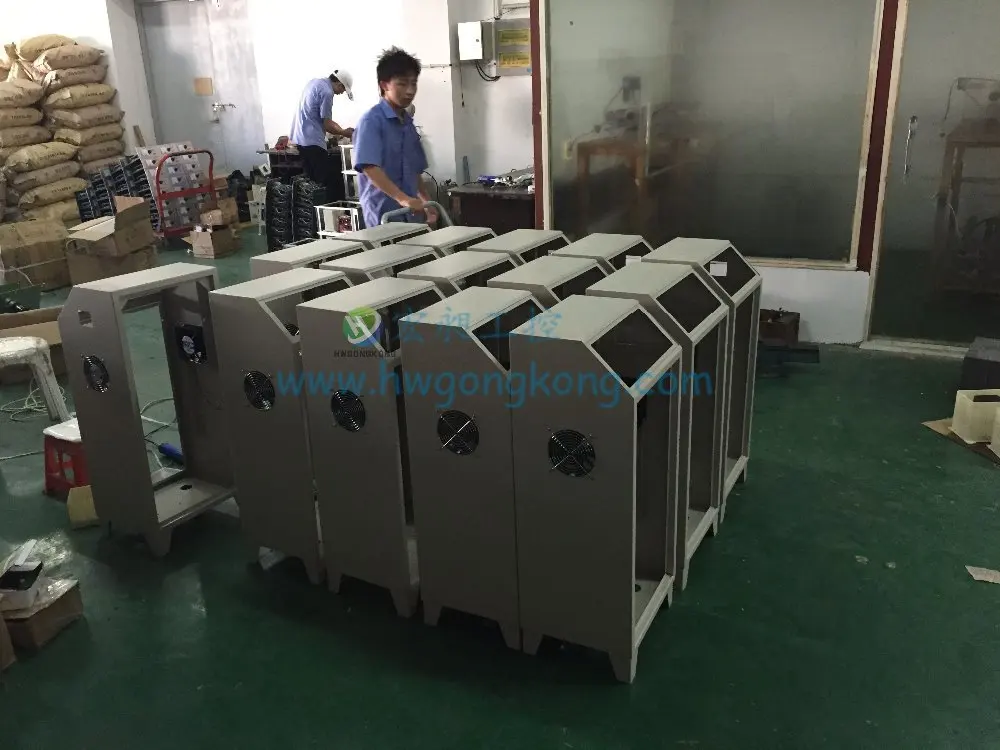

  Company Show:
