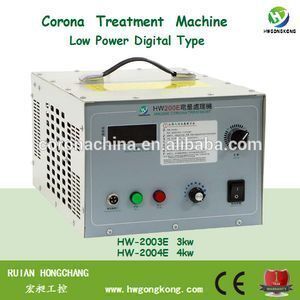

Digital showing Corona treater for film blowing machine Corona Processor

Click here to contact

Product details

Corona Processor Using Type:	Printing Machine,Bag Making Machine,Blowing Film Machine etc;	Corona Processor Application:	Gluing, printing,painting ,coating.;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Zhejiang China (Mainland);
Corona Processor Width:	600-800MM;	Corona ProcessorType:	Main Board;
Package Preview:	https://sc02.alicdn.com/kf/HTB13AdoOFXXXXX3XFXXq6xXFXXXB.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1BGJjOFXXXXbnXFXXq6xXFXXXq.jpg_640x640.jpg;	Delivery Detail:	3 days after payment;
Corona ProcessorPower:	0-2kw;	Corona Processor Experience:	More than 10 years;
Model Number:	HW-2003E;	Corona Processor Processing Type:	Surface Treatment;
Corona Processor Product Type:	PP,PE,PS,Plastic,metal Film;	Brand Name:	HW&OEM;
Selling Units:	Single item;	Package Type:	cartons;
Single package size:	54X34X26 cm;	Single gross weight:	14 KG;

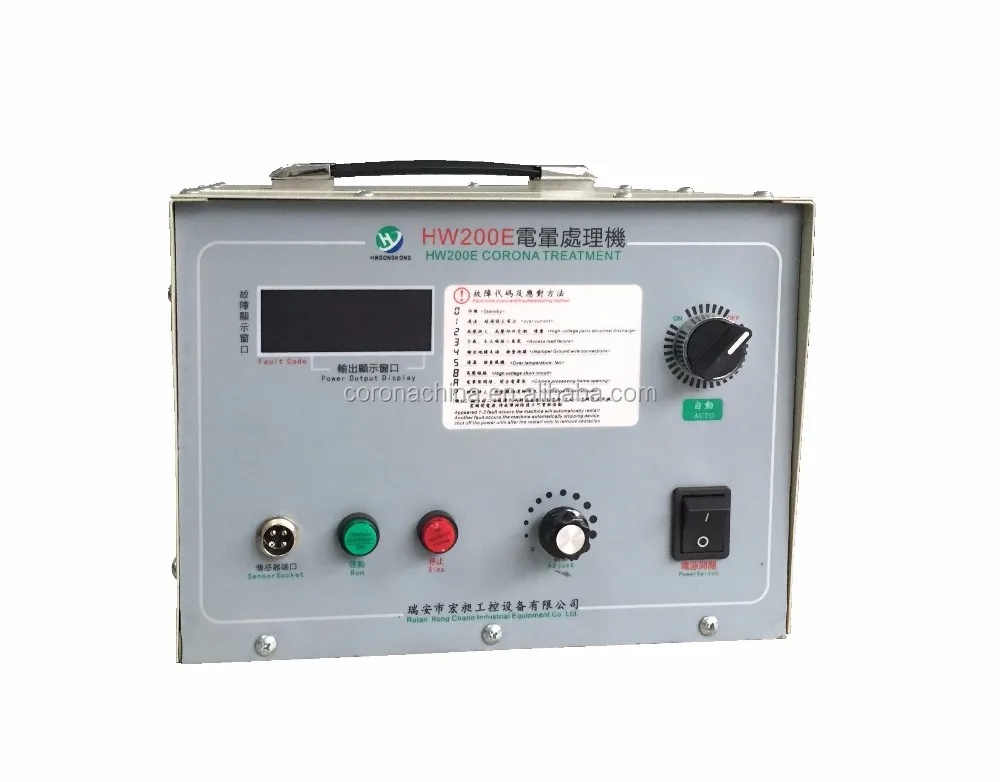

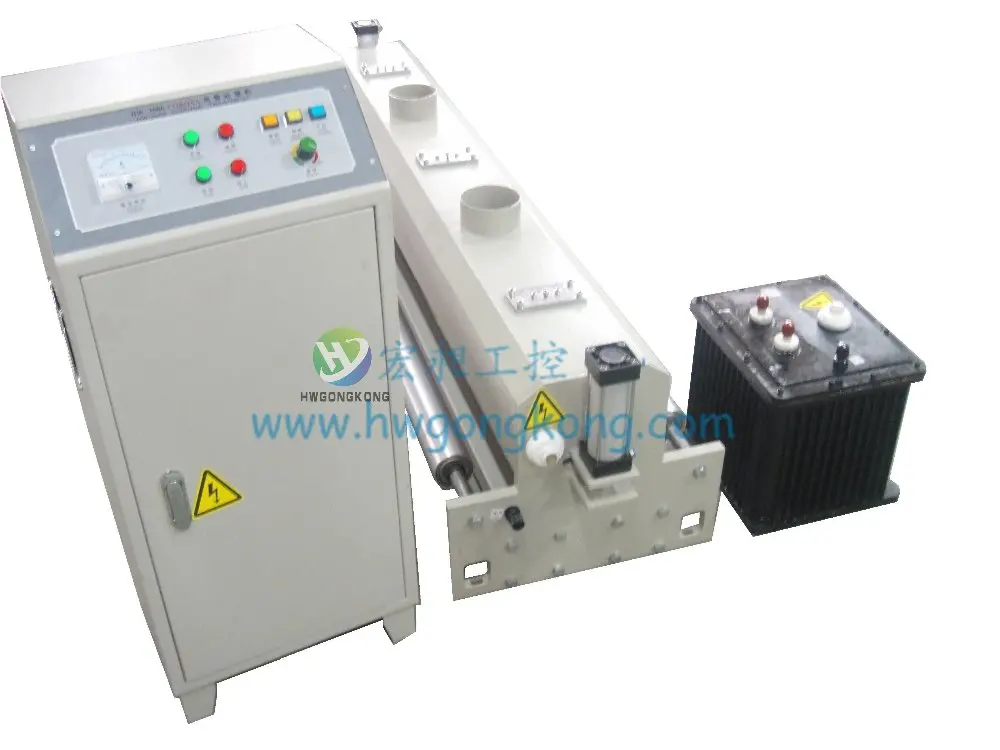

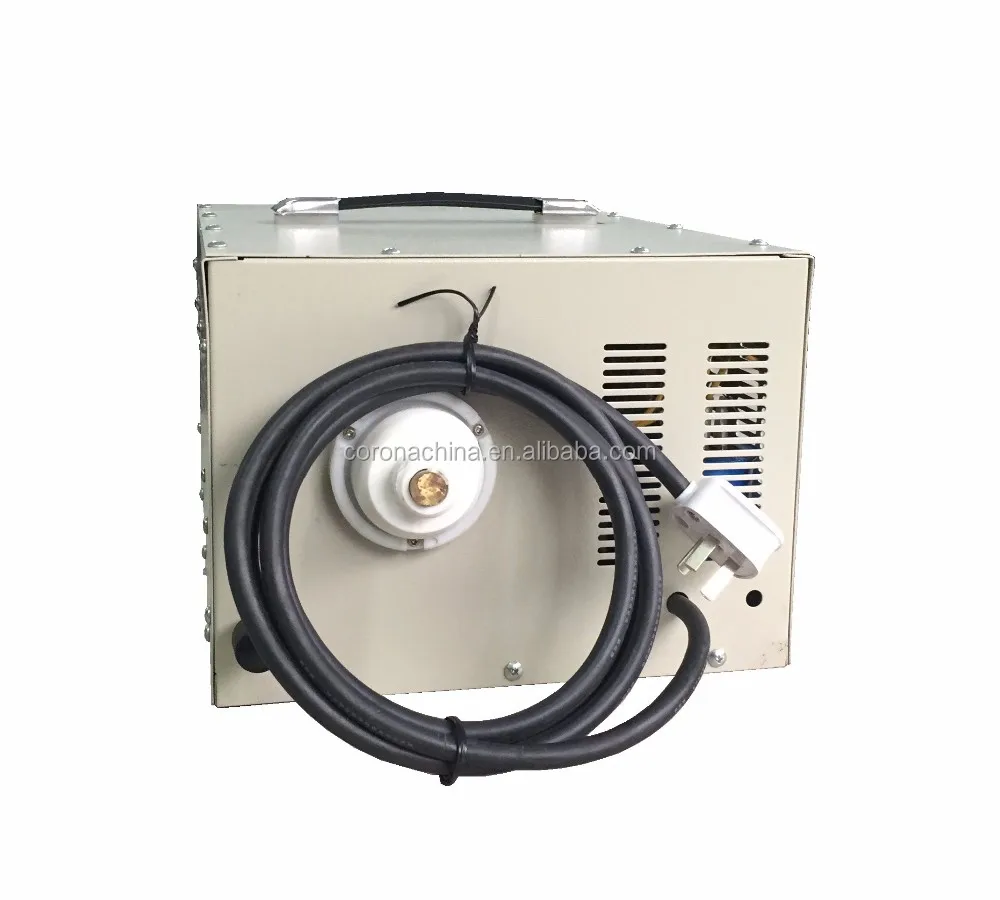

Digital showing Corona treater for film blowing machine Corona Processor

Features of Corona Processor:

1. It adopts high voltage fast-switching power transistor as power conversion device

2. High efficiency, high operating frequency.

3. Power output is continuous adjustable.

4. Electronic protection and low speed automatic off.

5. Server in the film production, printing, gelatinize, and complex unit.

6.Uniform treatment through out the web width

Technical Specification:

Item	HW-2003E
Power supply	AC2200V±10%/-15%
Mains frequency	50 Hz ± 5 %
Line speed	80-100m/min
Output frequency	8-25 Khz
Max.output power	3Kw
Corona output	a. Constant at same speed b. No influence of supply voltage
Dynes level	38-42Dynes/cm
Treated side	Singel side or Double side
The max treated width	1200mm
Treated material	PP,PE,PS etc plastic film,Metal film
Packing size(Carton)	543426CM 15KG
Environment temperature	-10°C ~ +40°C
Environment humidity	20%~93% no condensation

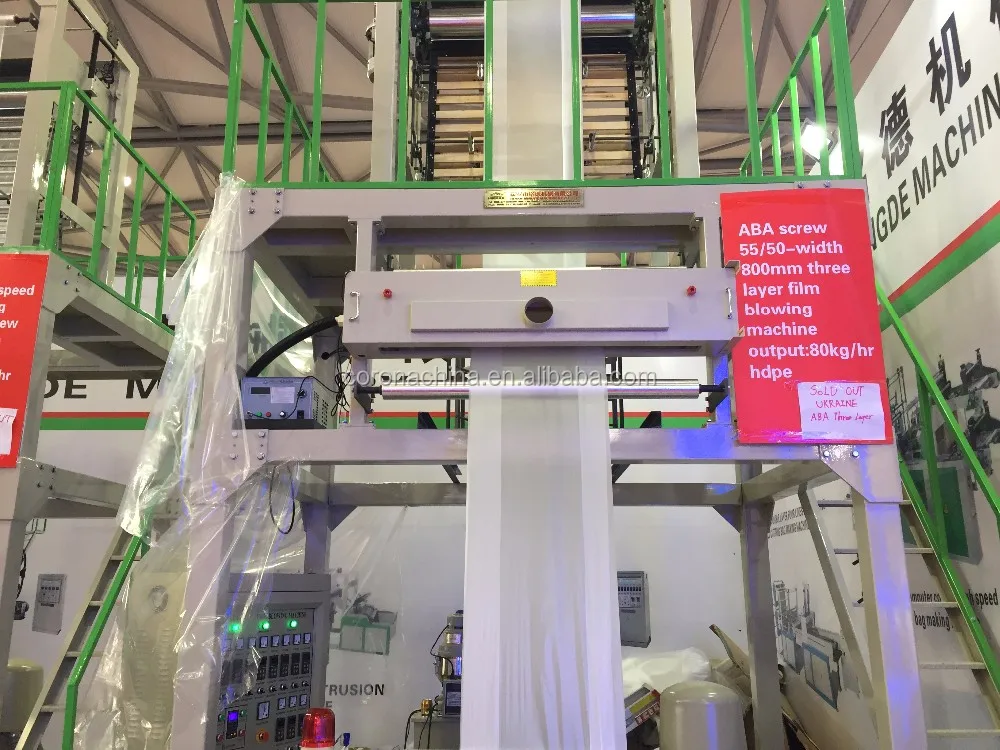

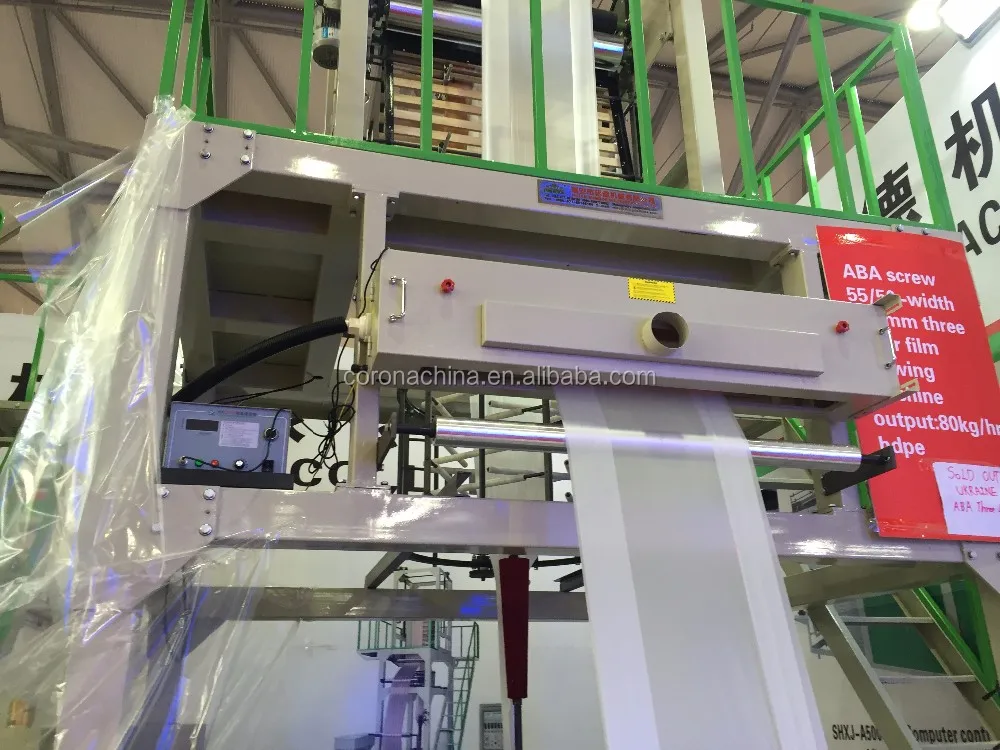

Application	Film blowing machine,printing machine ,laminating machine etc

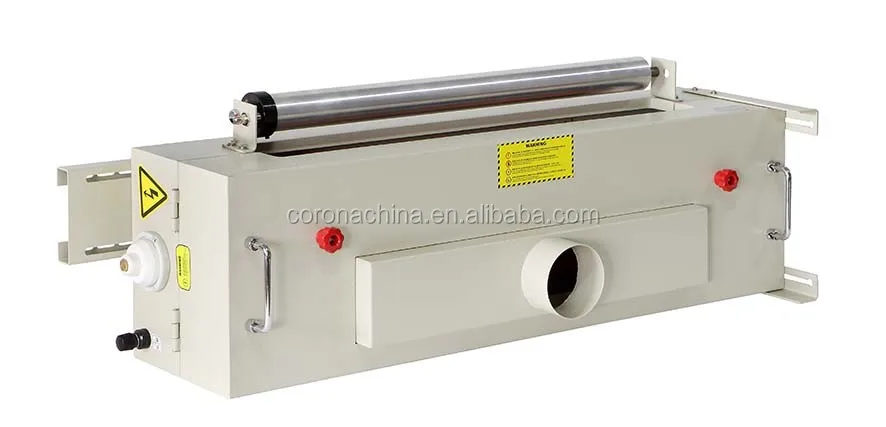

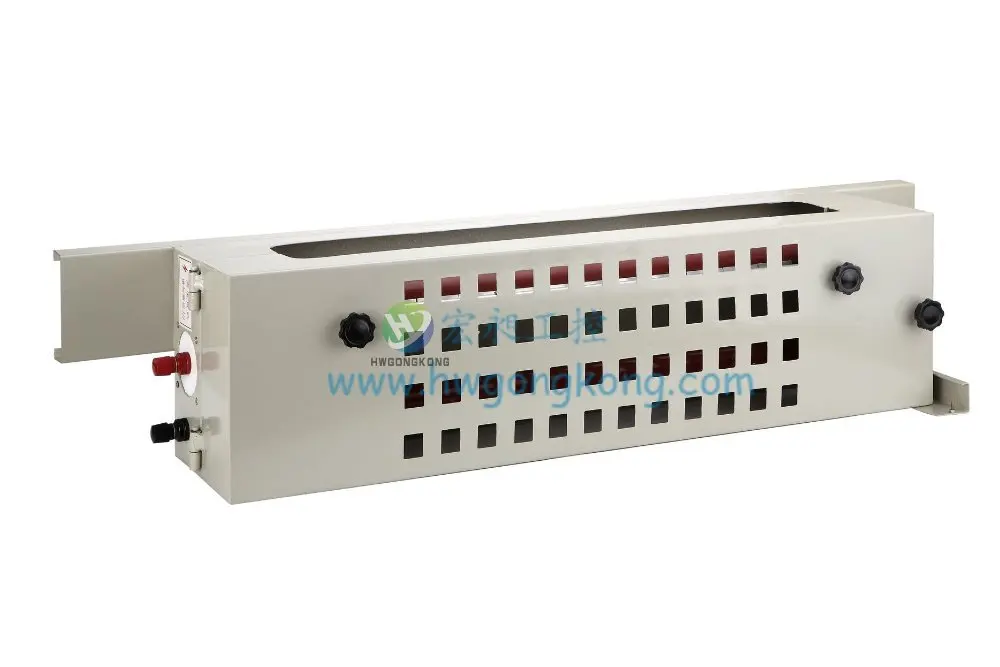

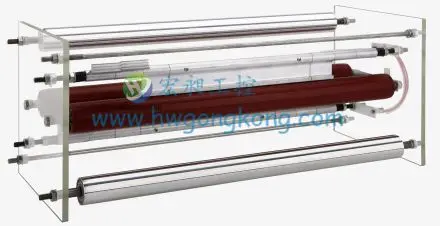

Corona treatment station	Avalible as customer's requirements
