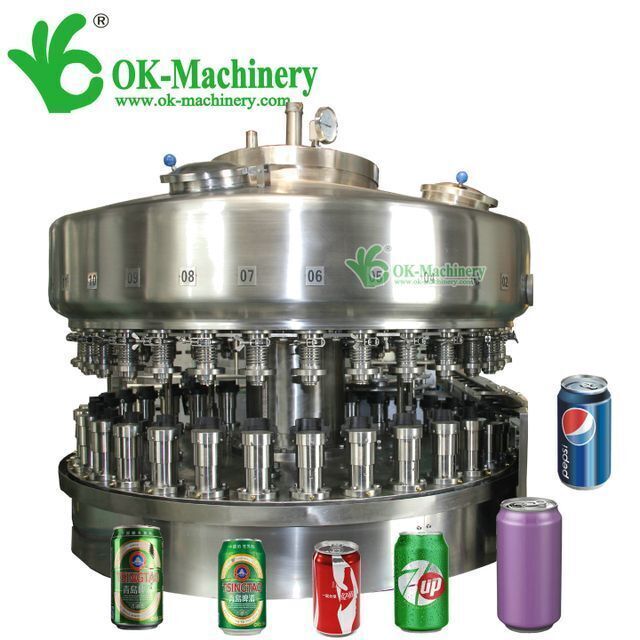

BKBK01 Automatic complete plant A to Z tin canning line aluminium beer Can filling machine

  • Supplier: Shanghai Ok Machinery Co., Ltd.
  • Region: Shanghai, China
  • Contact: Ms Sophia .
  • Price: $23500.00 / 1 - 1 sets
    $21500.00 / 2 - 4 sets
    $19500.00 / >=5 sets
  • Min. Order: 1 set
Click here to contact
Product details
Dimension(L*W*H):2700X2000X2200MM;Capacity:4000-6000 cans/hour;
Local Service Location:Turkey,United States,Viet Nam,Thailand,Uzbekistan,None;Filling material:Liquid cola /beer/ juice;
Machinery Test Report:Provided;Packaging Type:Cartons,CANS,Bottles,Barrel;
Warranty:3 years;After Warranty Service:Video technical support,Online support,Spare parts;
Packaging Detail:Wooden packing;Product name:can filling machine;
Certification:CE;Showroom Location:Egypt,Turkey,United States,Viet Nam,Brazil,India,Thailand,Bangladesh,Nigeria,Uzbekistan,Tajikistan,Japan;
Condition:New;Packaging Material:Plastic,Paper,Metal,Glass;
Warranty of core components:3 years;After-sales Service Provided:Online support,Video technical support,Free spare parts;
Keywords:can filling line machine;Brand Name:OK;
Automatic Grade:Automatic;Weight:4200;
Place of Origin:Shanghai China;Filling Material:Beer,Milk,Water,Oil,Juice;
Product:can of cola juice beer;Bottle type:Round Bottle;
Package Preview:;Marketing Type:New Product 2020;
Type:Filling Machine;Applicable Industries:Food & Beverage Factory,Food & Beverage Shops;
Function:Washing Filling Capping;Application:Beverage;
Payment Terms:L/C,Western Union,T/T;Model:GF18-4;
Bottle volume:220ml to 2500ml;Control:PLC+ Touch Screen;
Video outgoing-inspection:Provided;Port:shanghai port;
Machinery Capacity:4000BPH,8000BPH,12000BPH,6000BPH;Core Components:Motor,Pump,PLC;
Driven Type:Electric;Filling Accuracy:1-2mm;
Key Selling Points:Easy to Operate;Supply Ability:7 Set/Sets per Month;
Voltage:380V;
Product Description

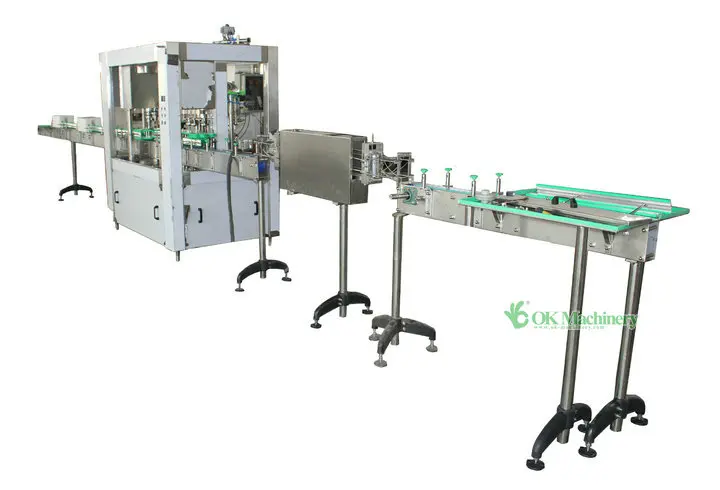

BKCC01 Automatic can filling line machine/can filling and sealing/can filling machine
1. Model GF12-1
2.Capacity : 1500BPH (500ml)
3. Suitable : Plastic bottle 250ml-2000ml
4. Machine size : 1750x1250x2200mm
5.Machine electric brand : SIEMENS , MITSUBISHI, Schneider
6.Machine power : 1.5KW
7. Machine weight : 2200kg
8. Machine include function : Filling Capping
9. Application: Beverage, water , cola , beer , juice , oil
automatic can filling machine video
BKCC01 Automatic can filling line machine/can filling and sealing/can filling machine
Full Automatic Canned Drink Filling Sealing Machine / Packaging Line / Plant
1.Introduction of Wine Drink Wine Drink is one of the fastest growing beverage segments worldwide, with healthier lifestyles, urbanisation and improved retail infrastructure all driving this development.
2. Introduction of Wine drink cans filling machine The machine is composed by the filling and capping parts which produced by abroad introduced advanced technique. The performance and structure both are up to international level. The whole machine joins the mechanical, electric, and pneumatic ways to control.
The auto control liquid level equipment fixed in the filler machine keeps the stable of the liquid level.
The row-rolling completes the capping by the rotary type equipment: a can-a cap, no cans-no caps.
They will automatically stop when no cans and the cans crushed. The higher standard of roboticized is fit for all kinds of pull-tab cans.
Model
GF12-1
GF18-4
GF24-6
GF32-8
Capacity
1200-1500cans/hour
5000-6000 CPH
7000-9000 CPH
10000-12000 CPH
Can Volume
200ml-1000ml
200ml-1000ml
200ml-1000ml
200ml-1000ml
Can diameater
50-70mm
50-70mm
50-70mm
50-70mm
Bottle high
120-170mm
120-170mm
120-170mm
120-170mm
Machine power
1.5KW
2.2KW
3.7KW
5.5KW
Machine size
175x120x195CM
305x175x220CM
340X195X220CM
350x235x225CM
Function Declaration
Can washing Part
Function : washing bottle inside and outside dust . <1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing <3> 304/316 stainless steel washing pump
Filling Part
Fucntion : filling water into bottle . <1> 304/316 Stainless steel high precision filling nozzle <2> Filling volume adjustable in fine rank, same liquid level after filling <3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean <4> 304/316 stainless steel filling pump
Capping Part
Function : put caps on bottle . <1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping <2> All 304/316 stainless steel construction <3> No bottle no capping <4> Automatic stop when lack of bottle
Air Conveyor & Flat Conveyor
Flat Conveyor
- Energy saving. High efficient. Adapt to customer factory layout - Special lubrication system, keep products clean, health, safety - Extended service life
- Electric eyes design keep whole line running safety and quickly - Overload protection mechanism to effectively ensure the safety of the machine
Can Conveyor
- Air conveyor is fixed on the floor, with fan installed on the top. - Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. - Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. - All are made of stainless steel SUS 304 /316. - Rack made by high quality carbon steel welded.
Can unloading stamping machine
1. Replace manual emptying and traditional emptying machine, which can save a lot of labor and improve production capacity. 2. Adopt programmable computer control system to improve the accuracy and ease of operation of mechanical actions. 3. The pallet lifting platform self-locking lifting and lifting, the pallet stacking machine adopts cylinder lifting and lifting, the movement is stable. 4. Continuous movement or single cycle movement can be selected to push the can, with high operation adaptability. 5. Suitable for emptying tin cans of various sizes and aluminum cans
CIP Cleaning system
1.Wash for 3-5 minutes with hot water at room temperature or above 60℃;Alkaline washing for 10 -- 20 minutes, 1% -- 2% solution, 60℃ -- 80℃;Wash for 5-10 minutes in the middle, clean water below 60℃;Finally wash for 3-5 minutes, clean water. 2.Wash for 3-5 minutes with hot water at room temperature or above 60℃;Alkaline washing 5 -- 10 minutes, 1% -- 2% solution, 60℃ -- 80℃, intermediate washing 5 -- 10 minutes, 60℃ below the water, sterilization 10 -- 20 minutes, 90℃ above the hot water. Cleaning flow rate: to ensure the flow rate is actually to ensure the cleaning fluid flow rate, so as to produce a certain mechanical effect, that is, by improving the turbulence of the fluid to improve the impact force, get a certain cleaning effect.
OK Machine Advantages
1. All Stainless Steel
1. Filling machine air conveyor SUS304
2. Washing part SUS304
3. Filling tank and nozzle SUS316
4. Capping heads SUS304
5. Machine frame SUS304
6. Filling machine flat conveyor SUS304
2. NSK Gear (Janpan)
Nsk Gear use in ok filling machine
model list
1. NSK Gear Model 6006
2. NSK Gear Model 6203
3. NSK Gear Model 6805
4. NSK Gear Model 6002 6204 ......
3. Festo (Germany)
OK machine control System
Touch screen SIEMENS
PLC SIEMENS
Inverter SIEMENS
Air action control Festo Germany
AC contactor SIEMENS
Detail of OK Machine
3 in 1 bottle water procution line video . this video will show you washing bottle inside and outside , filling water into bottle put cap on bottle and capping it . after all will inlet with Flat conveyor belt .Bottle line automatic water filling machine /water filling machine for sale
Machine Runing Video
Related Products
1. Bottle blowing machine
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
2. Water treatment system
Stainless steel high pressure film shellAll kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system Online type pressure auto self-protection device Online type electricity indicator System safe protecting and alarm system System frame
3. Shrinking label machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels.
4. Film wrap packing machine
In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine.
Company Introduction
After Sales Service
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one
year without adding any aseptic.
4. After sales
After checking, we offer 2 yearsas quality guarantee, free offer wearing parts and offer other parts at the lowest price. In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician. After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.automatic water filling machine video

FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
