16 port 100M poe 24v output switch 24v

Product details
Model Number:EC1016B-PoE;Casing:Metal case;
Certification:CE / RoHs;Transmission Rate:10/100Mbps;
Application:24V AP , 24V VOIP telephone;Payment Terms:T/T,Western Union,Paypal;
Products Status:Stock;Brand Name:ECOpower;
Place of Origin:Guangdong China (Mainland);Ports:16;
General power:Built-in power, 150W;Supply Ability:500 Piece/Pieces per Day;

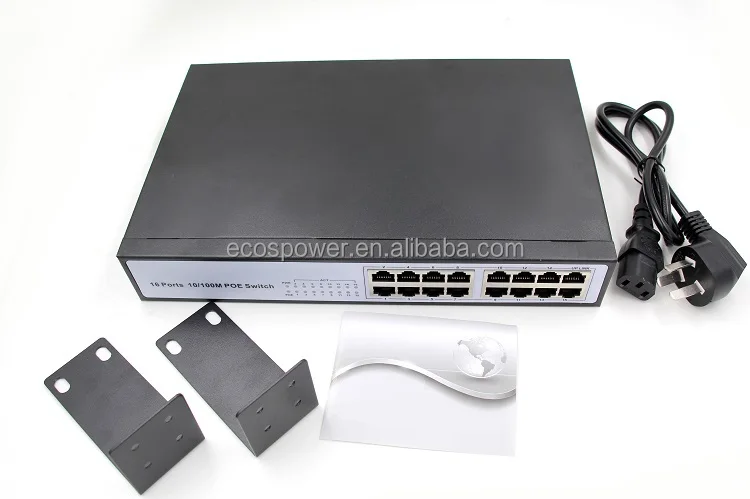

Delivery Detail:1-3 days for sample order; 5-15 days for bulk order;Packaging Detail:1pcs mini poe switch/Carton lined with pearl cotton;
Stackable:No;Port:Shenzhen;

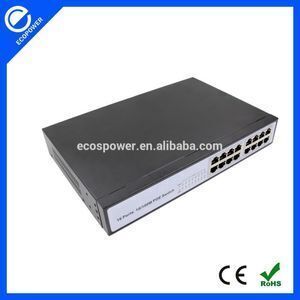

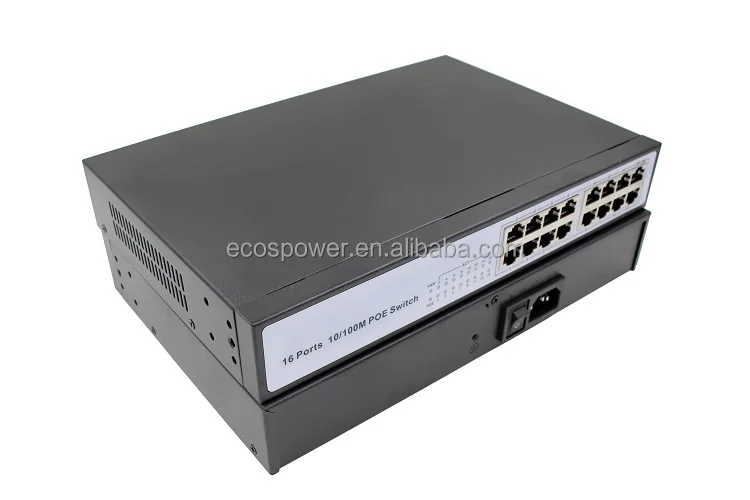

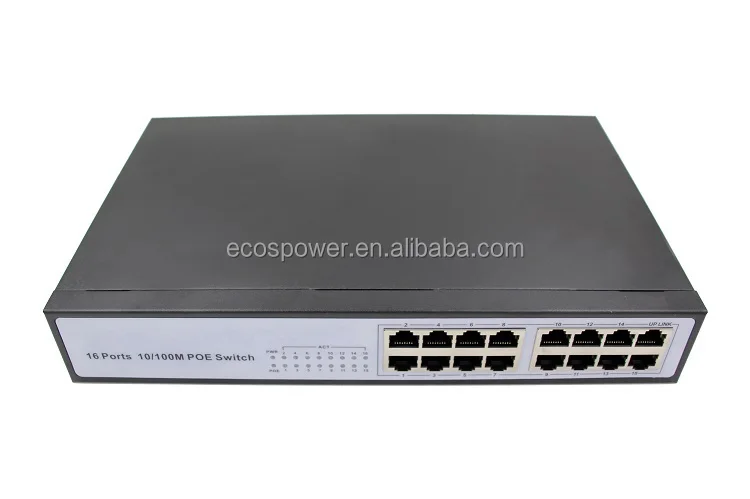

16 port 10/100Mbps 24V POE switch

Product Description

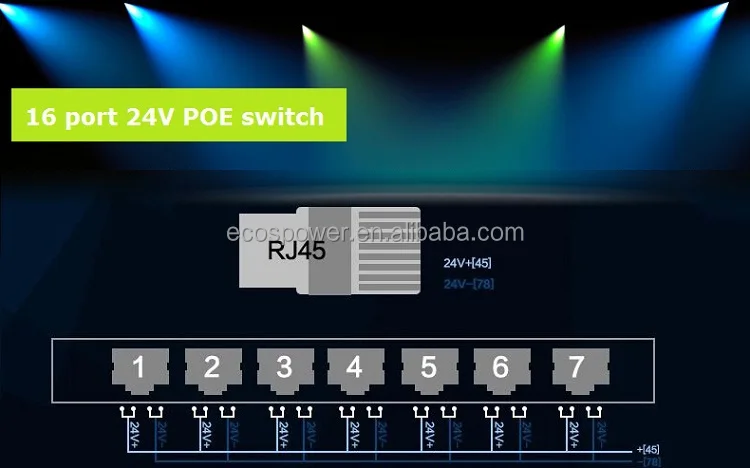

This 16 ports 10/100M 24V PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities,For cost saving and flexible using of PoE power provision,  it provides PoE power injector function which is able to drive 16 24V compliant powered devices,specially such as 24V access points and 24V VOIP telephones. Besides, the switch also provides a simple, cost-effective, and highly reliable network connection for data as well as power.



1. Fully IEEE802.3af/IEEE802.3at Compliant
2. Support POE power up to 15.4W / 25.5W for each POE ports
3. Auto Detection Powered Devices (PD)
4. Safe and reliable power to most of POE end device
5. Support POE power up to 100m
6. 10/100Mbps Auto-Negotiation and Auto MDI/MDI-X
7. Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
8. Fanless design
9. Plug and play, No configuration required

Standard

IEEE 802.3 ,IEEE 802.3u,IEEE 802.3x,IEEE 802.az, IEEE 802.af, IEEE 802.at

Ports

16* 10/100Mbps RJ45 port

DHCPsever (*Optional)

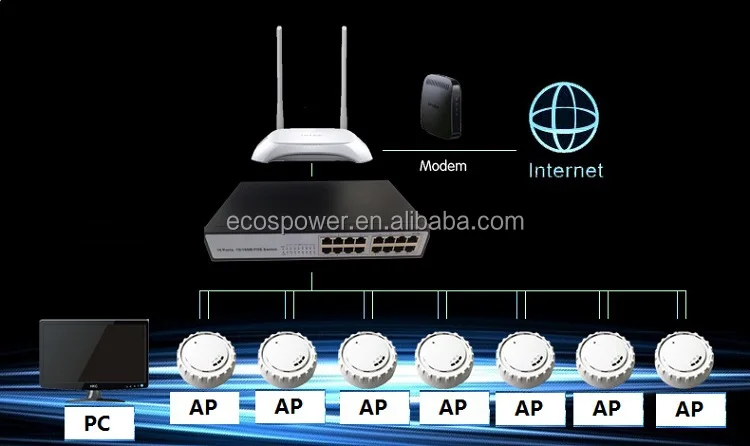

Assign IP address for AP and VOIP telephone in the WLAN networking, easy to manage Wireless AP/ VOIP telephone

Indicator

1*Link/Ack Indicator for each port

1* Power indicator

(The power indicator will change to Status indicator if with DHCH Server)

Function

Store and Forward

Support 3.2Gbps backplane bandwidth

Support 8K MAC address table depth

Environment

Working Temperature:0 ~40 degree

Storage Temperature:-40 ~70 degree

Working Humidity:10%~90%RH

Storage Humidity:5%~90%RH

Power Input

100-240V~ 50/60Hz

General power: 150W

Demension(L×W×H)

280mm x188mm x 44mm

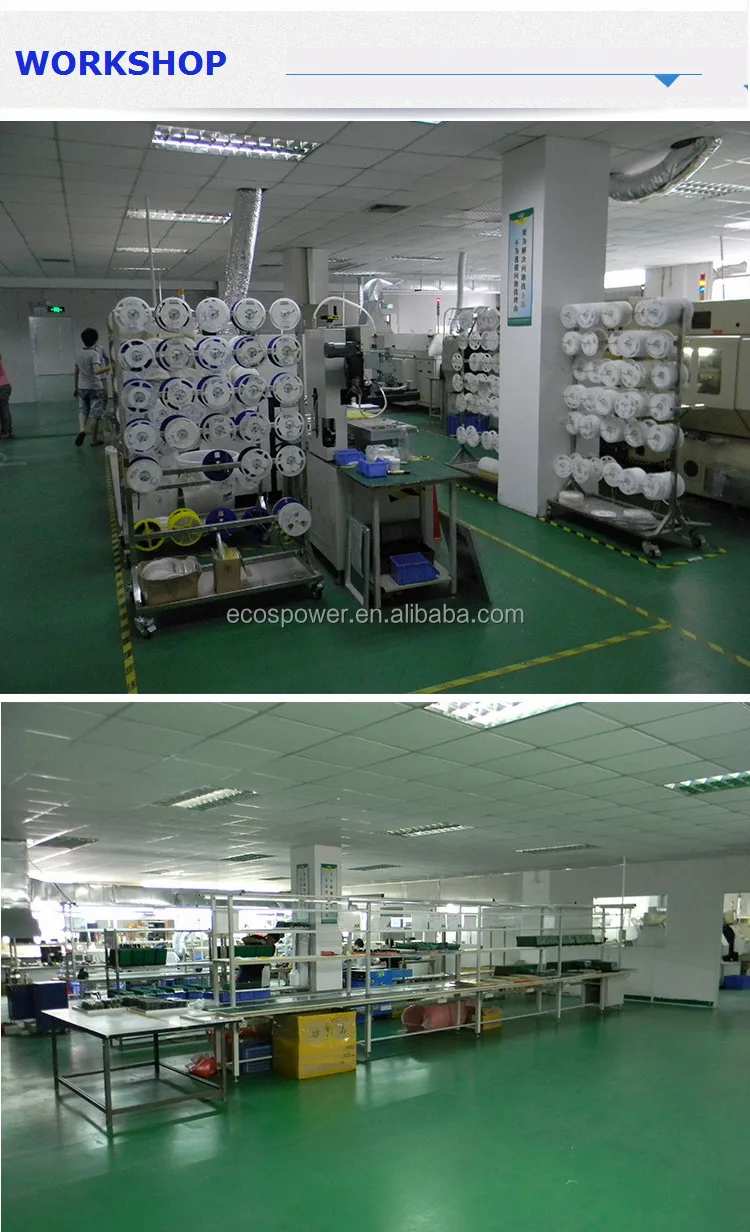

Company Information









FAQ



Q:Is ECOpower a factory or a trading company?

A: Yes ,We are an experienced manufacturer in producing Ethernet Devices .





Q:Is ECOpower a trade assurance supplier?

A: Yes , We support trade assurance .





Q:Where is Longsin?

A:4/f,Building B,Huanghuihua Industrial Park,Huarong RD 512, Baoan District, Shenzhen, Guangdong ,China.



Q: Can I have a sample for testing firstly?

A: Of couse, we would like to send our items for your check before each deal.



Q: Are samples for free ?

A: In fact , our samples are free , we will return them to you in deal .



Q: How soon can I get reply from you?

A: You can be replied immediately on trademanager and inquiry will be read and replied  within 12 hours.
