8 Port 10/100/1000Mbps Network Ethernet Gigabit Switch

Product details
Place of Origin:Guangdong China;Material:steel;
Certification:CE,Rohs;Function:Stackable;
Port:shenzhen;Products Status:Stock;
bandwidth:16G;Transmission Rate:10/100/1000Mbps;
Brand Name:ECOPOWER;Communication Mode:Full-Duplex & Half-Duplex;
product size:160x95x28mm;Payment Terms:T/T,Western Union,Paypal;
Model Number:EC3008GR-D1;Switch Capacity:16G;
power supply:DC12V,1A;Ports:≤ 8;
MAC address:8K;Packaging Detail:Product dimension : 160x95x28MM Gift box dimension : 180*143*62MM Carton dimension:575x505x300mm 1pcs per gift box ,24pcs per carton;
Supply Ability:3000 Piece/Pieces per Month;

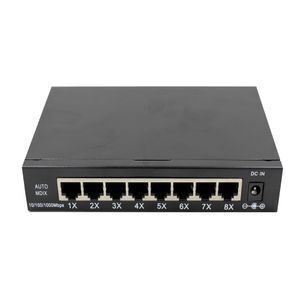

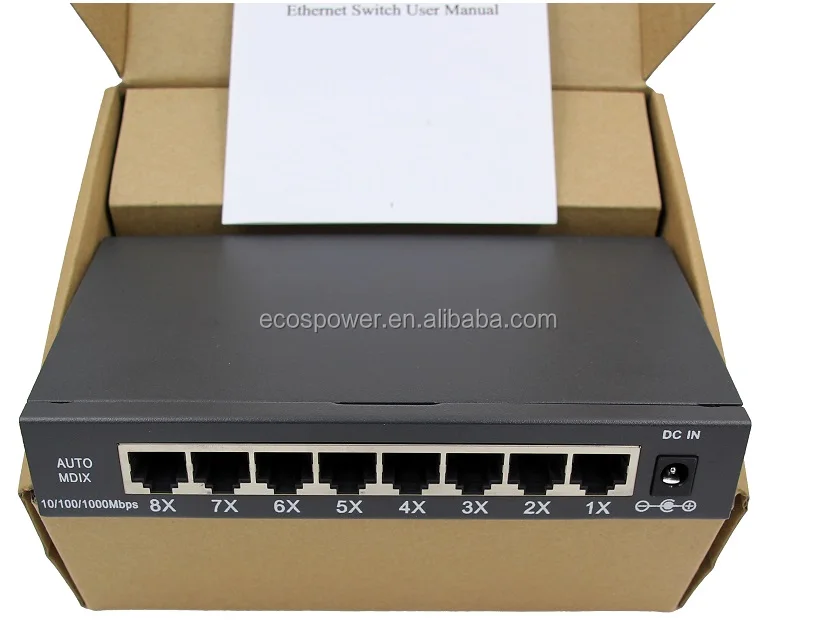

       High Performance 8 Port 10/100/1000Mbps Network Switch Gigabit Switch

                  Model Number:EC3008GR-D1

Description

It is a high performance 8 port 10/100/1000Mbps Ethernet switch, it provides one full wire-speed gigabit networking connection to your working group or server ,play and plug ,this flexible non-blocking frame make user not subject to the limit of bandwidth and media network .EC3008GR-D1 support half-duplex flow control and full-duplex back pressure ,each port support auto-adaptive function, provide an economical,practical,high cost-effective sharing device for broadband LAN .adopting store-and-forward mode ,can effectively isolate broadcast storm ,reduction error /wrong package, avoiding network congestion and network conflict .LED panel can detect the condition of each port and whole system, support IPv4 IGMP v1/v2/v3 and IPv6 ML Dv1/v2 .





Feature

Conforms to IEEE802.3,IEEE802.3u and 802.3ab standard

Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

Provides 8x10/100/1000Mbps auto-negotiation RJ45 port

Auto-MDI/MDIX eliminates the need for crossover cables

Supports MAC address auto-learning and auto-aging

Supports Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mps

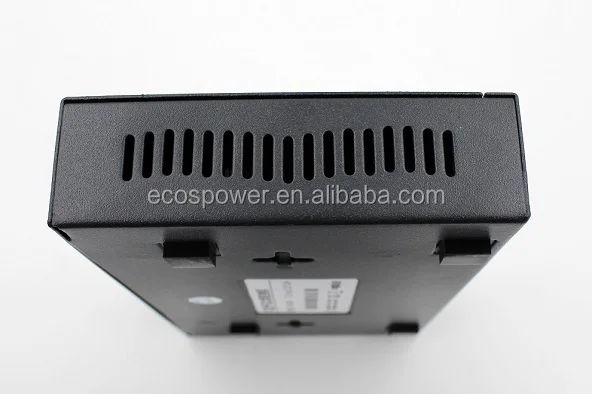

Desktop or wall-mounting design

Plug and Play design simplifies installation

DC12V /1A power supply

Desktop metals case design

CE and RoHS certificate

Specification

Standard

IEEE802.3, 802.3u, 802.3ab, 802.3x

Protocol

CSMA/CD,TCP/IP

Forwarding rate

10BASE-T: 14880pps/port                                                                                                                          100BASE-TX: 148800pps/port

1000BASE-T: 1488000pps/port

Basic function

Wire-speed Performance

MAC Address Auto-Learning and Auto-aging

IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

topology

Star

Network Media

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

100Base-Tx: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

Port No.,

8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Uplink

Uplink port

transmission mode

store-and -forward

Temperature

Operation temperature : 0 C~40 C (32 F~104 F)

Storage temperature : -40 C~70 C (-40 F~158 F)

humidity

Operation humidity :10%~90% ,non-condensing

Storage humidity :5%~95%,non-condensing

bandwidth

16G

MAC address table

 8k

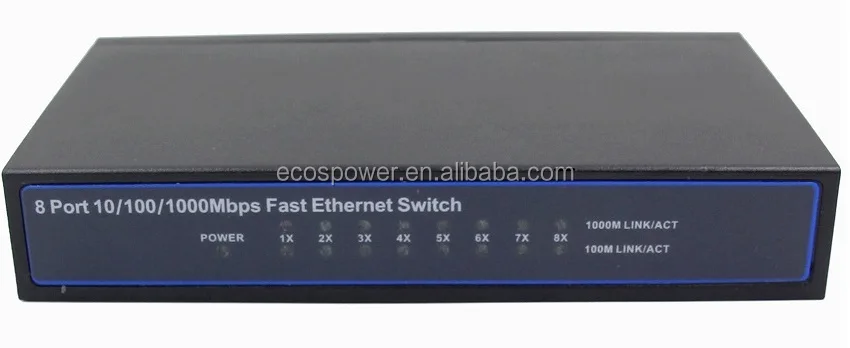

LED indicators

one power source indicator ( red LED )

indicators (Link/Act: green LED)

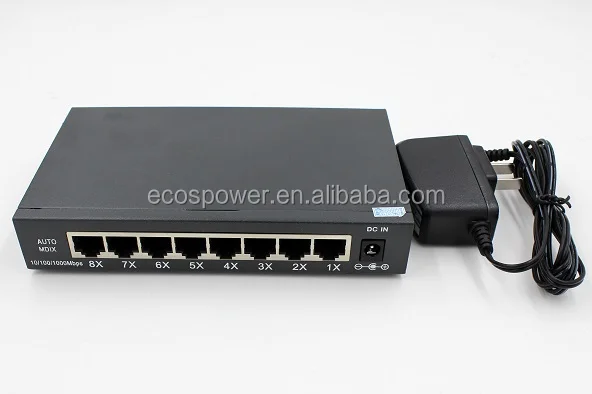

Power supply

DC 12V/1A

Material (case)

Metals

Certification

CE ROHS

operation system

Windows /MAC OS/Netware/Linux

Customized service

OEM/ODM

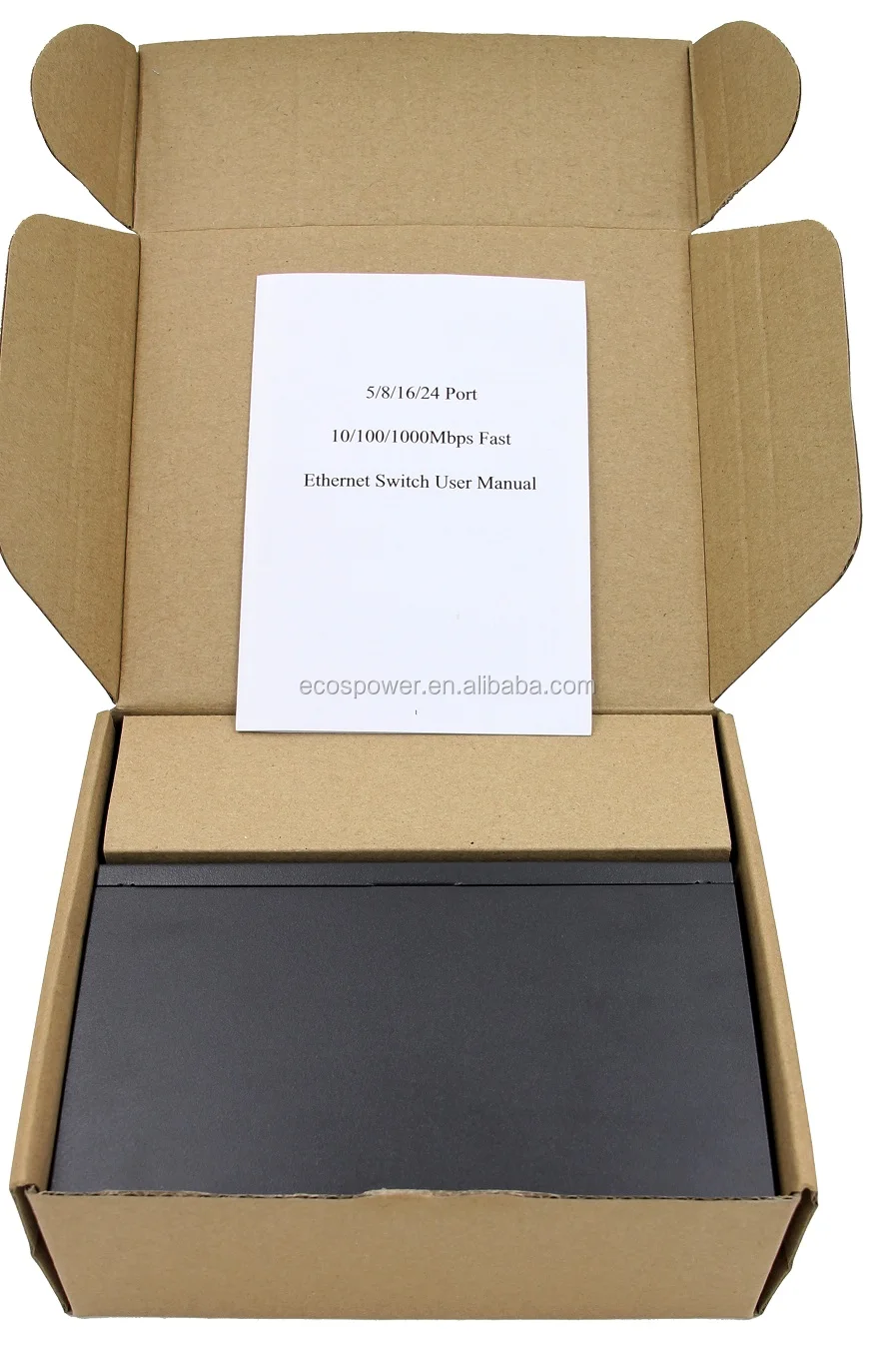

Packing

Product dimension : 160x95x28mm

Gift box dimension : 185x143x62mm

Carton dimension:575x505x300mm

Weight

Product net weight : 0.38KG

Box Gross Weight :0.52KG

Net weight: 12.48KG

Gross weight: 13.85KG

Carton

1PCS/giftbox ,24PCS/carton

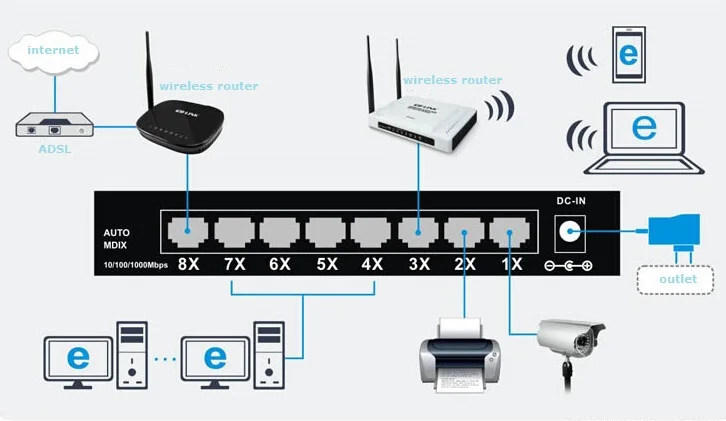

 Application
