2021 new design 10/100M 8 port ethernet switch OEM

Product details
OEM and ODM:YesWarranty:12 months
chipset:IC plus IP178Gpower input:DC 5V 0.5A
Supply capacity:50,000 pieces per monthCertification:FCC, CE, RoHS
Selling point:New design for 2021place of origin; place of origin:Guangdong, China
Switching capacity:1.6GbpsPackaging Details:color box
model:YJ-E152product status:in stock
port:Shenzhencommunication method:Full duplex and half duplex
port:≤ 8aspect:150*70*20mm
brand:Yujiepayment terms:L/C,Western Union,T/T
Transfer method:store and forwardenergy consumption:1.7W max
Material:PCBA+Metalthing:Ethernet Switch OEM
Transmission rate:10/100Mbps
Product Description

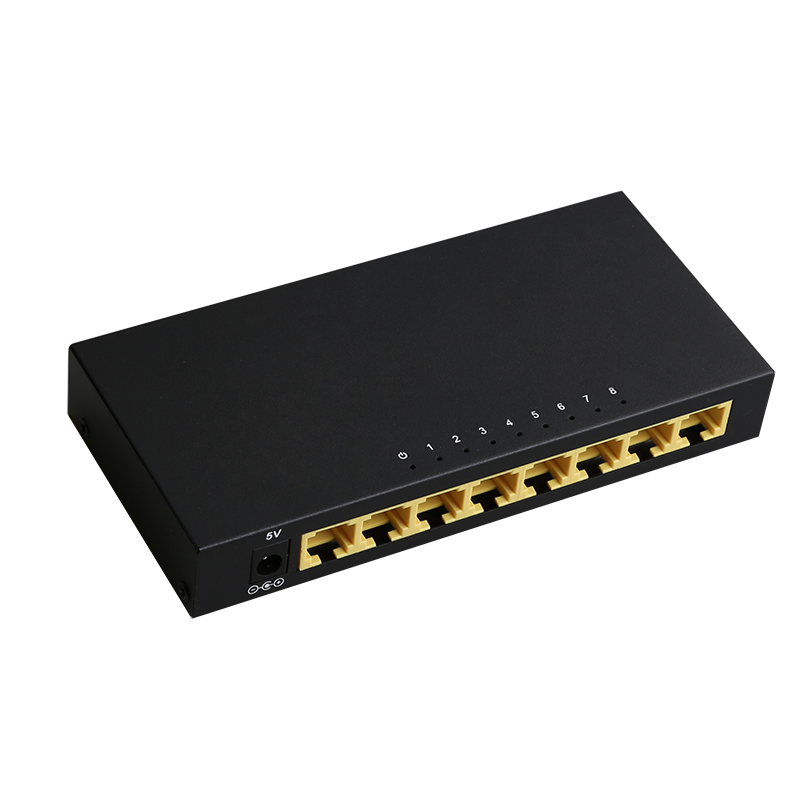

product name
SOHO network switch
chipset
IP178G
data rate
10/100Mbps
The port number
8 ports 10/100M automatic MDI-MDIX RJ45
standard
IEEE 802.3, IEEE 802.3I, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Internet media
10Base-T,:cat3 or above UTP,
10Base-Tx: cat5 UTP
transfer method
store and forward
LED indicator
10/100Mbps(Link/Act), power
forwarding rate
10 Mbps / 14,880 pps, 100 Mbps / 148,800 pps
aspect
150*70*20mm
power input
DC5V/500mA
energy consumption
1.7W max


surroundings
Working temperature: 0℃-55℃
Relative humidity: 10%-90% (non-condensing)
Storage temperature: -0℃-80℃
Relative humidity: 5%-90% (non-condensing)
