Mini 10/100M Reverse PoE 8 Port Ethernet Switch 12v

Product details
model:100M-8 ports POESupply capacity:2000 pieces per week
Packaging Details:1 piece in a boxDimensions (WxDxH):125mm*70mm*25mm
Power supply standard:IEEE Standard. 802.3 10BASE T 10Mbps, half/full duplexplace of origin; place of origin:Guangdong, China
brand:OEM productionenergy consumption:5 W (Poe Injector) / 2 W (Switch)
downlink:7*10/100 Base-Reverse POE portsweight:0.45 kg
Features:POEPrivate Mold:No
communication method:Full Duplex and Half Duplexport:Shenzhen
Switch capacity:10.4Mppspayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Operating temperature:0°C to 50°CStorage environment:0°C to 75°C
product status:in stockTransmission rate:100M
Warranty:2 yearsport:≤ 8
product name:RPOE 7*10/100M+1*100M 12V2A outputUplink interface:1*10/100 basic data uplink port

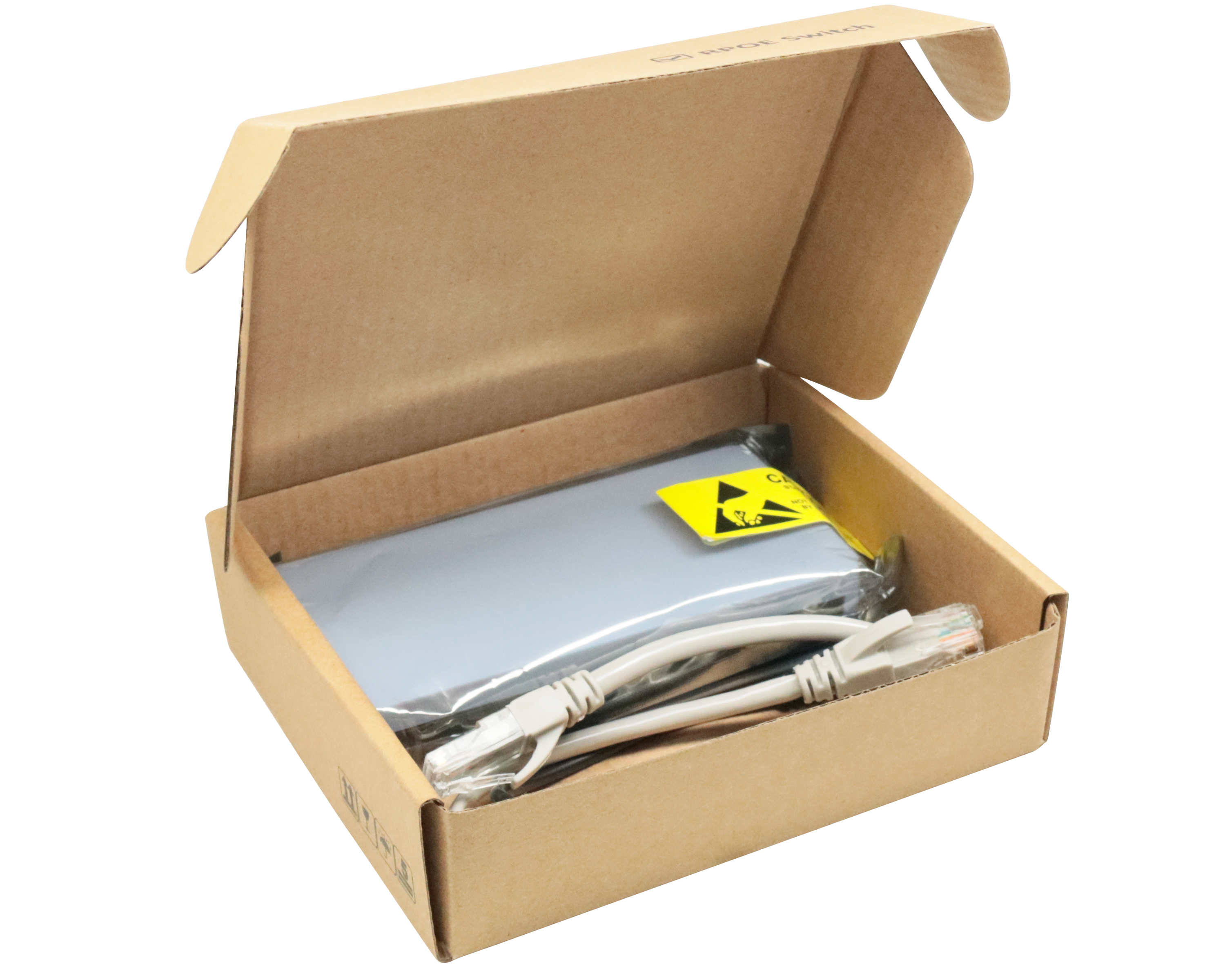

Package preview:

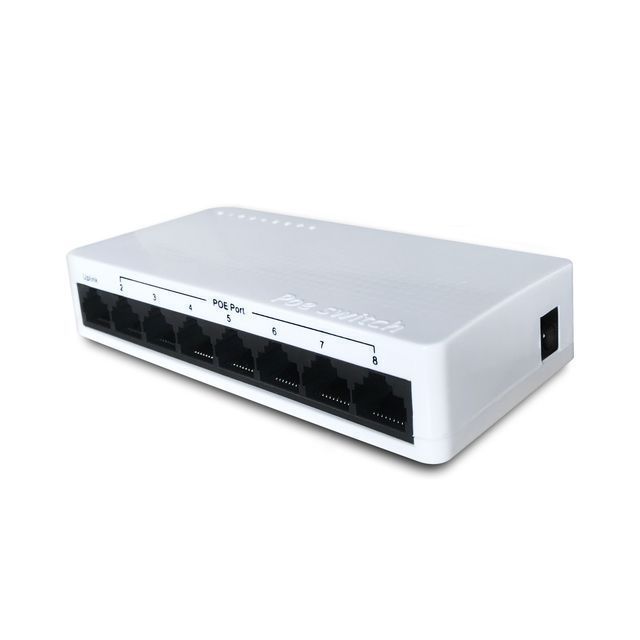

Mini 10/100M Reverse PoE 8 Port Ethernet Switch 12v







product description:

RPOE switch has intelligent device power management function, which solves the main problem of Internet service provider to power the device. The switch can be powered using a remote power source from the customer using a specially designed POE injector or any standard POE injector (24v DC, 0.75amp). This eliminates the need to run power on top of the building (the ups don't need/pay more money to customers or society). This saves ISPs a lot of money and improves uninterrupted service to customers.

Features:

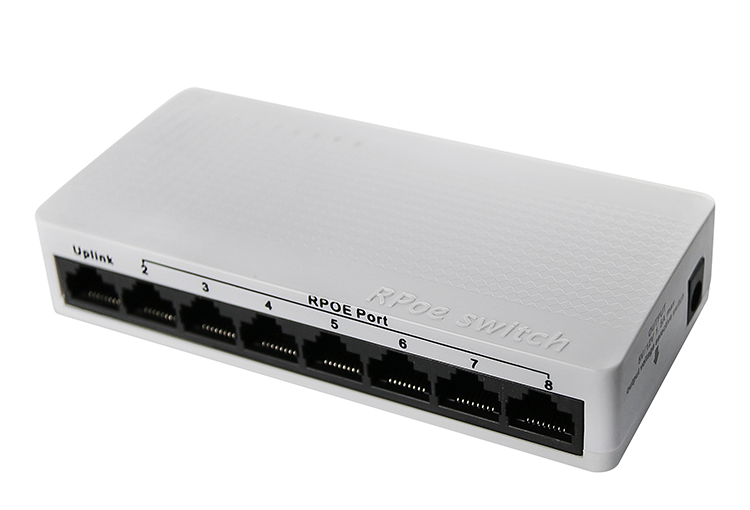

Reverse POE technology:8-port 10/100 reverse POE switch featuring the latest generation of Fast Ethernet reverse POE switching technology. It contains 7*10/100 base T reverse Poe ports (RPOE), 1*10/100 Base date uplink port and 12V DC output for powering ONU.

Auto-negotiation is supported:Each port automatically detects whether a connected network device is operating at 10Mbps or 100Mbps and half-duplex or full-duplex mode, and adjusts the speed and mode accordingly, ensuring hassle-free operation.

Supports non-blocking wire-speed:The switch seamlessly forwards and receives traffic at its non-blocking wire speed. Each port of the switch supports up to 200Mbps full-duplex mode speed at the same time, providing full wire speed for connected devices, allowing you to run high-speed networks smoothly.

Cascade support:Switches can be cascaded for more users per building (up to 1 main switch + 3 switches)

Port basic isolation u/hardware VLAN:The port isolation function is implemented in this unit, where the Ethernet data from the uplink port can be transmitted to any downlink port, but the individual downlink ports cannot communicate with each other.

Overvoltage protection:Each data port provides overvoltage protection to eliminate damage caused by connecting higher voltages (higher than 24V DC. Up to 80V DC). If the user mistakenly connects more than 24V to the POE injector, the switch will enter a power down mode and start working again after removing this high voltage source.

Overcurrent protection:We have provided over-current protection at each port to prevent damage to the switch due to high current flow for any reason. This is provided using resettable fuses to facilitate maintenance and avoid frequent replacement of blown fuses.

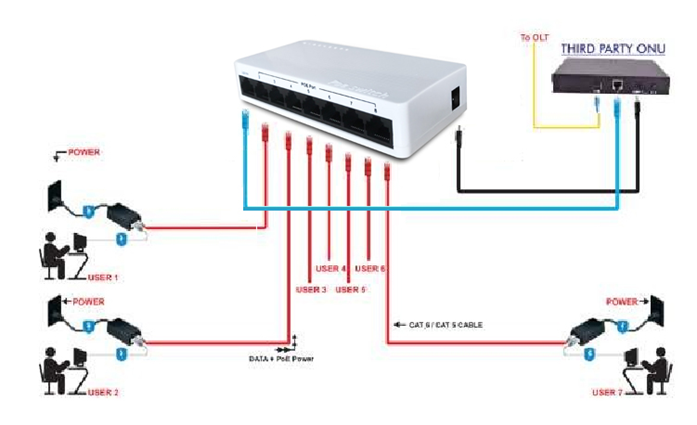

Applications:

7*10/100 Base T reverse POE port (RPOE) & 1*10/100 Base T upstream port & 12V DC power output for powering ONU

Product Specifications:



product

RPOE 7*10/100M+1*100M 12V2A output

Ethernet connector

RJ45 jack (8 ports) 10/100Base-TX with auto MDIX

uplink

1*10/100 Base T data uplink port (port 1)

downlink

7*10/100 Base-Reverse POE Ports(Port 2to 8)Data + Power in

standard

IEEE Standard. 802.3 10BASE T 10Mbps, half/full duplex

IEEE Standard. 802.3U 100BASE-TX, 10/100Mbps, half/full duplex

IEEE STD.802.3X Flow Control and Backpressure

IEEE STD.802.3AZ Energy Efficient Ethernet

protocol

CSMA/CD

transfer method

store and forward

MAC address

Support 1k MAC addresses

packet buffer

Embedded 448K-bit packet buffer

Maximum forwarding packet length

1552/1536 byte option

Filter/Forward Rate

100Mbps port – 148800pps

10Mbps port – 14880pps

cable

4-pair UTP/STP Cat 5 cable

led

Link/Activity per Ethernet port

Power: On/Off Switch

Power over Ethernet Injector: Power
supply (in)

Power over Ethernet 24V @ 18W on SPARE pair (to power HDV switches as well as compatible POE devices such as CPE)

Number of Ethernet ports that can provide power
On switches and ONUs

Any/all of the seven downlink ports

Power over Ethernet

Power over Ethernet Injector over Four Pair Cable

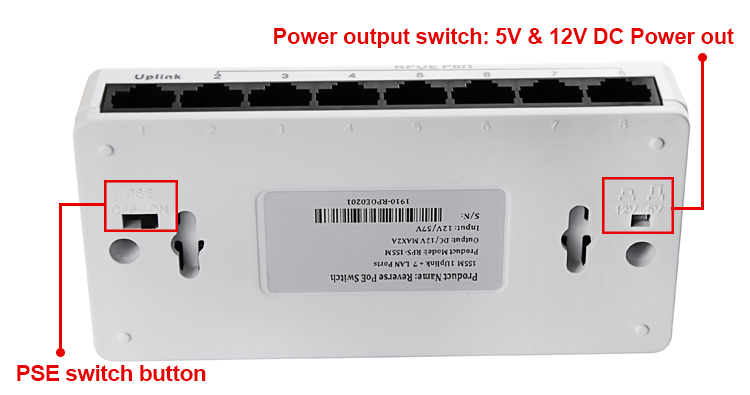

DC output

12V/2A DC OUT THROUGH DC jack for powering other devices such as ONU

Powered Ethernet Devices

single

CAT-5 cable data cable

Pair 1: Pins 1/2, Pair 2: Pins 3/6

CAT-5 cable power cord

+VDC: Pin 4/5, -VDC: Pin 7/8

energy consumption

5 W (Poe Injector) / 2 W (Switch)

Operating temperature

0°C to 50°C

storage environment

0°C to 75°C

Working humidity

20% to 95% (non-condensing)

switch size

125mm*70mm*25mm

switch weight

0.45KG
