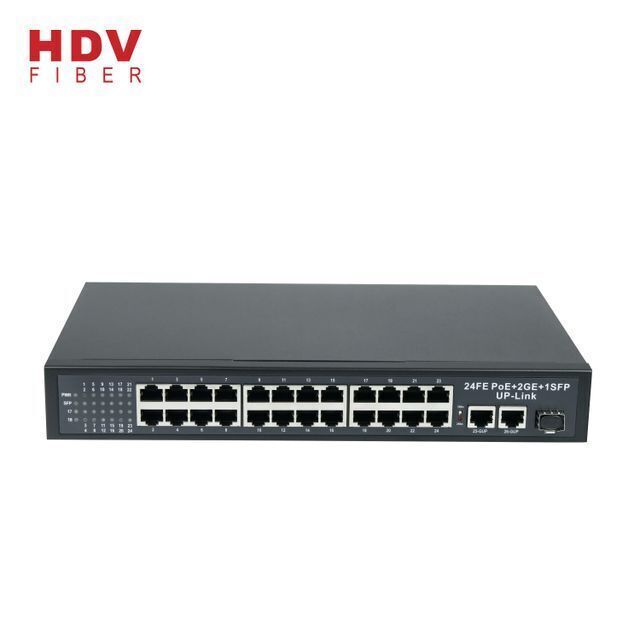

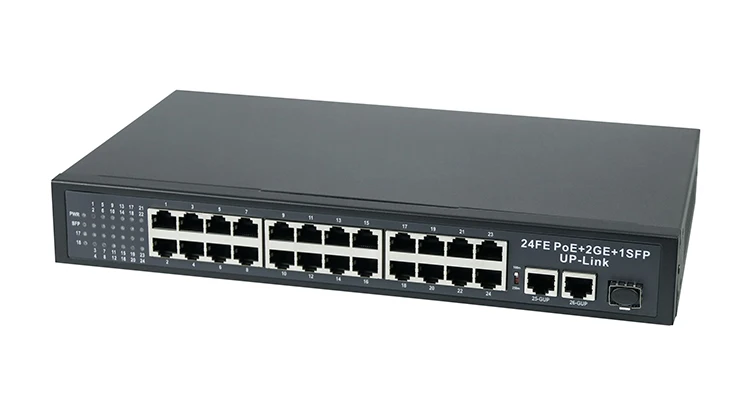

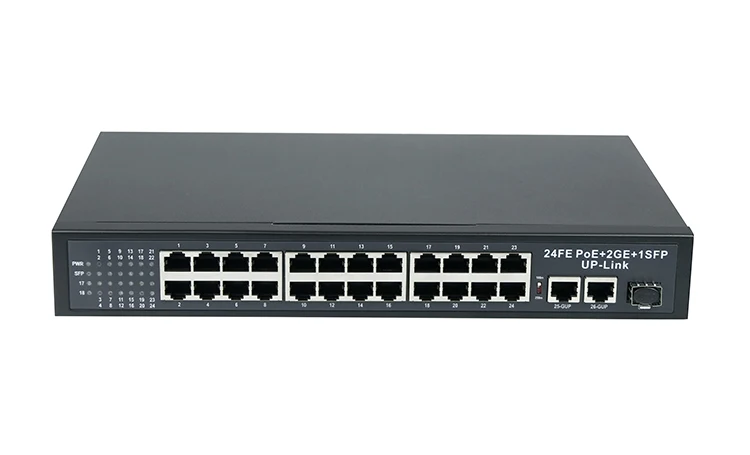

Ethernet DC 48V 6.25A 24FE POE+2GE UP+1G SFP POE Switch 24 Port

Ethernet DC 48V 6.25A 24FE POE+2GE UP+1G SFP POE Switch 24 Port

 Description :

 HDV-24FE POE+2GE UP+1G SFP-ND is a standard PoE powered Ethernet switch designed and developed by HDV optical communication equipment. It adopts the latest high-speed Ethernet switch chip and ultra-high backplane bandwidth design. It has strong data processing capabilities and improves smooth data transmission performance.Supports 24*10/100Mbps Ethernet RJ45 ports with PoE function and 2*10/100/1000Mbps Ethernet uplink RJ45 ports and 1G SFP port,each port supports auto rollover function (Auto MDI / MDIX).Among them, 24 ports with PoE function, all support IEEE 802.3af / at standard PoE power supply, which can be used as a power supply device for Ethernet. The maximum power supply of a single port is 30W and the maximum power of the whole machine is 300W. It can automatically detect and identify the IEEE 802.3af / at standard Powered equipment.Powered by a network cable, it supports 250 meters of long-distance transmission and supports priority mechanism power supply. Support VLAN isolation mode.

Features:

• Port Performance

Provide 24 * 10 / 100Mpbs RJ45 adaptive high-speed forwarding data port;

Provide 2 * 10 / 100/1000Mpbs RJ45 uplink port;

Provide 1 * 10 / 100/1000Mpbs SFP port;

Each port supports MDI / MDIX automatic rollover and auto-negotiation, and supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control;

Provide VLAN isolation mode to suppress network storms and improve network performance;

• PoE Power Performance

24 * 10 / 100Mpbs RJ45 port supports PoE + power supply, meeting the requirements of PoE power supply in security monitoring, teleconference system, wireless coverage and other scenarios;

Comply with IEEE 802.3af / at PoE power supply standard, the maximum PoE output power of the whole machine is 300W, and the maximum PoE output power of a single port is 30W;

Automatically identify PoE devices for power supply without damaging non-PoE devices;

The PoE port supports the priority mechanism. When the remaining power is insufficient, it guarantees the power supply of the high-priority port first to avoid overloading the device;

24 * 10 / 100Mpbs RJ45 port supports 250 meters long distance transmission;

• Stable and reliable equipment

The low power consumption and quiet design of the host ensure the stable operation of the product;

Adopt self-developed power supply and highly redundant design to provide long-term stable PoE power output;

The equipment meets national CCC standards, fully meets safety requirements, and is safe and reliable to use;

• Simple operation and strong scalability

Simple and convenient to use, no configuration, plug and play, strong compatibility;

High-speed transmission, data without packet loss, flexible expansion, so that the network is not restricted by the layout of power lines, saving user costs;

Meet the network environment that requires high-density PoE power supply;

It is suitable for financial, government agencies, hotels, shopping malls, campuses, hospitals and small and medium enterprises to form cost-effective networks;

Specifications:

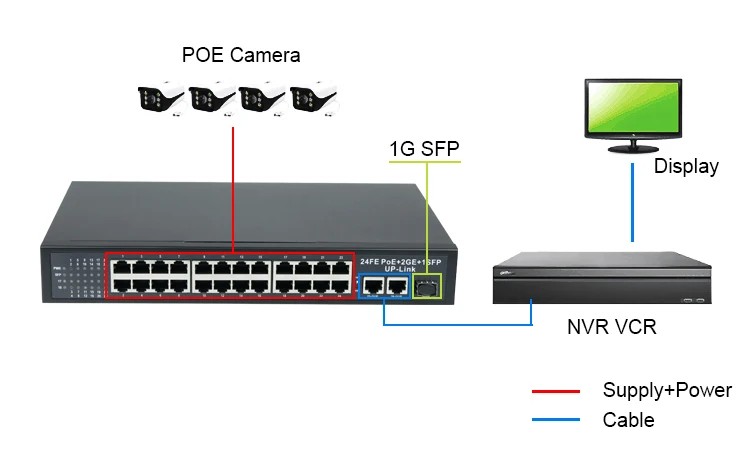

Application Picture: monitoring
