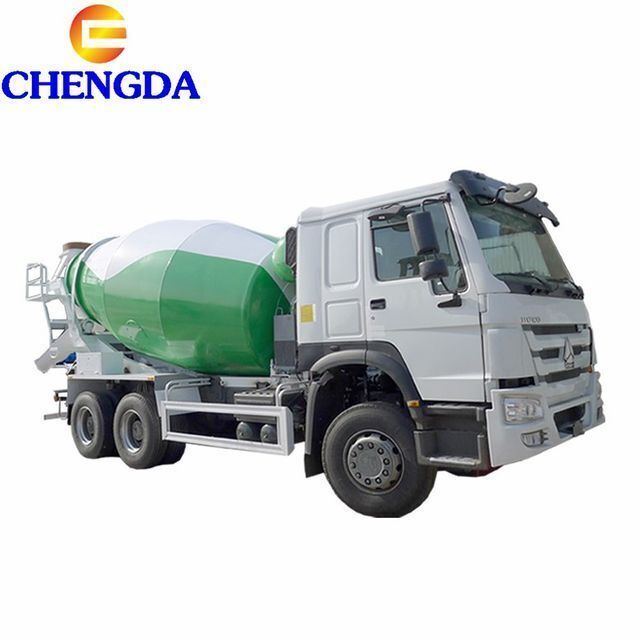

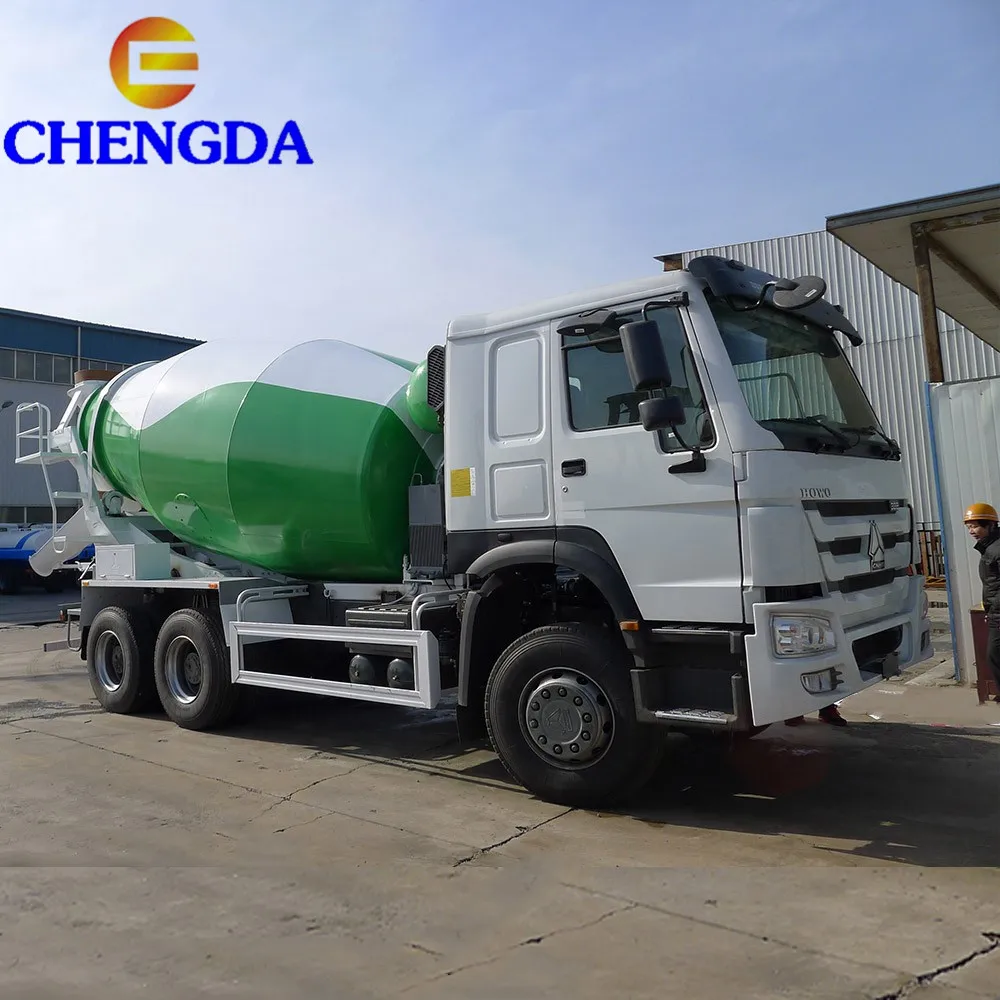

01 SINOTRUCK HOWO 8 cubic meters concrete mixer truck
-
Supplier: Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd. -
Region: Shandong, China -
Contact: Ms BettyW Wang -
Price: $4000.00 / 1 - 49 sets
$3000.00 / 50 - 99 sets
$2000.00 / >=100 sets -
Min. Order: 1 set
| Single gross weight: | 68.0 KG; | Place of Origin: | Shandong China; |
| Engine Model: | WD615.47; | Warranty of core components: | 1 Year; |
| Selling Units: | Single item; | After Warranty Service: | Video technical support,Online support; |
| Motor Power: | 250kw; | After-sales Service Provided: | SINOTRUCK HOWO 8 cubic meters concrete mixer truck,Video technical support,Online support; |
| Packaging Detail: | NUDE AMD GOOD FOR EXPORTATION SINOTRUCK HOWO 8 cubic meters concrete mixer truck; | Mixer Pump: | (USA Brand); |
| Water Supply Mode: | PRESSING TYPE; | Warranty: | 1 Year; |
| Mixing Power: | 350kw; | Machinery Test Report: | Not Available; |
| Applicable Industries: | Building Material Shops,Construction works ; | Certification: | CCC BV ISO; |
| Single package size: | 100X50X50 cm; | Condition: | Used; |
| Model Number: | ZZ1257N3847; | Charging Capacity: | 12CBM; |
| Driving type: | 6x4; | Cabin: | HW76; |
| Reclaiming capacity: | 8CBM; | Marketing Type: | Ordinary Product; |
| Front Axle: | HF9; | Make: | Howo; |
| Core Components: | Bearing,Gearbox,Engine; | UNIQUE SELLING POINT: | Imported hydraulic system; |
| Discharge Way: | self-discharging; | Local Service Location: | None; |
| Year: | 2012; | Showroom Location: | None; |
| Brand Name: | HOWO; | Video outgoing-inspection: | Provided; |
| Working Cycle Period: | 4.5min; | Motor: | (USA Brand); |
| Productivity: | 8M³/H; | Outline Dimension: | 9130*2550*3800 mm; |
| Speed of Mixing Drum: | 0-14r/min; | Rear Axle: | HC16; |

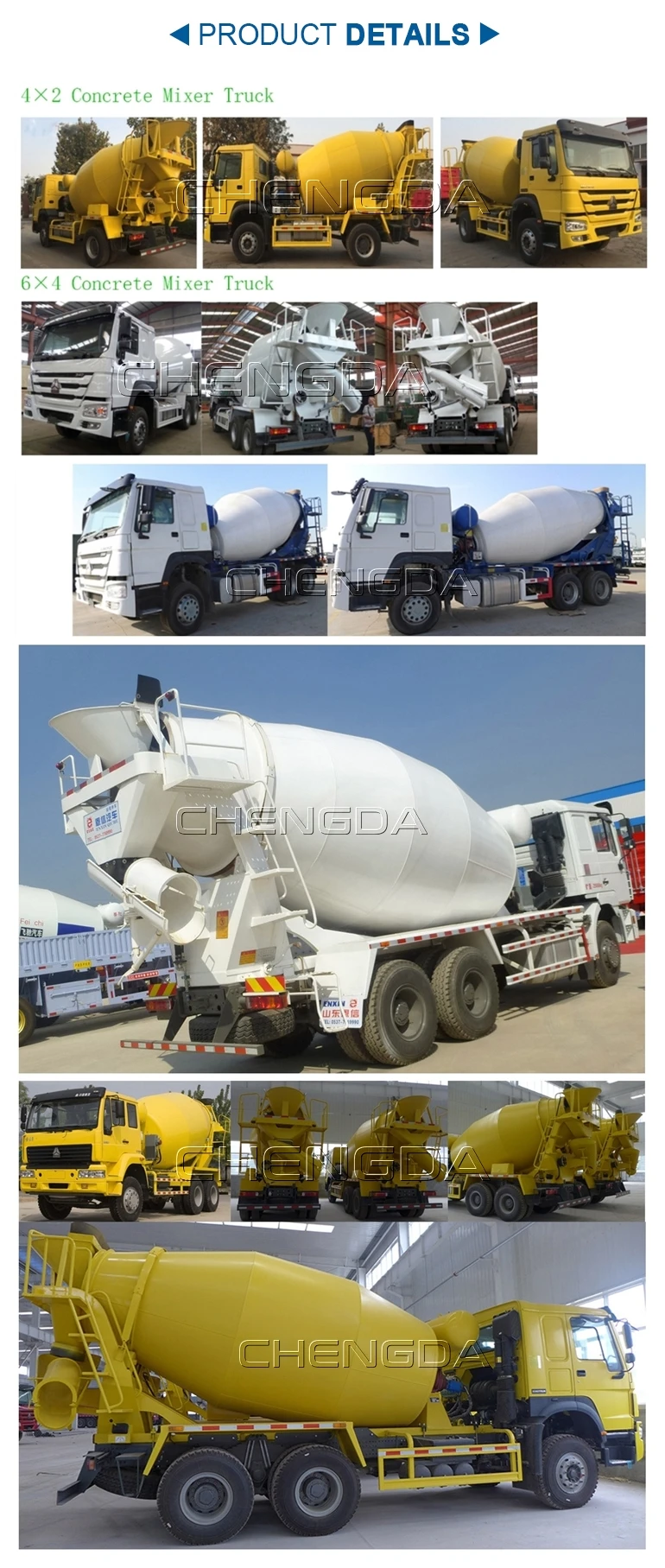

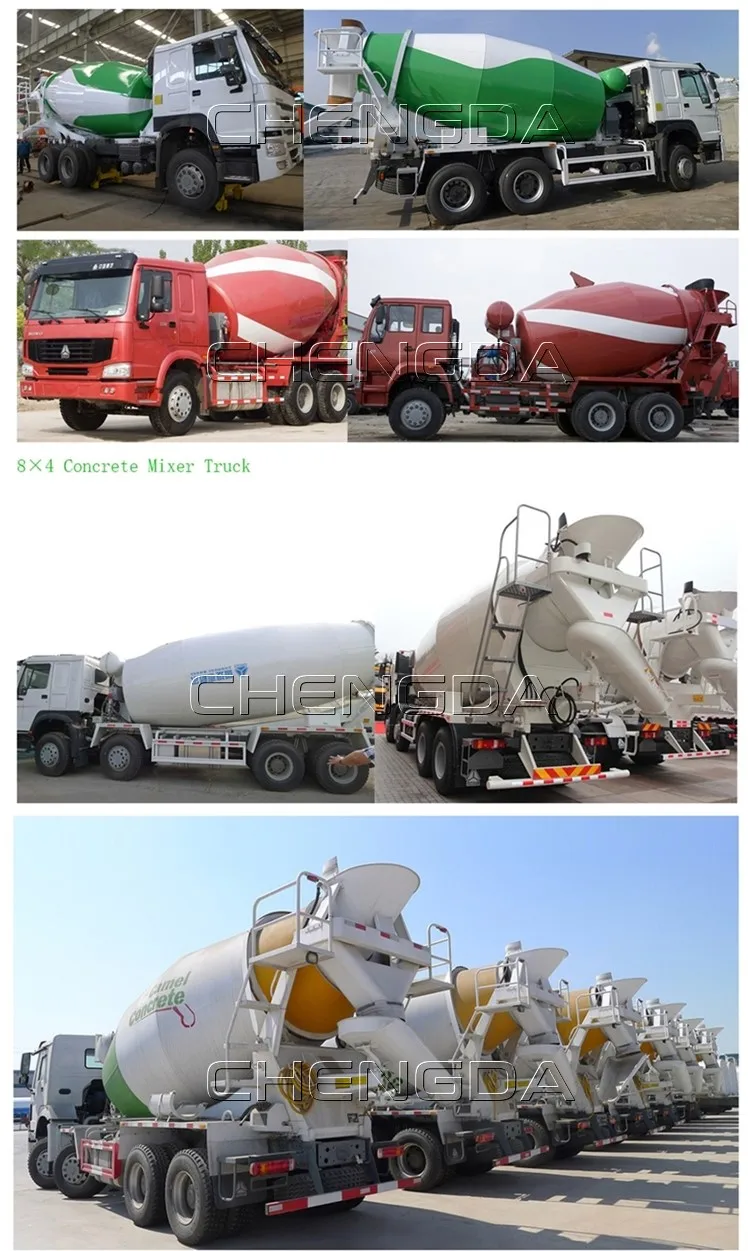

SINOTRUCK HOWO 8 cubic meters concrete mixer truck
|
Specifications |
|||
|
Driving Type |
6X4 |
Model No. |
HOWO |
|
Whole Dimension |
9135×2496×3850mm |
Wheel base |
3600+1400mm |
|
Loading weight |
30 ton |
Max speed |
90km/h |
|
Engine |
|||
|
Engine No. |
WD615.69 |
Cylinder No. |
6 |
|
Fuel type |
Diesel |
Emission |
9.726L |
|
Emission standard |
Euro II |
Horse power |
336hp |
|
Gearbox |
|||
|
Gearbox No. |
FAST 12JS160T |
Transmission Type |
Manual |
|
Forward |
12 speed |
Reverse |
2 speed |
|
Concrete mixture truck Chassis and tire |
|||
|
Front axle |
HF9 |
Front axle loading |
9000kg |
|
Rear axle |
HC16 |
Rear axle loading |
16000kg |
|
Tires |
12.00R20 |
Tire quantity |
11, with spare tire |
|
Mixture Tank & Hydraulic systems |
|||
|
Tank material |
Carbon steel, Q235B |
Tank thickness |
5mm |
|
Pump and Motor |
APK |
Reducer |
TOP |
|
Note: the mixture tank truck tank volume and capacity can be customized, tank volume can be 6cbm, 8cbm,9cbm,10cbm, 12cbm, 14cbm, 16cbm, etc. |
|||
Nude or polish with wax for SINOTRUCK HOWO 8 cubic meters concrete mixer truck
Transportation——100% Convenience, Efficient!
Services——Obtaining a satisfied smile!
1.we can do the designs according to the customers'requirement
2.we can offer you the high quality & reasionalble price
3.we can offer your a good after-sell service
4.we have strong professinal design team
5. promptly delivery. small order is welcome
1.Shandong Chengda Trailer Manufacturer Co.,Ltd. established in 2005 is one of the qualified manufacturers of various trailers, like lowbed semi-trailer, flatbed semi-trailer, cargo trailer, etc.
2.Integrated production, scientific research&development and professional sales teams, all those advantages could provide full service of trailers, semitrailers,tractor head, dump truck,mixertruck,engineering machinery and trailer parts.
3.With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built long business relationship with many world famous enterprises such as SINOTRUK, SHACMAN, FAW, etc.
4. In 2014, we enlarged our factory and add more prodution line. The sales valve in this year increase in a
boom way.
1. Does your company has your own factory?--- Yes, we have a factory ourselves,which is in this business for 12 years in China. Our factory is very famous
where is manufacturing various trailers in ShanDong, China.
2. Can you satisfy my special requirement?
--- Definitely! We can make the trailers based on your requirement.
3. What’s your minimum quantity?
--- Min.1set
4. How to trust us?
--- The good faith management is our philosophy, and you are welcome to visit our company at any time.
5. What’s your payment term?
--- T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
--- L/C: 100% irrevocable credit of letter.
Contact:Marian Fu
WhatsAPP:+86 159 6669 3571
Mobile: +86 159 6669 3571
Skype: +86 159 6669 3571
Viber:+86 159 6669 3571
Wechat: 159 6669 3571
Email:Marian@scdtrailer. com
