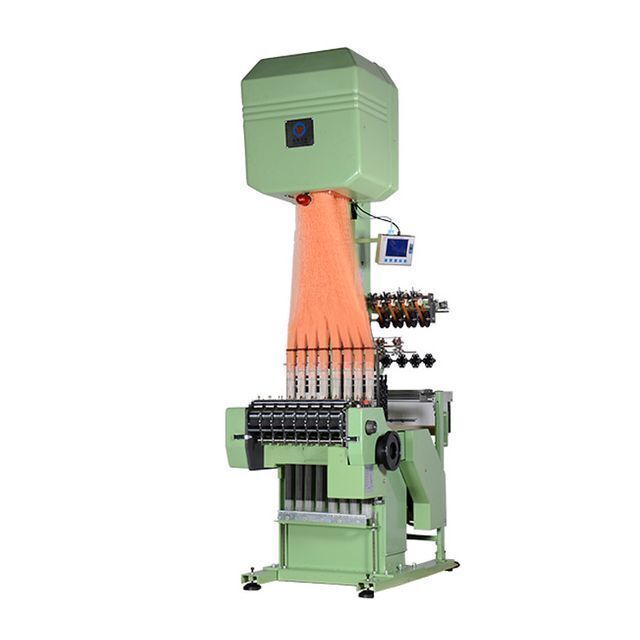

New product custom design mini jacquard knitting machines

Supplier: Guangzhou Yong Jin Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Yongjin Machinery
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of origin:	GuangZhou, China;	Packaging Detail:	each loom : Bubble pack + wellpappe + stretch films+ wood case;
Supply Ability:	300 Set/Sets per Month;	Key Selling Points:	Automatic;
Brand Name:	Yongjin,YongJin;	Knitting Method:	Double&Single;
Warranty:	1 Year;	Power:	2.2kw;
Type:	jacquard;	After Warranty Service:	Video technical support,Online support;
Application:	It can be used To produce jacquard elastic and non-elastic webbing;	Dimension(LWH):	15009802600mm,1.50.982.6m;
Local Service Location:	Turkey,Thailand;	Showroom Location:	Turkey,Viet Nam,Indonesia,Thailand,Bangladesh;
Place of Origin:	Guangdong China;	Knitting Style:	Flat;
Commodity name:	New product custom design mini jacquard knitting machines;	Applicable Industries:	Garment Shops,Manufacturing Plant,Textile industry;
Export Markets:	Southeast Asia, the Middle East, Europe and America;	Payment Terms:	L/C,T/T,Western Union;
Computerized:	NO;	Weight:	850kg;
Condition:	New,New;	Model Number:	YJ-TNF4/66;
Product Type:	Belt;	After-sales Service Provided:	Online support,Free spare parts,Engineers available to service machinery overseas;
Port:	Huangpu Guangzhou;	Production Capacity:	1200rpm,300sets / month;

New product custom design mini jacquard knitting machines

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

Product Overviews

Detailed Images

Parameters

Model	TNF8/27A	TNF6/42A	TNF6/42B	TNF4/66A
Number of hooks	192/240	192/240/320/384	384/448/480/512	192/240/320/384
Number of tapes	8	6	6	4
Width of reed	27	42	42	66
Maximum of tapes	25	40	40	62
Number of frame	12	12	12	12
Circulation	1:8/16-32	1:8/16-32	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm	500-1200rpm	500-1200rpm

Model	TNF4/66B		TNF6/55A
Number of hooks	384/448/320/512/640/720		192
Number of tapes	4		6
Width of reed	66		27
Maximum of tapes	64		25
Number of frame	12		12
Circulation	1:8/16-32		1:8/16-32
Speed	500-1200rpm		500-1200rpm

Main Features

Main Features

1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine.

2.The integration solenoid valve setting is small in size and sensitive while working.

3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.

4.The tension of warp is controlled automatically with the help of advanced technology

5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.

6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.

7.The woven flower shape is showed on windows directly and clearly.

8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens.
