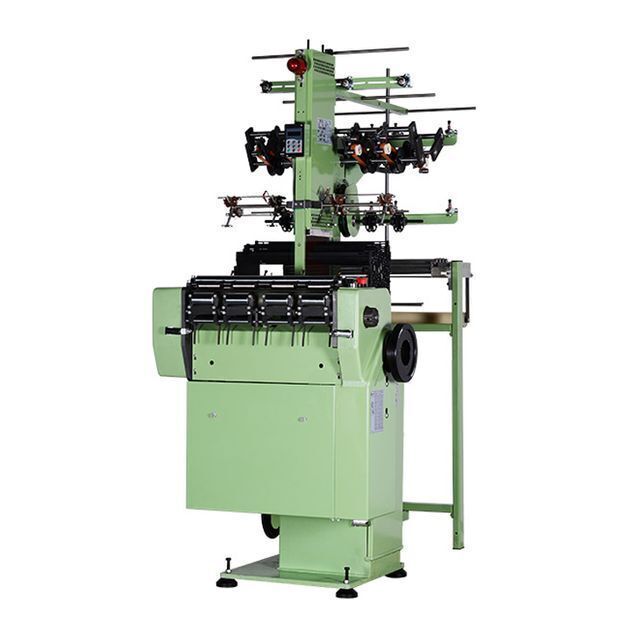

High standard weaving machine for safty webbing+zipper webbing machine

Supplier: Guangzhou Yong Jin Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Yongjin Machinery
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Online support,Video technical support,Engineers available to service machinery overseas;	Certification:	ISO9001 CE;
Brand Name:	YongJin,YongJin;	Production Capacity:	300sets / month;
Place of Origin:	Guangdong China;	Warranty:	1 Year;
Voltage:	380V;	Condition:	New,New;
Model Number:	YJ-NF 4/66,YJ-NF 4/66;	Weight:	500kg;
Supply Ability:	300 Set/Sets per Month;	Payment Terms:	L/C,T/T,Western Union;
Port:	Huangpu Guangzhou;	Commodity name:	v belt making machine,high quality belt making machine;
Application:	To produce narrow fabrics straps/belt/webbing/tape and so on;	Key Selling Points:	Automatic;
Packaging Detail:	each loom : Bubble pack + wellpappe + stretch films+ wood case;	Dimension(LWH):	1.5m0.98m2.1m,1.50.982.1m;
Applicable Industries:	Garment Shops,Manufacturing Plant,Textile Industry;	Place of origin:	GuangZhou, China;
Showroom Location:	Turkey,Viet Nam,Indonesia,Thailand,Bangladesh;	Local Service Location:	Turkey,Thailand;
After Warranty Service:	Video technical support,Online support;

High standard weaving machine for safty webbing+zipper webbing machine

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

Product Overviews

This is the shuttle less loom , this machine is to produce elastic belts, the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link

https://youtu.be/80VmuYpsSWg

Parameters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frame	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm
Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm
Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

Main Features

Main Features

1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed.

2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life.

3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance.

4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks.

5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity.

6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc.

Detailed Images
