Shopping paper bag and cement paper bag making machine production line with four-color printing machine

Supplier: Shanxi Jingong Zhuoda Engineering Machinery Equipment Co., Ltd.
Region: Shanxi, China
Contact: Ms chunmei li
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	brand:	Metalworking catches big
Core Components Warranty:	1 year	Marketing Type:	New Products 2020
Applicable industries:	Printing House, Energy & Mining, Other	Packaging Preview:
Packaging Details:	1. Packing: Packed in standard import and export wooden boxes or cartons. 2. Transportation: logistics; by car; by train; by transportation; by air, etc.	payment terms:	wire transfer
Warranty:	1 year	Dimensions (LWH):	165011501700mm
Core components:	PLC, engine, motor, pressure vessel	Health status:	new
weight:	1610 kg	place of origin; place of origin:	Shanxi, China
Main selling point:	High security level	Video external inspection:	if
Voltage:	220v/380v/415v	Showroom location:	not any

Shopping paper bag and cement paper bag making machine production line with four-color printing machine

Product Description

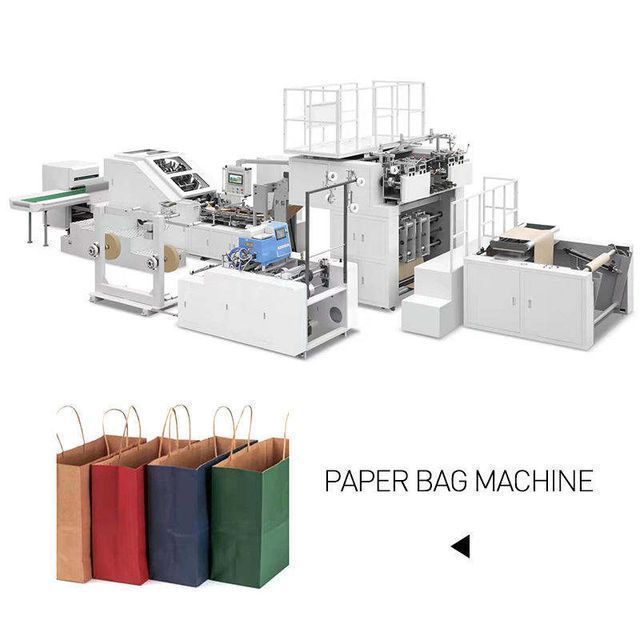

Automatic twist handle paper bag making machine

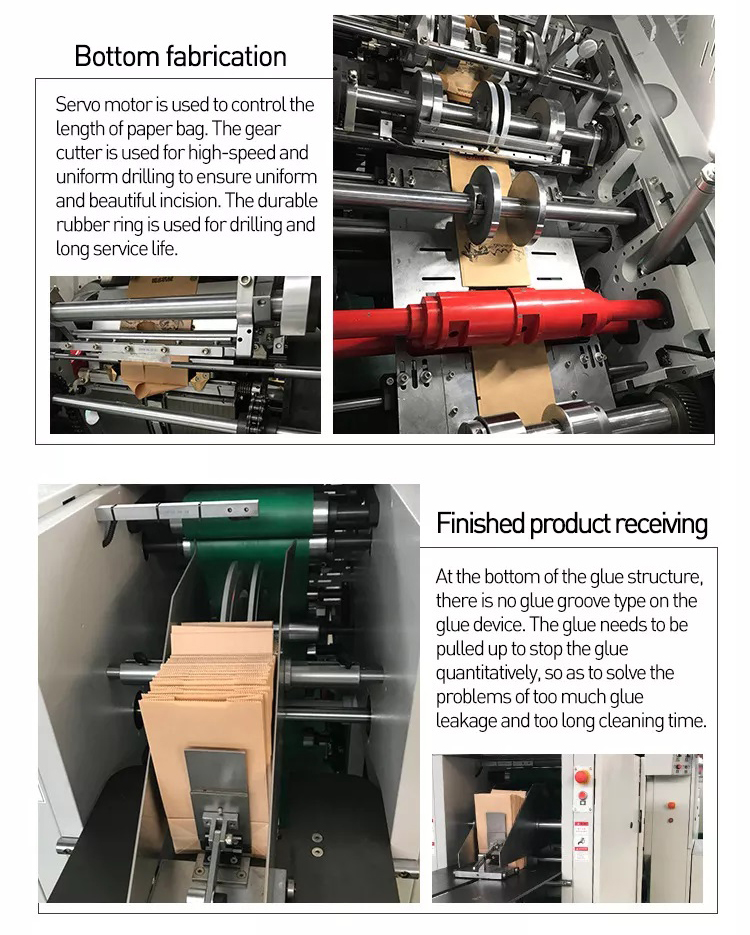

The paper bag machine is used for printing patterns, applying edge glue, folding into tubes, paper-cut tubes, folding bottoms, sticking bottoms, forming bag bottoms, outputting finished bags, and printing one-time bags.

The paper bag machine is controlled by onePC servo control system, with touch screen man-machine interface real-time display, and canProduction of paper bags of various specifications. It has the following advantagesFast speed, fast replacement of paper bag specifications,Large adjustment range, suitable for productionAll kinds of food bags, portable shopping bagsAnd other environmentally friendly packaging paper bags.

This fully automatic paper bag machine uses roll paper to make square bottom paper bags with twist handles in various sizes. This paper bag machine can make paper bags of different sizes with high efficiency. The bag is suitable for use as a shopping bag, gift bag, grocery bag, etc. This machine is especially suitable for flexible packaging industry.

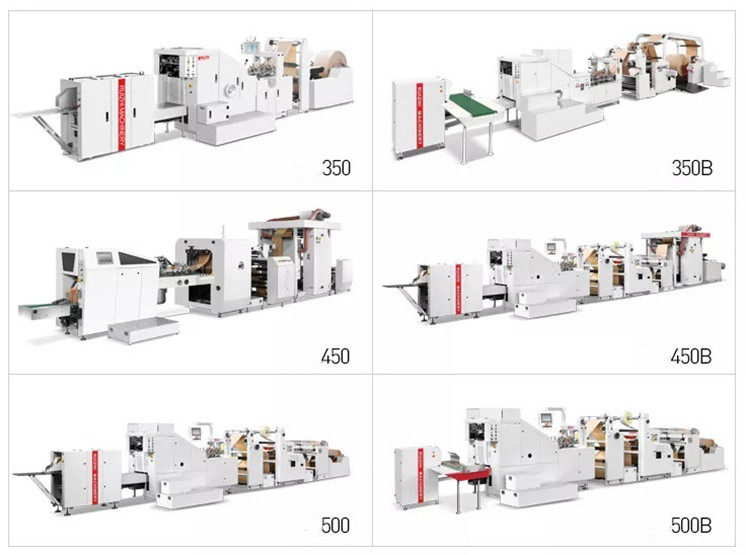

Model	350	450A	450B
cutting length	270-530mm	270-530mm	380-760mm
cutting length	270-430mm (with handle)	270-430mm (with handle)	380-660mm (with handle)
bag width	120-330mm	200-450mm	220-450mm
bag width	200-330mm (with handle)	240-450mm (with handle)	240-450mm (with handle)
Bottom width	60-180mm	80-180mm	80-200mm
paper thickness	60-150g/square meter	80-150g/square meter	80-150g/square meter
paper thickness	80-150g/M2 (with handle)	80-150g/M2 (with handle)	80-150g/M2 (with handle)
paper roll width	380-1050mm	590-1300 million	630-1350mm
paper roll width	620-1050mm (with handle)	710-1300mm (with handle)	710-1350mm (with handle)
Roll paper diameter	1300mm	1300mm	1300mm
paper core	76mm	76mm	76mm
Patch length	152mm	152/190mm	152/190mm
patch width	45-50mm	45-50mm	45-50mm
Processing distance	75mm	75/95mm	75/95mm
rope diameter	4-5mm	4-5mm	4-5mm
Patch roll width	90-100mm	90-100mm	90-100mm
Patch Paper Roll Diameter	1200mm	1200mm	1200mm
Patch paper thickness	100-135 g/m²	100-135 g/m²	100-135 g/m²
Production speed of handbags	30-180 packs/min	30-150 packs/min	30-130 packs/min
Production speed with carry bag	30-130 packs/min	30-120 packs/min	30-120 packs/min
Machine size	15000x6000x2700mm		15000x6000x2700mm

Features of paper bag machine:

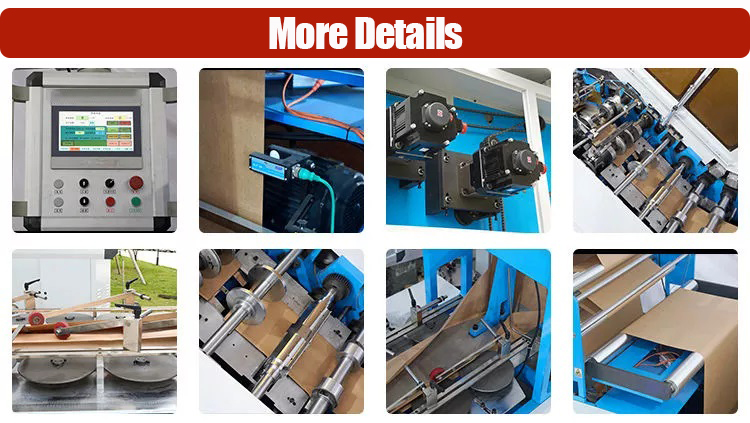

1. Touch screen man-machine interface, real-time display of working status.
2. Ultra-precision servo control system ensures stable and efficient operation of the machine.

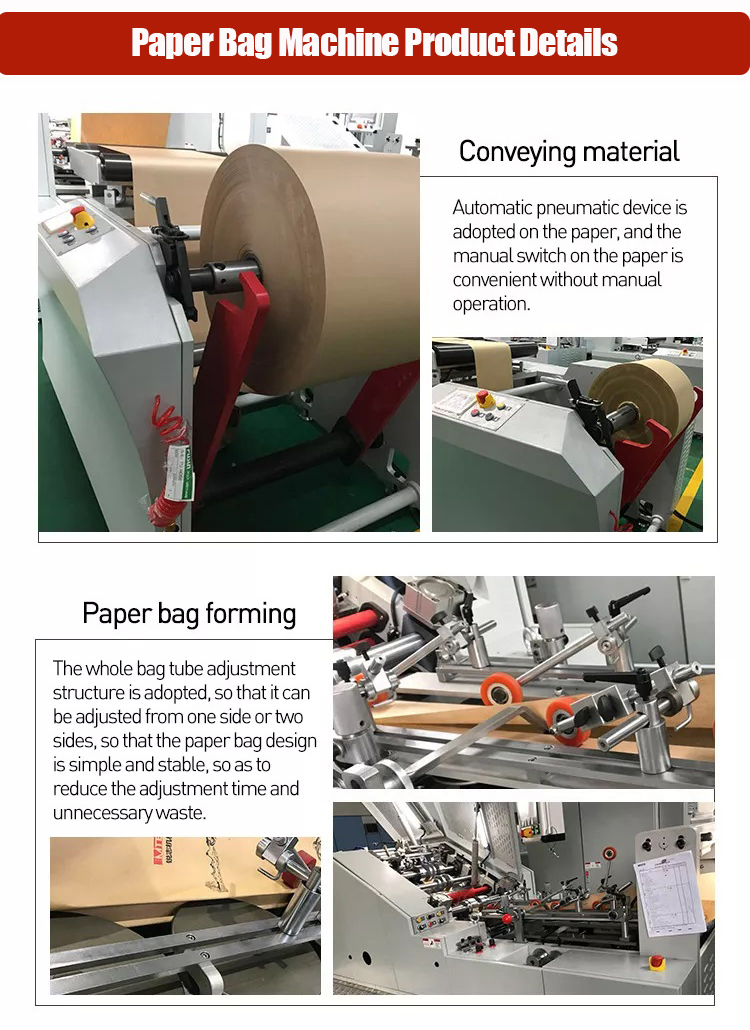

3. Pneumatic lifting structure is adopted for loading and unloading.
4. Fully automatic constant tension control system, the tension is always consistent.
5. Double photoelectric sensor limit automatic correction control system, stable correction, energy saving and long life.
6. Flat bottom cutting device, all kinds of bag making.
7. The rubber roller is controlled by anti-air gluing to avoid direct application of glue on the surface of the wheel hub and reduce unnecessary troubles.
8. Accurate color mark tracking system, automatic shutdown of color mark errors.
9. The ink circulation type closed scraper scrapes the ink.
