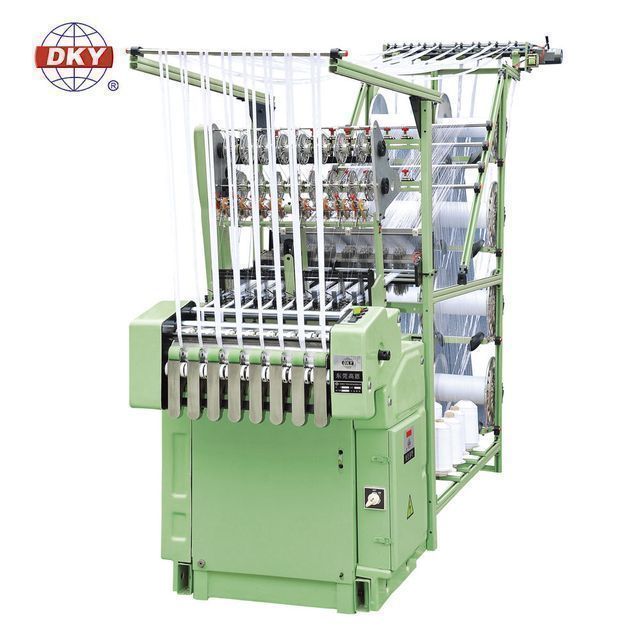

KZP 8/25 Nylon DKY MACHINERY

Supplier: Dongguan Gaoen Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms stephy shih
Price: $3800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	payment terms:	letter of credit, wire transfer
1. Warranty service:	Online support	Applicable industries:	Clothing Stores, Manufacturing Plants, Mechanical Repair Shops, Retail
Main selling point:	automatic	Core Components Warranty:	1 year
Mechanical test report:	Not available	place of origin; place of origin:	Guangdong, China
Video external inspection:	Not available	After Warranty Service:	Video technical support
brand:	DKY	Local service location:	Italy
Showroom location:	Italy, Mexico, Thailand, Bangladesh	weight:	500kg
4. Local service location:	Bangladesh	Marketing Type:	normal product
After-sales service provided:	Engineers can repair machinery overseas	Warranty:	one year
port:	FOB	Core components:	bearing
Certification:	ISO9001 CE	1. Local service location:	Mexico
model:	KZP 10/25 nylon	Dimensions (LWH):	10006901400
Supply capacity:	50 sets per month	Voltage:	220V 380V
2. Local service location:	Thailand

Principle features

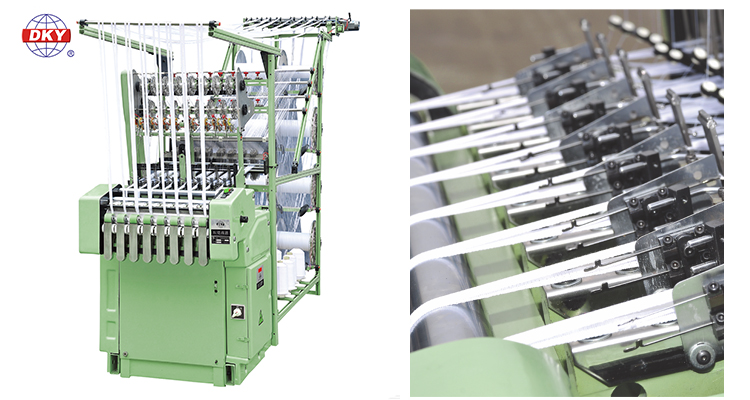

High-speed zipper needling machine

●A logical design for manufacturing zippers at high speed and productivity.●Precision weaving head, easy to adjust to meet the needs of high quality control.●Cam-controlled design plus automatic lubrication for 24-hour noiseless and smooth operation.●The webbing is accurately discharged through the belt drive without damaging the quality of the webbing.●Streamlined design, high component precision, fast running speed, long life and low depreciation rate.●Sleek design of creel size for easy assembly and adjustment.●The shedding frame of the internal support design to fix the balance, running faster and more stable.●The braided angle of the plate bracket is 7.5 degrees, which can make the braided edge more perfect.●The rewinding device and the cross frame can be changed according to the buyer's requirements.

Specification

Model	Rows	Maximum reed width m/m	heald frame	Motor Power	maximum speed	Comment
KZP 8/25	8	25	6	1.5 hp	1600~1800	nylon zipper
KZP 8/25	8	25	12	1.5 hp	1600~1800	nylon zipper
KZP 10/25	10	25	6	1.5 hp	1300~1500	nylon zipper
KZP 10/25	10	25	12	1.5 hp	1300~1500	nylon zipper
KZP 12/20	12	20	6	1.5 hp	1300~1500	nylon zipper
