Interlocking Kelly & Friction Kelly & Rock Drill Kelly

Supplier: Beijing Jietaihongli Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Sally Zhao
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Hotels, building material stores, manufacturing plants, machinery repair shops, retail, construction projects	Marketing Type:	normal product
payment terms:	L/C, Western Union, D/P, T/T	use:	Rotary Drilling Rig
Core component warranty:	6 months	Video shipment inspection:	if
weight:	10 tons	Health status:	new
brand:	Jetai	business type:	manufacturing plant
Mechanical test report:	if	Serve:	OEM production
port:	Tianjin	Core components:	Bearings, gearboxes, motors
Material:	High manganese steel	Certification:	ISO9001
Drilling depth:	20-120 meters	Origin:	Beijing China
Package preview:		Warranty:	6 months
Torque:	100-300Kn.m	Main selling points:	easy to operate
model:	JT Kelly Bar	Packaging Details:	good packaging as required
Dimensions (LWH):	0.80.815	After-sales service provided:	Engineers available to service machinery overseas
color:	yellow or white	Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Indonesia, Pakistan, Mexico, Spain, Thailand, South Korea, United Arab Emirates, Colombia, Romania
Supply capacity:	10 sets per month	weight:	10 kg

Product Description

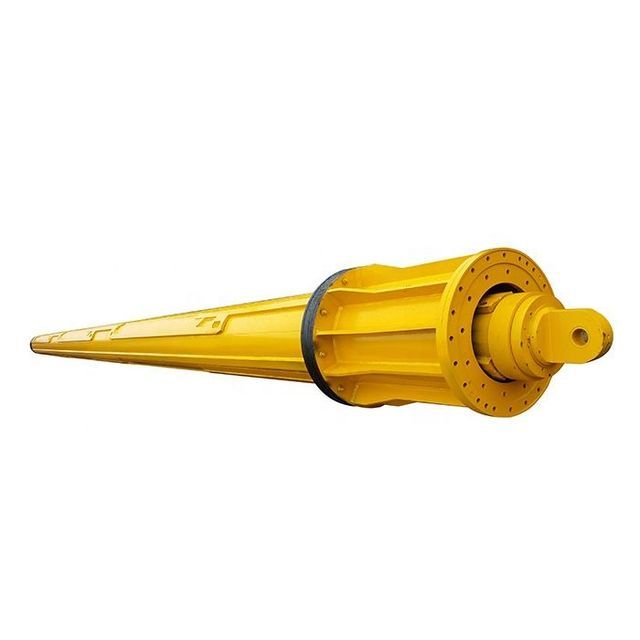

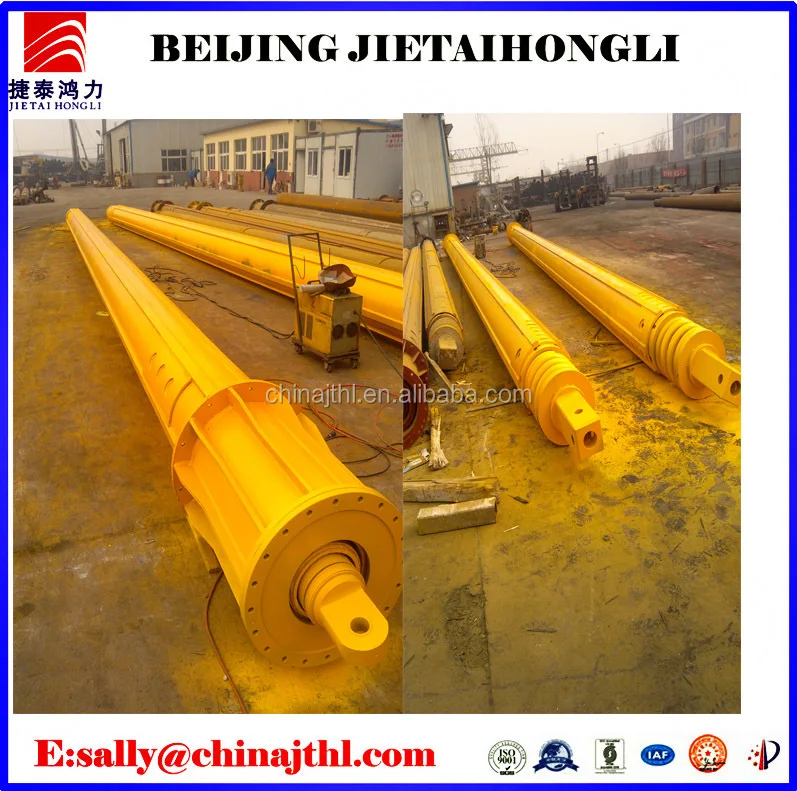

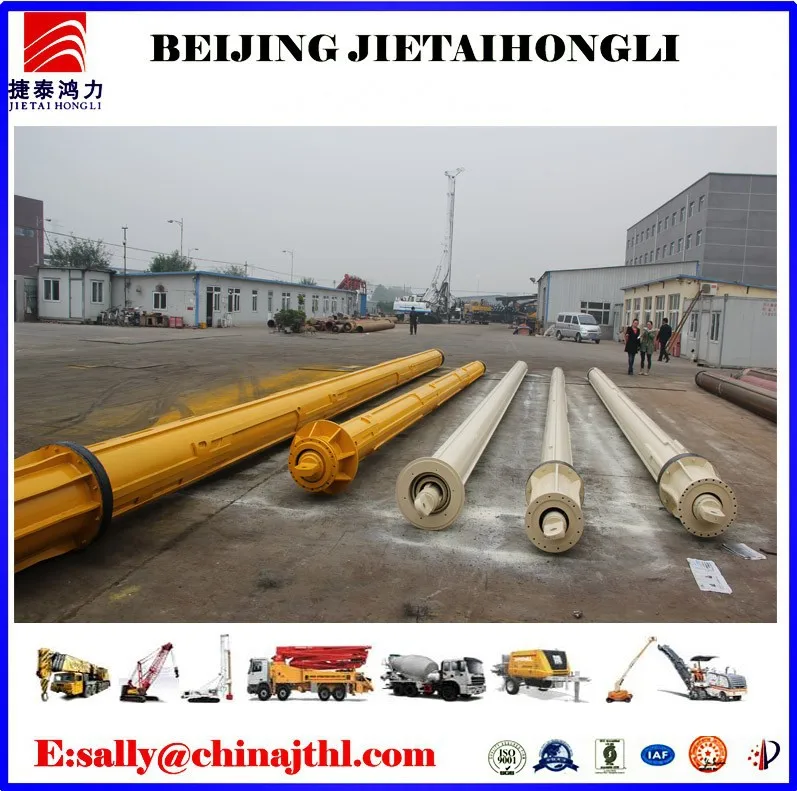

Interlocking Kelly and Friction Kelly and Drill Pipe

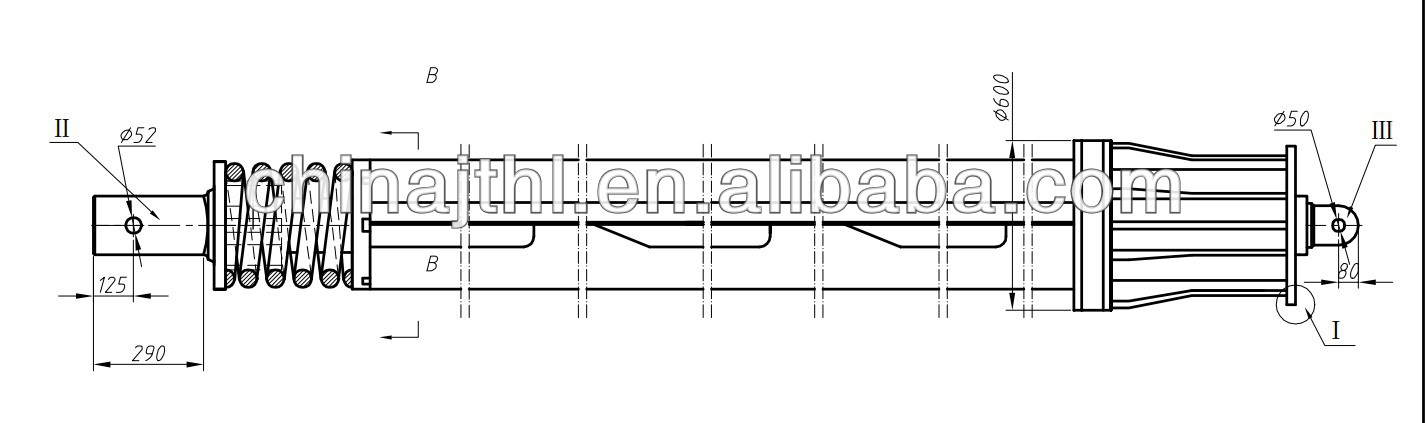

Kelly BarIt is a very important part of the hydraulic rotary drilling rig, because its quality directly affects the performance of the drilling rig through the transmission of pressure and workefficiency.Due to advanced processing equipment and experienced engineers, strict quality control system, our Kelly bars have been successfully matched with Bauer, IMT, Soilmec, Mait, Casagrande, Sany, Zoomlion, etc. for more than 10 years..

Interlock Kelly

Interlocking pressure Kelly bar contains 3 or 6 external keys with 3 or more sets of concave pressure parts. AndThe advantage is that it is easy to transmit pressure and has strong torque resistance. It is suitable for both dense sand and gravel as well as soft and hard rock.

Interlock Kelly
type	Outer diameter (mm)	part	Depth (m)	Torque (KN.M)
JT12 340-3x13	340	3	36	120
JT12 356-3x13	356	3	36	120
JT15 377-4x14	377	4	52	150
JT20 406-4x14	406	4	52	200
JT22 406-4x14	406	4	52	220
JT25 445-4x15	445	4	56	250
JT25 445-3x15	445	3	42	250
JT25 470-4x15	470	4	56	250
JT25 508-4x15	508	4	56	250
JT28 508-5x15	508	5	70	280

Friction Kelly

Friction Kelly
type	Outer diameter (mm)	part	Depth (m)	Torque (KN.M)
JT12 340-4x13	340	4	49	120
JT12 356-3x13	356	3	49	120
JT15 377-4x14	377	4	52	150
JT20 394-4x13	406	5	36	200
JT22 406-5x14	406	4	64	220
JT25 419-5x15	419	5	70	250
JT25 440-5x15	440	5	70	250
JT25 470-6x16	470	6	83	250
JT28 508-6x16	508	6	89	280
JT30 530-6x18.7	530	6	110	300
JT40 580-6x18.7	580	6	110	400
