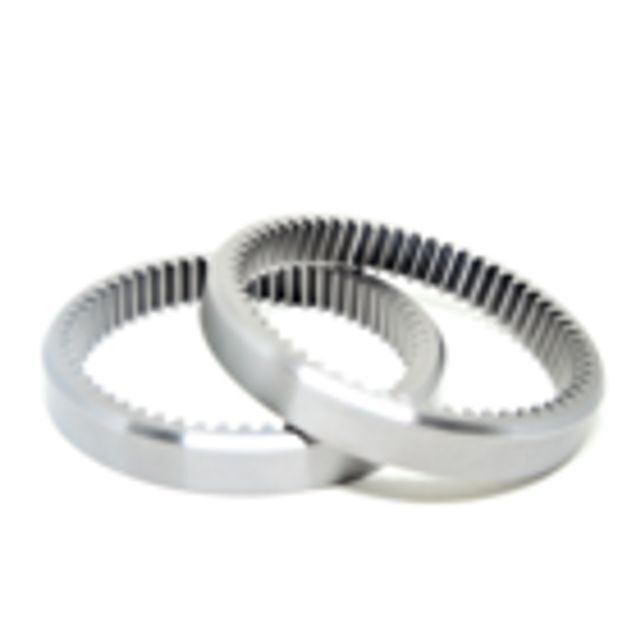

ODM OEM Custom Size High Quality Internal Ring Gear Wheel For Planetary Gearbox

Supplier: WU HUNG GEAR INDUSTRY CO., LTD.
Region: Taiwan, China
Price: $100.00 / 100 - 499 pieces
$80.00 / 500 - 999 pieces
$30.00 / >=1000 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Video outgoing-inspection:	Not Available;	After Warranty Service:	Video technical support,Online support;
Showroom Location:	None;	Brand Name:	Wu Hung,Wu Hung;
Machinery Test Report:	Provided;	Marketing Type:	New Product 2020;
Core Components:	Engine,Gearbox,Motor,Gear,Pump;	Precision Grade:	JIS 3-5 / DIN 7-9 / ISO7-9;
Shape:	Gear Ring / Gear Hub,Ring Gear;	Place of Origin:	Taiwan, China;
Condition:	New;	Warranty of core components:	Not Available;
Packaging Detail:	Plastic blister\packing bag\oil paper\wooden box;	Payment Terms:	T/T,Alibaba Trade Assurance;
Module:	M0.3 - M6.0;	Warranty:	Unavailable;
Standard or Nonstandard:	Nonstandard;	Teeth Profile:	Spur Straight Teeth;
Service:	OEM ODM Customized;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Retail,Printing Shops,Automotive Industry;
Local Service Location:	None;	Material Standard:	Metal, Steel, Brass, Aluminium, Iron, Stainless Steel, Plastic, Nylon;
Package Preview:	;	Tooth Profile:	Internal Spur Ring Gear,Spur Gear;
Port:	TAIWAN;	Tolerance:	0.001mm-0.01mm-0.1mm;
Supply Ability:	7000 Piece/Pieces per Week;	Pressure Angle:	20 Degree,20 Degree;
Material:	Metal;	Processing:	Hobbing;

PRODUCT _NAME	Internal Ring Gear
_MODULE	M0.3-M6.0 / DP20-DP80
_{PRECISION GRADE}	JIS 3-5 / DIN 7-9 / ISO7-9
_TOLERANCE	0.001mm - 0.01mm - 0.1mm
_MATERIAL	Metal, Brass, C45 Steel, Stainless steel, Copper, Aluminium, Alloy, POM, PE, PVC, etc.

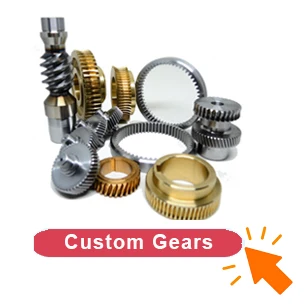

Product Name	Custom Gears
Model	Gear Module: M0.3-M6.0 / DP20-DP80 Pulley: Standard or Custom size (ex: S2M, 5GT, AT5, HTD5M,L,XL, etc.)
Precision grade	JIS 3-5 / DIN 7-9 / ISO 7-9
Material	Brass, C45 steel, Stainless steel, Copper, Aluminum, Alloy, PE, PVC, POM, etc.
Tolerance	0.001mm - 0.01mm - 0.1mm
Finish	Shot, Sand blasting, Heat treatment, Annealing, Tempering, Polishing, Anodizing, etc.
OEM / ODM / OBM	1. Manufacturing according to customer's requirement. 2. Providing custom gear design or gear product optimization. 3. Supplying professional business communication service. 4. Support Developoment and Reverse engineering service.
Testing Machine	Digital Height Gauge, Micrometer caliper , Caliper, Gear measuring machine, Projection machine, Hardness tester, etc.

Our Production Line

Our Workshop

Our Warehouse

Our Team

Wu Hung Gear Industry Co., Ltd.

was established in 2002, specializes in customized gear manufacturing service for alternative industries.

We provide customized service based on customer needs.

Since its establishment, we have been serving customers with a professional, rapid and enthusiastic attitude.

We are recognized and trusted by customers with our high quality standard and expertise in gears.

In order to improve more service quality, we migrated to the new factory in 2005.

With the introduction of Japanese and Germany machinery and testing equipment, in response to the fast changing needs of the time.

''Integrity-based, customer first, quality first.'' is our company’s business philosophy.

Every product is produced with the highest standard quality.

In order to fulfill the requirements of customers, we always try our best.

Customers' affirmation are our biggest motivation to move forward.

A: We are a manufacturer. We provide professional custom service according to customers' requirement.

A: It depends on the production processes, the production cycle would be 30-65 days.

A: Yes, we could provide the sample. Products developing fee can be charged. Sample fee can be refunded after products purchased.

A: Payment <=2000 USD, 100% in advance. Payment>=2000 USD, 30% T/T in advance , balance before shipment.
