Weight (kg): | 0.01 | Mechanical test report: | if |
Video outbound inspection: | not any | Material: | Metal plastic |
equipment: | CNC machining center | Tooth shape: | spur gear |
shape: | gear | Serve: | OEM ODM customization |
Package preview: | Marketing type: | New products for 2021 | |
size: | Customer requirements | port: | Taiwan |
payment terms: | T/T, Alibaba Trade Assurance | Place of origin: | Taiwan, China |
Supply capacity: | 7000 pieces per week | Processing: | Hobbing |
Core components: | Gears, gearboxes, motors, pumps, engines, reducers | quality: | 100% inspected |
Packaging details: | Blister/packaging bag/oil paper/carton/wooden box | Standard or non-standard: | Non-standard |
Core component warranty: | not available | Applicable industries: | Manufacturing plants, machine repair shops, food and beverage plants, retail, print shops, construction projects, others, automotive industry |
Showroom location: | not any | brand: | Wu Hong |
pressure angle: | 20 degrees,20 degrees | Module: | M0.3-M6.0 |
Accuracy level: | JIS3-5/DIN7-9/ISO7-9/AGMA11-9 | Health status: | new |
application: | Mechanical transmission | Material standards: | Metal, brass, C45 steel, stainless steel, copper, aluminum, POM |
Warranty: | unavailable | Processing type: | Gear hobbing, turning |

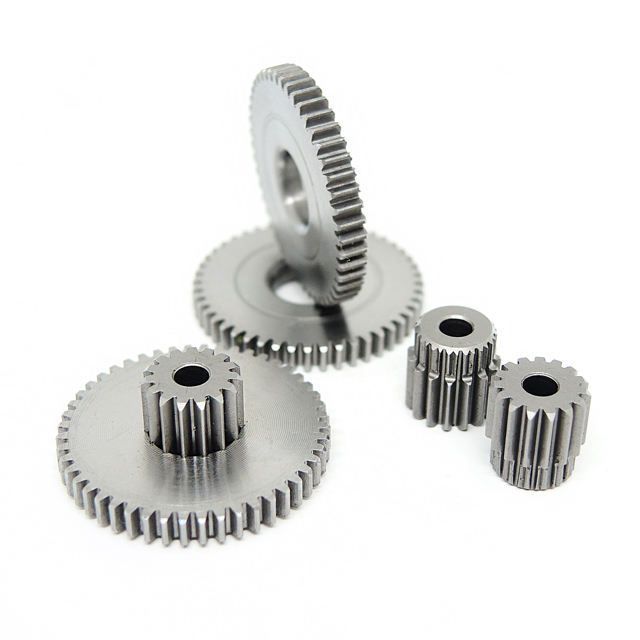

product Name | custom pinion gear |
module | M0.3-M6.0/DP20-DP80 |
Accuracy level | JIS 3-5/DIN 7-9 |
tolerant | 0.001mm - 0.01mm - 0.1mm |
Material | Metal, brass, C45 steel, stainless steel, copper, aluminum, alloy, POM, PE, PVC, etc. |
product name | custom gear |
Model | Module: M0.3-M6.0/DP20-DP80 Pulleys: Custom sizes (example: S3M, S5M, 2GT, XL) |
Accuracy level | JIS 3-5/DIN 7-9 |
Material | Brass, C45 steel, stainless steel, copper, aluminum,alloy, PE, PVC, etc. |
tolerant | 0.001mm - 0.01mm - 0.1mm |
Finish | Shot blasting, sand blasting, heat treatment, annealing, tempering, polishing, anodizing, etc. |

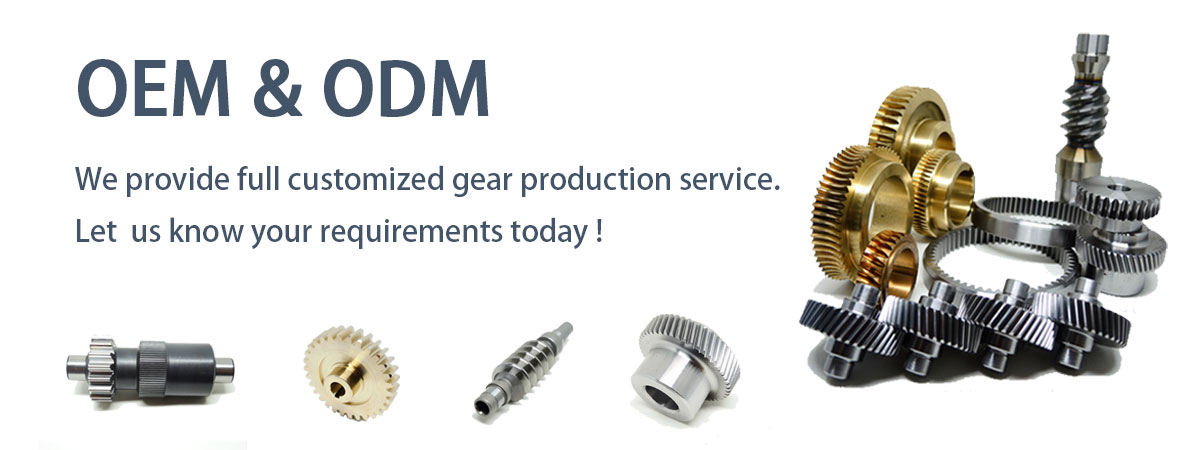

OEM/ODM | 1. Produced according to customer requirements. 2. Provide customized gear design or gear product optimization. 3. Provide professional pre-sales communication services. |
Testing Machine | Digital height gauge, micrometer, vernier caliper, gear measuring machine, projector, hardness tester, etc. A gear inspection report is included with the shipping documents. |

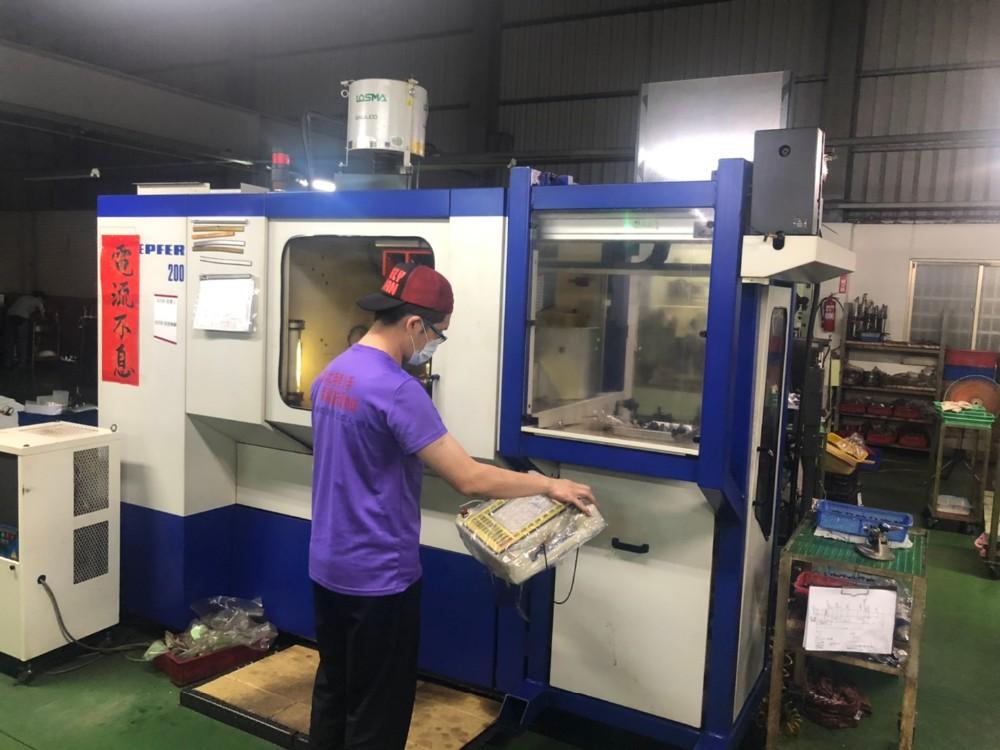

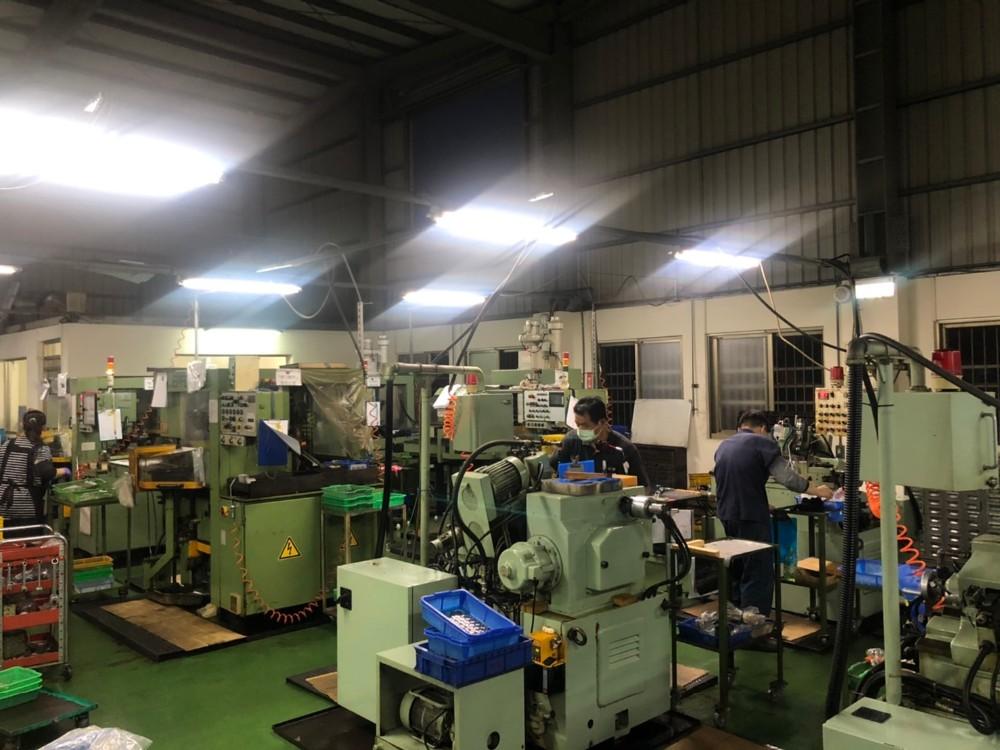

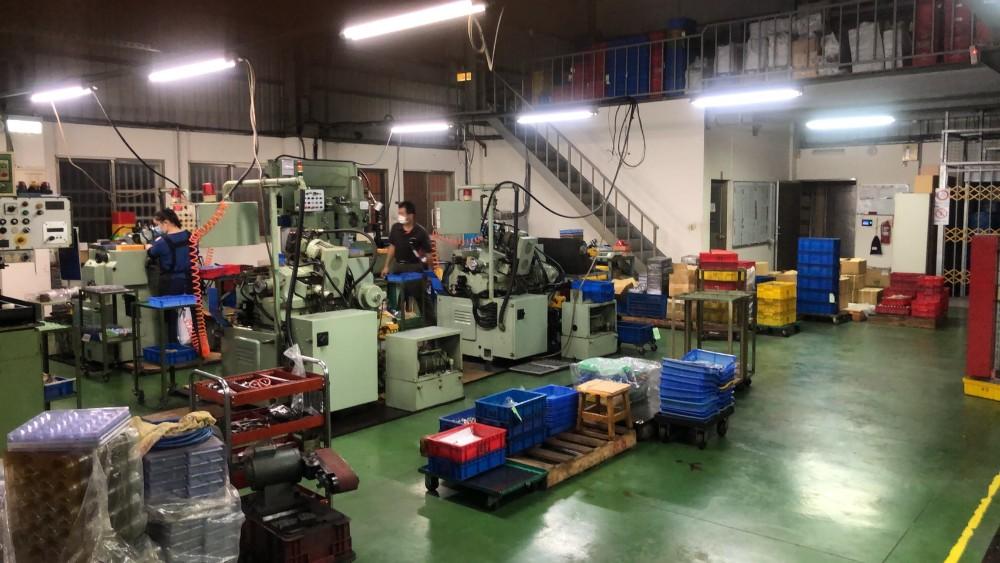

our workshop

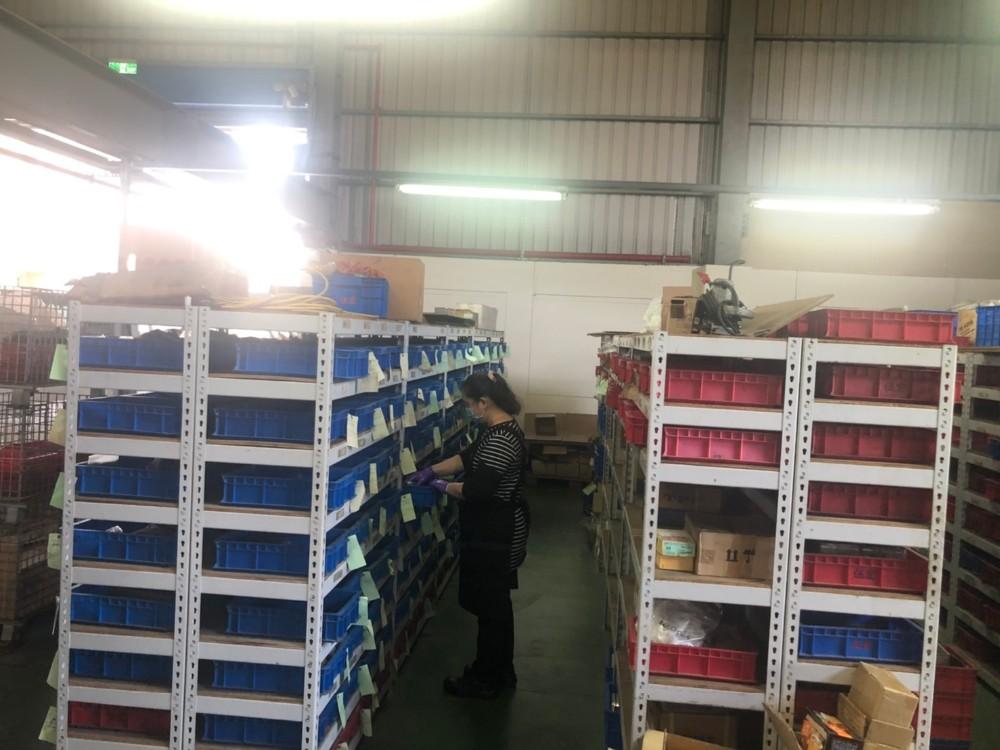

Our warehouse
our team
A: We are a manufacturer. We provide professional customized services according to customer requirements.
A: It depends on the production process, the production cycle is 45-65 days.
A: Yes, we can provide samples. Product development fees may be charged. The sample fee can be refunded after purchasing the product.
A: Payment<=2000 USD, 100% in advance. Payment >= 2000 USD, 30% T/T in advance, balance before shipment.
If you have any further questions, please feel free tocobaltContact us now!
