northwest: | 13kg | Standard or non-standard: | Non-standard |
Pinion spline teeth: | 14T | place of origin; place of origin: | Liaoning, China |
quality: | OEM&After sales | Package size: | 43X31X18cm |
Applicable industries: | automobile parts | color: | black and white |
Health status: | new | Mechanical test report: | if |
Material: | 20CrMnTiH3 | Processing: | forging |
Packaging Details: | Differential gears are protected by cell deposits. Covered in plastic film, a set of gears in a carton. | Showroom location: | U.S. |
brand: | New | Crown Outer Diameter: | 291mm |
Core components: | gear | Video external inspection: | if |
Packaging Preview: | Supply capacity: | 100,000 sets/year | |
Warranty: | 12 months free/value-added extension, 6 months | car brand: | Fuso jogging |
Core Components Warranty: | 1 year | Local service location: | U.S. |
GW: | 13.6 kg | pressure angle: | Average 22.5 degrees |
After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | shape: | gear |

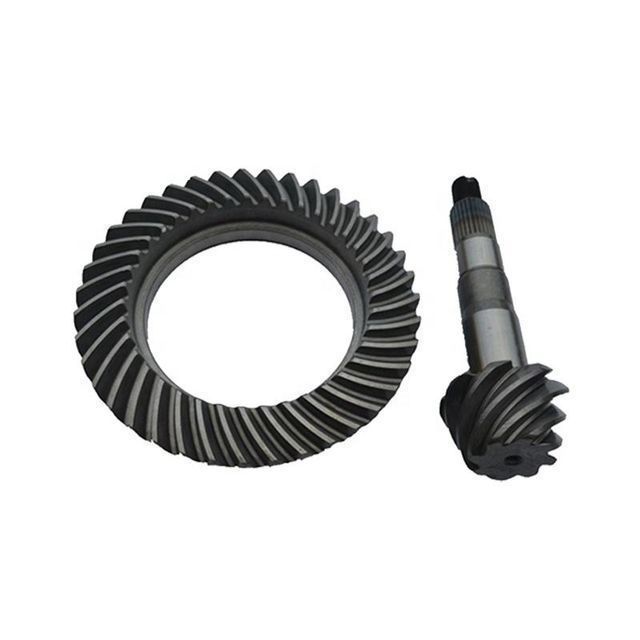

Pinion length: | 244mm | Tooth profile: | Bevel gear |
payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal | Marketing Type: | Hot Products of 2019 |
port: | Dalian/Tianjin/Qingdao/Shanghai/Ningbo/As required |

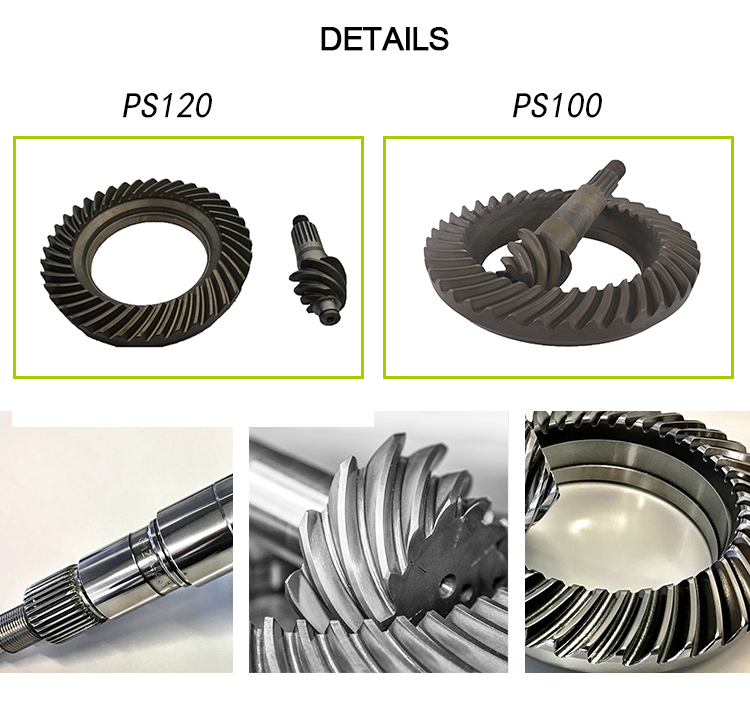

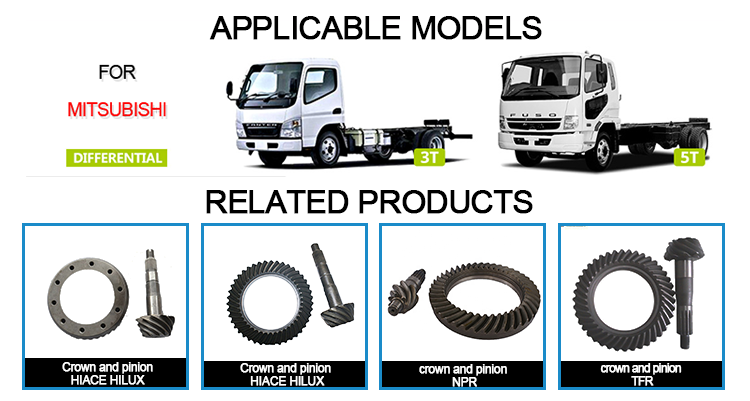

Car manufacturer | Hilux roller coaster | PS100 (Fuso Canter) | PS120 (Fuso Jogging) | TFR | NPR | NKR |
speed ratio |
Hilux Hilux: 8*39 9*41 10*41 10*43 11*43 12*43 roller coaster: 8*41 8*43 8*45 7*39
|
6*37 6*40 7*39 7*40 |
6*37 6*40 7*39 7*40 |
9*41 10*41 | 6*37 6*39 7*39 7* 41 7*43 8*39 8*43 | 7*41 7*43 8*38 10*41 6*41 7*38 6*39 |
pinion length | 215mm | 244mm | 208.5mm | 206mm | 225mm | |
Ring gear inner diameter | 126m | 175mm | 175mm | 200mm | ||
Ring gear outer diameter | 204 meters | 291mm | 305mm | 193mm | 292mm | 300mm |
Material (gear) | 20CrMTiH3 | 20CrMTiH3 | 20CrMTiH3 | 20CrMTiH3 | 20CrMTiH3 | 20CrMTiH3 |
Spline teeth of pinion | 27T/29T | 14T | 18T | 16T | 18T | 18T |
