20Khz 2600W Ultrasonic Lace Sewing Ultrasonic Manual Non Woven Plastic PP Bag Making Machine
-
Supplier: Shenzhen Jiayuanda Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Keven Qiu -
Price: $1000.00 / 1 - 4 pieces
$850.00 / 5 - 9 pieces
$700.00 / >=10 pieces -
Min. Order: 1 piece
Product details
| Weight: | 90; | Supply Ability: | 100 Piece/Pieces per Month Ultrasonic Manual Non Woven Platic PP Bag Making Machine; |
| Applicable Industries: | Garment Shops,Other; | Welding head material: | aluminum, titanium, steel alloy; |
| Keywords: | ultrasonic fabric welder; | Video outgoing-inspection: | Provided; |
| keywords2: | 20k ultrasonic lace machine; | Package: | export wooden case; |
| After-sales Service Provided: | Video technical support; | Payment Terms: | Western Union,L/C,D/P,D/A,T/T,MoneyGram,Paypal; |
| Marketing Type: | Ordinary Product; | Place of Origin: | Guangdong China; |
| Max Sewing Thickness: | 1cm; | Warranty of core components: | 1 Year; |
| Name: | 2600W ultrasonic fabric welder; | Condition: | New; |
| After Warranty Service: | Video technical support,Spare parts; | Ultrasonic power: | 2600W; |
| Ultrasonic frequency: | 20Khz; | Voltage: | 110/220V; |
| Welding speed: | 20M/min; | Port: | Shenzhen; |
| Brand Name: | JYD/OEM; | Warranty: | 1 Year; |
| Local Service Location: | None; | Automatic Grade: | Semi-automatic; |
| Core Components: | PLC,Engine; | Horn size: | customized; |
| Machinery Test Report: | Provided; | Packaging Detail: | export plywood case 20Khz 2600W Ultrasonic lace sewing Ultrasonic Manual Non Woven Platic PP Bag Making Machine; |
| Power: | 2600W; | Showroom Location: | None; |
| Dimension(L*W*H): | 1210x600x1100(mm); | keywords3: | 2600w ultrasonic fabric welder; |
| Certification: | CE/ROHS; |
Product Description

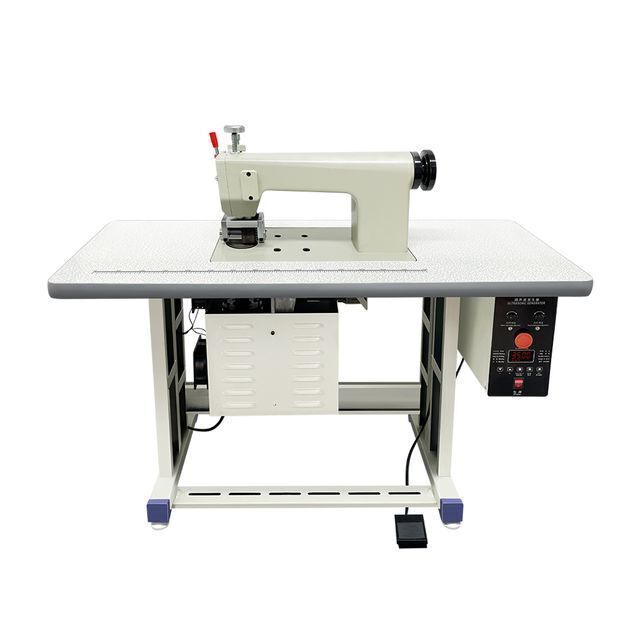

20Khz 2600W Ultrasonic Lace Sewing Ultrasonic Manual Non Woven Plastic PP Bag Making Machine
Specification
Product number | X30-D54 | X30-D77 |
Working frequency | 20KHz | 20KHz |
Ultrasonic power | 2000W | 2600W |
Bonding width | D54mm | D77mm |
Roller diameter | 50mm | 50mm |
Maximum speed | 20m/min | 20m/min |
Workspace | 680*130mm | 680*130mm |
Body size | 500*125*265mm | 500*125*265mm |
Overall size | 1210*600*1100mm | 1210*600*1100mm |
Certifications
Recommend Products
Company Profile
Jiayuanda Technology Co., Ltd. is a national high-tech enterprise focusing on the development of ultrasonic technology. Its main products are ultrasonic welding equipment, ultrasonic lace equipment, ultrasonic cutting equipment, ultrasonic extractor, ultrasonic homogenizer, ultrasonic generator, ultrasonic transducer and ultrasonic application tools, etc. Products are widely used in cleaning, welding, extraction, homogenization, cutting process and other applications in medical, plastic, metal, non-woven fabrics, food, rubber, packaging materials and other industries. Products are sold all over the world and well received by customers.
Payment & Shipment
FAQ
Q: What kind of plastic materials can be welded by ultrasonic?
A: Thermoplastic materials such as: polypropylene (PP); polystyrene (PS); acrylonitrile butadiene styrene (ABS);
polycarbonate (PC); polyethylene terephthalate (PET) ; Acrylic (PMMA); Nylon (PA);
Clothes made of polyester materials: Jackets, sun protection clothing (X20); LL & LD; PS (H40); PP, PLA thread (2900sp handheld spot welding machine); ABS; PET; nylon shoulder strap (H40); H40); Acrylic; PC, laptop battery (15khz), boomerang LLDPE
Q: What material can't be ultrasonically welded?
A: PVC, TPU, PU leather, bag battery; metal tin wire, PE drip tape, HDPE plastic (hot plate machine), PU leather, rigid XPS foam, insulating foam, medical blood bag (high frequency)
Q: Which machine is used to weld the transparent PET cake box?
A: H40 15k2600w
Q: Which machine is used to weld 8-10mm PU foam to non-woven fabric, similar to the fabric foam on bicycle mats or helmets?
A: 28khz 800w spot welding machine
Q: Which machine is used for welding turnover box LLDPE material and PP hollow board?
A: 28khz 800w spot welding. The welding tool head is a titanium die with a fork, about 19-20mm in diameter.
Q: Can the filter bag (inside of 5 layers of meltblown fabric, 300gsm non-woven fabric on both sides) be welded and cut together?
A: Yes, it depends on the size of the filter bag, 100*100mm 2mm thick, H60 15k4200W is recommended
Q: Can the ABS+PC shell of the walkie-talkie be welded?
A: Yes, recommend H80 20khz 2000w
Q: Can all textile fabrics of 60-150gsm be welded?
A: Yes, 20khz 2000w titanium alloy to customize the tool head size according to the welding size
Q: Blood bag size: 350x180x150mm, made of PVC, is it ultrasonically sealed?
A: High frequency, our ultrasound can't do it.
Q: Can PP transparent file bags and folders be ultrasonically welded?
A: Yes, 15khz 2600w
Q: Bonding BOPET to woven recycled PET, non-woven fabric + printed OPP film, can this be ultrasonically welded?
Answer: Yes, 28khz 800w system with rack and roller blade, tool head steel mold diameter 20mm
Q: Can the material of boomerang LLDPE be welded?
A: Yes, 15khz 2600w
Q: Can acrylic plastic materials be ultrasonically welded?
A: Yes, 20k 2000w
Q: Can PVC hoses be welded by ultrasonic?
A: No, we need to use high frequency
Q: Can polystyrene crystals be ultrasonically welded?
A: Yes, depending on whether the customer needs watertightness.
Q: Can the horn material of the welding machine's transducer be replaced?
Answer: The material of the horn can be replaced with titanium, plus 1000USD.
Q: Can the tool head of the welding machine increase the tooth pattern?
A: The tooth pattern can be added, and the customer needs to provide a drawing and send it to the engineer to confirm whether there is an additional charge.
Q: How long does it take for the welding machine to seal a pipe with a thickness of 0.5 mm?
Answer: about 0.6s
Q: How long does it take for the welding machine to weld plastic PP parts?
A: 0.3-0.5S
A: Thermoplastic materials such as: polypropylene (PP); polystyrene (PS); acrylonitrile butadiene styrene (ABS);
polycarbonate (PC); polyethylene terephthalate (PET) ; Acrylic (PMMA); Nylon (PA);
Clothes made of polyester materials: Jackets, sun protection clothing (X20); LL & LD; PS (H40); PP, PLA thread (2900sp handheld spot welding machine); ABS; PET; nylon shoulder strap (H40); H40); Acrylic; PC, laptop battery (15khz), boomerang LLDPE
Q: What material can't be ultrasonically welded?
A: PVC, TPU, PU leather, bag battery; metal tin wire, PE drip tape, HDPE plastic (hot plate machine), PU leather, rigid XPS foam, insulating foam, medical blood bag (high frequency)
Q: Which machine is used to weld the transparent PET cake box?
A: H40 15k2600w
Q: Which machine is used to weld 8-10mm PU foam to non-woven fabric, similar to the fabric foam on bicycle mats or helmets?
A: 28khz 800w spot welding machine
Q: Which machine is used for welding turnover box LLDPE material and PP hollow board?
A: 28khz 800w spot welding. The welding tool head is a titanium die with a fork, about 19-20mm in diameter.
Q: Can the filter bag (inside of 5 layers of meltblown fabric, 300gsm non-woven fabric on both sides) be welded and cut together?
A: Yes, it depends on the size of the filter bag, 100*100mm 2mm thick, H60 15k4200W is recommended
Q: Can the ABS+PC shell of the walkie-talkie be welded?
A: Yes, recommend H80 20khz 2000w
Q: Can all textile fabrics of 60-150gsm be welded?
A: Yes, 20khz 2000w titanium alloy to customize the tool head size according to the welding size
Q: Blood bag size: 350x180x150mm, made of PVC, is it ultrasonically sealed?
A: High frequency, our ultrasound can't do it.
Q: Can PP transparent file bags and folders be ultrasonically welded?
A: Yes, 15khz 2600w
Q: Bonding BOPET to woven recycled PET, non-woven fabric + printed OPP film, can this be ultrasonically welded?
Answer: Yes, 28khz 800w system with rack and roller blade, tool head steel mold diameter 20mm
Q: Can the material of boomerang LLDPE be welded?
A: Yes, 15khz 2600w
Q: Can acrylic plastic materials be ultrasonically welded?
A: Yes, 20k 2000w
Q: Can PVC hoses be welded by ultrasonic?
A: No, we need to use high frequency
Q: Can polystyrene crystals be ultrasonically welded?
A: Yes, depending on whether the customer needs watertightness.
Q: Can the horn material of the welding machine's transducer be replaced?
Answer: The material of the horn can be replaced with titanium, plus 1000USD.
Q: Can the tool head of the welding machine increase the tooth pattern?
A: The tooth pattern can be added, and the customer needs to provide a drawing and send it to the engineer to confirm whether there is an additional charge.
Q: How long does it take for the welding machine to seal a pipe with a thickness of 0.5 mm?
Answer: about 0.6s
Q: How long does it take for the welding machine to weld plastic PP parts?
A: 0.3-0.5S
