15khz 20khz 35khz 40khz Digital Automatic Frequency Tracking Ultrasonic Welding Generator

Supplier: Shenzhen Jiayuanda Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Keven Qiu
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Applicable Industries:	Ultrasonic welding machine company;	Place of Origin:	China;
Marketing Type:	New Product 2020;	Local Service Location:	Turkey;
Welding Area:	Depend;	Frequency:	15KHz,20khz,28KHz,35KHz,40KHz;
After Warranty Service:	Video technical support,Online support,Spare parts;	Video outgoing-inspection:	Provided;
Max current:	10A;	Condition:	New;
Dimensions:	384mm 240mm110mm(LWH);	After-sales Service Provided:	Free spare parts,Online support,Video technical support;
Payment Terms:	L/C,T/T,Western Union;	Supply Ability:	1000 Unit/Units per Month;
Brand Name:	JYD/OEM;	Packaging Detail:	PE foam and export carton, Or make wooden case as customer's request 15khz 20khz 35khz 40khz Digital Automatic Frequency Tracking Ultrasonic Welding Generator;
Weight:	8kg;	Application:	ultrasonic welding (fabric, cloth,pp bag);
Package Preview:	;	Port:	shenzhen;
Name:	15khz 20khz 35khz 40khz Digital Ultrasonic Welding Generator;	Power:	2000W,1000W,800W,500W;
Showroom Location:	None;	Voltage:	220V/110V±10% 50/60Hz;
Machinery Test Report:	Provided;	Warranty:	1 YEAR,1 Year;
Features:	automatically frequency tracking, digital and touch screen control;	Weight (KG):	7.5 KG;
Usage:	ultrasonic pastic nonwoven fabric welding;

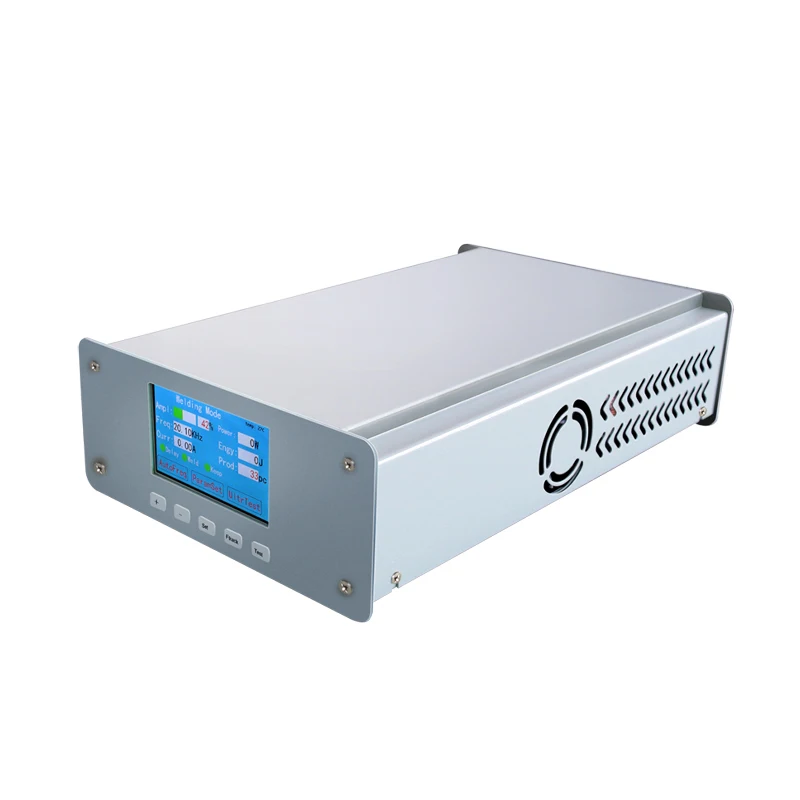

15khz 20khz 35khz 40khz Digital Automatic Frequency Tracking Ultrasonic Welding Generator

Product Description

Feature:

Automatic frequency tracking: the system automatically tracks the resonant frequency of welding head.Compensation for dissonance due to heating and other reasons.
Digital frequency control: the working frequency is controlled by the microcontroller.
Digital amplitude setting: this feature allows users to set precise amplitudes according to application requirements, providing a greater range and repeatability than analog systems.
Large amplitude adjustable:1%~100% continuously adjustable, different from the traditional generator low amplitude difficult to work.
High-speed microcontroller: the operating frequency of the internal microcontroller is up to 168MHz, which can accurately and timely control the working situation.
0.5 ms control and sampling interval: 2000 times per second sampling and control for welding process.
Touch screen display: through color screen and touch, friendly and easy to use human-computer interaction, better experience.
Button and touch co-exist: common functions can provide better interaction through buttons.One of the buttons use silicone keys, feel better.
Operating language: the user can select the applicable language in the start screen: only English and Chinese are supported at present.
Oblique start up: ultrasonic power supply and solder head start up at the most appropriate rate to reduce electromechanical pressure on the system.
Vibration drop after welding: the user can start the ultrasonic wave after the welding and pressure retaining process to shake down the workpiece adhered to the welding head.
Welding quality monitoring: user-defined process alarm. When it is outside the scope of user-defined defective products, the system will generate an alarm to remind the user.
Diagnosis at startup: during startup, test the main components of the system.
Timing frequency search: when starting up, the system shall conduct frequency search every minute to update the resonant frequency of welding head.This is especially effective for a welding process which can affect the temperature of the welding head.

Specification:

Model	Frequency(KHz)	Maximum ultrasonic power(W)
JYD-2700S	15	2600
JYD-2700S	20	2000
JYD-2700S	25	2000
JYD-2700S	28	2000
JYD-2700S	30	1500
JYD-2700S	35	1500
JYD-2700S	40	1000

Application: plastic welding,non-woven fabrics welding and so on.

Packaging

Our Services

1.1and half years free maintenance, all lifetime maintenance service from us;

2. Rechangable within a month, Reply your enquiry in 24 working hours.

3. Experienced staffs answer all your questions in fluent English.

4. OEM is available if the quantity is large.

5. We assure our product of quality, with innovative design, industrial grade quality circuit board, advanced production line and strict quality control procedures, the failure rate is less than 0.01%, which is the lowest in this line.
