HJLab Fully Customizable 5L-50L Jacketed Glass Reactor with Lifting and Rotation

Supplier: Shanghai Hjlab Instruments Co., Ltd.
Region: Shanghai, China
Contact: Mr Evan Zhang
Price: $2800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Stirring Motor:	Ex-Proof, Durable AC Induction and Air-Driven;	Marketing Type:	New Design;
Selling Units:	Single item;	Single package size:	10X10X30 cm;
Single gross weight:	20.0 KG;	Brand Name:	Shanghai HJLab;
Speed Control:	Variable-Frequency Drive;	Mixing Speed:	600 rpm, stepless, soft-start;
Key Selling Points:	Competitive Price;	Voltage:	110V/220V/380V;
Machinery Test Report:	Provided;	Sealing:	PTFE & Mechanical;
Power:	120W;	Video outgoing-inspection:	Provided;
Warranty:	1 Year;	Showroom Location:	Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam;
Core Components:	PLC,Motor,Pressure vessel,Glass Reaction Vessel,PTFE Discharge Valve,PTFE Sealing;	Packaging Detail:	Wooden case or according to your requirements for packing;
Wetted Parts:	Boro Glass 3.3 & PTFE;	Package Preview:	;
Weight:	80;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,CBD/Chemical/Synthesis/Lab;
Reaction Vessel:	10, 20, 30, 50, 100 liters;	Capacity:	5L 10L 20L 30L 50L;
Place of Origin:	Shanghai China;	Automatic Grade:	Semi-automatic;
Type:	Glass Vessel Process Reactors;	Stirrer Rod:	PTFE Stirrer;
Warranty of core components:	1 Year;	Condition:	New;
Feeding Funnel:	1 to 20 liter;	Condenser:	Dual-Coil Condenser;
Dimension(LWH):	5605602100;

Product Description

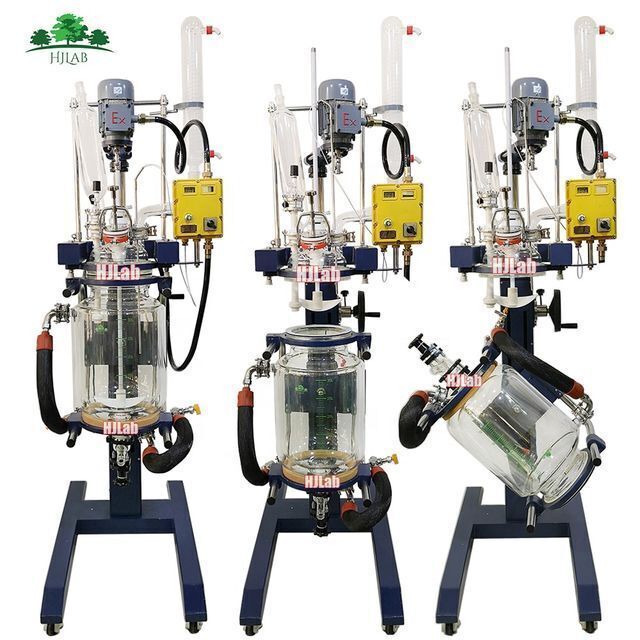

HJLab fully customizable Jacketed Glass Reactor

with Lifting and Rotation

HJLab single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

1) Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material. 2) Solvent-resistant PTFE on all sealing components ensures long time durability and operation. 3) All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant. 4) Adjustable stirring rate provides great torque or high speed. 5) Patented PTFE stirring rod bearing for reliable and quiet operation. 6) Optional multi-layer stirring blades for optimal reaction results. 7) Wide range of temperature operations, from -110°F to 400°F. 8) Large condenser cooling surface for exceptional condensation performance. 9) Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. 10) Easily visual operation with digital speed and temperature displays. 11) Heavy duty stainless steel supporting framework with lockable casters for mobility and stability.

Specifications

Item	Details	HJ-S-20L	HJ-S-30L	HJ-S-50L
Model	HJ-5/10/20/30/50-Pro		250W
Glass Materials	High Borosilicate Glass 3.3	20L	50L	100L
Wetted Parts	Glass and PTFE	6L	16L	30L
Reaction Vessel	5L, 10, 20L, 30L, 50L (can be with lifting and rotation) 100, 150L, 200L (without lifting and rotation) Options: 1) Ring Baffles within the Thermal Jacket for excellent heat transferring 2) Raised Baffles within the Internal Reaction Vessel for improving the mixing performance
Stirring Motor	DC Brushless Motor: 50W, 100W, 150W AC Induction Motor: 120W, 250W, 400W, 550W, 750W, 1500W Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W Stirring Range: 20 ~ 600 RPM Controller: Variable Frequency Drive for AC motor and Explosion-Proof Motor Realtime Display: Stirring Speed, Materials Temperature inside of Reaction Vessel
Mixing Sealing	PTFE + Mechanical
Cooling Condenser	Cooling Coil Condenser		Φ120*640H mm
Dropping Feeding Funnel	Dropping Feeding Funnel with PTFE Metering Valve ad Equalizing Arm
Glass Lid	Dimension Options: 1) DN265 2) DN340 3) DN400 7 openings: 1) Solid Materials Feeding 2) Stirrer 3) Cleaning or Liquid Feeding(under negative-pressure) 4) Temperature Sensor 5) Condenser Reflux 6) Dropping Feeding Funnel 7) Reserved (Pressure-Release \| PH online measurement \| etc..)
Stirring Impeller	1) PTFE Anchor Type 2) PTFE Pitched Paddle Type 3) PTFE Retreat Curve Type 4) more...
Operating Temperature	-90°C to +200°C
ΔT - Thermal Shock Resistance	90℃ (Double Wall), 60℃ (Triple Wall)
Operating Pressure	Full Vacuum to Atmospheric Pressure
Operating Jacket Pressure	Up to +0.5 bar (0.05 MPa)
Functionality: √ Reaction - vacuum to atmospheric pressure √ Temperature monitor - via PT100 thermal probe √ Temperature regulation - via thermal jacket √ Reflux condensation and distillation √ In-stand distillate cooling and collection √ Pressure monitoring and relief √ Inert atmospheric reactions √ Easy vessel access for impeller change and cleaning (discharging for viscous material) √ Debris free agitation via HJLab stirrer seal √ dosing of solids and liquids

Optional

Our Service

Pre-Sales Services

1) Online video meeting to visit our factory
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User

Delivery Services

1) We can arrange the delivery to your specify location which saving your energy andexpensive time.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.

Inspection Service (Bureau Veritas)

1) Third-party for in-depth post-production product inspection

2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification

Payment Service

1) Visa, MasterCard, e-Checking
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)

After-Sales Service

1) 1 Year Warranty
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance

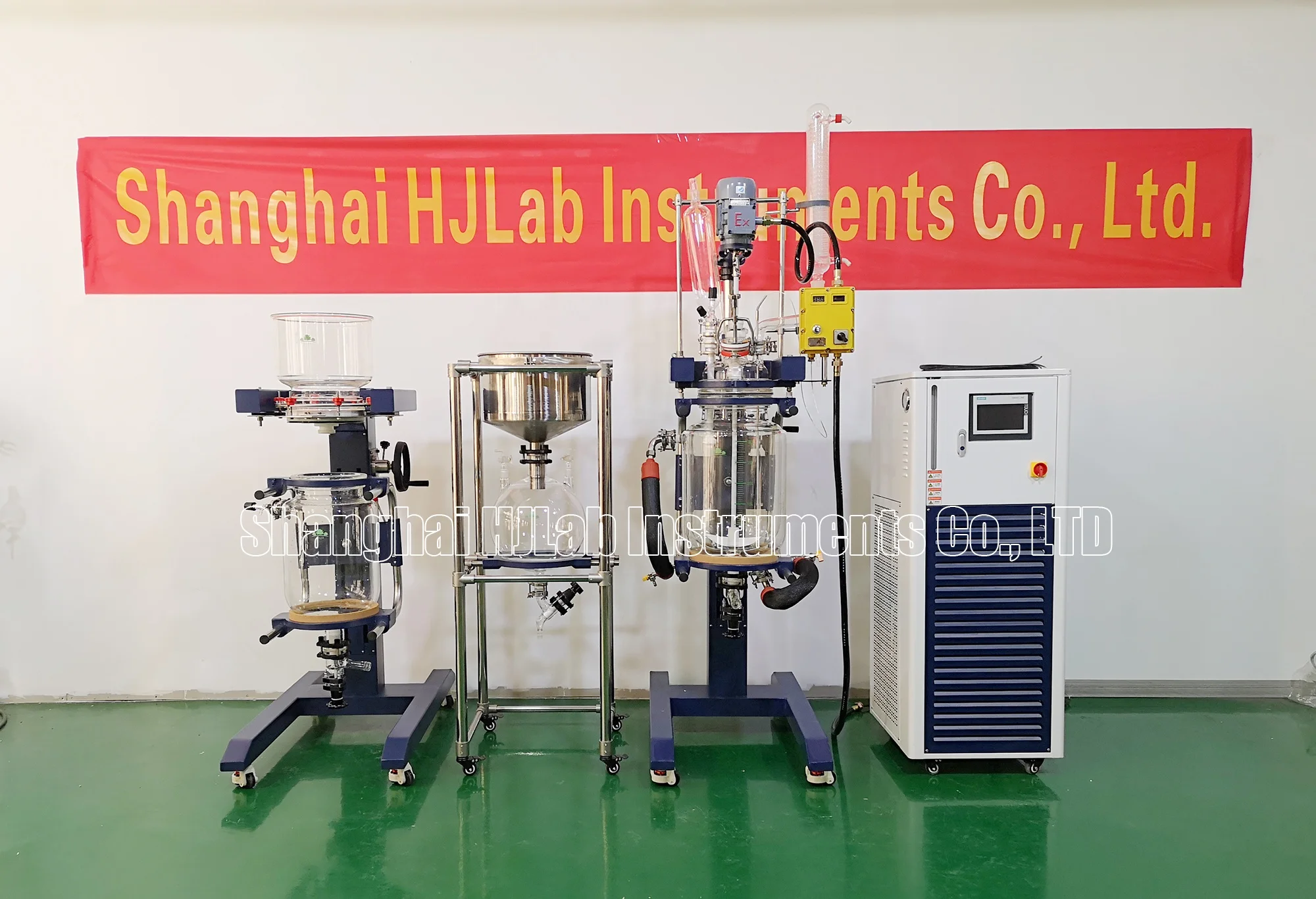

Our Company

Shanghai HJLab Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.

Main products are Rotary Evaporators, Glass Rectors, Falling Film Evaporator, Wiped Film Evaporator, Recirculating Chiller, Heating&Cooling CIrculator, Vacuum Pump and Controller.

With nearly 10 years development, HJLab accumulated rich customer groups and huge amount of application experiences; Brand has won wide market recognition on reliable technology, low repair rate, sincere service and strong customization ability.

We work during out of our regular working hours (9AM to 6PM Beijing Time).

"Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you.

So Please feel free to give us a call or drop us a message, and you will be our next story of success.

Tel:	+86-21-34662527
Mobile:	+86-135-2454-6911
Email:	sales@hujiayq.com evan.zhang@hujiayq.com alex.zhong@hujiayq.com
Skype:	sales@hujiayq.com
Wechat:	china-hjlab

Any Questions? Please click to contact us!
