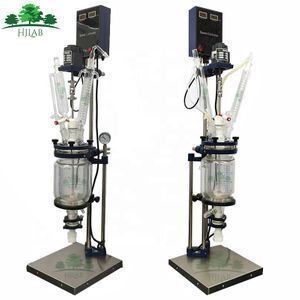

Laboratory 1L 2L 3L 5L Jacketed Glass Reactor with borosilicate glass 3.3
-
Supplier: Shanghai Hjlab Instruments Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Evan Zhang -
Price: $460.00 /set -
Min. Order: 1 set
| Sealing Material: | PTFE; | Brand Name: | Shanghai Hujia; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Glass Material: | Borosilicate Glass 3.3 (GG-17); | Supply Ability: | 500 Set/Sets per Month; |
| Voltage: | 220V/50HZ; | Rotating Speed (RPM): | 0 ~ 800 (customizable); |
| Port: | Shanghai/Guangzhou/Qingdao/Shenzhen; | Volume: | 1L 2L 3L 5L; |
| Power(W): | 90W; | Neck No. on Cap: | 5; |
| Certification: | CE ISO; | Type: | Reaction Kettle; |
| After-sales Service Provided: | Free spare parts,Video technical support,Online support; | Dimension(L*W*H): | 350*345*1000 mm; |
| Packaging Detail: | wooden case or according to your requirements for packing; | PTFE-Coated Stirrer: | Yes; |
| Warranty: | 1 Year; | Weight: | 32; |
| Working Temperature: | -80 to 250 °C; | Frame Material: | SUS 304; |
| Automatic Grade: | Semi-Automatic; | Universal Coupling: | Yes; |
| Place of Origin: | Shanghai China (Mainland); | Condition: | New; |
Laboratory JACKETED GLASS REACTOR 500 mL - 5 L
1. Jacket Glass Reactor with heating and cooling source circulating in jacket.
2. Jacket Glass Reactor is applied for heating and cooling synthesis reaction in vacuum tight condition.
3. Reflux, distillation under vacuum, separation, rectification, crystallization are also available with related configuration.
4. Resist to thermal shock and chemicals, vacuum tight and no dead space define the quality of reactor.
5. A wide choice of volumes are available from 500mL to 5L.
Main Features
1) All glass ware made by high quality Borosilicate Glass 3.3, durable and stable for reaction.
2) PTFE sealing for high vacuum degree and PTFE-coated stirrer for anti-corrosive
3) Variable-Frequency stirring system
4) Digital display and control
5) Easy-to-install modular design
6) Durable supporting frame with SUS304
Durable Supporting Frame
The support frame is made of stainless steel 304, with outstanding corrosion resistance. Moreover, it's designed to protect the glass vessel against damages from careless operation.
High quality Boro glass 3.3
All the glassware is carefully crafted by borosilicate glass 3.3 for excellent chemical and physical performance.

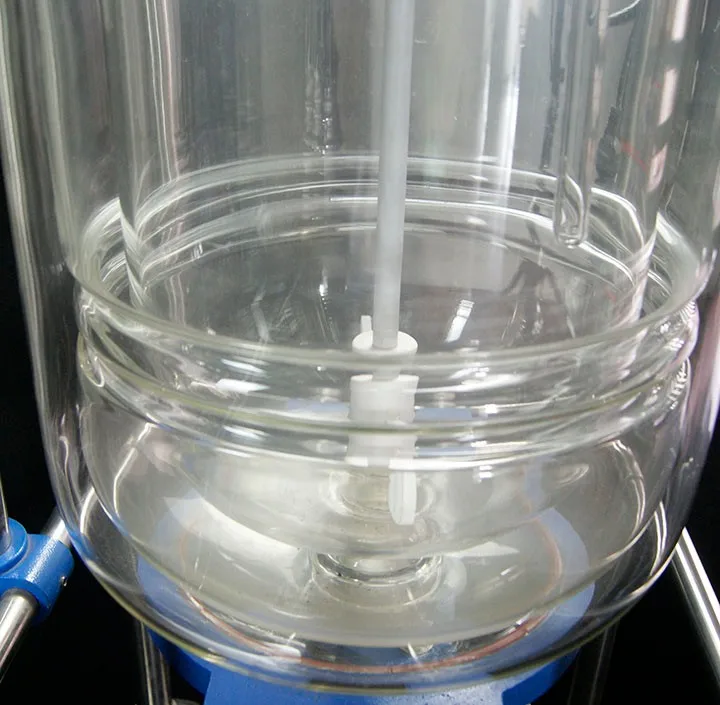

Left picture is double jacketed glass reaction vessel(Optional) which has three layers. The inner jacket is for circulating of fluid and the outer layer should be pumped to vacuum condition for temperature preservation,

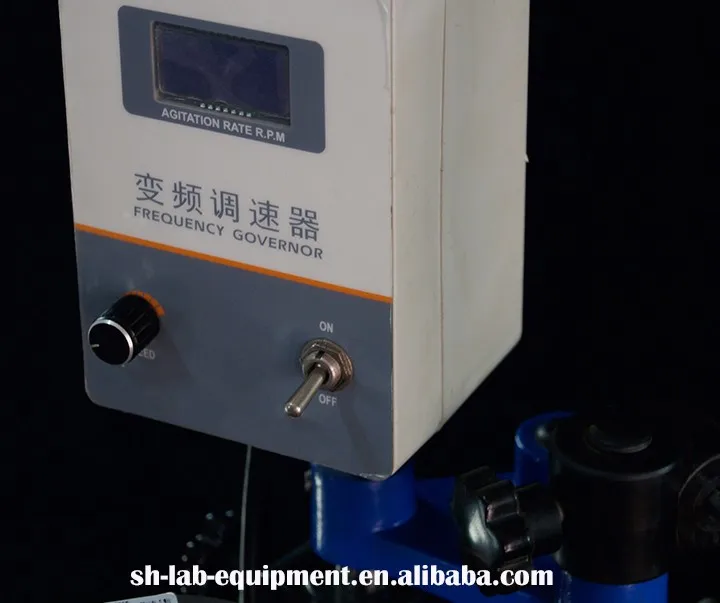

Frequency Governor
Adopting digital display speed frequency Governor;
Digital display mixing speed.

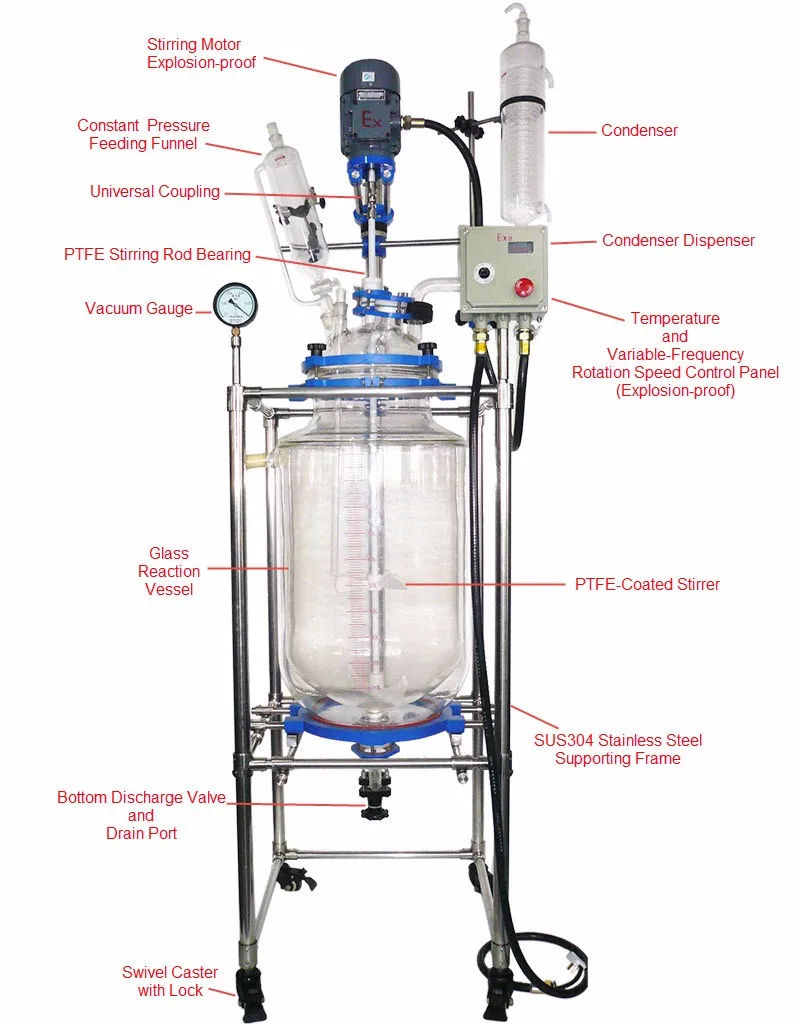

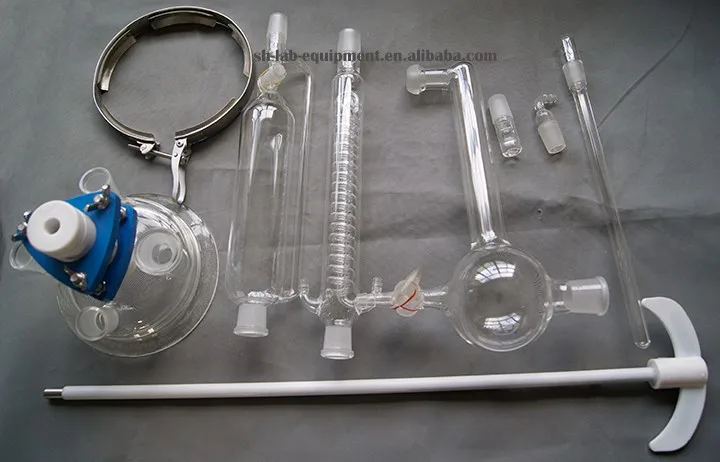

Glass Components for Reactor

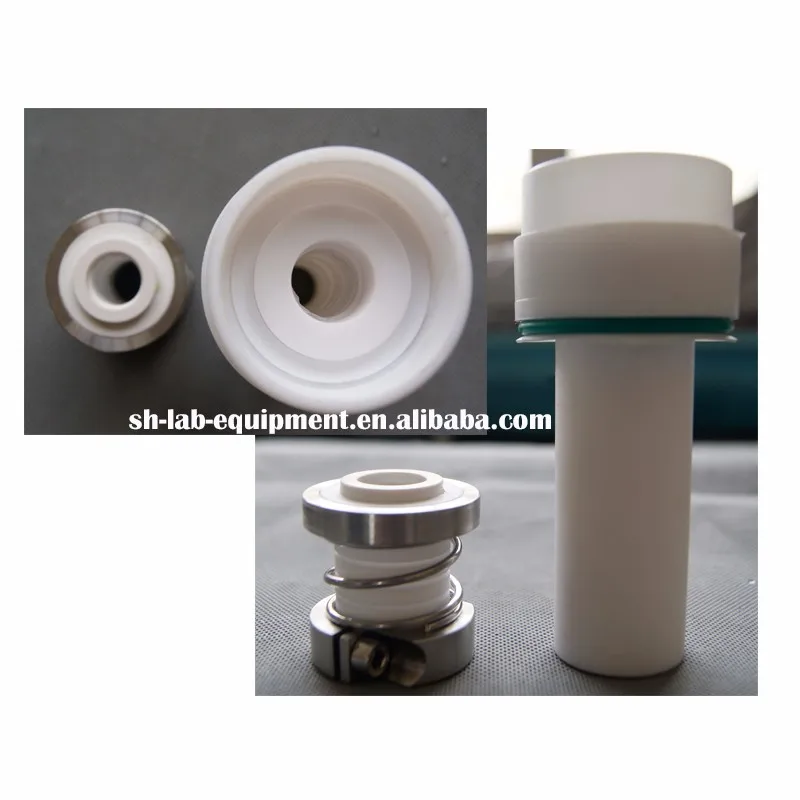

Seal Style
Default is composition seal of PTFE and mechanical
Ceramics seal is optional.

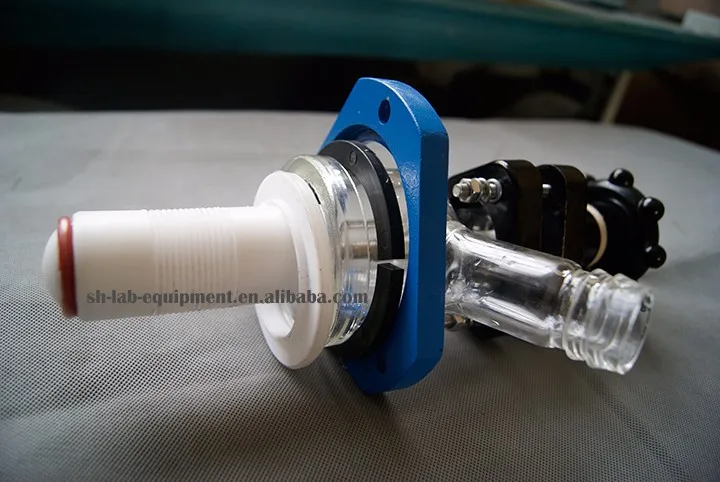

PTFE Bottom Side Discharge Valve and Drain Port
No dead angle & accumulation. Maximum drift diameter ranges from Ø20~32mm for pilot odels. Is able to decrease vessel crack risk from over-screw of discharge valve

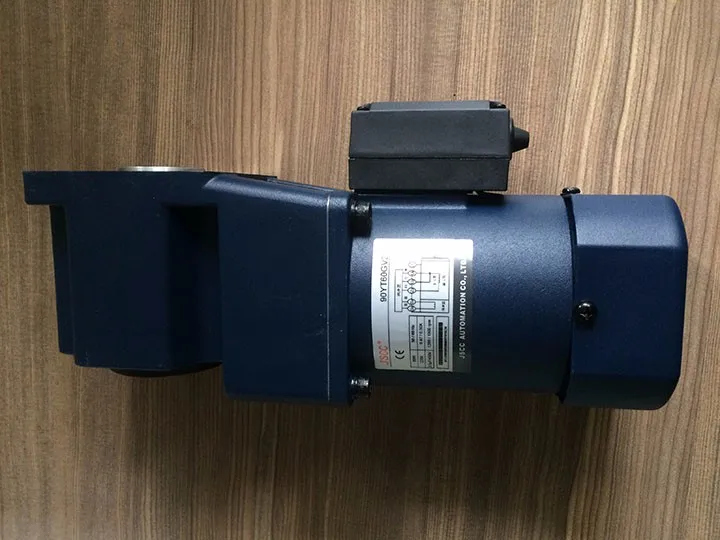

JSCC Motor
Driven by AC induction motor;
Speed machine show negative feedback electronic speed and frequency control;
Stable operation and the load not affect the rotation speed;
PTFE Lid is optional
PTFE Lid with lifespan more than 10 years
Vacuum tight up to < 2mbar
Excellent stirring stability

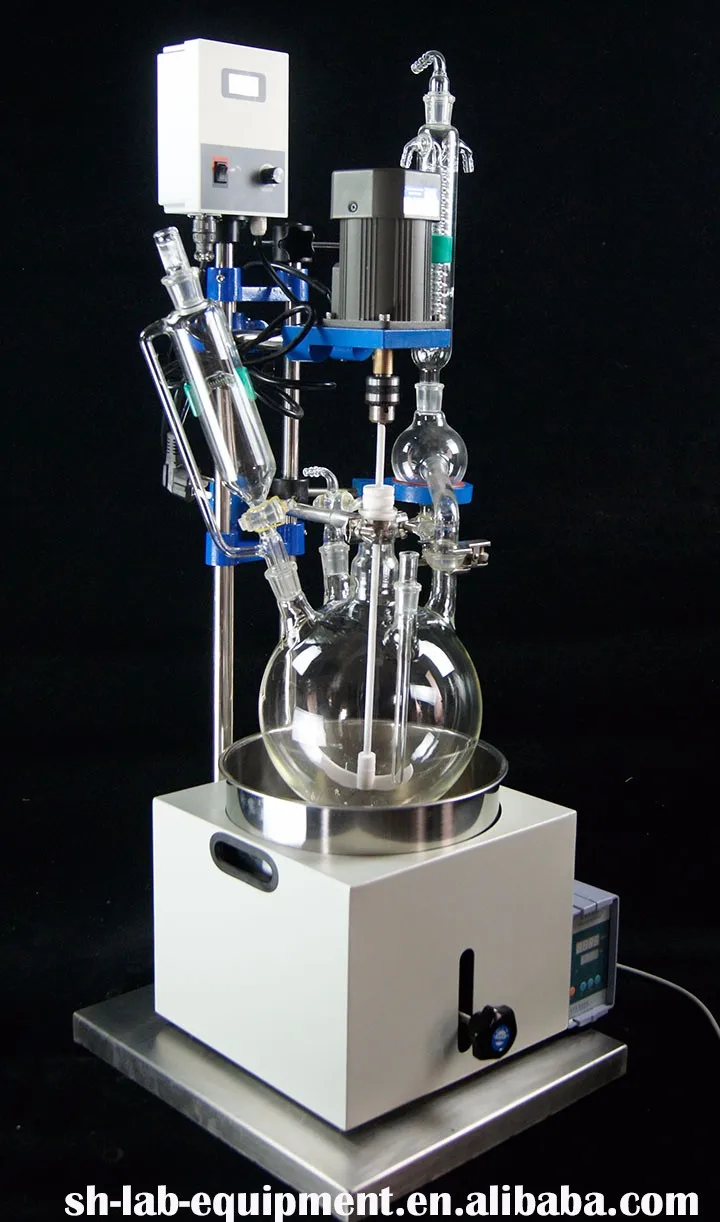

Multi-functional and Single-Layer Glass Reactor
Glass Reactor for Pilot Plant

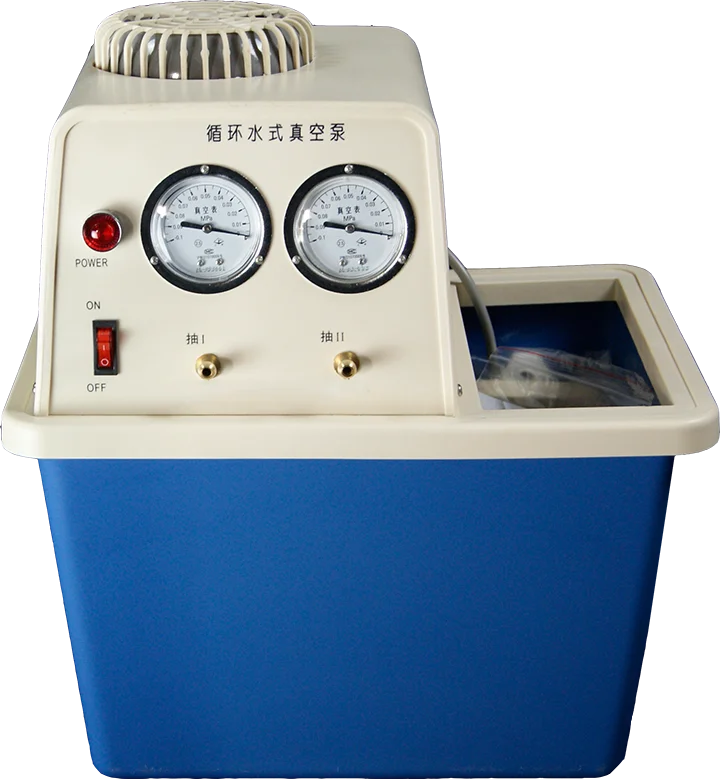

Laboratory Water Circulation Pump

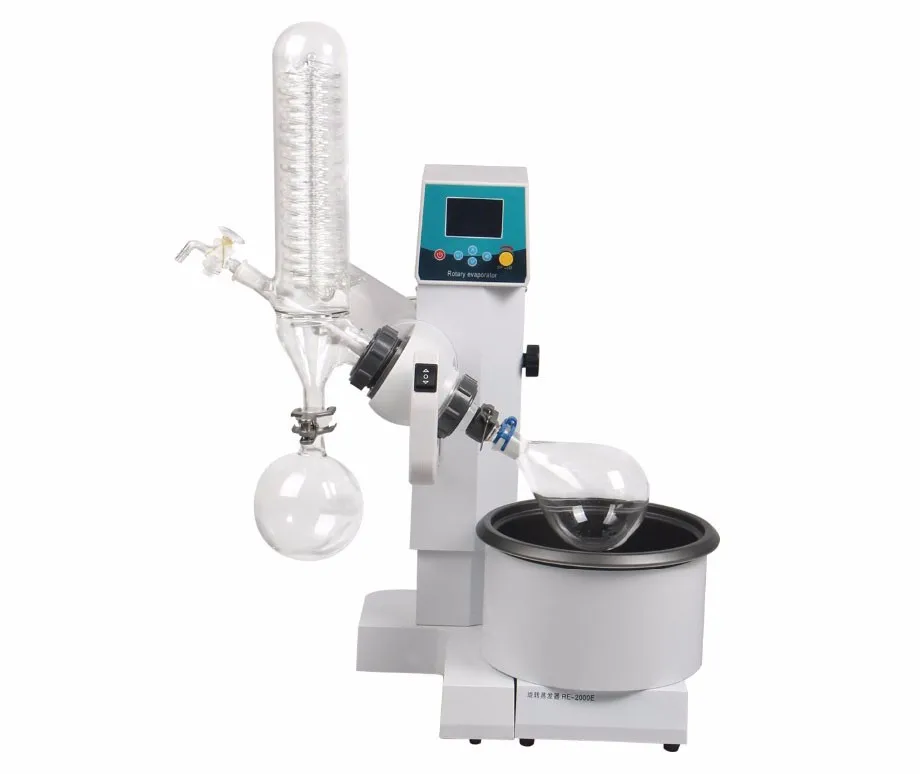

Laboratory Rotary Evaporators
Pre-Sales Service
* Inquiry and consulting support.
* Quick response with detailed reasonable quotation
* Confirm price, quantity, shipment, delivery time and payment terms.
* Sample testing support.
* View our Factory with video meeting.
After-Sales Service
* 1 year complimentary warranty
* Training how to install the machine, training how to use the machine.
* Free lifetime maintenance service and 24-hours technical support
* Engineers available to service machinery overseas.
1. Wooden packing
2. Fumigation certification, certification of original
3. The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
4. Also you can specify your own forwarder.
HUJIA Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.
Main products are Rotary Evaporators, Glass Rectors and complementary Vacuum Pumps, Heating/Cooling Circulators, etc.
With nearly 10 years development, HUJIA accumulated rich customer groups and huge amount of application experiences; Brand has won wide market recognition on reliable technology, low repair rate, sincere service and strong customization ability.
We work during out of our regular working hours (9AM to 6PM Beijing Time).
"Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you.
So Please feel free to give us a call or drop us a message, and you will be our next story of success.
