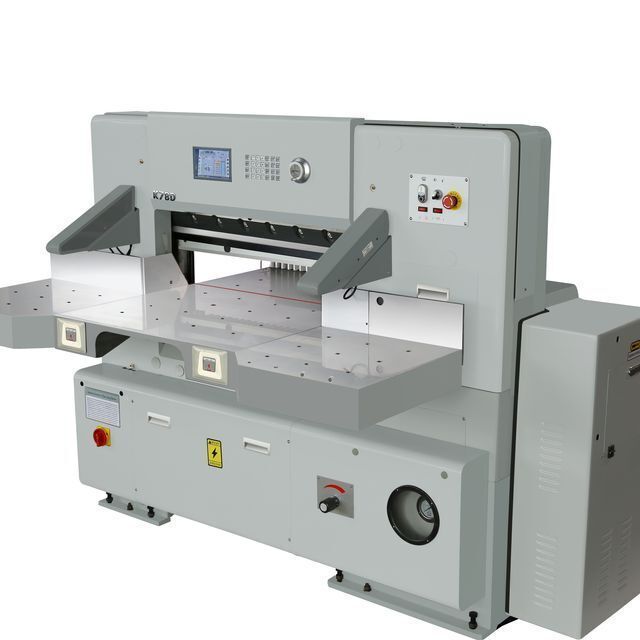

QZYK920DH-10 PAPER CUTTING MACHINE

Product details
Marketing Type:Hot Product 2019;Certification:CE ,ISO;
Supply Ability:100 Sets per Month;Core Components:Gear,Gearbox,PLC;
Port:NINGBO OR SHANGHAI;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Video outgoing-inspection:Provided;PLC Brand:Schneider,Omron;
Brand Name:WEIPENG;Production Capacity:45cycles/min;
Condition:New;Package Preview:;
Applicable Industries:Manufacturing Plant,Printing Shops,Advertising Company;Packaging Detail:PLYWooden Packages;
Place of Origin:Zhejiang, China;Local Service Location:None;
Warranty of core components:1 Year;Warranty:1 Year;
Type:Paper Cutting Machine;Dimension(L*W*H):213*217*100;
Weight:2600 kg;Payment Terms:L/C,Western Union,T/T;
Machinery Test Report:Not Available;After-sales Service Provided:Engineers available to service machinery overseas,Free spare parts,Video technical support,Field installation, commissioning and training,Online support;
Key Selling Points:High Productivity;Voltage:380;
Computerized:YES;Max. workable width:920mm;
Showroom Location:None;



Product Description



1. Usage:Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

2.  Touch Screen computer: it adopts 10 inch touch screen color liquid crystal touch screen. It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation.

3. Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.(780 model is single hydraulic )

4. Double Guide Device: the paper pusher adopts double imported linear guide and Grinding T shape screw.,which can prolong the machine more precise.

5. Photo cell: it is equipped with a photo cell safety protection device.

6. Over load protection device; convenient knife changing device.

7. Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

8. Cutting controller: both of the user’s hands operate the machine. It can cut paper in one time.

9.Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.

10. Safety notice & Glass covers: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.(optional)

11. Main electric device are imported from Germany, French, Japan, etc. ( optional)

Technical Parameter/ Model

1300

1150

920

780

Max cutting width(cm)

130

115

92

78

Max cutting length (cm)

135

116

100

78

Max cutting height (cm)

16.5

16.5

13

12

Max clamping pressure(N)

40000

40000

30000

30000

Cutting speed (cycles/min)

45

45

45

45

Cutting motor power (kw)

4

4

3

3

Net weight

4300

4000

2600

1800

Outline dimension (LXWXH)(cm)

280X282X171

267X239X165

217X216X151

183X195X151

Packing dimension(LXWXH)(cm)

287x157x200

260x157x200

224x137x185

215X137X185





 Computer function

1.  Semi-automatic and Automatic operation

2.  Manual operation

3.  Demonstration

4.  Automatic precise position

5.  Manual position

6.  Paper sender moves forwards and back wards

7.  Paper sender automatically accelerant or decelerate

8.  Compulsory new direction

9.  Mandatory reposition

10. Mandatory stop cutting

11. air pump works

12. Manual air blow control

13. Automatic seek origin

14. Automatically clear the origin erro

15. Personalized programming mode

16. Division

17. Isometry

18. insert cutting manual

19. Program browse

20. two language system

21. Units change(change between mm and inch)

22. Skip cutting

23. Micro adjustment

24. Self-diagnose malfunction

25. Operator can set password for starting the machine.

26.. Count cutting datum

27.  Amend paper shift

28.  Sequence label

29. It can save 50 program files

30.  each of them can save 99cuttings’ datum.

31. The storage time can reach 300,000 hours

32. Adjust the paper-sending speed

33.  Saftey warning





Spare parts



No.

Description of goods

Quantity

Note

1

Knife

1 pc



2

Seal ring

1 set



3

Bakelite

20pcs



4

air pearl on panel

20pcs



5

Screw used to load knife

2set



6

Relay

2pcs



7

Travel switch

8167

1 set







1008









1004









3004





8

Safety screw

8 pcs



9

Board button

1 set



10

Cut button

1 set



11

Tool box

1 set





 B.        Packing



Plywood case

C.        Delivery



After receiving deposit the machine will be delivery within 25 days .

D.        Payment



T/T 30% AS DEPOSIT,  T/T 70% BEFORE SHIPMENT .



Or T/T 30% AS DEPOSIT . The balance by L/C at sight .

E.         Guarantee



Seller provides 12 month guarantee period , If the machine have breakdown during this period , the seller will provide technical support , if buyer need seller to send engineer . The buyer pays all the expenses including the round air ticket, accommodation and the application of visa during the repairing period. During this period, if the parts appear damaged , Seller will provides the breakdown parts , But the freight charge for the breakdown parts should be paid by the buyer’s side.



F.Installation and debugging



Please refer to the installation CD and manual

Packaging & Shipping
+

Payment

T/T 30% AS DEPOSIT,  T/T 70% BEFORE SHIPMENT

Delivery

30 DAYS

GUARANTEE

ONE YEAR

Origin

MADE IN CHINA

Shipment Port

NINGBO PORT, CHINA

Packaging

WOODEN PACKAGE

Seller Bank

Details

Receiving U.S.Dollars at Bank of China,Ruian  SUB-Branch

BANK:BANK OF CHINA,RUIAN SUB-BRANCH

ADD: NO.271 HONG QIAO NAN STREET RUIAN ZHEJIANG PROVINCE P.R.CHINA

BENEFICIARY: RUIAN DAPENG PRINTING MACHINERY FACTORY

ADD:NO.15, SHANGXING EAST ROAD.SHANGWANG TOWN XUEHOU INDUSTRIAL AREA, RUIAN CITY, ZHEJIANG PROVINCE ,325206,CHINA

A/C:354558888582(USD)

SWIFT:BKCHCNBJ92B



Our Services

 Seller provides 12 month guarantee period , If the machine have breakdown during this period , the seller will provide technical support , if buyer need seller to send engineer . The buyer pays all the expenses including the round air ticket, accommodation and the application of visa during the repairing period. During this period, if the parts appear damaged , Seller will provides the breakdown parts , But the freight charge for the breakdown parts should be paid by the buyer’s side.

And we also support online support and video teach support
