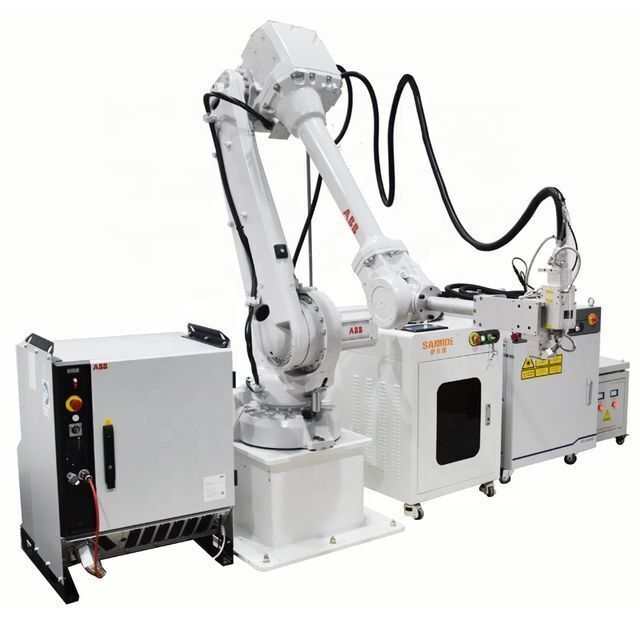

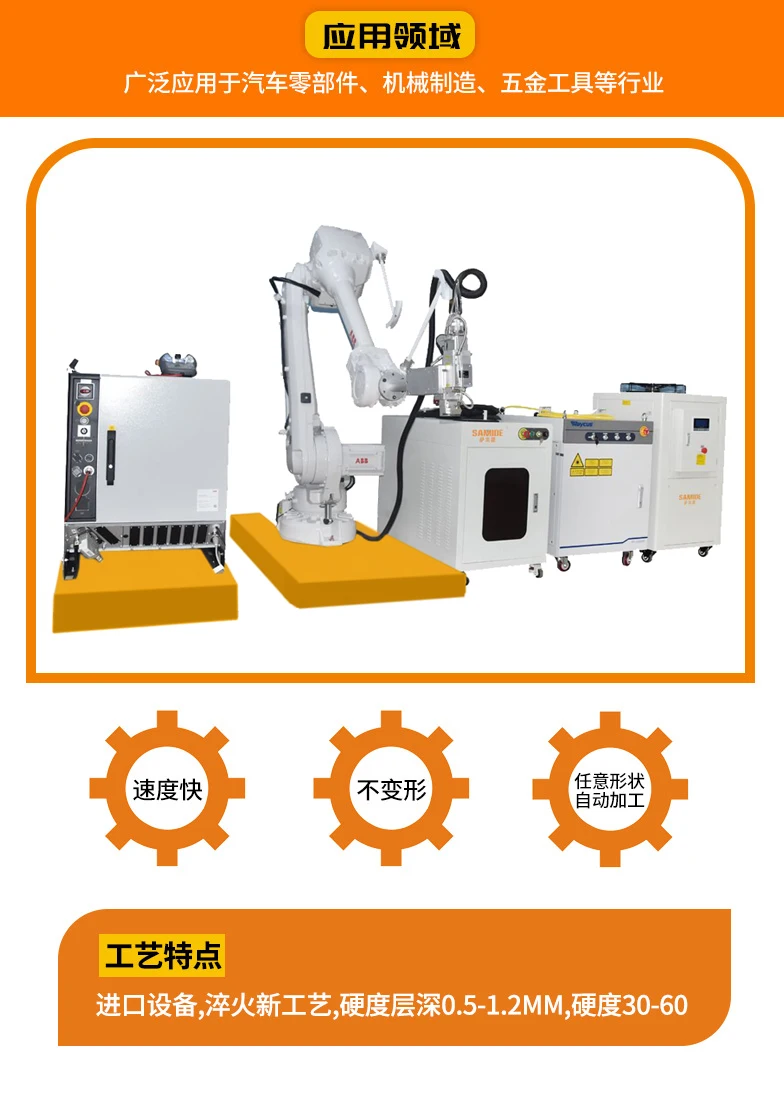

China laser hardening/quenching machine for mold steel surface hardening used for heat treatment industry

Supplier: Dongguan Sanhe Laser Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Debby Cui
Price: $4600.00 / 1 - 9 sets
$3000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Machinery Test Report:	Provided;	Marketing Type:	New Product 2021;
fiber core:	600um;	Key Selling Points:	High Safety Level;
Warranty of core components:	1 Year;	After-sales Service Provided:	Field maintenance and repair service;
Laser Type:	SEMICONDUCTOR;	Laser Head Brand:	Lasermech;
Place of Origin:	Guangdong, China;	Condition:	New;
Packaging Detail:	plywood;	Gas:	air;
Applicable Material:	Metal;	Weight (KG):	1000 KG;
laser width:	1.5/2.0mm;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Control system:	ABB;	Local Service Location:	Egypt,Canada,United Kingdom,United States,France,Viet Nam,Argentina,German;
Robot:	ABB/FANUC;	Guiderail Brand:	Rexroth;
Brand Name:	Samide;	Application:	Laser Heat Treatment;
laser power:	2000/3000/6000/8000;	Laser Source Brand:	IPG;
Robot arm:	2M;	chiller:	water chiller;
Video outgoing-inspection:	Provided;	Voltage:	380V;
Single gross weight:	650.000 KG;	Applicable Industries:	Other,heat treatment industry;
Single package size:	100X100X165 cm;	Showroom Location:	United States,Viet Nam,Philippines,Indonesia;
Fiber length:	20m;	Control System Brand:	FANUC;
Selling Units:	Single item;	Certification:	ce,ISO;
Cooling Mode:	WATER COOLING;	Core Components:	Engine,Gearbox,Motor,Pressure vessel;
laser source:	IPG/RACUYS;	Warranty:	1 Year;
Package Preview:	;

Product Description

Model	RFL-A3000D
Optical Parameters
Nominal Output Power (W)	3000
Operation Modes	CW/Modulated
Polarization Orientation	Random
Output Power Tunability(%)	10~100
Emission Wavelength(nm)	915±10
Output Power Instability(%)	<3
Modulation Frequency(Hz)	50~5k
Pilot Light Power(mW)	0.25~1
Output Cables Parameters
Output Header Type	QBH
Fiber Core Diameter(μm)	600
Minimum Bending Diameters	≥400
Half Angle of beam divergence(rad)	≤0.22
Delivery Cable Length(m)	20(Customizable)
Electrical Parameter
Power Supply	AC 380V±38, 50/60Hz, TN-S
Control Mode	Hyper Terminal/RS-232/AD
Other Parameters
Dimensions(W×H×D)(mm)	650×950×980
Weight(kg)	<150
Operating Ambient Temperature (℃)	10~40
Humidity (%)	<70
Storage Temperature (℃)	-10~60
Cooling Method	Water Cooling
Power consumption	22KW

The water temperature setting of cooling system:

a) summer(Ambient temperature is higher than 30℃)25±0.5℃.

b) winter(Ambient humidity temperature is lower than 30℃)22±0.5℃.

Coolant requirements:

a) The cooling water is pure water. It is recommended to use pure drinking water;

b) In order to prevent mould growing that may lead to pipe blockage, we recommend to

add alcohol about 10% of the total volume.

c) When the ambient temperature ranging between -10 ℃ and 0 ℃ , user need to add

alcohol about 30% of the total volume, change alcohol every two years.

d) When the ambient temperature below -10℃, user must use dual-cooling water chiller,

and ensure continuity of work.

Other requirements for chiller:

a) When starting the cooling system for the first time, check the entire water system and

the joint for water leakage. The external water pipe must be installed and connected

according to the inlet (IN) and outlet (OUT) by the laser. Otherwise, the laser may not

work properly.

b) If you will not use the laser for a long time, water must be emptied from the product,

and then both the inlet and outlet must be blocked with the nuts we provide. Failure to

do so may lead to permanent equipment damage.

c) When the customer is empting the cooling water of the laser water-cooling system,

please use compressed gas with pressure less than 0.5mpa, otherwise it will cause

irrepairable damage to the chiller.

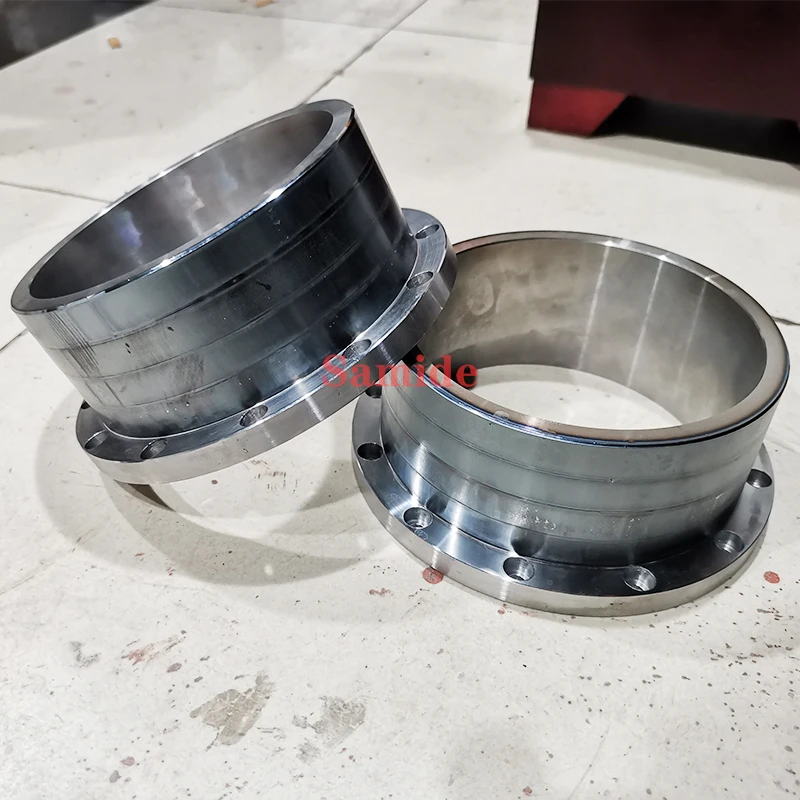

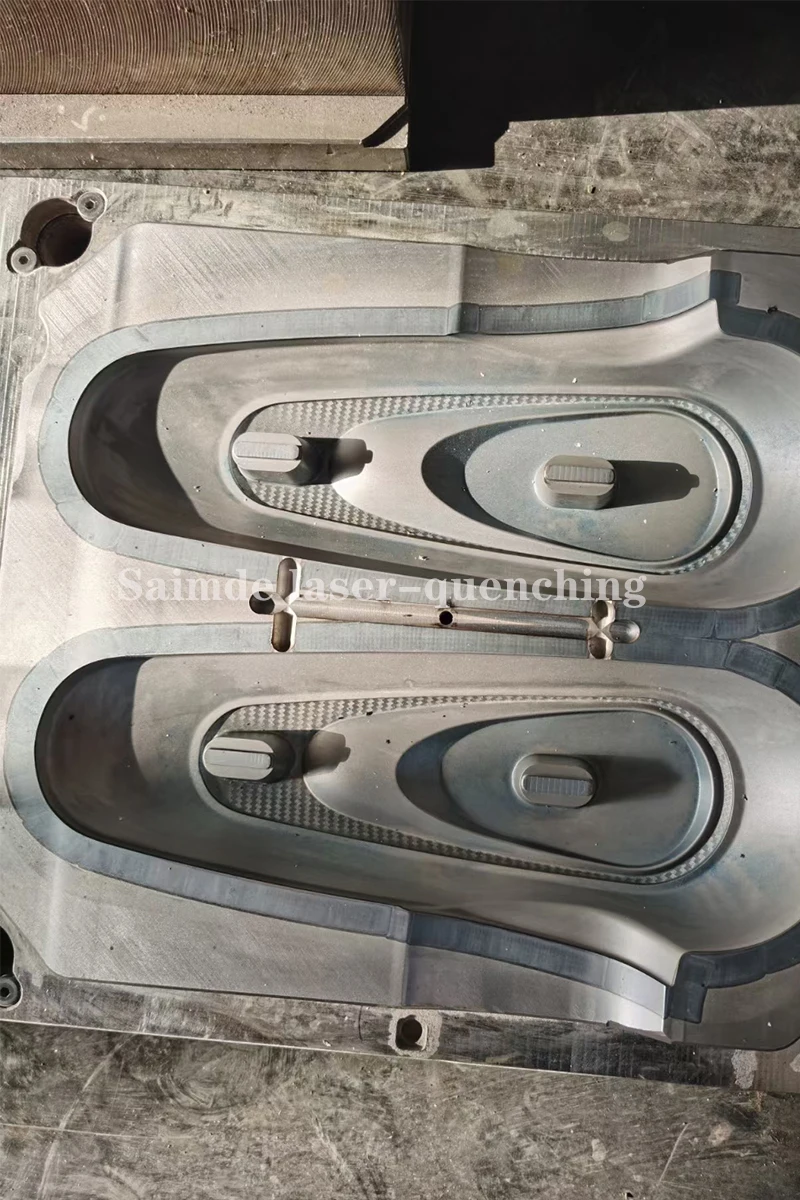

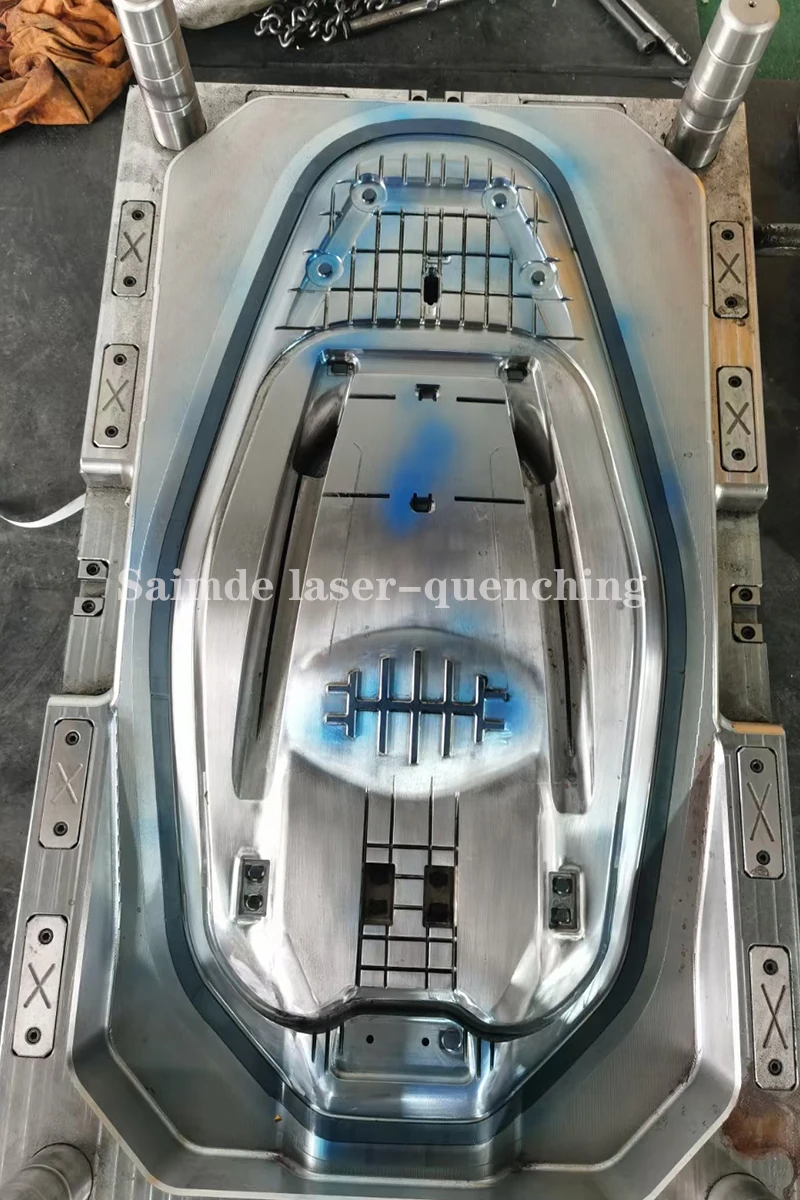

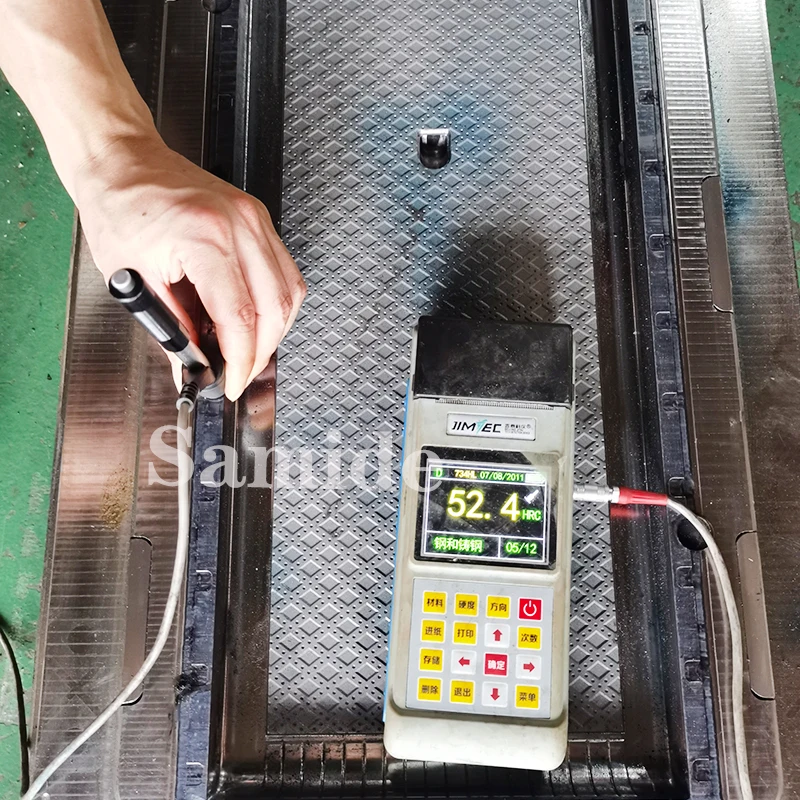

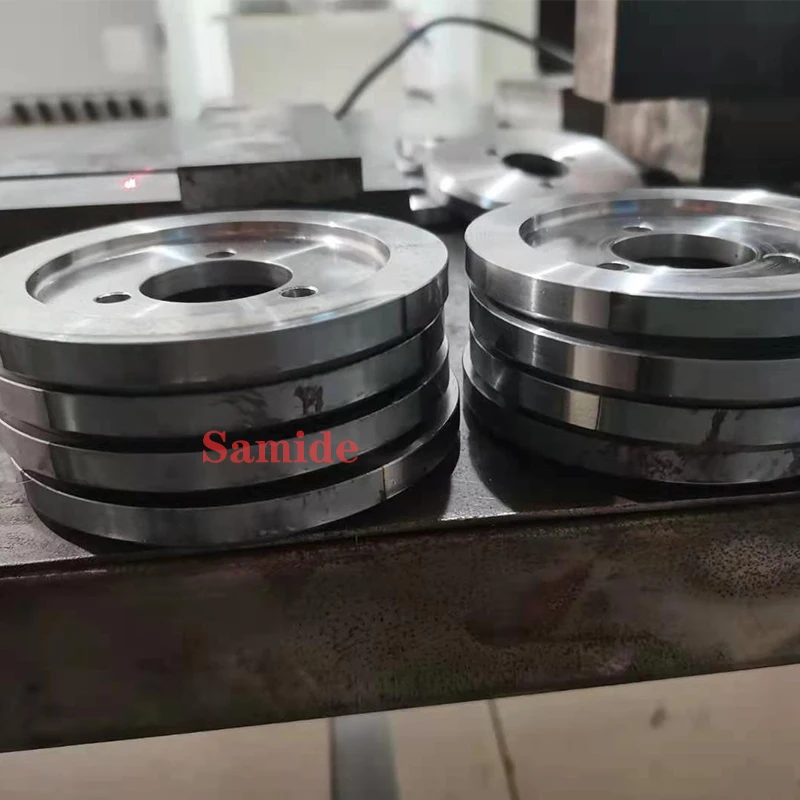

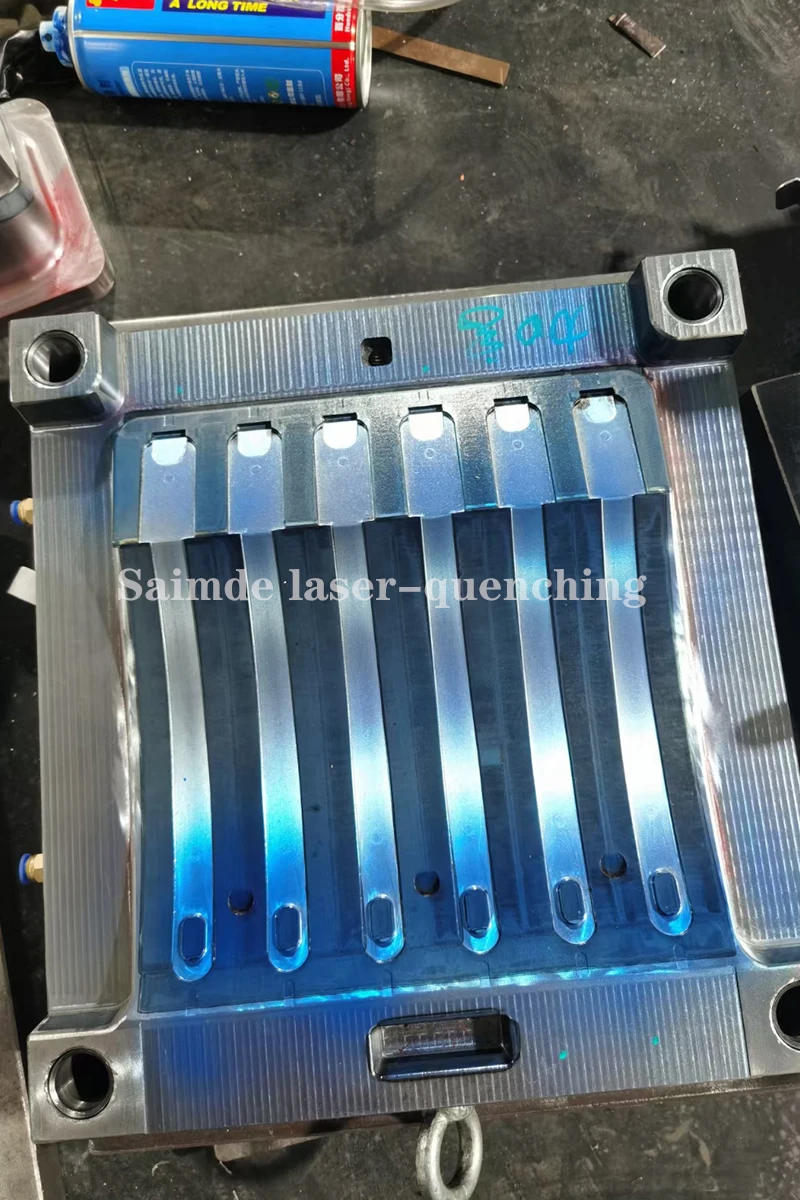

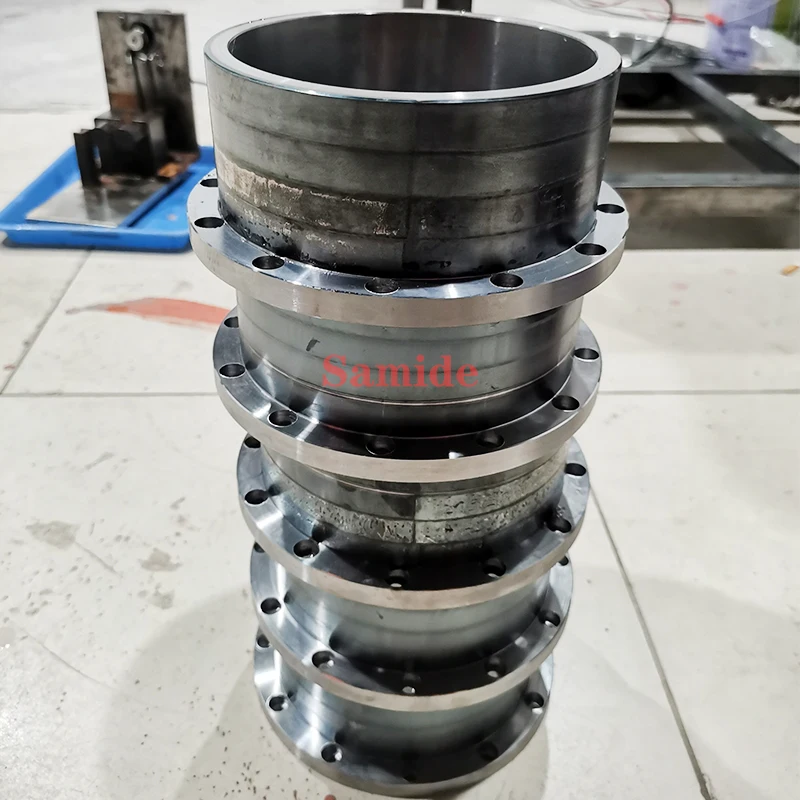

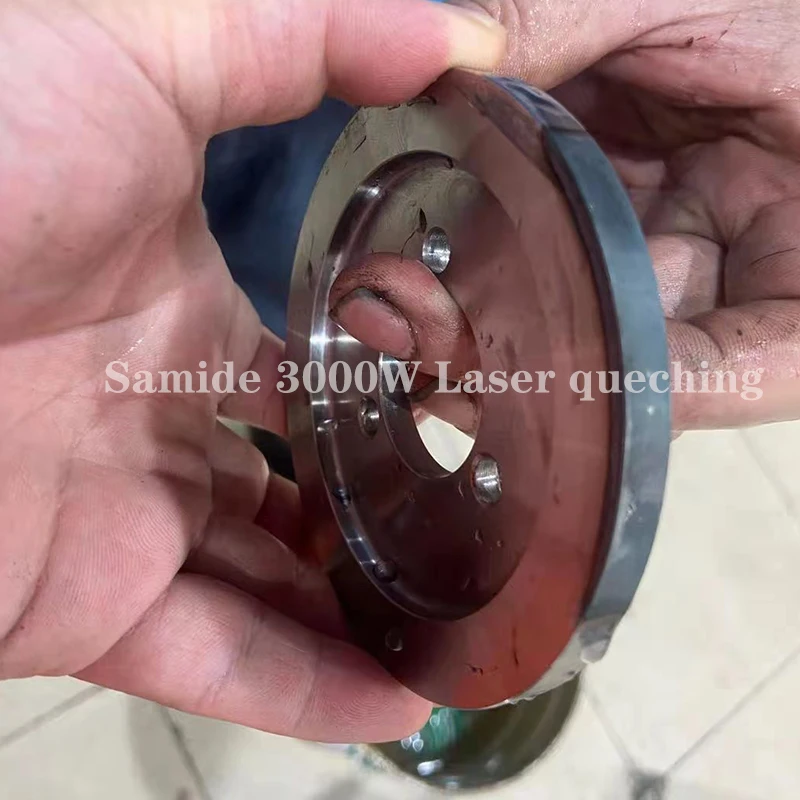

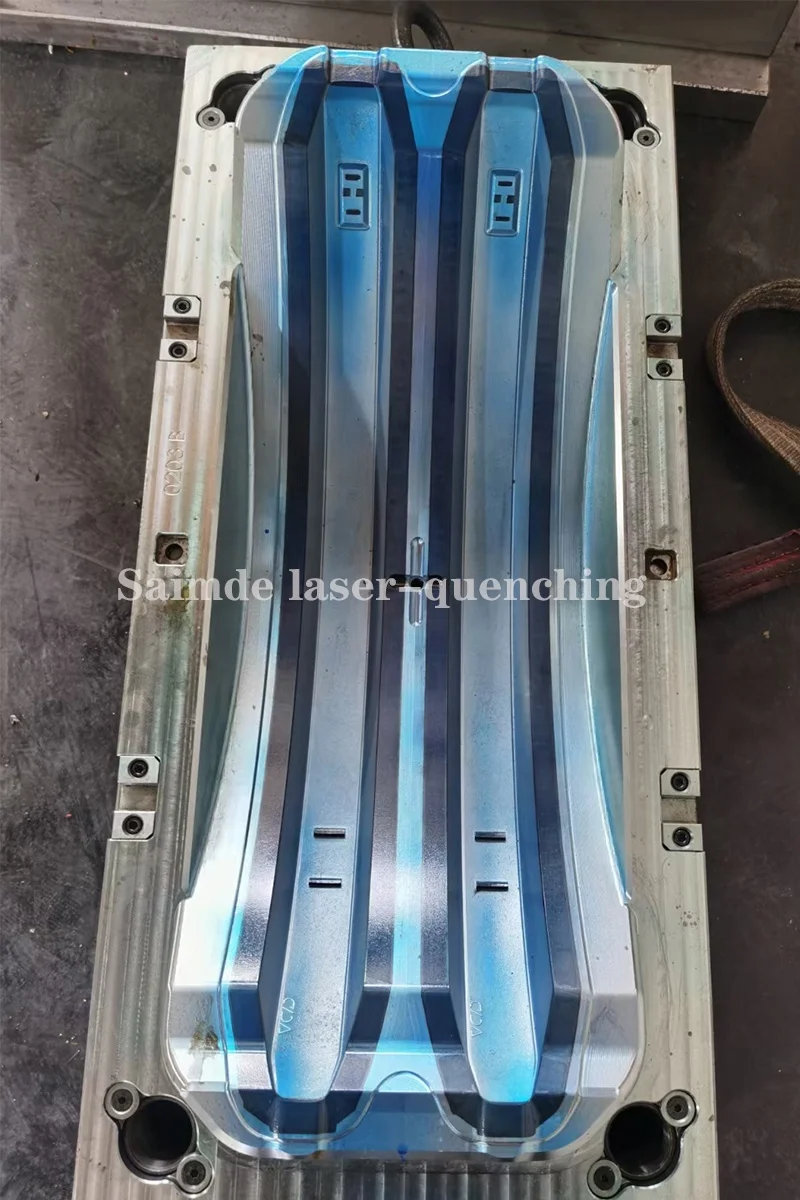

Samples show

Packaging & Shipping

Our Services

1) Free Pre-Sales Consulting / Free Sample Marking

2) Strict Quality Control of Production
3) 5-7 Days Quick Delivery
4) 1 Year Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
6) Quick Back-up Parts Available & Technical Assistance
7) Free Training Service
8) Special Designing, Customized, OEM Order is accepted
