Laser Edge Tightening Machine Pliers Edge Tightening Machine

Supplier: Sunrise Mechatronic Technology Co.,Ltd
Region: Jiangsu, China
Contact: Ms Sherry Qiao
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Smoke purification system:	standard
Multi-station four-axis system:	TS-Q_SYS-4-900	Marketing Type:	New Products 2022
Mechanical test report:	if	Core Components Warranty:	1 year
Laser Type:	fiber-optic laser	Weight (kg):	3000kg
place of origin; place of origin:	Jiangsu, China	Warranty:	1 year
Applicable industries:	Building material stores, manufacturing plants, mechanical repair shops, construction works	Fiber System:	fiber system
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Fixtures:	custom made
Main selling point:	Better hardening uniformity	application:	Laser heat treatment
Showroom location:	Turkey, Vietnam, India	Laser focus module:	TS-301P300
Video external inspection:	if	Laser source:	10-2000W
Laser alignment head:	TS-Q100	Freeze Dryer:	10HP, 1.5M3
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	cooling method:	water cooling
Laser source brand:	Rex	Applicable materials:	Metal
Chiller:	CWFL-2000

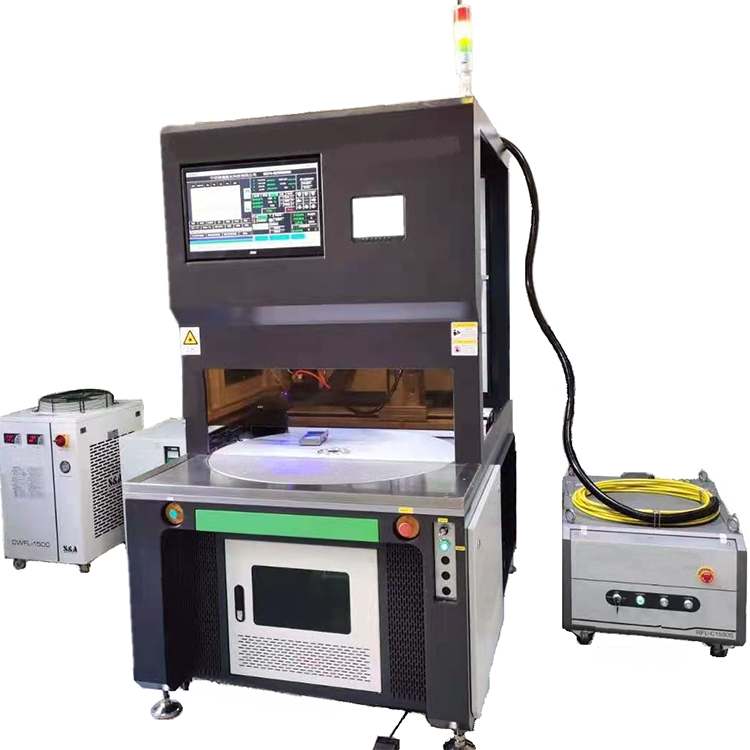

Product display

Laser quenching (also known as laser heat treatment) refers to the use of a high-energy laser beam as a heat source to form a high-energy beam through the transmission and focusing of the laser generated by the laser generator and external light, and the surface of the workpiece is rapidly heated to the phase transition zone and rapidly cooled, so as to achieve Heat treatment process on the surface of metal substrates. Compared with the traditional heat treatment method, it has the advantages of good controllability, strong directionality, high energy density, good hardness uniformity of the heat treatment layer, and high degree of automation.

1. Better hardening uniformityAs long as the laser can be irradiated, such as tooth tips, cutting edges, etc., the hardness is consistent2. No need to quench waterDue to the fast heating rate of the laser, hardening can be done immediately without the need for a cooling medium.3. No deformation, no oxidation and decarburizationThanks to the very precise laser beam, it only affects the hardened area and therefore does not deform. The heat-affected zone is small, no deformation, and almost no oxidative decarburization.3. Better hardening performanceAfter quenching, the hardness is uniform and the structure is fine, which is higher than that of conventional quenching (2-5HRC), the depth of the hardened layer is 0.2-1.5mm, and the wear resistance and service life can be increased by 3-5 times.4. No black hardened partQuenching has no black parts, and the shear performance is greatly improved.5. Save power consumptionThe power consumption is 7KW/h, which is very low compared with traditional induction heating.6. No need for skilled workersThis is an automatic CNC machine with a turntable, so the operator only needs to place the workpiece.7. A better work environmentThe shell of the machine is beautiful, no quenching water is needed, and it can be placed in a clean workshop.

Product parameters

thing	Specification.	describe	quantity.
laser	2000W	Laser power: 10~1500W continuously adjustable.	1 set
fiber optic system	600 microns	Core diameter 600m, length 15m	1 set
Laser alignment head	TS-Q100	Collimation focal length: 100mm, focusing focal length: 300mm	1 set
Laser Focusing Module	TS-301P300	Ensuring speckle effect and heat treatment consistency	1 set
chiller	CWFL-2000	Dual temperature control provides cooling water for laser and external optical path	1 set
Multi-station four-axis system	TS-Q_SYS-4-900	Professional laser numerical control system, equipped with industrial computer, realize XYZ movement, stroke X: 500mm, Y: 400mm, Z: 300mm (the specific stroke depends on the workpiece); Positioning accuracy: ≤±0.035mm Repeated positioning accuracy: ≤±0.01mm. A-axis and XYZ form a four-axis linkage	1 set
Smoke purification system	standard	Smoking and dust removal in the work area (to prevent pollution)	1 set
Refrigeration dryer	10HP, 1.5M3	Filter and dry compressed air	1 set
Fixture	custom made		1 set
