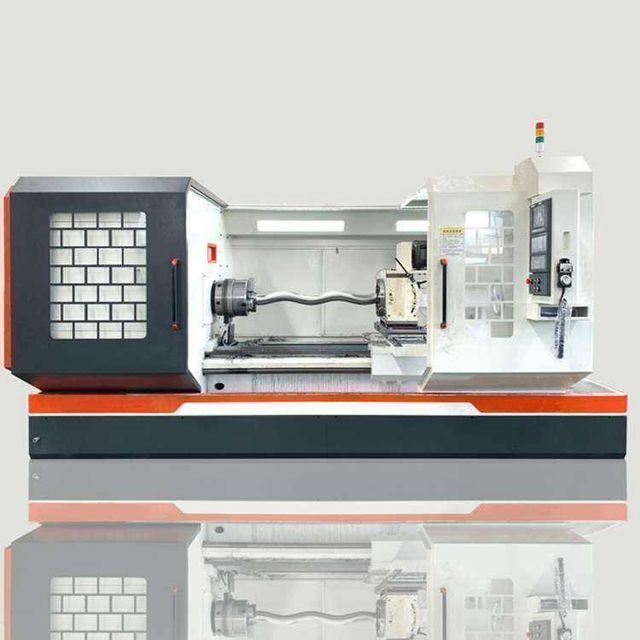

Factory wholesale whirlwind head power 4-3KW valve stem thread whirlwind milling machine
-
Supplier: Sunrise Mechatronic Technology Co.,Ltd -
Region: Jiangsu, China -
Contact: Ms Sherry Qiao -
Price: $40000.00 / 1 - 1 sets
$30000.00 / >=2 sets -
Min. Order: 1 set
Product details
| CNC or not: | CNC, yes | Type of machine: | CNC |
| Name: | CNC thread whirling milling machine | After-sales service provided: | engineer |
| Applied Materials: | steel | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump, others |
| Laser source brand: | other | payment terms: | wire transfer |
| application: | surface texture | Showroom location: | Turkey, UK, Germany, Vietnam, India |
| brand: | sunrise | Mechanical test report: | if |
| Weight (kg): | 3500 kg | Marketing Type: | Hot Products of 2021 |
| Main selling points: | high accuracy | product name: | CNC lathe threading machine |
| Warranty: | 12 months, 1 year | State of health: | new |
| Material: | metal parts | Applicable materials: | Metal |
| Video shipment inspection: | if | place of origin; place of origin: | Jiangsu, China |
| Applicable industries: | Building materials stores, manufacturing plants, machinery repair shops, construction, energy and mining | Core component warranty: | 1 year |
| Key words: | Screw pump rotor cyclone milling machine |
product display
thing | PH46-750 | PH50-1000 | PH50-2000 | |
Maximum processing length | 500mm | 750mm | 1750mm | |
Spindle speed | 0-1500 rpm | 0-1200 rpm | 0-1200 rpm | |
Chuck size | 200mm (8 ") | 250mm (10") | 250mm (10") | |
(can be optional) | (can be optional) | (can be optional) | ||
Indexing accuracy | 0.01° | 0.01° | 0.01° | |
positioning accuracy | 0.015mm | 0.015mm | 0.015mm | |
Repeatability | 0.01mm | 0.01mm | 0.01mm | |
Rotary head power | 4-3KW (110W2) | 4-4KW (150W2) | ||
turning speed | 1000-2000rpm | 500-1000rpm | ||
Helix Angle Range | ±10° | ±15° | ||
total power | 15 kW | 16 kW | 16 kW | |
machine weight | 2600 kg | 3000 kg | 3200 kg | |
Machine size | 2300x1700x2000 | 2700x1800x2000 | 3200x1800x2000 | |
PH80-1500 | PH80-2000 | PH80-3000 | PH80-4000 | |||
1250mm | 1750mm | 2700mm | 3700mm | |||
0-800 rpm | 0-800 rpm | 0-800 rpm | 0-800 rpm | |||
320 mm (12") | 320 mm (12") | 320 mm (12") | 320 mm (12") | |||
(can be optional) | (can be optional) | (can be optional) | (can be optional) | |||
o.o1° | 0.01° | 0.01° | 0.01° | |||
0.015mm | 0.015mm | 0.015mm | 0.015mm | |||
0.01mm | 0.01mm | 0.01mm | 0.01mm | |||
4-5.5KW (175W2) | 4-7.5KW (245W2) | 4-7.5KW (245W2) | ||||
400-700rpm | 300-500rpm | 300-500rpm | ||||
±15° | ±20° | |||||
20 kW | 22kw | 25 kW | 26 kW | |||
3800 kg | 4400 kg | 5000 kg | 5000 kg | |||
3700x2000x2200 | 4400x2000x2200 | 5200x2000x2200 | 5200x2000x2200 | |||
Remarks: The machine will be customized according to customer requirements | ||||||
