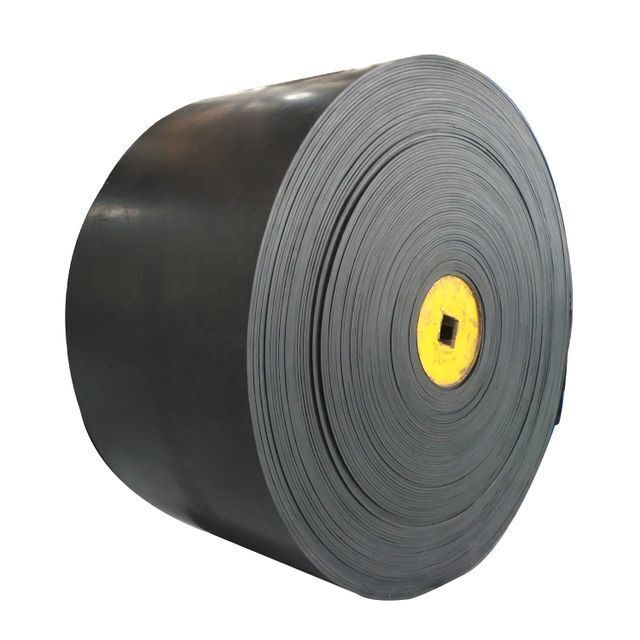

rubber conveyor sidewall belt

  • Supplier: Ningbo Sinoconve Belt Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Mr Jose Zhu
  • Price: $5.00 / 2 - 299 meters
    $4.50 / >=300 meters
  • Min. Order: 2 meters
Product details
Empty width(B3):35-210mm;After Warranty Service:Video technical support,Online support;
Marketing Type:New Product 2020;Cleat height(H1):35-360mm;
Condition:New;Structure:rubber belt;
Warranty:1 Year;Applicable Industries:Construction works ,Energy & Mining;
Application:Mining;Key Words:rubber conveyor sidewall belt;
Width or Diameter:300mm-2400mm;Machinery Test Report:Provided;
After-sales Service Provided:Online support;Cleat width(B2):120-830mm;
Package Preview:;Local Service Location:None;
Place of Origin:Zhejiang, China;Power:none;
Cleat type:t/ts/tc/tcs;Showroom Location:None;
Core Components:rubber conveyor belt;Port:Ningbo/Shanghai;
Material:Rubber;Packaging Detail:Corrugated Conveyor Belts is packed with customized steel iron shelf;
Payment Terms:L/C,Western Union,D/P,D/A,T/T;Bottom width of sidewall(B1):25-100mm;
Warranty of core components:1 Year;Product Name:rubber conveyor sidewall belt;
Video outgoing-inspection:Provided;Based belt width(B):300-1400mm;
Sidewall height(H):40-400mm;
Product Description

SINOCONVE conveyor belts are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.

Property

-- High strength

-- High resistant to abrasion

-- Low elongation

-- Resistant to impact

-- Suitable for long distance,large loading capacity and high speed transportation

Manufacturing standards

GB/T 7984

DIN 22102

JISK 6322

AS 1332-2000

SANS 1173:2005

BS 490

Specification
Cover Rubber grade
8MPA,10MPA,12MPA,15MPA
18MPA,20MPA,24MPA,26MPA
DIN-X,Y,W
RMA-1,RMA-2
N17,M24
Belt width (mm)
500,600.650,700,800,1000,1200
1400,1500,1800,2000,2200,2500
18",20",24",30",36",40",42"
48",60",72",78",86",94"
Tensile strength
EP315/3,EP400/3,EP500/3,EP600/3
EP400/4,EP500/4,EP600/4
EP500/5,EP1000/5,EP1250/5
EP600/6,EP1200/6
330PIW,  440PIW
Top+Bottom thickness
3+1.5,  4+2,  4+1.5,  4+3,  5+1.5,
3/16"+1/16",  1/4"+1/16"
Belt thickness
3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
Belt length
10m,20m,50m,100m,200m,250m,300m,500m
Belt edge type
 moulded(sealed) edge or cut edge
Quality control

Step 1: Raw material inspection

Rubber compound test

Moving die rheometer analyzes the characteristics of Rubber Compound

EP fabric test

Tensile strength test and elongation test when broken.

Step 2: Advance equipment to guarantee quality from the details

Calender process

4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.

Forming process

The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.

 Step 3:Finished belts inspection

We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.

Length and surface inspection


Thickness inspection


WIdth inspection


Step 4: Technical data test

We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.

Abrasion test


Adhesion strength test


Tensile strength test


Application
You may like

Conveyor belt fastener

140E,190E, 1.5" 2",2.5"

Conveyor belt vulcanizing machine

Suitable for belt width upto 2600mm

Chevron V conveyor belt

Closed V, Open V type

C5,C10,C15,C20,C25

Sidewall conveyor belt

EP400/3,EP500/4,EP630/3
Sidewall height: from 40mm to 400mm
Cleat height: from 35m to 350mm
MOQ:5m

High quality wrapped V belt

O,Z,M,A,B,C,D,E
SPZ,SPA,SPB,SPC,
3V,5V,8V,3L,4L,5L
MOQ: 50pcs

Raw edge cogged V belt

AX,BX,CX,XPZ,XPA,XPB,XPC
AX10X,AV13X,AV15X,AV17X,AV22X
3VX,5VX,8VX
MOQ:50pcs
Company Information
FAQ

Q1. Are you a manufactuer?

Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.

Q2. What about the lead time?

1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel

Q3. How to pay?

1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service

Q4. How about package?

1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
