High Precision 5D Car Wheel Alignment Machine With Multistation Movement And Manual Tracking

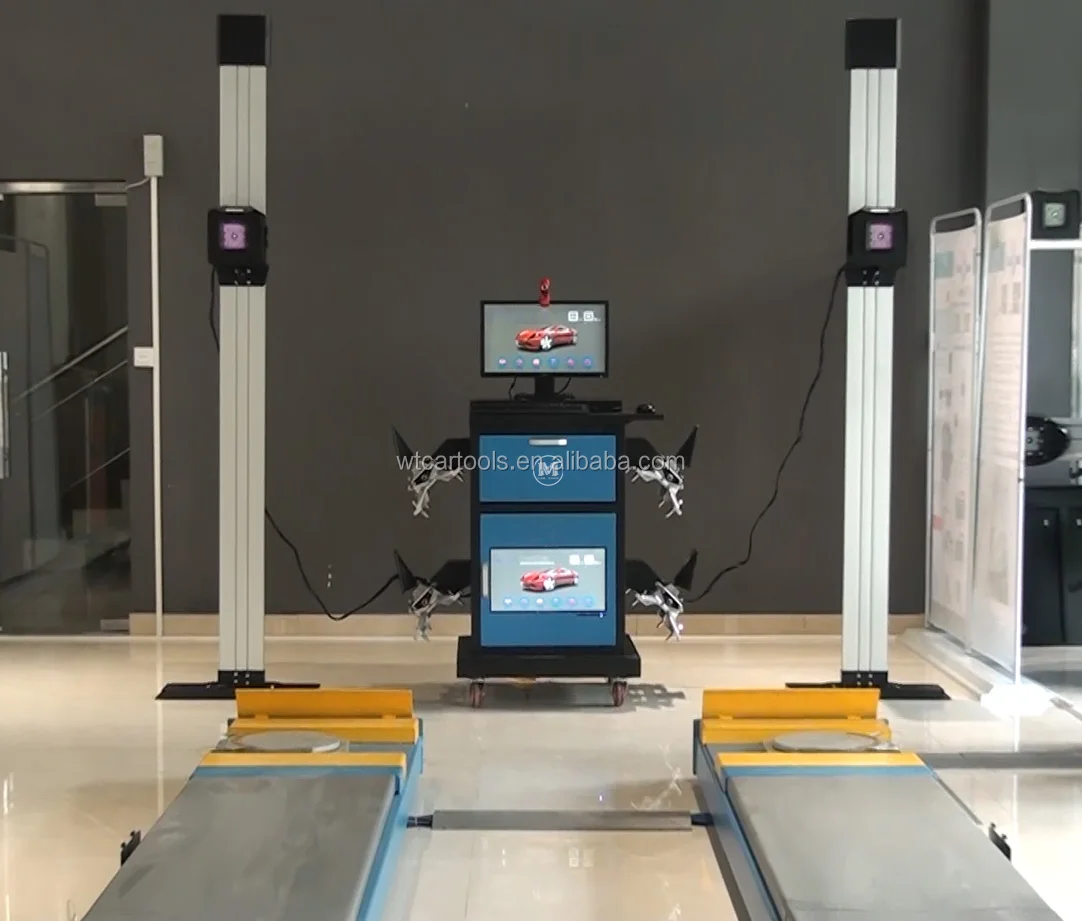

5D wheel aligner movable wheel alignment ,MODEL: 5D500

8. Secondary jack-up function, which can be used to more conveniently help technician adjust
Camber.
9. 3 units of 500MP cameras, it can flexibly adjust the width of two pillars according to different
place.
The third camera can be used to compensated the error caused by displacement, save the work of
calibration.

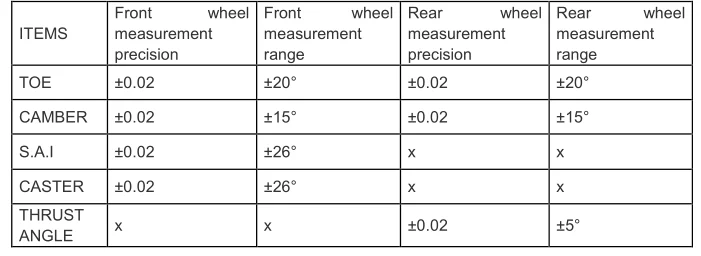

Technical parameters:

1. Movable , 3 high resolution cameras, 5 targets
2. Support Android system too
3. Space-saving type
Product feature:
1. Chinese Windows OS, operation process can be easily guided     by "Next step" instruction.
2. Exceed 20,000 database around the world and with a lifetime       update service.
3. Repeat measurement accuracy is ±0.03,which be a world's         leading level.
4. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle,     Setback angle, Max turning angle,Wheel tread, Wheel base,       Wheel rolling radius.
5. Android cell phone and laptop are supported to show the             vehicle measurement data, more convenient for operator.
6. Humanized software design, animation video can be used to       help technician more quickly complete the operation.
7. Ultra-low chassis and refit vehicle—Volks Wagen and Audi,         XLWB and with ESP function vehicle are also can be                   measured.

Standard configuration:
Options: The wheel alignment software could be installed in the Table PC with Android  system. Clients can long-distance operate the wheel alignment measurement through Bluetooth.
Parking assistant camera function: independent web camera can guide the vehicle pack in the specific location.
Apply high strength plastic target, which is lighter, thinner and stronger. Fast installation, suitable for all rims between 12”-23” . Double chuck, which can install both on iron and aluminum wheel hub. 5 million high definition camera: it can also assure accurate alignment measurement when target plates get smaller. Intelligent LED navigation system: the operator doesn’t need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation
