Electrical Panel Board Manufacturing Machine

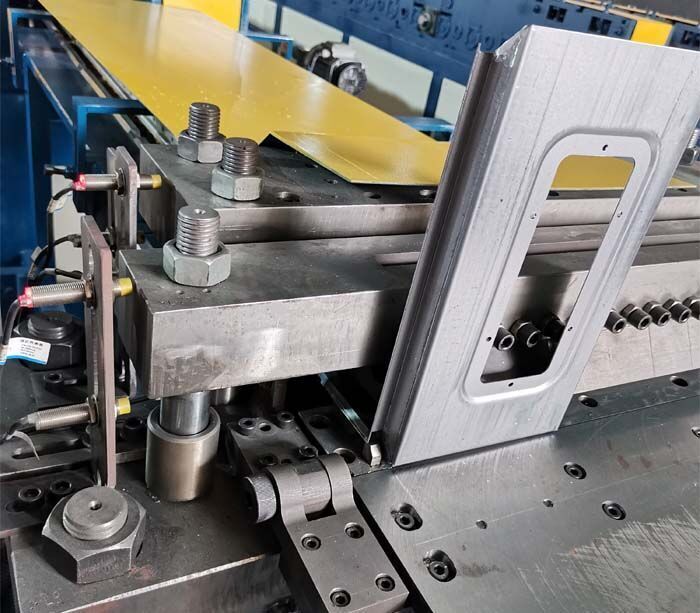

Electrical Panel Board Machine Bending Tooling

Electrical Panel production line technology explaination

This production line is equipment for production of distribution boxes. The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned. After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form. Under the frictional damping action of the forming roller and pressure roller, after entering the bending part at a linear speed of 0-13m, the box is cut and bent as required, and then manually packed away. This production line produces 2-3 enclosures per minute. the production box quantity speed according to different product specifications

2. Forming mainframe: The mainframe base of this production line is welded with 100 * 100 * 3MM square tubes, the frame is integrated with a fixed archway, the side plates are made of 25mm steel plates, and the supporting parts are made of high-quality Taiwan bearings. Twisting up and down adjustment, the host has good rigidity and stable structure.

B: Roller (roller staiton): 16 sets of roller forming, high-quality Gr12 mold steel, HRC up to 58 ~ 60º are processed by precision CNC machine tools, precision is 6 ~ 7, surface roughness is above 0.8, no scratches on the surface.

Egypt Electrical Box Machine main technical parameters

1.Details of accessory brand
