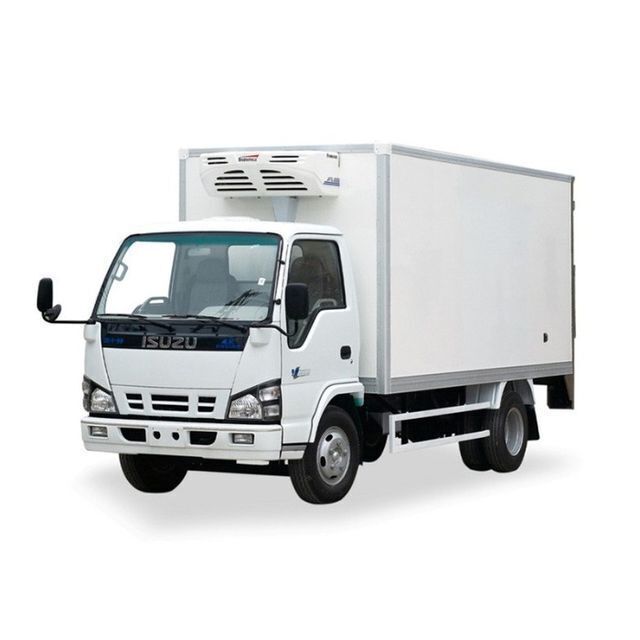

Mini cargo van vehicles refrigerator freezer car 1.5ton refrigerated truck

Supplier: Hubei Xindongri Special Vehicle Co., Ltd.
Region: Hubei, China
Contact: Mr Eric Shen
Price: $5300.00 / 1 - 2 units
$5200.00 / 3 - 4 units
$5100.00 / >=5 units
Min. Order: 1 unit

Click here to contact

Product details

Model:	{-2-{-2-oem odm}};	Horsepower:	150 - 250hp;
Payment Terms:	L/C,T/T;	Fuel Type:	Gasoline;
Engine:	120hp 140hp 160hp 170hp 190hp;	Brand:	FOTON DONGFENG BEIBEN JAC JMC;
Gross Vehicle Weight:	3150;	Certificate:	ISO CCC BV SASO;
Supply Ability:	300 Units per Month;	Emission Standard:	EURO 5;
Chassis Brand:	Dongfeng Foton JAC JMC HOW0;	Brand Name:	oem odm;
Package Preview:	;	Color:	Custom's Requirement;
Place of Origin:	China;	Temperature Range:	optional;
Van Material:	FRP+PU Foam+FRP;	Refrigeration unit:	International Top Brand;
Port:	shanghai;	Box Dimensions (L x W x H) (mm):	optional;
Name:	freezer refrigerated reefer Cold Box Truck;	Packaging Detail:	Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc. and it can be offered according to your request.;
Application:	Transport Freezer Food;	Condition:	New;
Dimensions (L x W x H) (mm):	optional;	Transmission Type:	Automatic;
Other name:	Cold Box Truck;

Specification

Truck Body Details
Truck Body Key Features	Cold King Refrigerator Truck is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Truck Body Outer Size	4.3m(L)x2.0m(W)x2.1m(H)	Truck Body Inner Size	4.13m(L)x1.83m(W)x1.89m(H)
Roof/Floor Panel	105mm Thickness	Side Wall Panel	85mm Thickness
Front Wall Panel	85mm Thickness	Rear Door Panel	85mm Thickness
Panel Structure	All Closed Sandwich	Panel Insulation	FRP + PU Foam + FRP
Side Door Quantity	None, Optional	Side Door Location	None, Optional
Side Door Type	Single/Double Opening	Side Door Size	Customized
Rear Door Type	Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
Multi-Temperature System Type	None, Optional
Front Space Temp.	-25C	Rear Space Temp.	-25C
Partition Wall Panel	None	Partition Wall Door	None
Multi-Temperature Pressure Relief Ventilation			None
Mulit-Temperature Adjusting Ventilation System			None
Truck Body Flooring	Heavy Duty Aluminum Alloy T Type Airflow Flooring
Cargo Control System	None, Optional
Ceiling Light	2 (Two) Sets of 12/24V Multi-Voltage LED	Marker Light	2 Sets Of White LED On Front; 2 Sets Of Red LED On Rear
Ceiling Light Switch	1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch	Insulating Curtain	European Standard -40C PVC Strip Curtain System For Rear Doors
Refrigeration Unit Service Ladder	Stainless Steel	Refrigeration Unit Service Platform	None, Optional
Airflow Flooring	Heavy Duty Aluminum Alloy T Type Airflow Flooring
Rear Door Assembly	Stainles Steel Rear Door Frame With Stainless Steel Lock Sets & Stainless Steel Hinges.
Refrigeration Unit
Refrigeration Unit Brand	ATOP
Refrigeration Unit Model	AT-KLC430
Refrigeration Unit Type	Truck Engine Driven, Split
Refrigerant	HFC R404a
Airflow Volume	1,600m3/h
Refrigeration Capacity (+30C Ambient/Road )	2,000W (@ -18C) 3,300W (@ 0C)
Refrigeration Capacity (+30C Ambient/Standby)	Available Optional
Defrost	Automatic Hot Gas
Compressor
Number of Cylinders	6
Max. Recommended Speed	2,400rpm
Model/Type	5H16 Swash Plate Type
Displacement	162cc
Optional Items
Hydraulic Tail Lift	Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available
Cargo Control System	Smart & customized cargo Loading control system
Meat Hanging System	Heavy duty stainless steel meat hook & aluminum alloy rail for rapid & stable meat transportation
Roll carts	Roll carts for rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of refrigeration truck body.
Multi-Temperature Partition	Multi-temperature purpose longitudinally moveable, insulated transverse partition wall
