Packaging Detail: | 1.Industrial packaging:plastic tube+carton+pallet 2.Commercial packaging:plastic tube+kraft papei+carton+pallet 3.Original packaging+pallet 4.As customer request; | Supply Ability: | 10000 Boxes per Month; |
Model Number: | 6207-2Z 6204-2Z 6206-2Z 6202-2Z; | Service: | OEM; |
Package: | According to customer request; | Product name: | Deep groove ball bearing 6204-2Z; |
Number of Row: | Single row; | Type: | BALL; |
Seals Type: | 2Z; | Cage: | 2Z; |
Precision Rating: | P0 P6 P5 P4 P2; | Payment Terms: | T/T,PAYPAL; |
Lubrication: | Grease; | Seal: | RS 2RS RZ 2RZ OPEN; |
Material: | Chrome Steel; | Place of Origin: | Germany; |
Application: | Machinery; | Feature: | Long Life; |
Bore Size: | 1 - 20 mm; | Port: | qingdao guangzhou shanghai shenzhn; |
Certificate: | ISO9001:2008; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Retail,Construction works ,Energy & Mining; |
Structure: | Deep Groove; |
20*47*14 mm Deep groove ball bearing SKF 6207-2Z 6204-2Z 6206-2Z bearing 6202-2Z SKF
Product Name | 6204-2Z Deep Groove Ball Bearing |
Ability to supply |
We have enough stock to deliver quickly |
d/D/B(mm) |
20*47*14mm |
seal |
open,2Z,RZ,Z,RS,2RS |
Sevice | OEM |
Deep groove ball bearing is one of the most widely used rolling bearings. It is characterized by small friction resistance and high speed. It can be used to bear radial load or combined load of radial and axial at the same time. It can also be used to bear axial load.
1. Deep groove ball bearings are most representative of the rolling bearing, widely used.
2. For high speed or high speed operation, and very durable, without regular maintenance.
3. This kind of bearing friction coefficient is small, extreme high speed, simple structure, low cost, easy to achieve high manufacturing precision.
4. Size range and diverse forms, used in precision instruments, low noise motors, automobiles, motorcycles and general machinery industries, the machinery industry, the most widely used class of bearings.
5. The main radial load, also can withstand a certain amount of axial load.

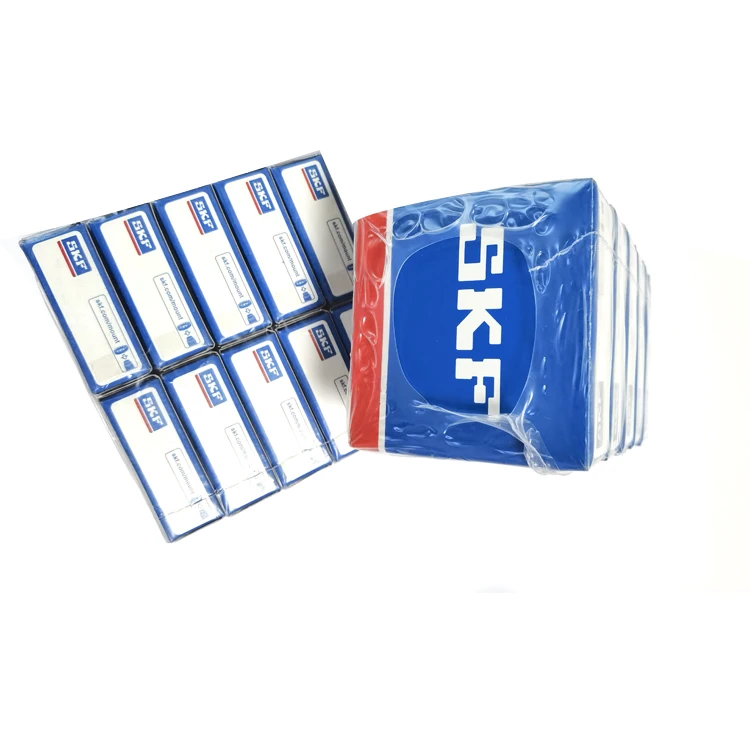

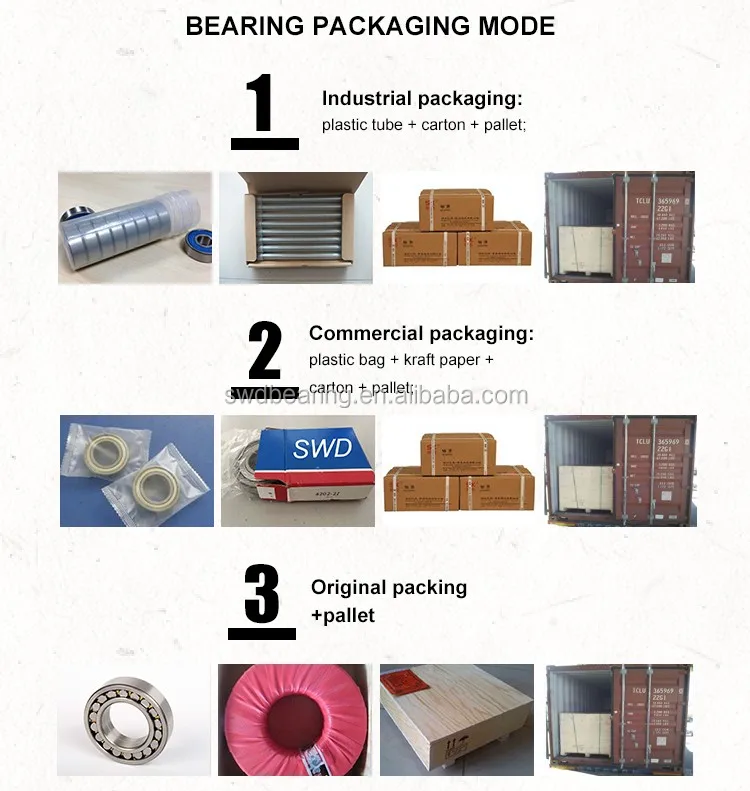

Packing
our packaging is different according to the size of the bearing,
1.Industrial packaging:plastic tube+carton+pallet
2.Commercial packaging:single box
3.Original packaging+pallet
4.As your request.
We have our own R & D capabilities, to help customers solve the problem of standard or non-standard bearings.We can also according to customer requirements change their own mark.more details please see the below,further interested please contact me at any time.
Bearing NO. | Principal dimension | Bearing NO. | Principal dimension | ||||
L.D. | O.D. | Width | I.D. | O.D. | Width | ||
6000-Z/2Z/RS/2RS | 10 | 26 | 8 | 6300-Z/2Z/RS/2RS | 10 | 35 | 11 |
6001-Z/2Z/RS/2RS | 12 | 28 | 8 | 6301-Z/2Z/RS/2RS | 12 | 37 | 12 |
6002-Z/2Z/RS/2RS | 15 | 32 | 9 | 6302-Z/2Z/RS/2RS | 15 | 42 | 13 |
6003-Z/2Z/RS/2RS | 17 | 35 | 10 | 6303-Z/2Z/RS/2RS | 17 | 47 | 14 |
6004-Z/2Z/RS/2RS | 20 | 42 | 12 | 6304-Z/2Z/RS/2RS | 20 | 52 | 15 |
6005-Z/2Z/RS/2RS | 25 | 47 | 12 | 6305-Z/2Z/RS/2RS | 25 | 62 | 17 |
6006-Z/2Z/RS/2RS | 30 | 55 | 13 | 6306-Z/2Z/RS/2RS | 30 | 72 | 19 |
6007-Z/2Z/RS/2RS | 35 | 62 | 14 | 6307-Z/2Z/RS/2RS | 35 | 80 | 21 |
6008-Z/2Z/RS/2RS | 40 | 68 | 15 | 6308-Z/2Z/RS/2RS | 40 | 90 | 23 |
6009-Z/2Z/RS/2RS | 45 | 75 | 16 | 6309-Z/2Z/RS/2RS | 45 | 100 | 25 |
6010-Z/2Z/RS/2RS | 50 | 80 | 16 | 6310-Z/2Z/RS/2RS | 50 | 110 | 27 |
6011-Z/2Z/RS/2RS | 55 | 90 | 18 | 6311-Z/2Z/RS/2RS | 55 | 120 | 29 |
6012-Z/2Z/RS/2RS | 60 | 95 | 18 | 6312-Z/2Z/RS/2RS | 60 | 130 | 31 |
6013-Z/2Z/RS/2RS | 65 | 100 | 18 | 6313-Z/2Z/RS/2RS | 65 | 140 | 33 |
6014-Z/2Z/RS/2RS | 70 | 110 | 20 | 6314-Z/2Z/RS/2RS | 70 | 150 | 35 |
6015-Z/2Z/RS/2RS | 75 | 115 | 20 | 6315-Z/2Z/RS/2RS | 75 | 160 | 37 |
6016-Z/2Z/RS/2RS | 80 | 125 | 22 | 6316-Z/2Z/RS/2RS | 80 | 170 | 39 |
6017-Z/2Z/RS/2RS | 85 | 130 | 22 | 6317-Z/2Z/RS/2RS | 85 | 180 | 41 |
6018-Z/2Z/RS/2RS | 90 | 140 | 24 | 6318-Z/2Z/RS/2RS | 90 | 190 | 43 |
6019-Z/2Z/RS/2RS | 95 | 145 | 24 | 6404-Z/2Z/RS/2RS | 20 | 72 | 19 |
6020-Z/2Z/RS/2RS | 100 | 150 | 24 | 6405-Z/2Z/RS/2RS | 25 | 80 | 21 |
6204-Z/2Z/RS/2RS | 20 | 47 | 14 | 6406-Z/2Z/RS/2RS | 30 | 90 | 23 |
6205-Z/2Z/RS/2RS | 25 | 52 | 15 | 6407-Z/2Z/RS/2RS | 35 | 100 | 25 |
6206-Z/2Z/RS/2RS | 30 | 62 | 16 | 6408-Z/2Z/RS/2RS | 40 | 110 | 27 |
6207-Z/2Z/RS/2RS | 35 | 72 | 17 | 6409-Z/2Z/RS/2RS | 45 | 120 | 29 |
6208-Z/2Z/RS/2RS | 40 | 80 | 18 | 6410-Z/2Z/RS/2RS | 50 | 130 | 31 |
6209-Z/2Z/RS/2RS | 45 | 85 | 19 | 6214-Z/2Z/RS/2RS | 70 | 125 | 24 |
6210-Z/2Z/RS/2RS | 50 | 90 | 20 | 6215-Z/2Z/RS/2RS | 75 | 130 | 25 |
6212-Z/2Z/RS/2RS | 60 | 110 | 22 | 6216-Z/2Z/RS/2RS | 80 | 140 | 26 |
6213-Z/2Z/RS/2RS | 65 | 120 | 23 | 6217-Z/2Z/RS/2RS | 85 | 150 | 28 |
6218-Z/2Z/RS/2RS | 90 | 160 | 30 |
SWD International Trade Co. Ltd., Major in types of bearings. We have our own factory, full automation, professional production, provide all kinds of domestic and imported bearings. Our goods are exported to Europe, America and many countries regions,by the buyer's consistent high praise.We have been in this business filed more than 8 years,Believe in us,We will provide you with the most Professional service!
Q: Are you trading company or manufacturer ?
A:We have our own factory.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A:We have enough stock,so support 1-2 days to deliver goods.
1.We have enough stock to deliver goods quickly.
2.Professional and rich experience in export.We operate bearing products for more than 8 years.
3.High quailty good price.
4.The variety of our products can meet the needs of customers.
5.We focus on our clients, and clients are the first.
6.Purchasing agents for 48 foreign companies in China.
If you are interested in our bearings, please contact me in time.
