Packaging Detail: | original Circuit breake packaging; | device application: | Distribution; |
Poles Number: | 3; | breaking capacity code: | F AC; |
Model Number: | LV432876; | Frequency: | 50/60Hz; |
Serial: | Compact breaker; | Style: | circuit breaker; |
Name: | Compact NSX; | Type: | NSX630F Mic2.3,MCCB; |
rated current: | 100 A ( 40 °C ); | rated operational voltage: | 690 V AC 50/60 Hz; |
Single gross weight: | 6.200 KG; | Certificate: | CCC,IEC; |
Place of Origin: | China; | Brand Name: | Merlin Compact NSX; |
Package Preview: | ; | Selling Units: | Single item; |
Single package size: | 28X16X13 cm; |

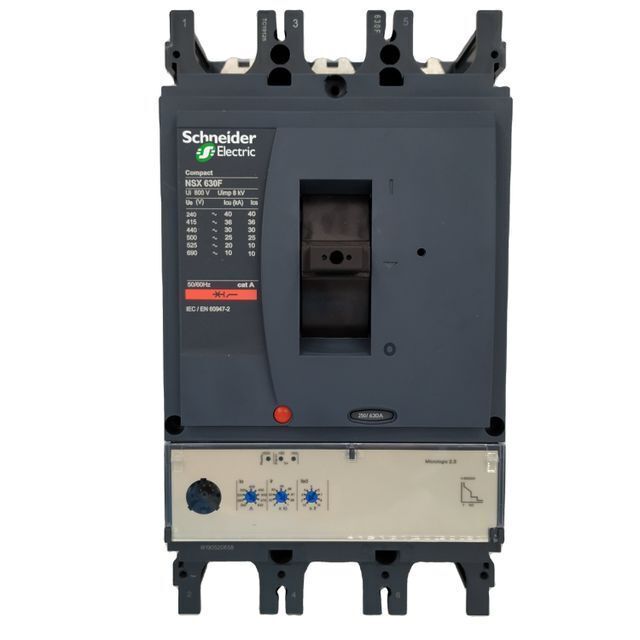

Compact Circuit breaker NSX400/630F LV432876 NSX630F - Micrologic 2.3 - 630 A - 3 poles 3d
Main
range |
Compact
|
|
---|---|---|
product name |
Compact NSX
|
|
product or component type |
Circuit breaker
|
|
device short name |
Compact NSX630F
|
|
device application |
Distribution
|
|
poles description |
3P
|
|
protected poles description |
3t
|
|
network type |
AC
|
|
network frequency |
50/60 Hz
|
|
[In] rated current |
630 A ( 40 °C )
|
|
[Ui] rated insulation voltage |
800 V AC 50/60 Hz
|
|
[Uimp] rated impulse withstand voltage |
8 kV
|
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
breaking capacity code |
F (36 kA) AC
|
|
breaking capacity |
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 600 V AC 50/60 Hz conforming to UL 508 35 kA at 480 V AC 50/60 Hz conforming to UL 508 85 kA at 240 V AC 50/60 Hz conforming to UL 508 |
|
[Ics] rated service breaking capacity |
Ics 10 kA 525 V AC 50/60 Hz conforming to IEC 60947-2
Ics 10 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2 Ics 25 kA 500 V AC 50/60 Hz conforming to IEC 60947-2 Ics 30 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 Ics 36 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 Ics 40 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
|
suitability for isolation |
Yes conforming to EN 60947-2
Yes conforming to IEC 60947-2 |
|
utilisation category |
Category A
|
|
trip unit name |
Micrologic 2.3
|
|
trip unit technology |
Electronic
|
|
trip unit protection functions |
LSoI
|
|
trip unit rating |
630 A ( 40 °C )
|
|
protection type |
Overload protection (long time) L
Short time short-circuit protection with fixed delay So Instantaneous short-circuit protection I |
|
pollution degree |
3 conforming to IEC 60664-1
|
Complementary
control type |
Toggle
|
|
---|---|---|
mounting mode |
Fixed
|
|
mounting support |
Backplate
|
|
upside connection |
Front
|
|
downside connection |
Front
|
|
auxiliary contact composition |
Without
|
|
mechanical durability |
15000 cycles
|
|
electrical durability |
2000 cycles 690 V In conforming to IEC 60947-2
4000 cycles 440 V In conforming to IEC 60947-2 6000 cycles 690 V In/2 conforming to IEC 60947-2 8000 cycles 440 V In/2 conforming to IEC 60947-2 |
|
connection pitch |
45 mm
|
|
local signalling |
LED 105 % Ir
LED ready LED 90 % Ir |
|
long time pick-up adjustment type Ir |
Adjustable 9 settings
|
|
long time pick-up adjustment range |
0.9...1 x Io
|
|
long time delay adjustment type |
Fixed
|
|
[tr] long-time delay adjustment range |
16 s 6 x Ir
|
|
thermal memory |
20 minutes before and after tripping
|
|
short-time pick-up adjustment type Isd |
Adjustable 9 settings
|
|
[Isd] short-time pick-up adjustment range |
1.5...10 x Ir
|
|
short-time delay adjustment type |
Fixed
|
|
instantaneous pick-up adjustment type Ii |
Fixed
|
|
instantaneous pick-up adjustment range |
6900 A
|
|
height |
255 mm
|
|
width |
140 mm
|
|
depth |
110 mm
|
|
product weight |
6.2 kg
|
Environment
overvoltage category |
Class II
|
|
---|---|---|
electrical shock protection class |
Class II
|
|
standards |
EN/IEC 60947
UL 508 |
|
product certifications |
Marine
CCC EAC |
|
IP degree of protection |
IP40 conforming to IEC 60529
|
|
IK degree of protection |
IK07 conforming to IEC 62262
|
|
ambient air temperature for operation |
-35...70 °C
|
|
ambient air temperature for storage |
-55...85 °C
|
Offer Sustainability
Sustainable offer status |
Green Premium product
|
|
---|---|---|
RoHS (date code: YYWW) |
Schneider Electric declaration of conformity
|
|
REACh |
Reference not containing SVHC above the threshold
|
|
Product environmental profile |
Product Environmental Profile
|
|
Product end of life instructions |
End of Life Information
|
Contractual warranty
Warranty period |
18 months
|
---|
