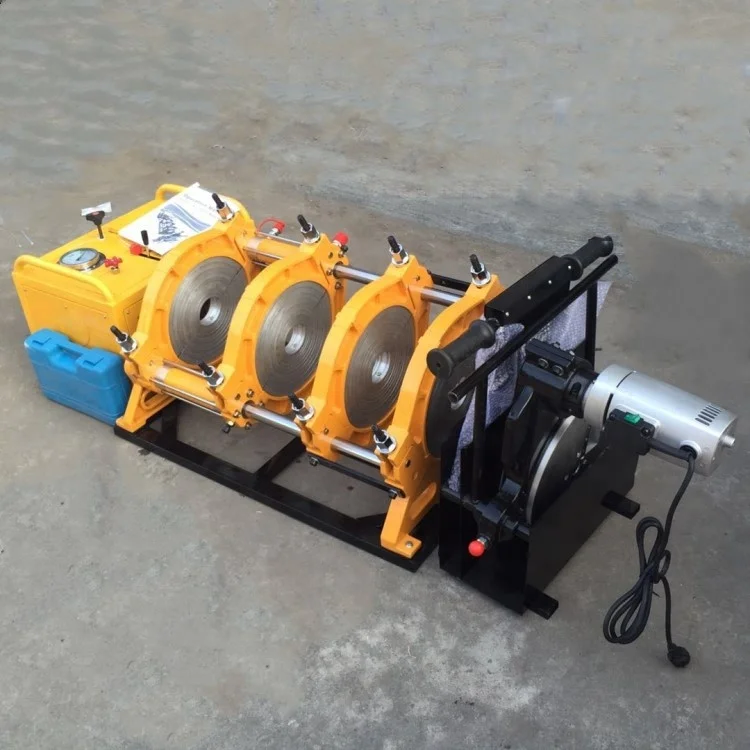

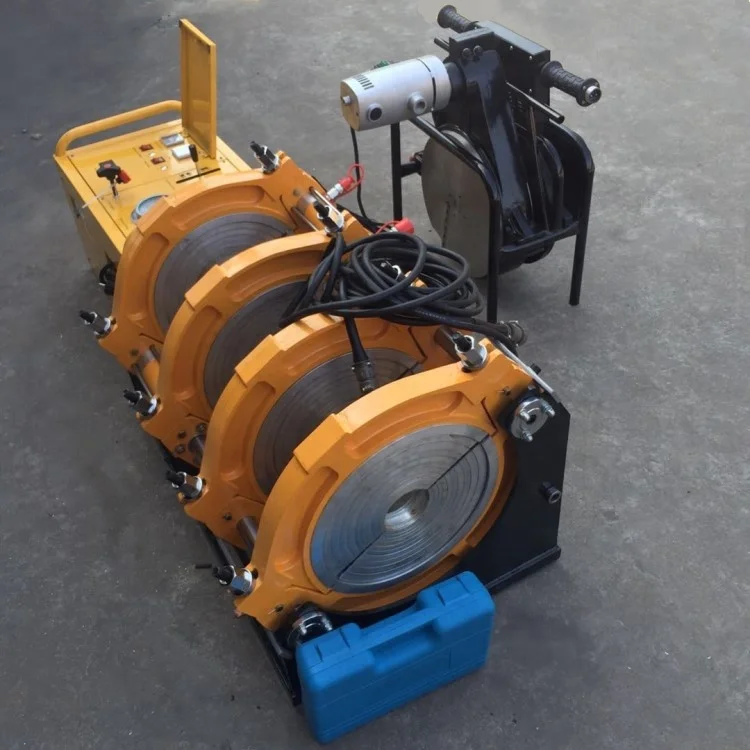

SH90 - 355 hdpe plastic pipe hydraulic butt fusion welding machine

Product details
logo:can be OEM;Certification:CE ISO;
Dimensions:1045*710*675;Name:Plastic pipe Butt Welding Machine;
Weight:105kg;Supply Ability:200 Box/Boxes per Month;
Port:Shanghai or ningbo;Color:Customer's Requirement;
Packaging Detail:Custom wooden box;Condition:New;
Usage:Butt Welding;Place of Origin:Zhejiang China (Mainland);
Welding range:Plastic Pipes: (90-355mm);Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
After-sales Service Provided:No overseas service provided;Power:4.85kw;
Brand Name:suhanhuang;Current:22.5A;
Input Voltage:220V;



 SH63-160 hdpe plastic pipe welding machine



 Product Description

1.Suitable for welding of plastic pipes and fittings made from PE,PP&PVDF.

2.Be made of aluminum material.

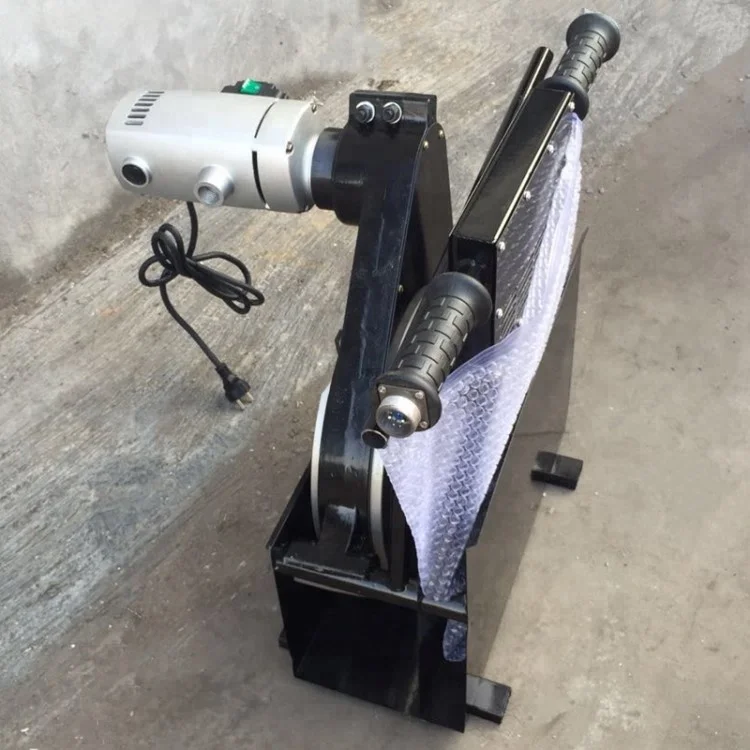

3.Consists of Planning Tool, Heating Plate, Basic Frame and Support.
4.Digital Heating Plate.



Specification



Model SH690-355
Welding Range(mm)(90.110.125.140.160.180.200.225.250.280.315)
Heating Plate Max.Tep.300℃
Temp. Deviation in surface≤+5℃
Woking voltage220V 50HZ
Heating Plate Power3KW
Planning Tool Power

1.1KW

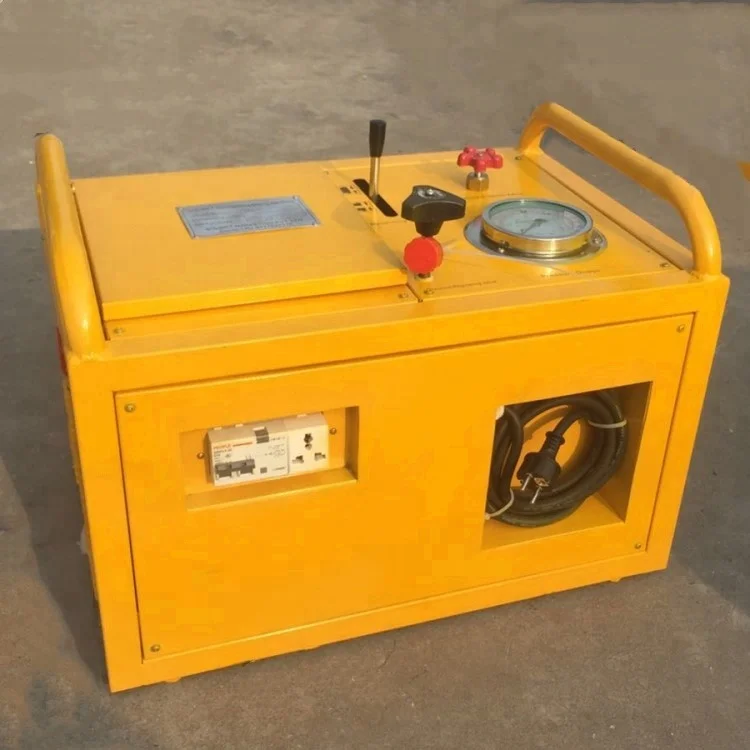

Hydraulic station0.75
Total Power4.85KW
Pressure Adjustable Ranges0-6.3MPa
Weight210KG
Volume0.38M³





Our Services
1.Sample Services:
Our factory can offer the samples before customers big orders,but customers need pay the samples cost and transport charges.
2.Products Services:
butt fusion welding machine we produce as flows:
1. Manual HDPE butt fusion welding machine from 63mm to 250mm for HDPE pipe.
2. Hydraulic HDPE butt fusion welding machine from 63mm to 1600mm for HDPE pipe.
3. Pipe cutting saws from 0mm to 1600mm for HDPE pipe.
4. Workshop HDPE Fitting machine from 90mm to 1600mm.
FAQ
Why choose us?
1. Genuine produces with excellent quality and competitive price
2. Cooperating with the customers all over the world and knowing the markets very well.
3. After-services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Why our price very stable and competitive?
1.Our factory have ourselves meltshop, most parts of the body machines from ourselves factory, save the cost.
2. We have some big customers from Southeast Asia market and Russia market,every mouth have the stable machines export, keep our value of exports.

We can supply many types of HDPE Pipe Welding Machine, each type of HDPE Pipe Welding Machine has good quality and quick efficiency.

If you have any question, please contact us as your convenience.
Company Information
Zhuji Hanhuang Hardware Electrical Equipment Factory is professional manufacture the field welding machines, automatic hdpe butt fusion welding machine, workshop welding machines,automatic plastic sheet welding machine, automatic plastic plate cutting saw,cnc router, automatic plastic bending machine and so on. We can design and produce the machines according to customers inquiry. In automatic plastic sheet butt fusion welding machine series productions,we have 5years old manufacture experience, and have a mature technology terms. Also in field welding machines series,we also in this line about 5years old. Welcome to visit and inquiry !
