Q37 Spinner Single Or Double Hanger Hook Cleaning Type Equipment Shot Blaster Abrator Shot Blasting Machine

Supplier: Qingdao Hezhi Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Zhang
Price: $3400.00 / 1 - 2 sets
$2800.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Power:	Min 19kw / customise;	Blast chamber:	10mm shell &10mm Mn Alloy liner;
After Warranty Service:	Video technical support / Online support;	Key Selling Points:	High Quality, Factory Price,Complete Service System;
Machinery Test Report:	Provided;	Marketing Type:	New Product 2020;
Fuel:	Electric;	Certification:	ce / ISO;
Core Components:	PLC,Engine,Gearbox,Motor,Gear,Pump;	Control type:	Famous brand PLC full automatic control;
Warranty of core components:	1 Year;	Blast wheel:	1-8 Wheels or Customized;
Dust Collector:	Cartridge/Bag type filter pulse reverse;	Warranty:	1 Year;
Weight (KG):	600 KG;	Dimension(LWH):	Min4.42.93.5m/ Customise;
Port:	Qingdao /Ningbo/Tianjin/Shenzhen/Shanghai;	Machine Type:	Abrator;
Hanger type:	Single hanger / Double Hangers;	Place of Origin:	Shandong, China;
Advantages:	1.Various for plate,beam,pipe,sheet 2.Fully Automatic;	Surface finish level:	SA2.5 to SA3.0;
Supply Ability:	25 Sets per Month;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Construction works ,Energy & Mining,Foundry Casting indusctry,Auto parts cleaning;
Spare parts:	Chrome&Mn Alloy Standard Part;	Cleaning Type:	Wheel Blasting / Shot blasting By abrator;
Use:	Metal Cleaning / Paint cleaning / Rust removing;	Brand Name:	Hezhi;
Video outgoing-inspection:	Provided;	Cleaning Process:	Steel Shot / Grits / Cut Wire /Stainless Steel;
Material:	Metal / Coil;	Showroom Location:	None;
Package Preview:	;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,for spinner hanger hook shot blasting machine;
Packaging Detail:	in Container for spinner hanger hook shot blasting machine;	Condition:	New;

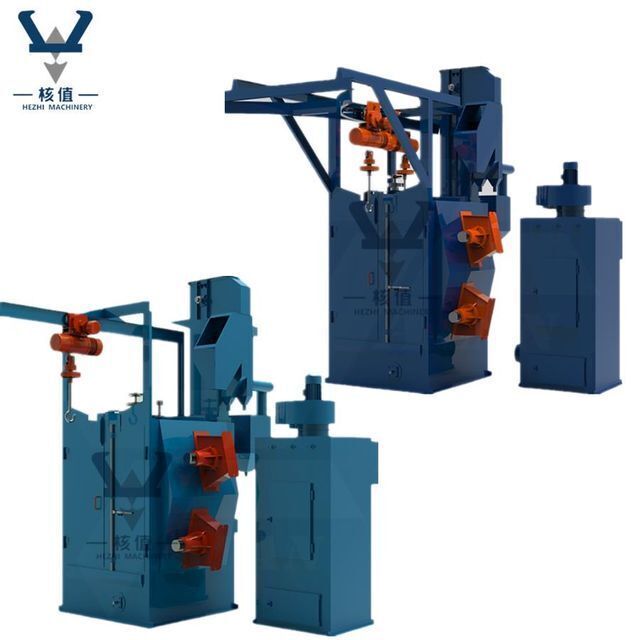

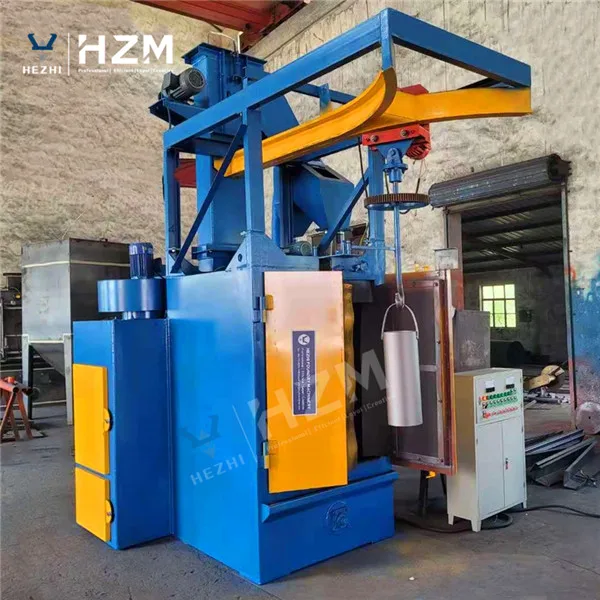

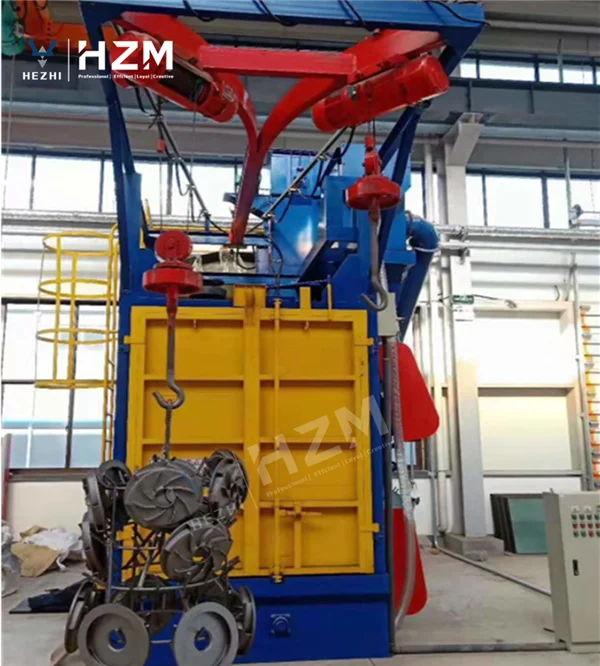

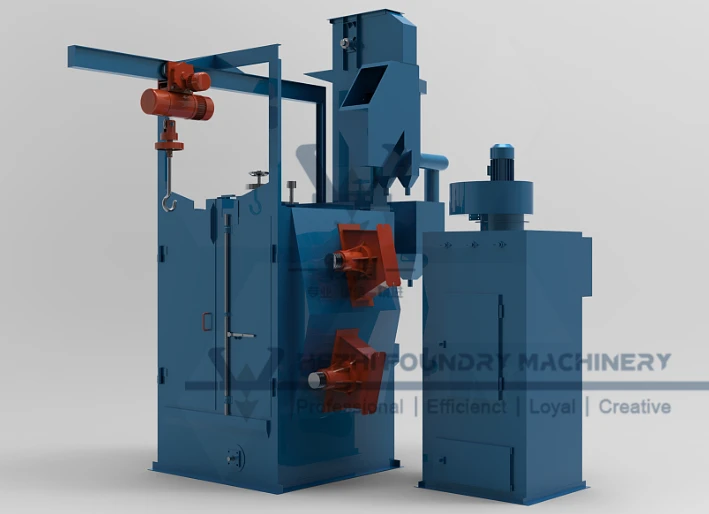

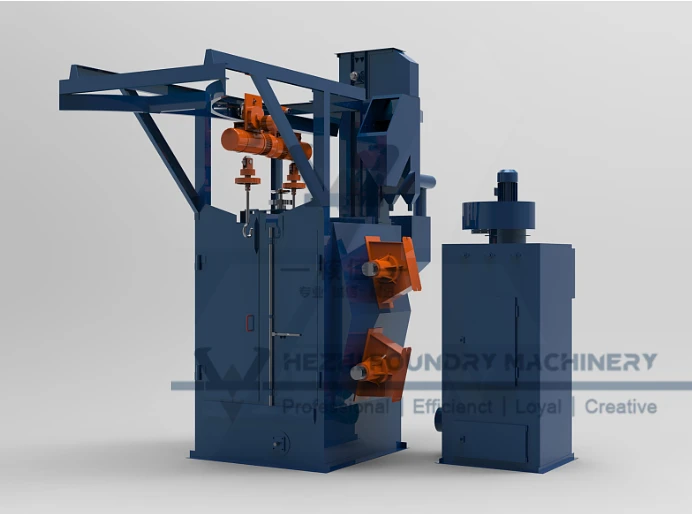

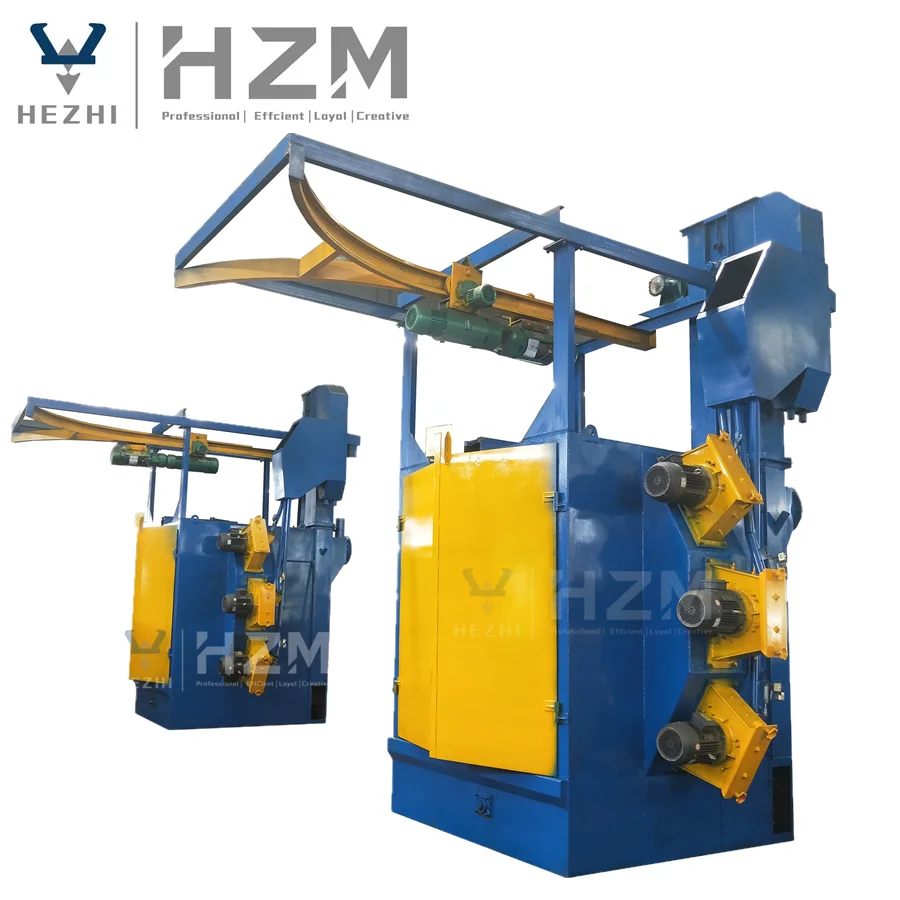

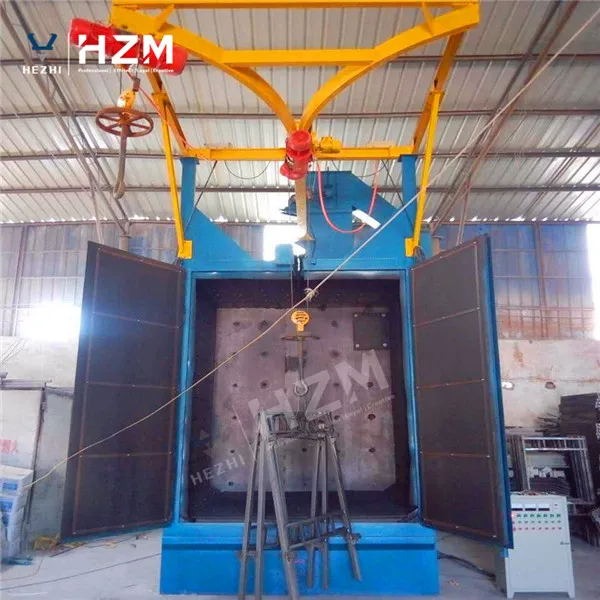

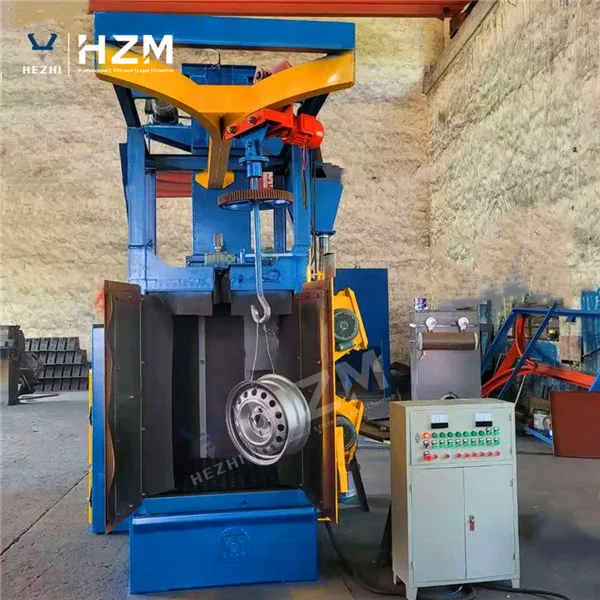

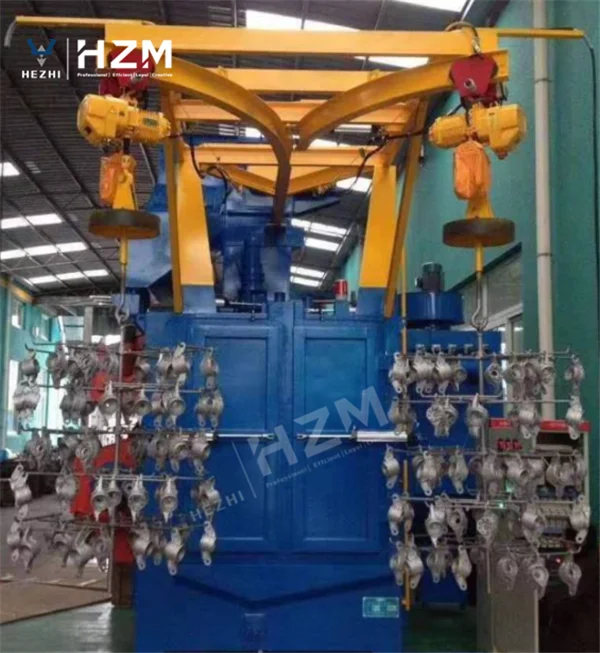

Single Hanger shot blaster ↑ Double Hangers shot blaster ↑

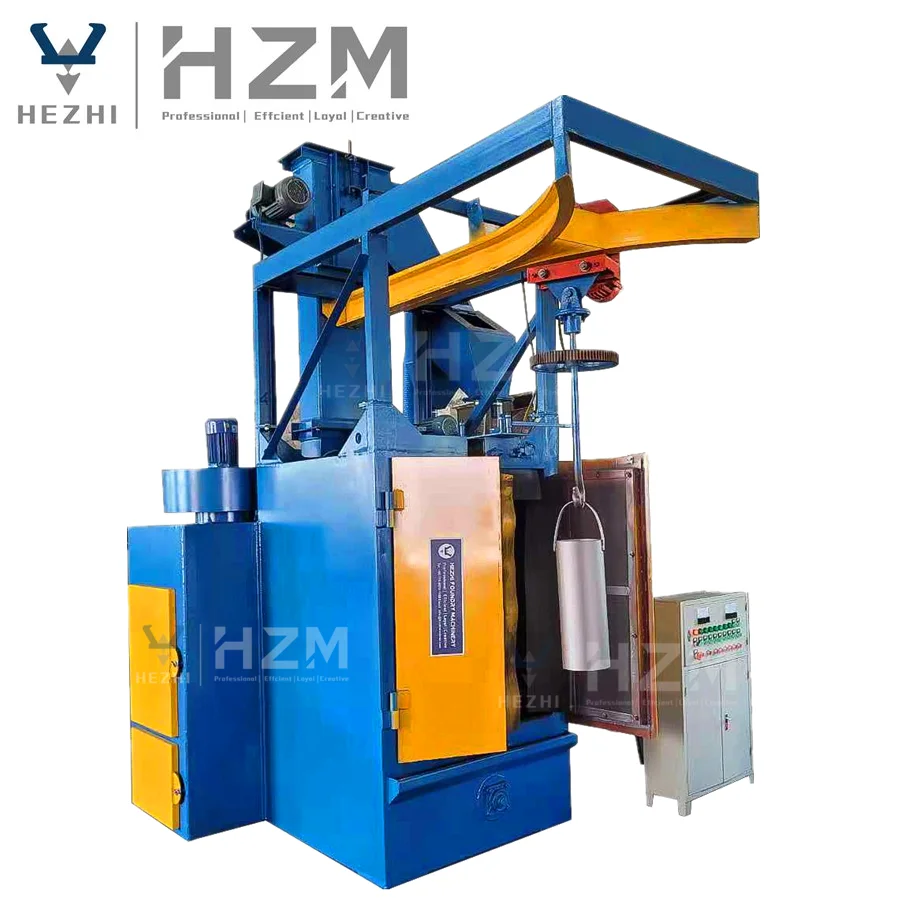

Spinner Double Hanger Hook Type Shot Blasting Machine is blast cleaning equipment for casting parts, forging parts and small fabricated metal work pieces. Bigger work pieces can be put on hanger hook uniquely. Smaller work pieces will be put on special tooling and then put on hanger hooks. After loading work pieces, hanger hooks will be driven into blasting chamber along T or Y overhead rails.

Work pieces are rotating in blasting chamber to get steel shot impact from blasting wheels mounted on one side chamber wall. The other side of chamber wall is called hot area because it get strong abrasive flow.

Hot area is protected by Mn alloy liners. After 3-5 min blast cleaning, work pieces will go out along T or Y overhead rails.

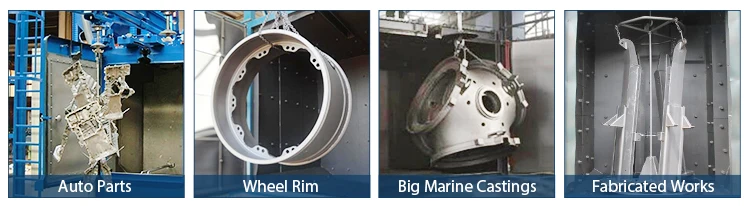

The Spinner double hanger hook type shot blaster machine is for surface cleaning or strengthening treatment of small castings,forging parts in industry of foundry, building, chemical, motor, machine tool etc. It is special for surface cleaning and blasting strengthening on various types, smallproduction castings, forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wall parts which is not suitable for impact.

Model	Q376	Q3710	Q3720	Q3730	Q3750
Work piece (mm)	φ700x1100	φ900x1600	φ1400x2300	φ1600x2200	φ1800x2500
Max weight	0.5t	1t	2t	3t	5t
Wheels QTY	2	2	3	3	4
Blast capacity	2x120kg/s	2 x250kg/s	3 x250kg/s	3x250kg/s	4 x250kg/s
Air volume	5000 m3/min	9000 m3/min	15000 m3/min	15000 m3/min	18000 m3/min
Power	19kw	36.5kw	61.3kw	64.4kw	78.4kw
Dimension	4.4×2.9×3.5m	5×3.9×5.2m	6.1×3.6×7.9m	7.1×4.7×8.7m	8×5.5×8.7m
Customized any kinds of shot blasting machine according to your detail requests Smallest All -in -one compact model s available.

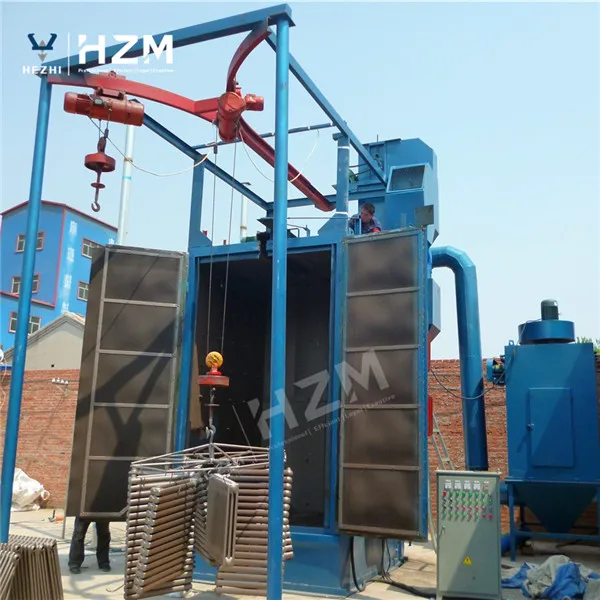

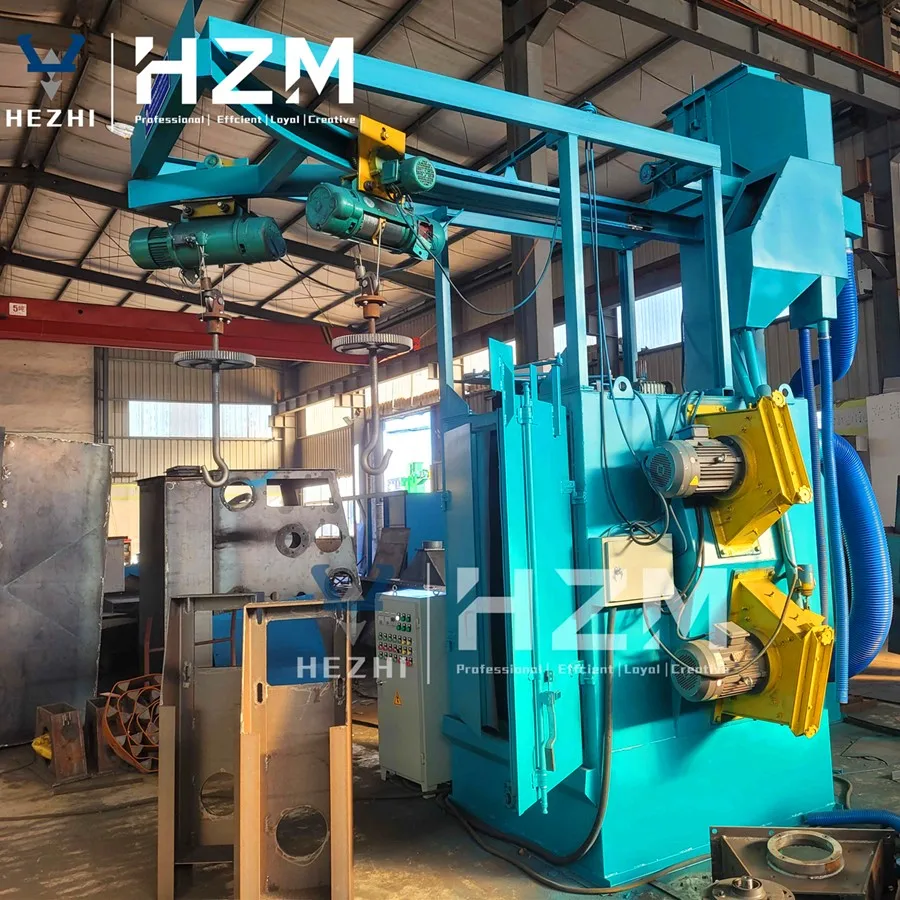

Spinner Hanger Hook System

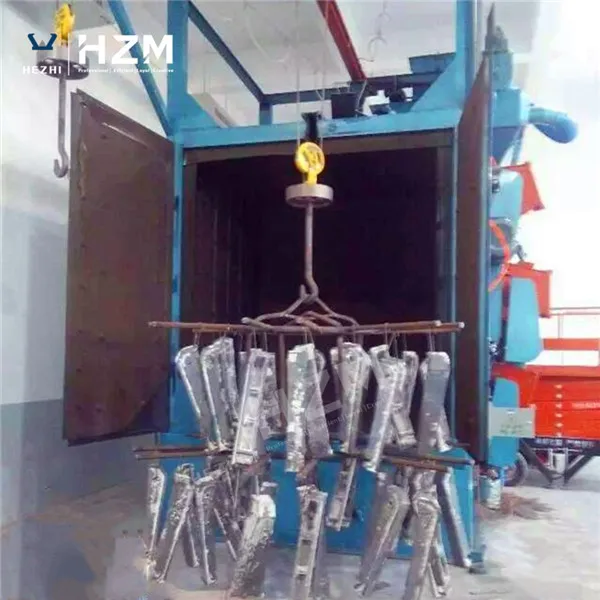

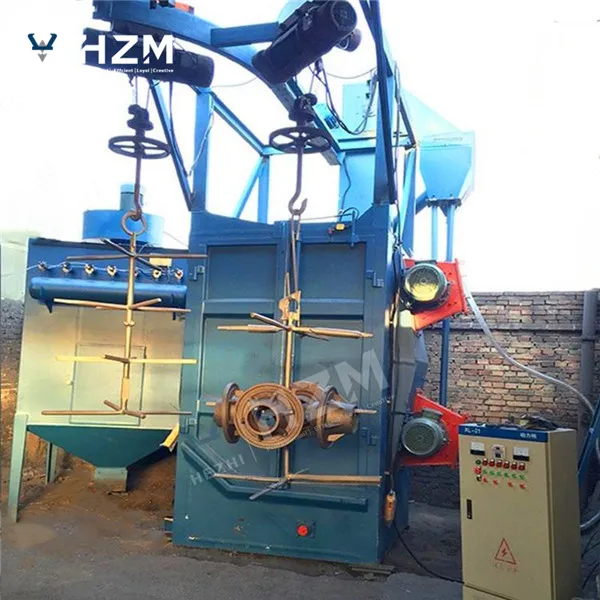

Spinner Hanger Hook: To hang work pieces or tooling
Driving Motor: To drive spinner hanger hooks to rotate&move along rails into or out.

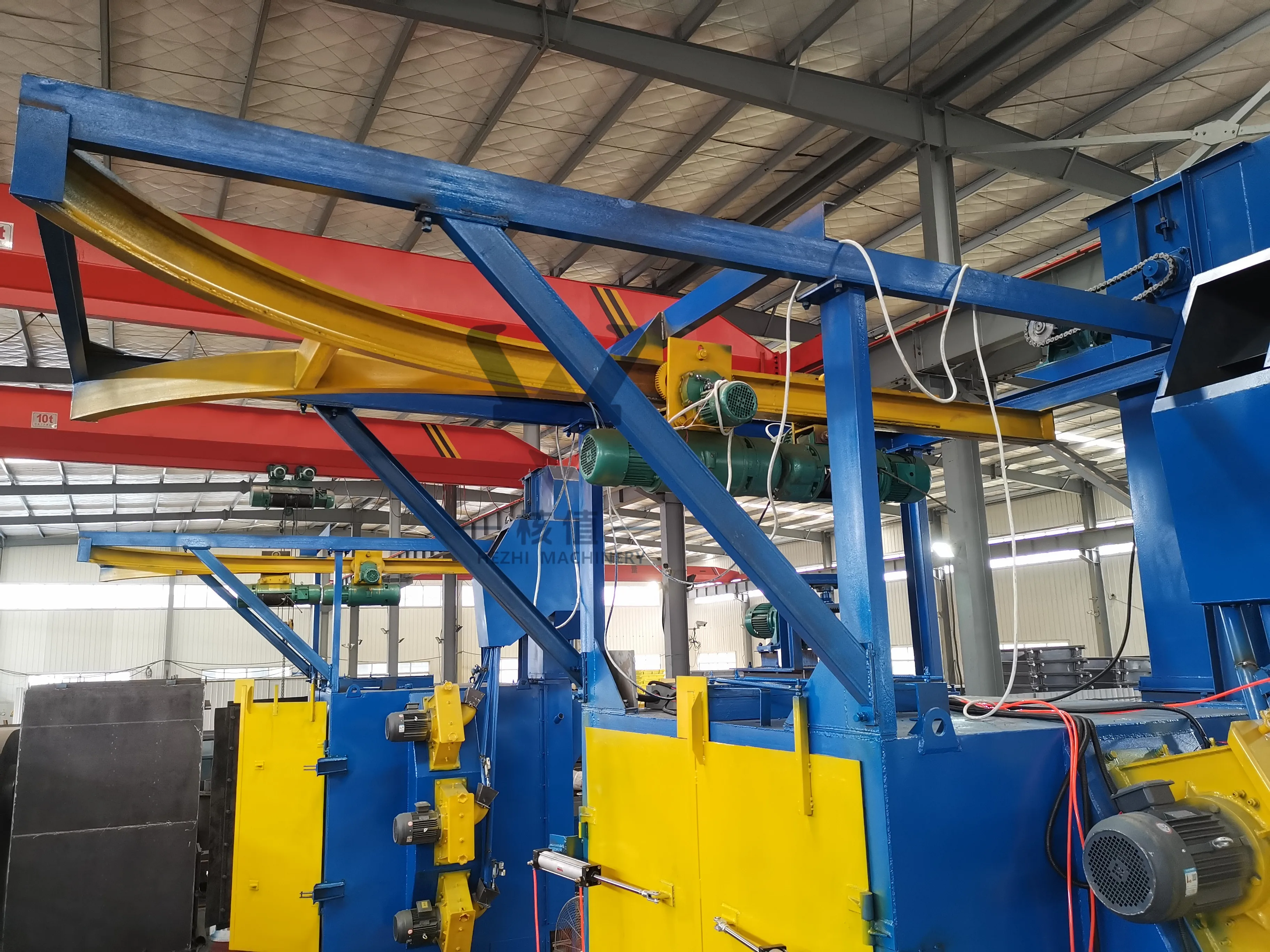

Overhead Rails: T shaped is for one hook and Y shaped is for two hooks
Rotating & Blasting Time: 3-5 minutes according to different work pieces

Blasting Chamber

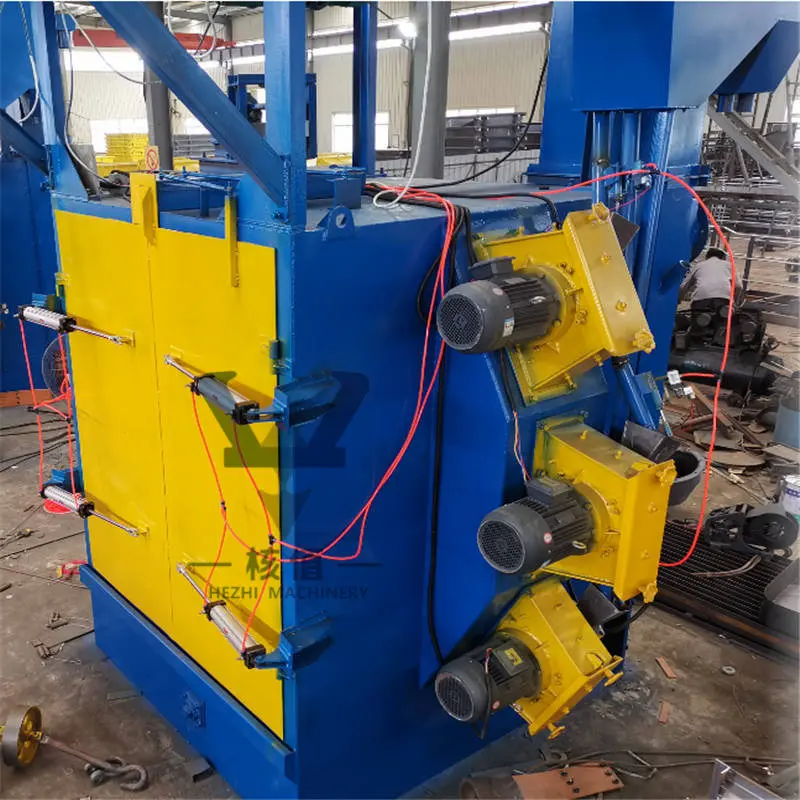

Blasting Wheels: Mounted on left side wall of blasting chamber. Angle will be customized accordingly

Hot Area: Right inside of blasting chamber is hot area protected by Mn alloy liners.

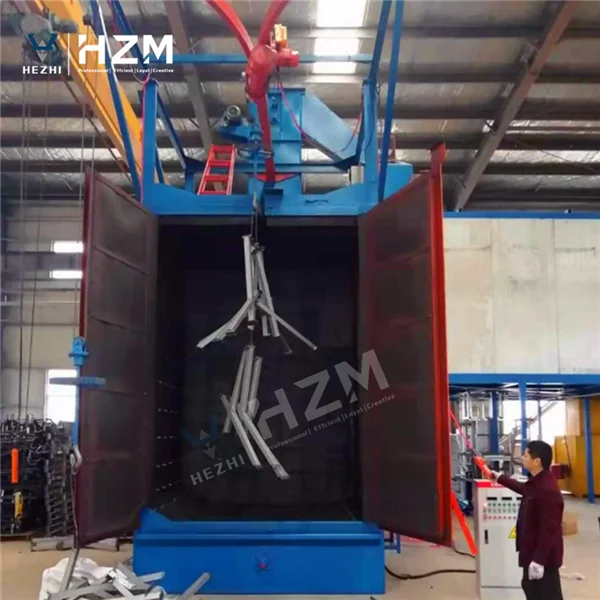

Doors: Manual or pneumatic type

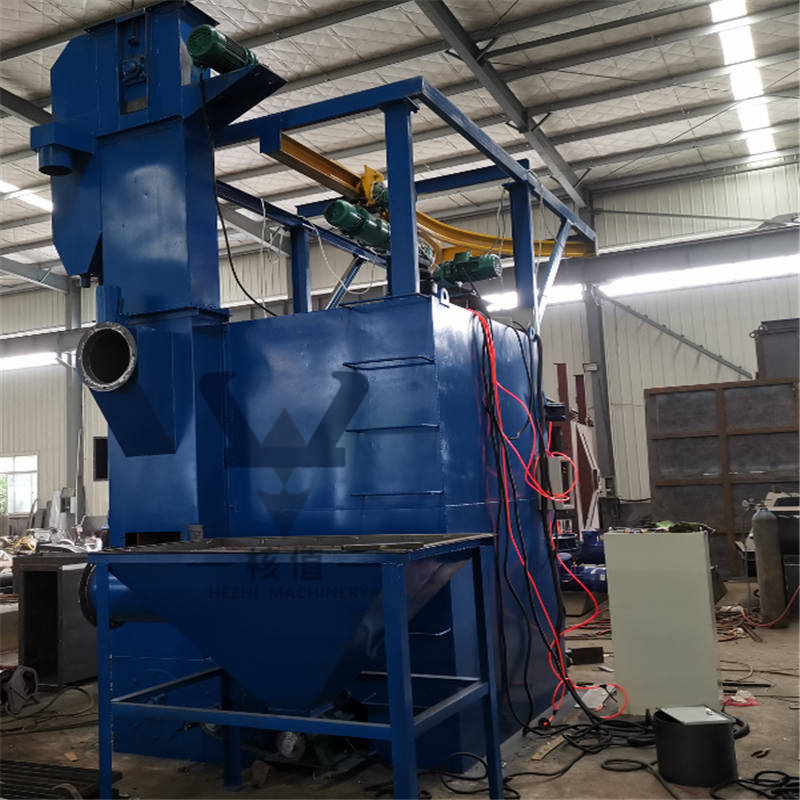

Abrasive Recycling System

Screw Conveyor: Mounted at basting chamber bottom to collect used steel shots and deliver to bucket elevator.

Bucket Elevator: To lift up used steel shots to separator.
Separator:To separator qualified steel shots and grits by screen filtering& ventilation filtering.

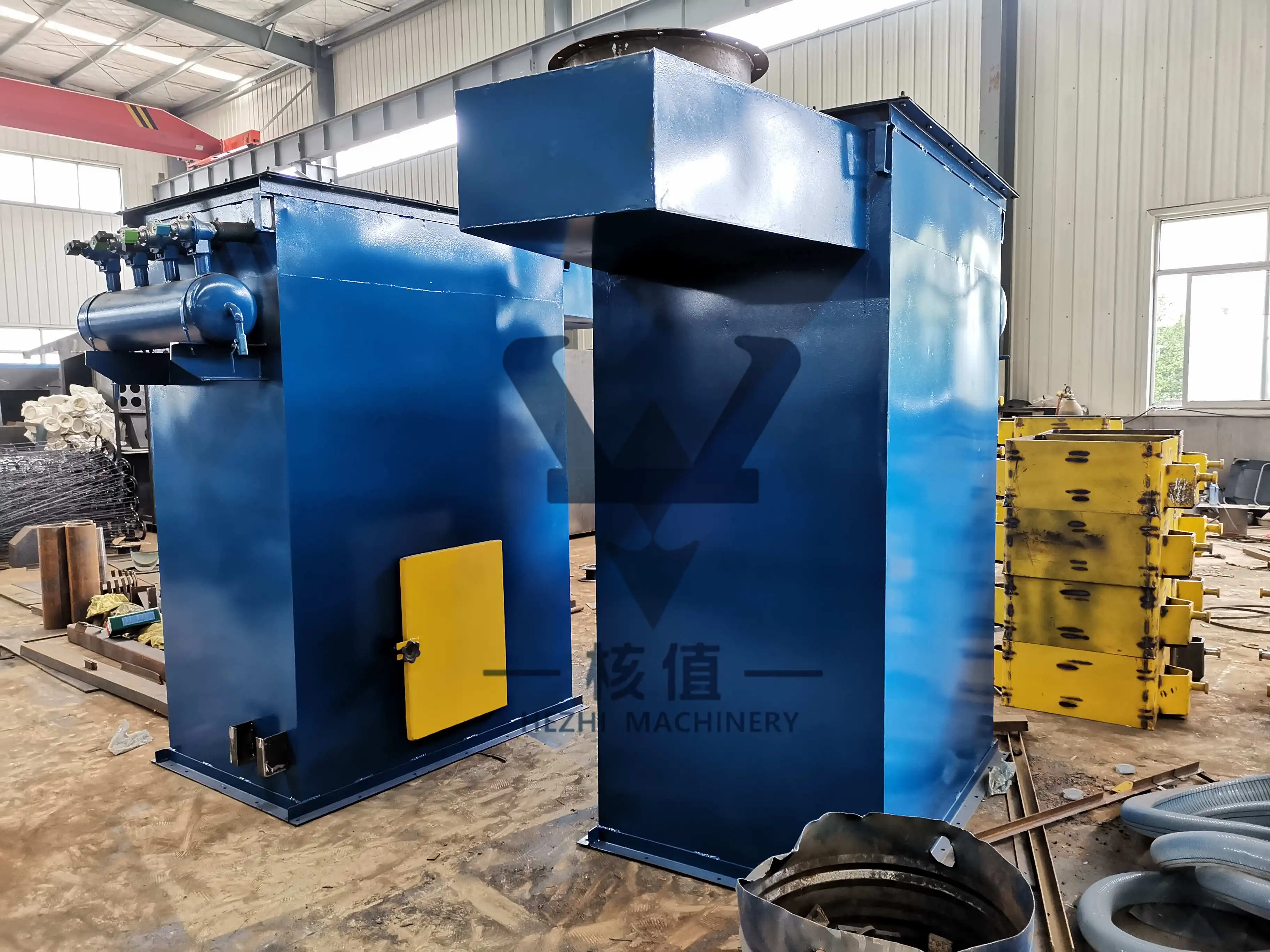

Dust Collection System

Fan: Suck dust from blasting chamber through pipes.

Gravity Dust Collector: Catch big particle size dust by gravity as first sate dust collection.
Dust Collection: Bag type & cartridge type according to different filters.

Efficiency: 99.9%

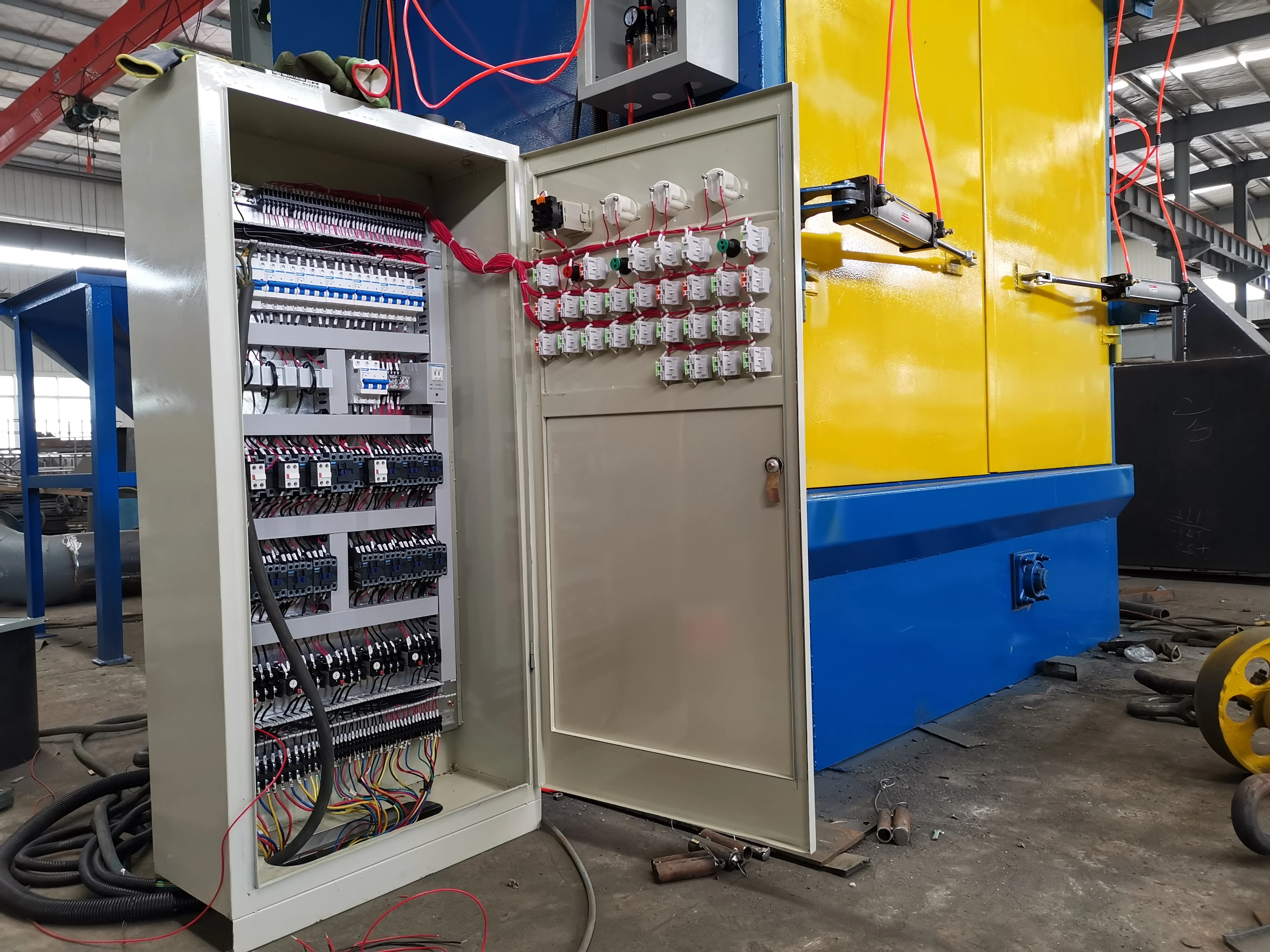

Electric Control System

Model: Automatic ( manual type is available).

Control Unit: PLC.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel.

Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.

We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.

Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.

Choose Hezhi,Get factory price and reliable shot blasting Machinery!
